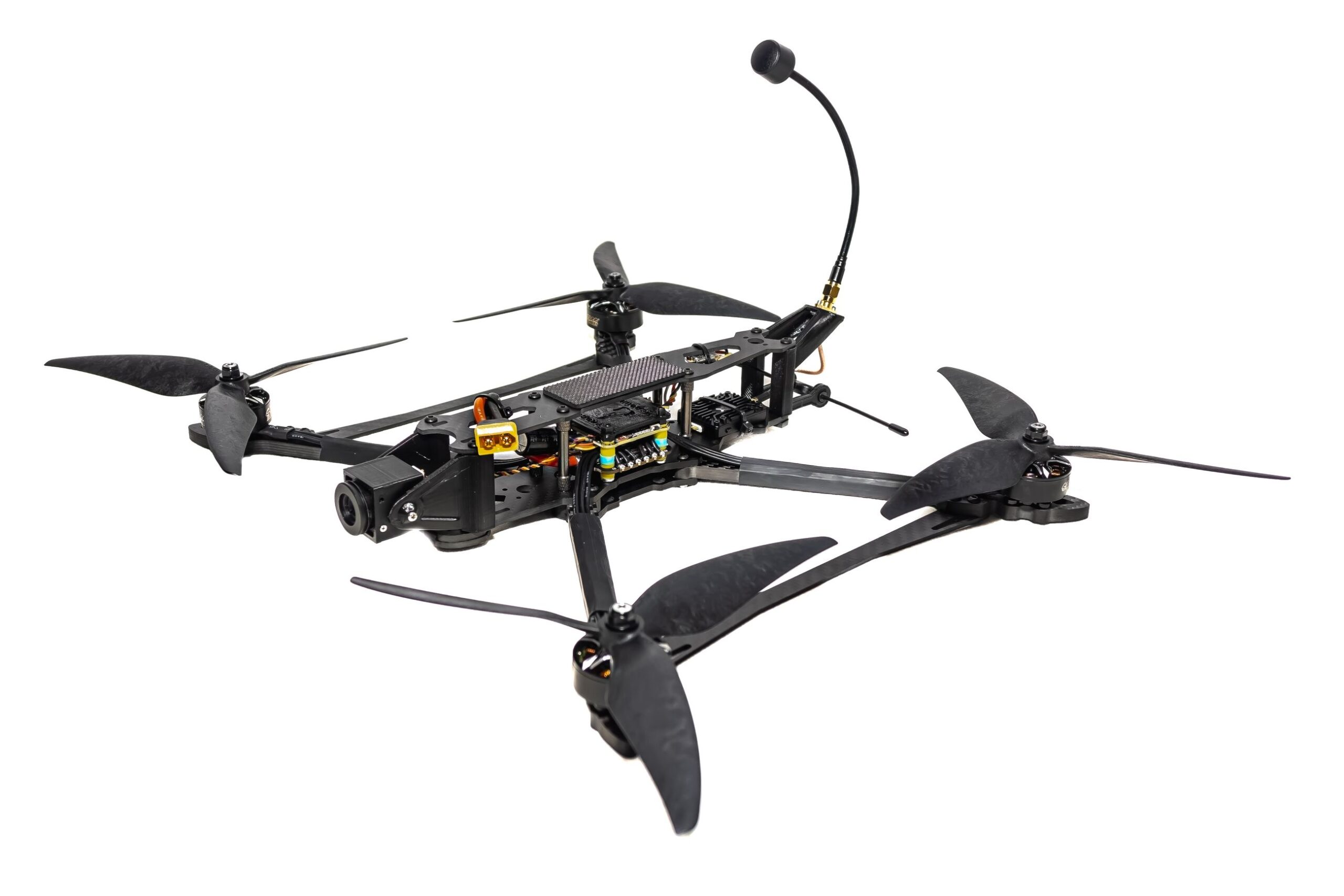

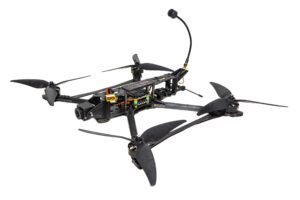

8-Inch FPV Strike Drone (Loitering Munition)
Product descripton: 8-Inch FPV Strike Drone (Loitering Munition) by General Cherry
The 8-Inch FPV Strike Drone is a powerful Ukrainian-developed loitering munition designed for precise kamikaze missions against high-value targets. Built on the robust Mark 4 V2 airframe, it features an 8-inch tri-blade propeller system and supports a variety of payload configurations, including thermal infrared, twilight, and daylight cameras for day/night target engagement. With rapid deployment capabilities, an extended tactical range of up to 17 km, and real-time video transmission over secured bands, this drone is optimized for operations in dynamic battlefield environments. Its high-speed performance (up to 145 km/h) and advanced radio systems (ELRS, video downlink, and telemetry) ensure mission success even in contested airspace.
Technical specifications
| Parameter | Value |
|---|---|
| Type | Loitering Munition / FPV Kamikaze Drone |
| Propellers | 8×4×3 tri-blade |
| Frame | Mark 4 V2 |
| Motors | 2812, 1100 KV |
| Flight Controller (FC) | F405, 55A |
| Battery Options | 6s2p (8400 mAh) / 6s3p (12000 mAh) / no battery (optional) |
| Max Flight Time | Up to 20 minutes |
| Max Speed | 145 km/h |
| Cruising Speed | Not specified |
| Max Altitude | 700 m |
| Tactical Range | Up to 17 km |
| Control Protocol | ExpressLRS (433 MHz or 915 MHz, switchable ranges: 200–500 / 700–1020 MHz) |
| Control Frequency | 960–1000 MHz / 735–790 MHz / 868–915 MHz |
| Video Link Frequency | 5.6–5.9 GHz; 5.8–4.9 GHz; 2.5W, L and X bands |
| Telemetry | ELRS-compatible |
| Video Antenna | 1× RHCP, 150 mm |
| Target Visibility Range | 650–725 m |
| Deployment Time | Not specified |
| Max Takeoff Weight (MTOW) | Not specified |
| Payload Capacity | Not specified (dependent on configuration) |
| Camera Options | Thermal Infrared / Twilight / Daylight |
