ALPAGU

Fixed Wing Loitering Munition System

Product descripton: ALPAGU by STM (Savunma Teknolojileri Mühendislik)

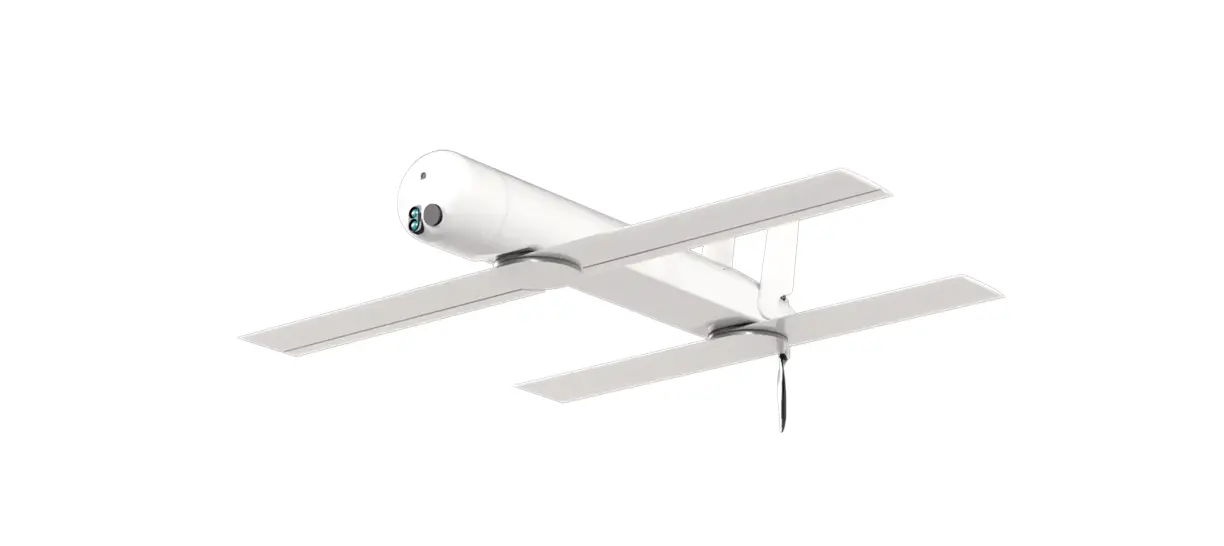

ALPAGU Fixed-Wing Autonomous Tactical Attack UAV is designed for both reconnaissance and surveillance and for striking targets outside the line of sight with high accuracy, can be carried by a single soldier, and can operate autonomously or with remote control.

ALPAGU can be effectively used day and night against fixed or moving targets with the help of embedded and real-time image processing and deep learning algorithms that we have developed with national facilities.

ALPAGU is designed to be extremely lightweight and ergonomic thanks to its composite body and avionics architecture. The system conducts fully autonomous navigation through its mission computer and flight control system developed by STM, while target detection and engagement are carried out entirely under operator control, following the “Man-in-the-Loop” principle.

Equipped with wide-angle, integrated imaging systems, ALPAGU is capable of operating effectively both day and night.

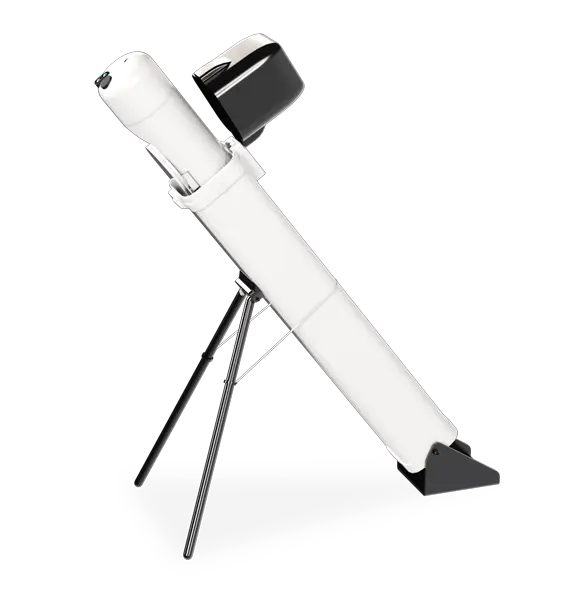

The system is comprised of “Fixed-Wing Smart Ammunition System”, Launcher” and “Ground Control Station” components.



Technical specifications

Parameter Specification
Wingspan 883 mm
Diameter 105 mm
Length 653 mm
Weight 1,950 g
Endurance 15 min
Control Distance 8 km (LOS)
Vision EO/IR Camera
Flight Altitude 80–200 m (AGL)
Cruise Speed 20 m/s
Warhead 270 g

Capabilities

  • Reliable Day and Night Operation

  • Ultra-Lightweight Design (Under 2 kg)

  • Precision Strikes

  • Low Radar Cross-Section Platform Design

  • High Performance Navigation, Flight Control and Guidance Algorithms

  • Deployable and Operable by Single Soldier

  • Mission Abort and Emergency Modes

  • Advanced Electronic Ammunition Safety, Setup and Trigger Systems

  • Indigenous Embedded Hardware and Software

  • Wide Lateral View Angle

  • Image Processing-Based Control Applications

Ground Control Unit

  • Operation Type: Mobile

  • Display: Rugged high-precision touchscreen

  • Sunlight Readability: Available

  • Military Environmental Qualification: MIL-STD-810G

  • Water and Dust Resistance: Available

  • Operating Time: 2 hours

  • Operating Temperature: -20°C to +50°C (-4°F to +122°F)

  • Antenna Type: Internal or External Antenna

  • Interfaces: USB, ETHERNET, HDMI

  • Harness Mount and Sunshade: Available
