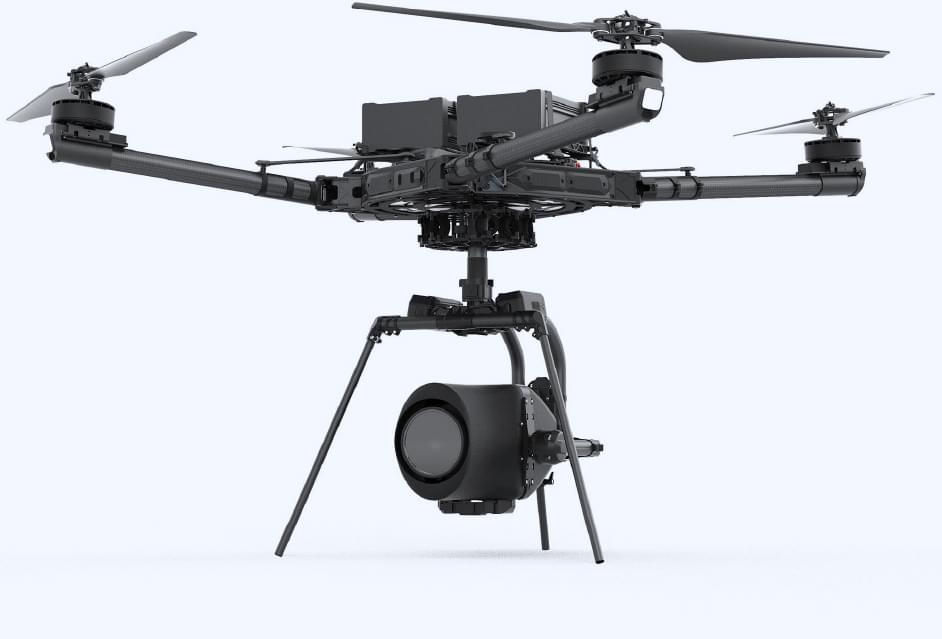

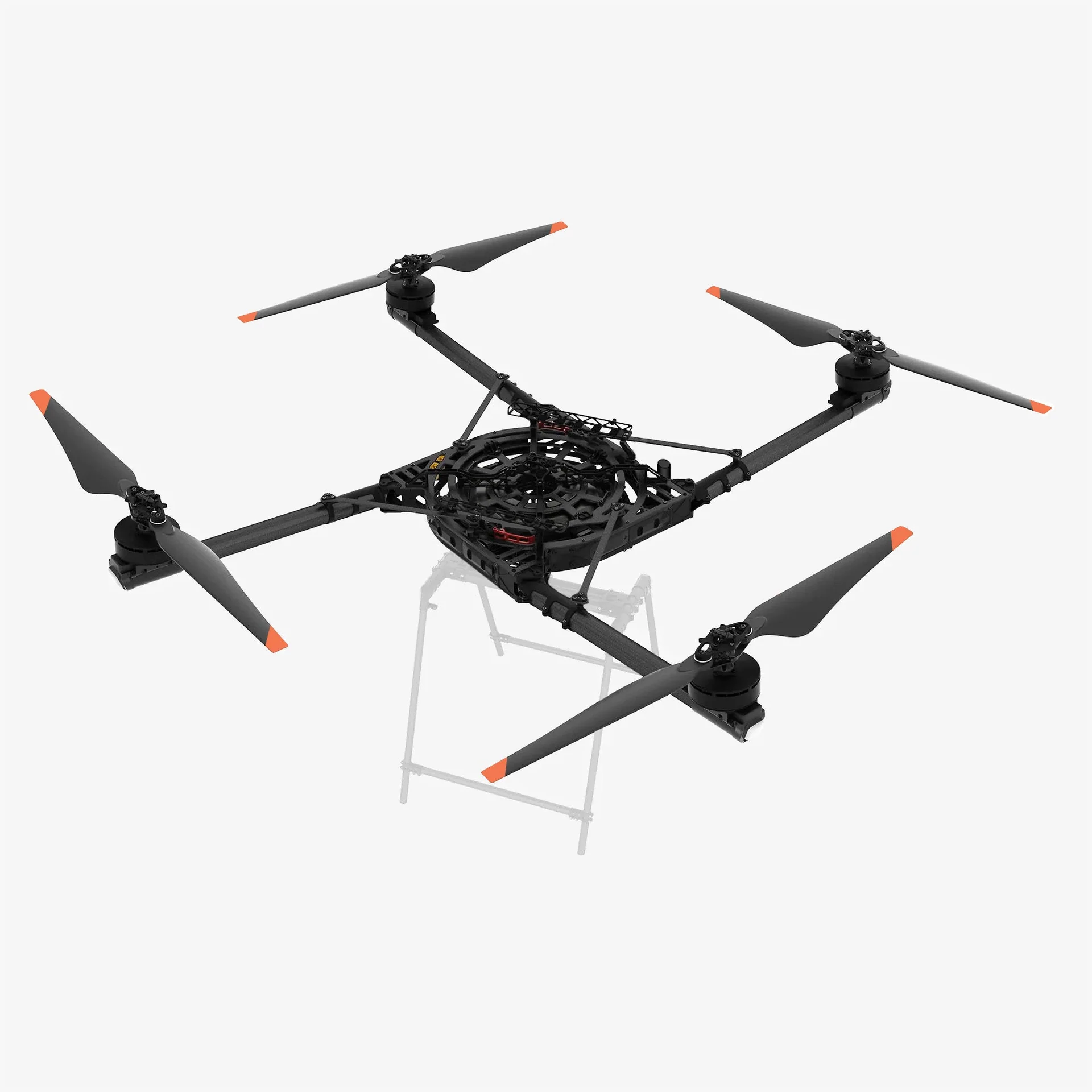

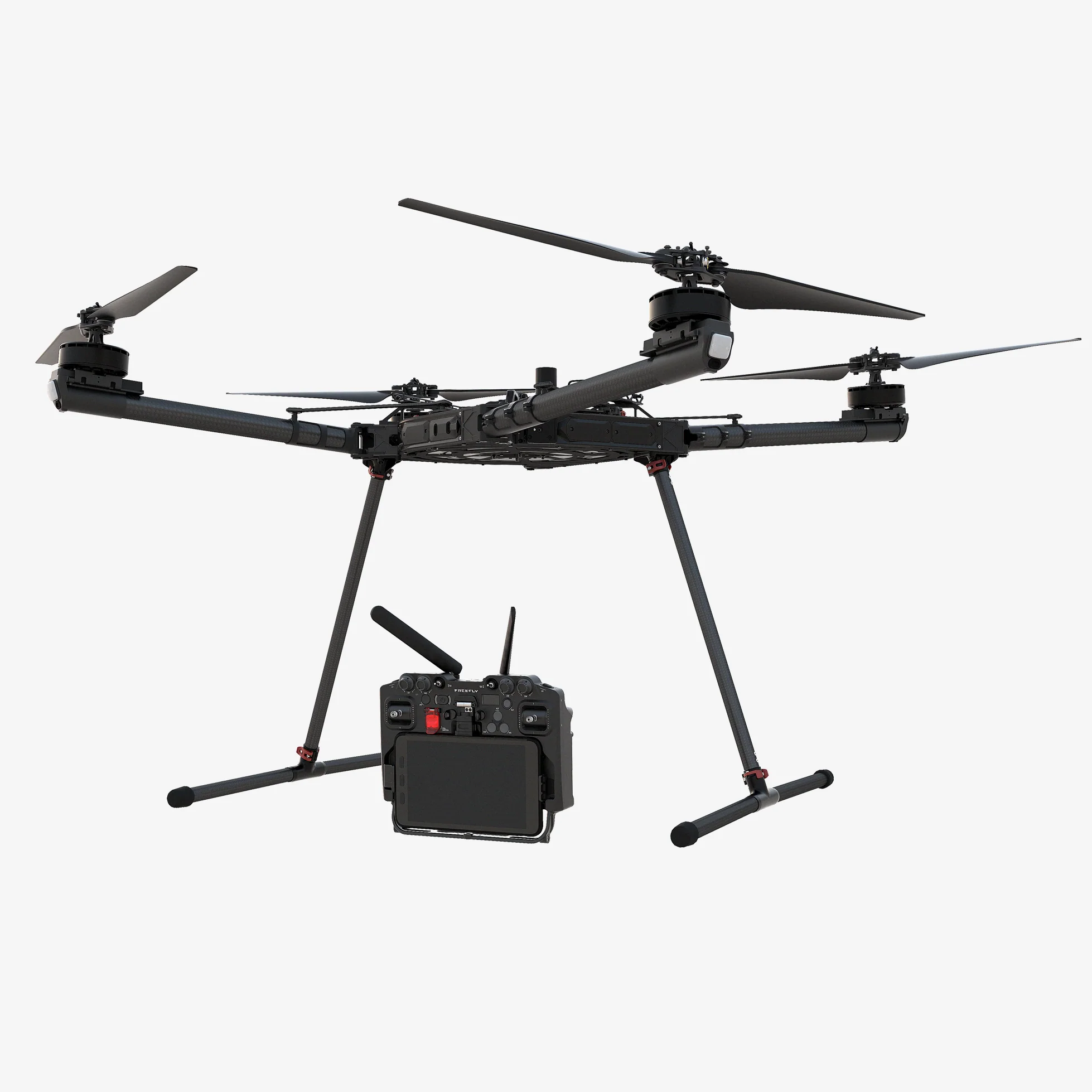

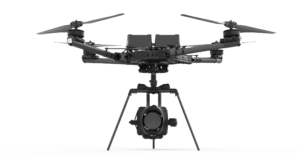

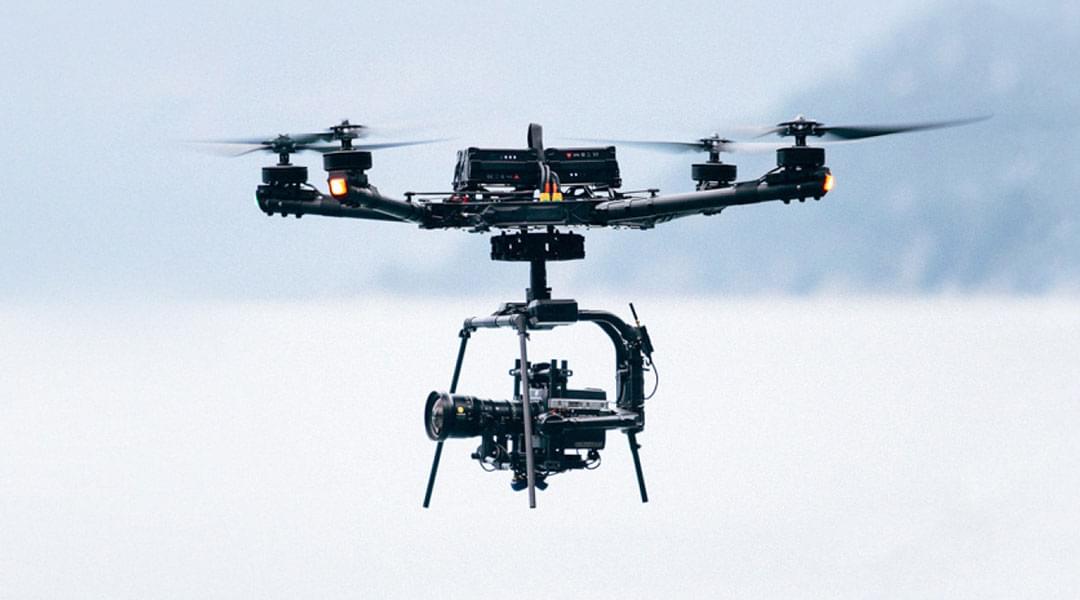

Alta X
Product descripton: Alta X by Freefly Systems
We designed Alta X from the ground up to capitalize on the benefits of large, efficient props while maintaining the crisp control and unmatched precision the Alta line is known for.
KEY FEATURES
• 35lb Max payload.
• Quick release mounting system on top or bottom of aircraft.
• Adjustable Vibration Isolation available.
• Long Range Data link.

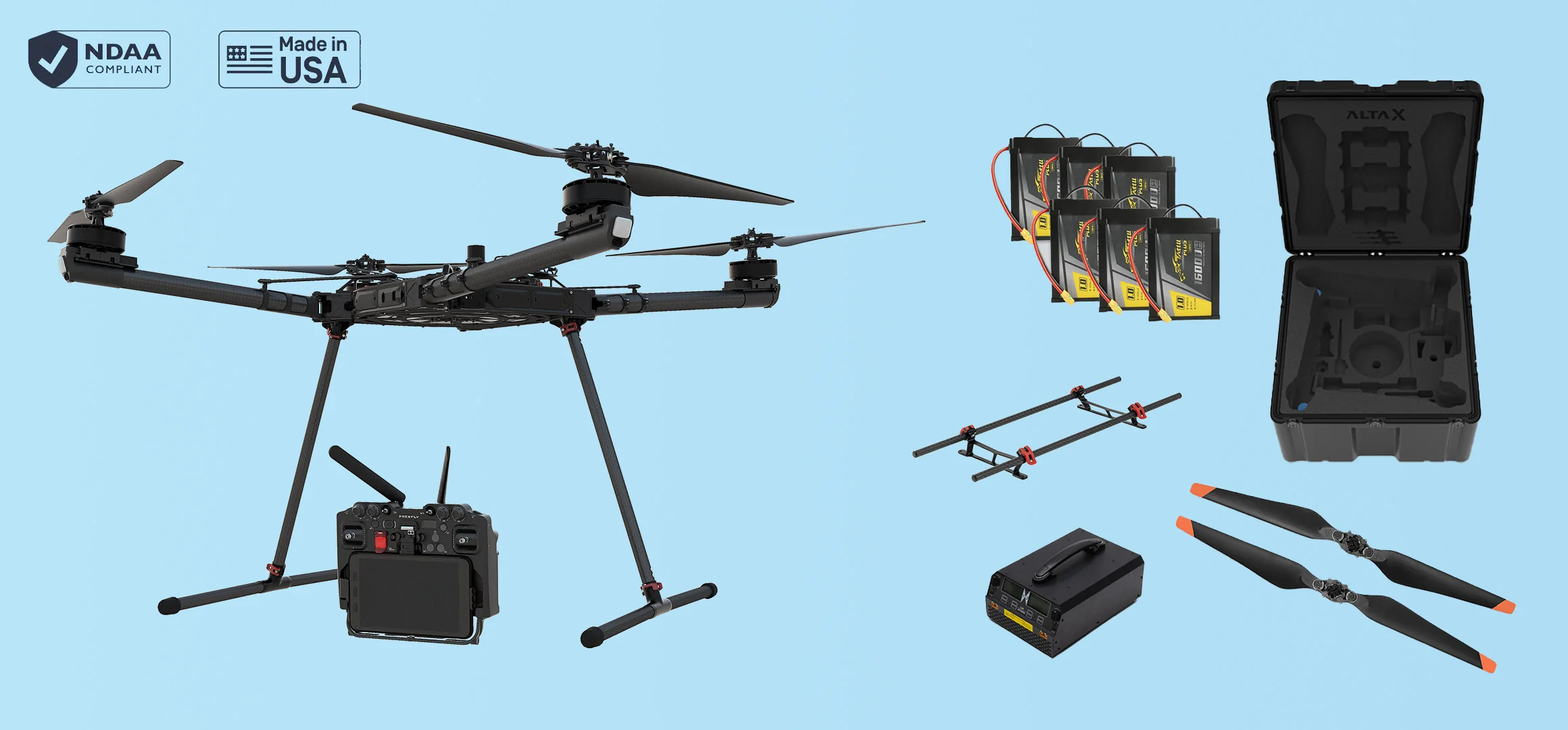

• Extensive accessory ecosystem.
• 33 Inch blades with ActiveBlade technology (1/5th the normal level of vibration).
• Flies on just 2 batteries.
• 50 Minute flight time with no payload, 22 minute flight with 20lb payload.
• Folds to half its size with one finger folding.
• Most Efficient Workflow – We spend years figuring out how to make our drones more fun to use than any other drone.
• Expandable – ALTA X features power and data expansion ports to help you integrate just about anything.
Technical specifications
Brochure
Download here
NDAA Compliance
Download here
Dimensions
| Unfolded Diameter (not including props) | 1415 mm |
| Unfolded Diameter (Including Props) | 2273 mm |
| Folded Diameter | 877 mm |
| Height | 387 mm |
| Height (Skyview) | 434 mm |
Powerplant
| Number of Motors | 4 |
| Motor Max Continuous Power Output | 100 A |
| Motor Max Instantaneous Peak Power Output | 130 A (>3s) |
| Equivalent Kv | 115 rpm/V |
Propellers
| Model | 33x9in |
| Material | Carbon fiber filled Nylon |
| Propeller Orientation | (2) CW and (2) CCW Props |
| Propeller Type | 840 x 230 mm Folding |
Battery
| Nominal Battery Voltage | 44.4V |
| Battery Connectors | XT-90 |
| Required Minimum Battery Discharge Rating (Per Pack) | 320 Amps per battery (assumes two batteries) 20C for a 16A-hr pack. |
Weight
| Maximum Gross for Takeoff | 34.86 kg / 76.85 lb (see performance charts) |
| Maximum Payload | 15.06 kg / 33.20 lb |
| Typical Standard Empty weight | 10.86 kg / 23.94 lb |
Flight Controller
| Autopilot Name | Custom PX4 flight control stack |
| Flight Modes | Manual, altitude, position, mission, loiter, orbit, return |
| Supported Radios | Futaba, Spektrum, PX4 compatible SBUS and PPM receivers |
| Supported Radio Controller Telemetry Systems | Voltage feed provided for Futaba RX telemetry |
| Minimum Radio Controller Channels Required | 5 (roll, pitch, yaw, throttle, mode) |
| Supported GNSS | GPS/Glonass/Beidou/Galileo |
| Default Data Logging Rate | Varies, 25hz for main flight data |
Lighting and Indication

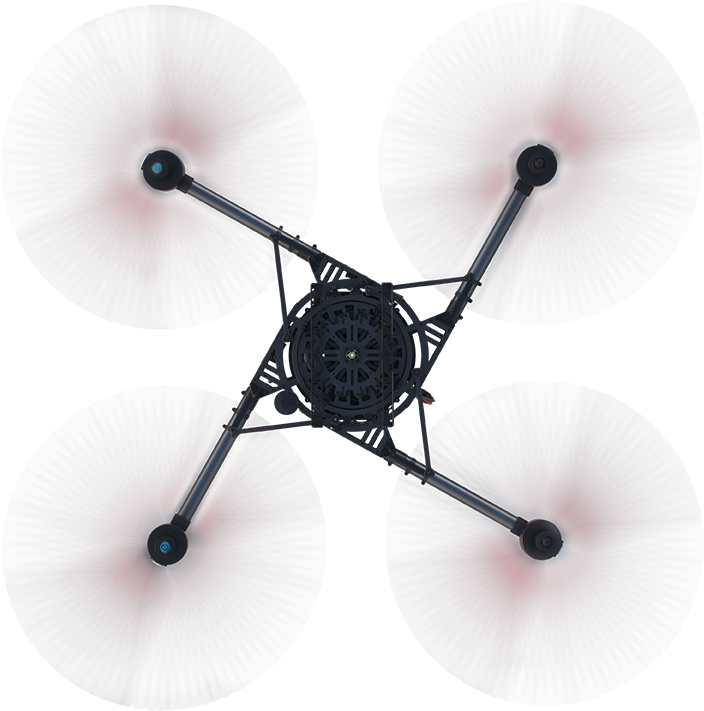

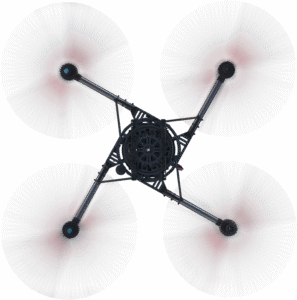

| Orientation Lights | Boom tip mounted lights |
| Orientation Light Color Options | Colors can be set in software – red, orange, yellow, green, cyan, blue, purple, white, off. |
| FPV Ability | Yes |
Environmental
| Operating Temperature | -20C to +50C |
| Ingress Protection | Tested to IP43 equivalent |
