Astro
Product descripton: Astro by Freefly Systems

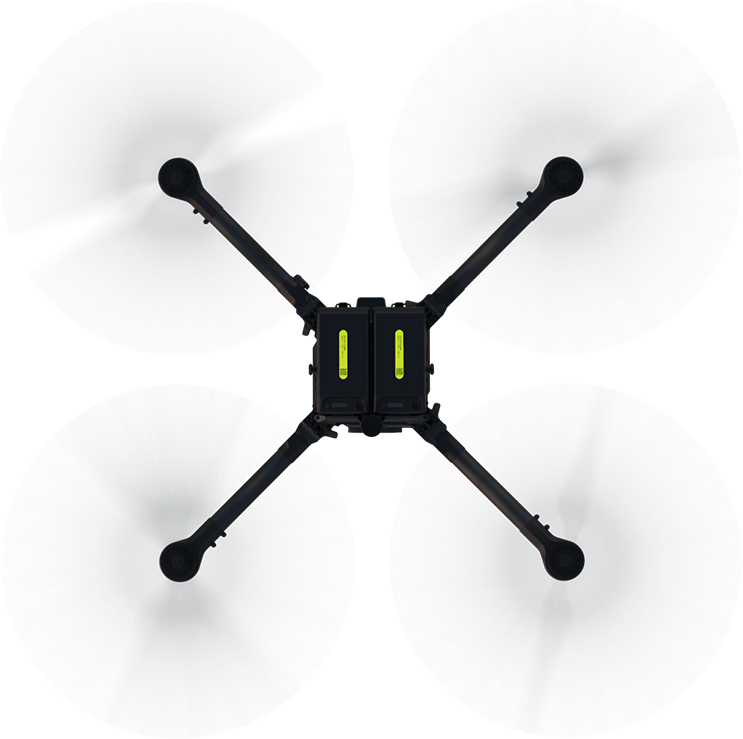

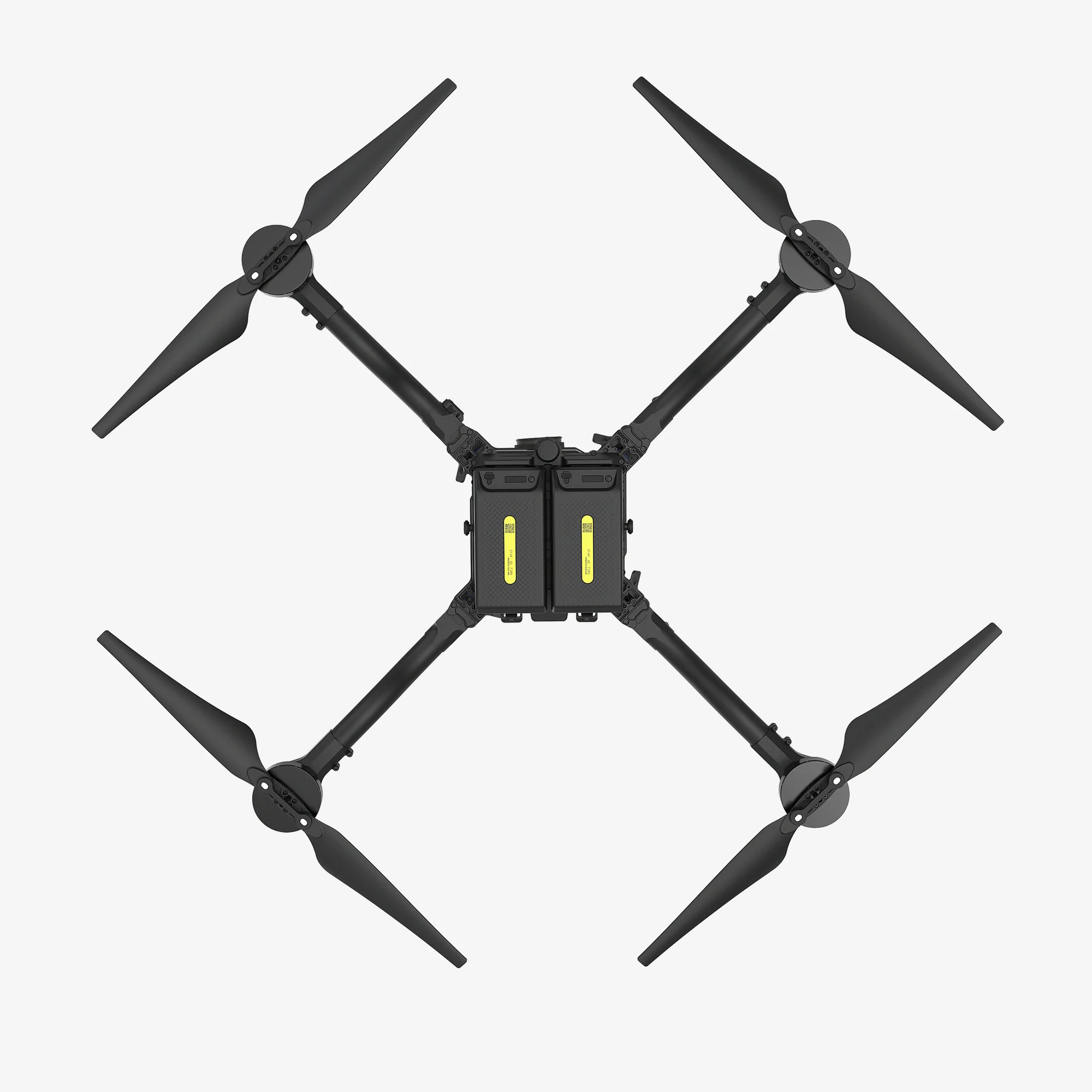

For max flight time you want to run the largest props possible. Astro uses 21 inch props on a drone body that’s only 14 inches square.
On Astro we spent years developing motor drive HW and control algorithms that allow us to have huge, slow-spinning props with incredible stability. This allows Astro long flight times, incredible precision, and super low noise footprint.
Astro features the latest in 21700 round cell lithium ion battery technology. As the battery industry releases new chemistry we are able to drop that new and improved tech into our SuperLight [SL8] battery platforms.
Astro is designed to be able to fly on one battery in the event of a pack failure in flight and Freefly guarantees the batteries for an industry leading 500 cycles.
Smart dovetail was designed by Freefly to create a standard interface for payload manufacturers to allow any compliant payload to work on any compliant drone.
With our unique velocity clamps on Pilot Pro you can take advantage of all this precision by adjusting Astro’s max velocitis real time and on the fly. Cruise to your inspection location at high speed, but then click into slow mode and adjust position at .1m/s.
Technical specifications
Dimensions
| Unfolded Diameter (w/o Props) | 917 mm |
| Unfolded Diameter (Including Props) | 1407 mm |
| Unfolded Height | 359 mm |
| Folded Diameter | 508 mm |
| Folded Height | 178 mm |
Motors and Propellers
| Powerplant | Freefly F45 |
| Number of Motors | 4 |
| Motor Max Continuous Power Output | 350 W |
| Motor Max Instantaneous Peak Power Output | 600 W |
| Equivalent Kv | 420 Kv |
| Electronic Speed Controller | Freefly Silent-Drive Sine Wave ESC |
| Max RPM | 3500 RPM |
| Propellers | 21 x 7.0″ (folding) |
| Material | Carbon Fiber Reinforced Nylon |
| Propeller Orientation | (2) CW and (2) CCW Props |
| Flight Time (No Payload) | 38 min |
Battery
| Type | Freefly Super Light Batteries (SL8-Air) |
| Cells | 6S |
| Nominal Battery Voltage | 21.6V |
| Capacity (SL8-Air) | 157Wh |
| Weight (per battery) | 1035 g |
| Operating Temp | -20 to 50 C |
| BMS | Redundant BMS with active cell balancing and storage mode |
| Safety Protections | overvoltage, overtemperature, over-discharge |
| USB-C PD | 5-20 V, up to 60 W output |
| Communication | OLED User Screen CAN – for communication to the aircraft |
| Max Continous Current (10s) | 80 A |
| Max Peak Current (1s) | 120 A |
| Cell Chemistry | Lithium-Ion |
| Charger | Freefly SL8 Fast Charger |
Payloads and Weight
| Maximum Gross for Takeoff | 6,950 g (conditional on altitude) |
| Maximum Payload | 1,500 g |
| Typical Standard Empty weight | 3,095 g |
| Payload Mounts | Vibration Isolated Gimbal Quick Release, Vibration Isolated Cheese Plate, Toad in the Hole |

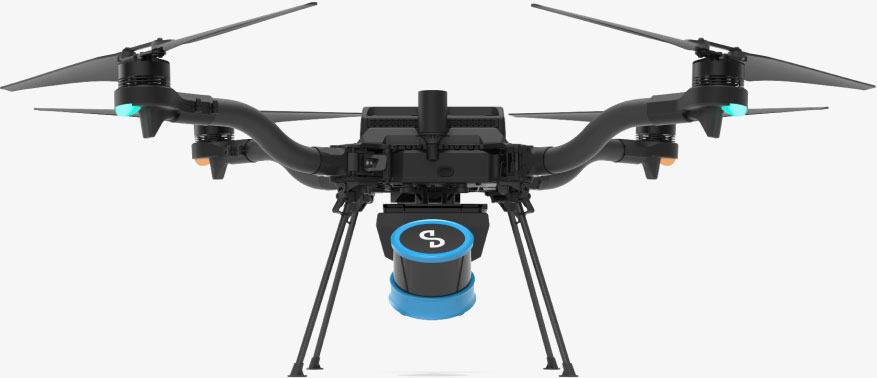

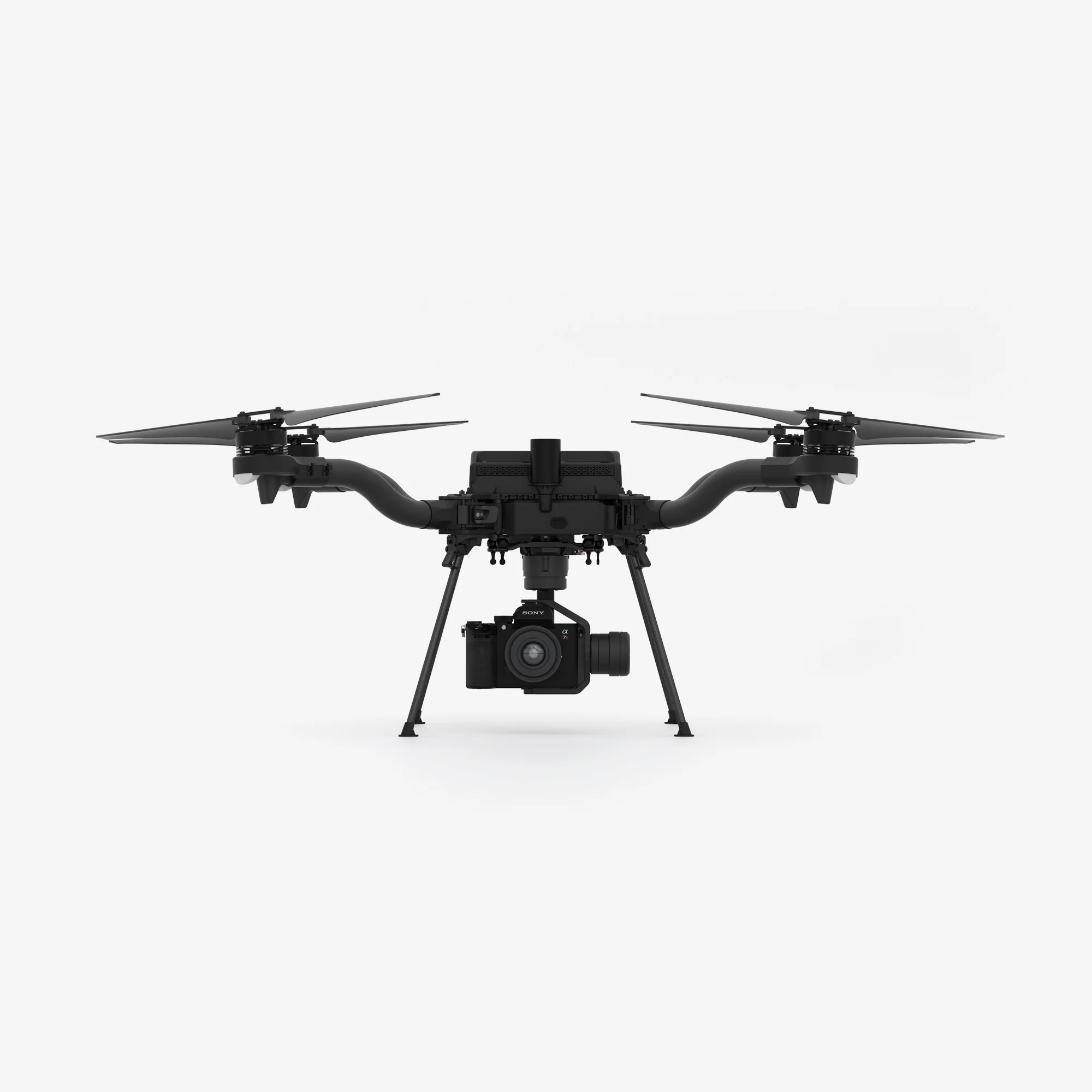

| Integrated Payloads | LR1 Payload, Gimbaled Alpha 7R IVA Mapping Camera, Wiris Pro Payload, Sentera 6X, Sentera 6X Thermal, Sentera 65R, Hovermap ST-X |
| Gimbal Quick Release Connections | Power, MAVLink Communication Protocol |
Flight Controller
| Flight Controller Hardware | Freefly Custom Designed Skynode |
| Flight Controller Software | Auterion Enterprise PX4 (custom for Astro) |
| Mission Control Software | Auterion Mission Control |
| Online Fleet Management | Auterion Suite |
| Flight Modes | Manual, Altitude Hold, Position Hold, Autonomous Mission, Return to Land |
| Onboard Modules | Cortex-A53 Computer, LTE |
| Connectivity | BLE, Wifi, USB C, LTE (North America) |

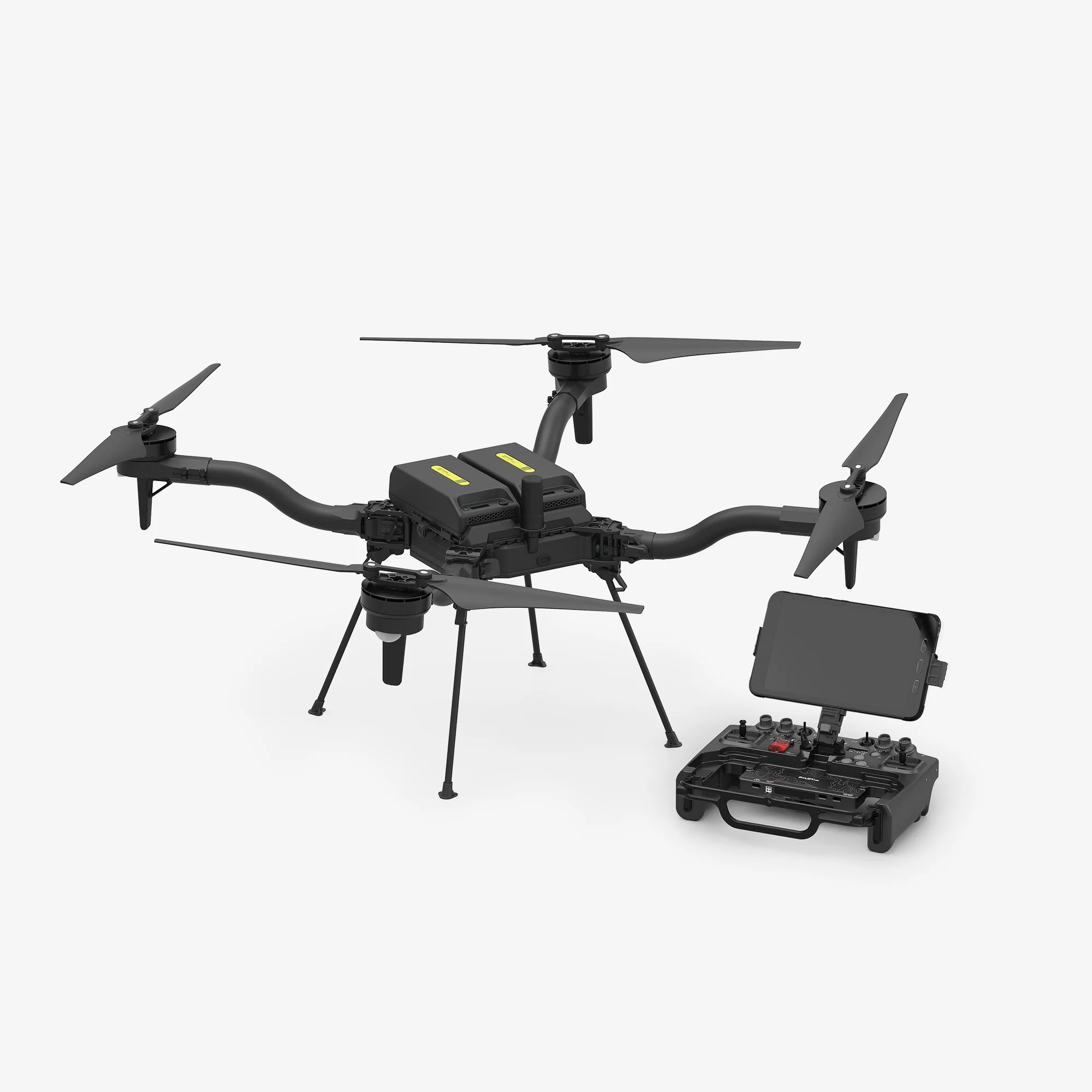

| Supported Radios | Freefly Pilot Pro (with Herelink or Doodle Labs radios) |
| Supported GNSS | L1/L2 GPS, GLONASS, Beidou and Galileo bands |
Misc
| Orientation Lights | Boom tip mounted lights |
| Orientation Light Color Options | Colors can be set in software – red, orange, yellow, green, blue, purple, white, off |
| Operating Temperatures | -20 to 50 C |
| Ingress Protection | Tested to IP43 |
| I/O | VBAT Power Out, USB C, PWM, UART, TELEM, CAN |
