AtlasPRO

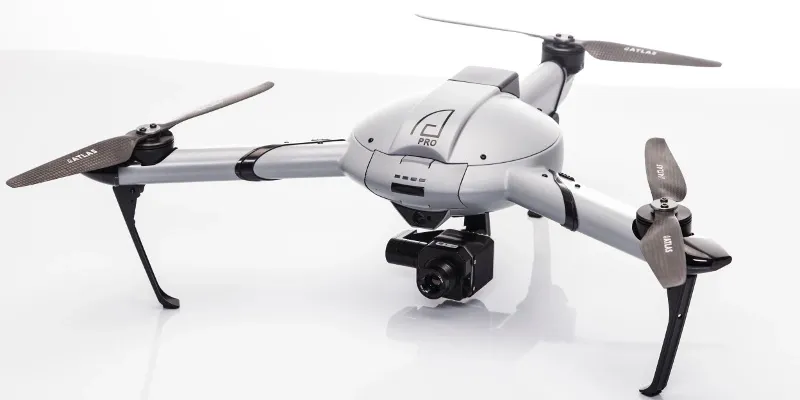

Product descripton: AtlasPRO by Atlas UAS
AltasPRO is a lightweight tri-copter unmanned system. Its compact design makes it man-packable, and is intended for use in nearly all weather conditions. Its communications are hardened, encrypted, and allow for nearly 10 mile BVLOS missions. With 32 minutes of battery endurance and three minute setup, the AtlasPRO is an airframe suitable for most missions.
The AtlasPRO’s unique design has won the Red Dot Design Award, the Edison Awards, and the Good Design Awards. It has been highlighted for its premium materials, aerodynamic shape, and outstanding specifications.
MESH Technology
AtlasMESH is a networking system that allows a single operator to operate numerous drones at the same time. Deploy, operate, and use many UAVs using a single control station without the need for extra hardware.
BVLOS Missions
Signal is relayed by a secondary UAV that flies behind challenging barriers where the signal is typically lost.
UAV Hot-Swap Functionality
In circumstances when continuous monitoring is required, replace a depleted UAV with a fully charged one without interrupting the video stream.
Share Mission Data
On a mesh network, share critical mission information such as coordinates or a video feed with other devices.
Advanced Missions
The AtlasSTATION is a touchscreen tablet, which can be used to control AtlasPRO from anywhere within range. Seamlessly create missions, set routes and operate a drone(s) at a distance. AtlasSTATION’s interface also provides for data management, video streaming, and integration with third-party systems.
Technical specifications
AIRCRAFT SPECIFICATIONS
Folded: 417 x 323.5 x 115.5 mm
Unfolded: 445 x 557.5 x 185.5 mm
Weight (excluding battery and payload): 1050 g
Weight (with battery, excluding payload): 1585 g
Max Takeoff Weight: 1900 g
Max Payload: 315 g
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature Range: -20°C to 45°C up to 3 months; 25 +/-3°C more than 3 months
Ingress Protection Rating: IP54
Operating Frequency: 2.4 – 2.4835 GHz; 2.2 – 2.7 GHz
RF Output Power: 30 dBm
Antenna Gain: 3 dBi
GNSS: GPS + GLONASS + Galileo
Hovering Accuracy (GPS mode): 0.5 m – 2.5 m
Downward Facing Rangefinder: ToF LIDAR
Field of View: +/- 1.7 degree conical beam
Obstacle Sensing Range: 20 m
Noise Level: 56 dBa at 15 m
Max Tilt Angle: 45 degrees
Max Ascent Speed: 5 m/s
Max Descent Speed: Variable, 1.5 – 3.5 m/s
Max Control Speed: 56 km/h
Max Speed (with payload)
Standard props: 56 km/h
Quiet props: 46 km/h
Max Wind Resistance: 15.5 m/s (56 km/h)
Max Flight Time (with payload)*: 32 min
Max Flight Distance: 16 km
Max Service Ceiling Above Sea Level: 3000 m
Propeller Model
Standard props: Length: 30.5 cm. Weight: 12.2 g
Quiet props: Length: 33.2 cm. Weight: 15.8 g

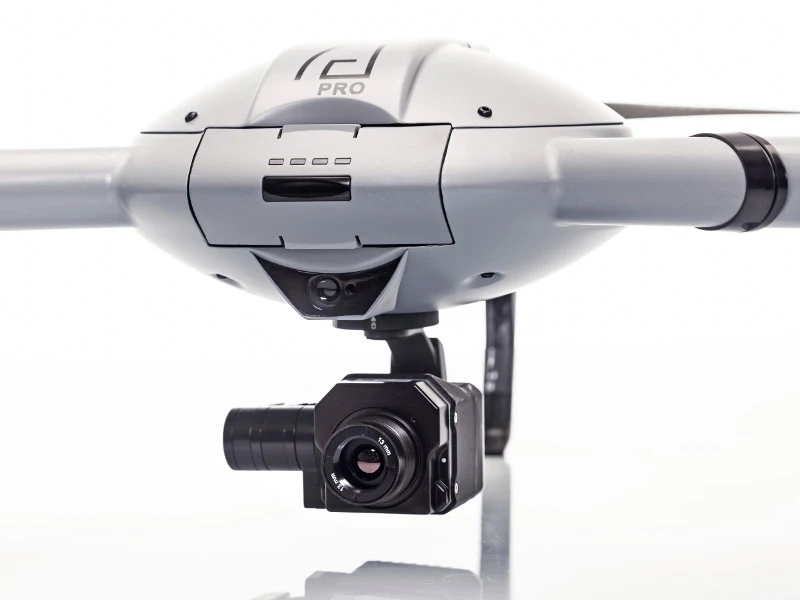

Supported PayloadsEO
(RGB): KALOS 120, ARGUS M20
IR: VISOR NX, VISOR FF
SMART BATTERY
Nominal voltage: 15.2 V
Max Charging Voltage: 17.6 V
Battery Type: Li-ION 4S
Energy: 121.6 Wh
Net weight: 588 g
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature Range: -20°C to 45°C up to 3 months; 25 +/-3°C more than 3 months
Charging Temperature Range (using heater): -20°C to 40°C
Max. Charging Power: 100 W
Heating time: 15 minutes at -20 °C; 10 minutes at -10 °C; 5 minutes at 0 °C
Heating Power: 50W
Certification:
• UN38.3
• UL1642
• PI965
• PI966
*Flight time might be affected by environmental conditions
