| Specification | Value |
| Gimbal: | EO/IR cameras, 360-degree rotation 3-axis |
| Jamming-resistant: | Anti-Jam Datalink and GNSS |
| Munition configurations: | 2, 4 or 6 units |
| Endurance: | 60min (ISR configuration) |
| Telemetry and Video range: | 20km |
| Munition Payload: | 4kg |

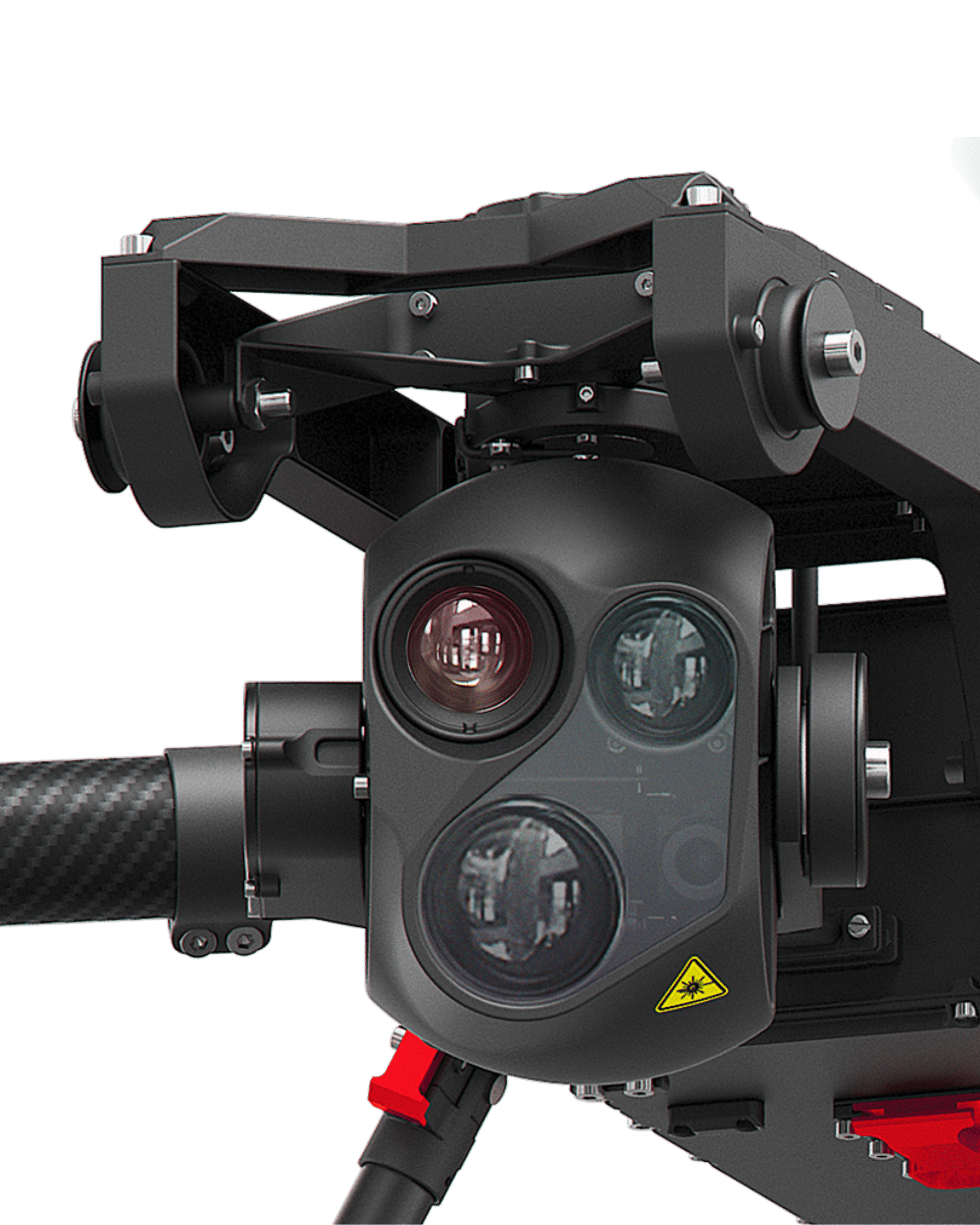

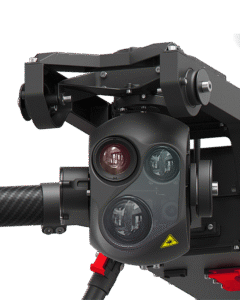

EO/IR Targeting Payload
| Stabilization: | 3-axis stabilization with 360-degree rotation |
| All-weather design: | fully sealed |
| Zoom EO Camera: | HD global shutter with 8x optical zoom |
| Spotter EO Camera: | 4k rolling shutter with narrow field of view lens |
| IR camera: | High resolution 640×512, Long range, 19mm F1.0 lens, <40 mK sensitivity |
| Pointer: | 850nm laser pointer (Optional) |

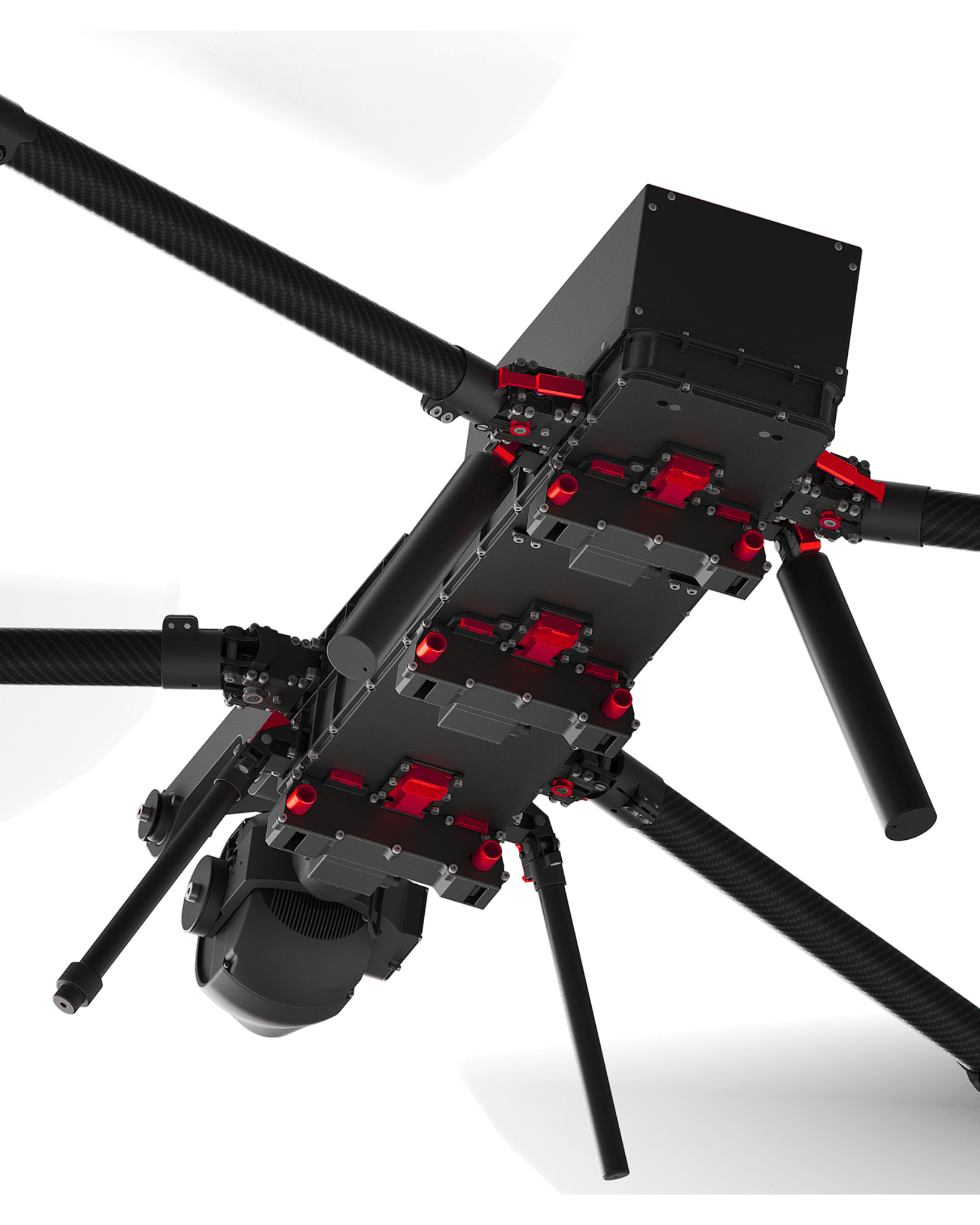

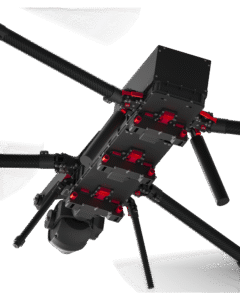

Munition Payload
| Specification | Value |
|---|---|
| Max payload | 4 kg |
| Configuration | 2, 4, or 6 units |
| Release mechanism | Can be attached in seconds without tools |
| Adapter | Custom designed for every type of munition used, end-user defined |
| Endurance | 35 minutes with 4 kg of munition payload |

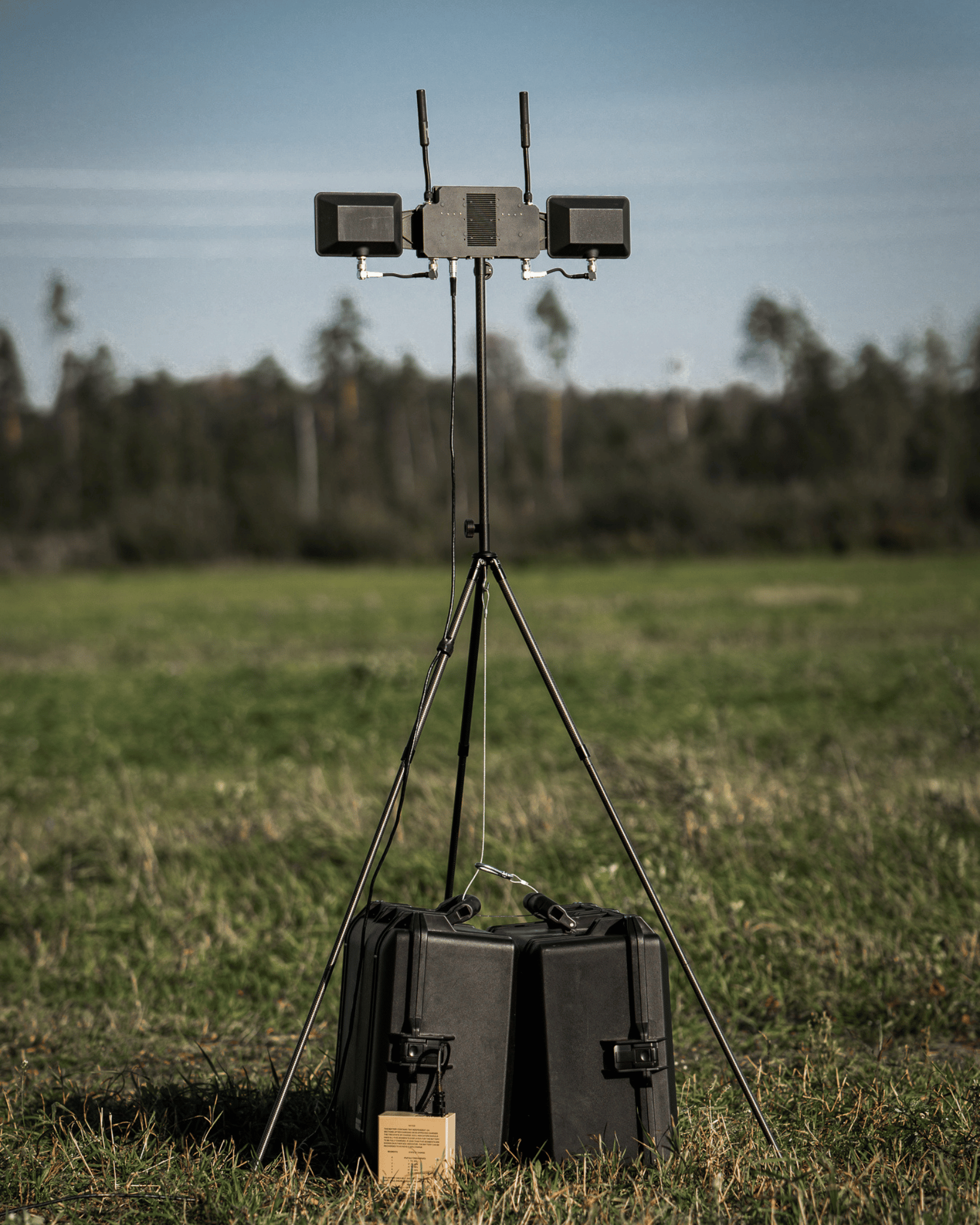

Anti-Jam Capability
| Specification | Value |
|---|---|
| GNSS | Anti-jamming, anti-spoofing, advanced interference monitoring |
| Datalink | Silvus datalink with automatic interference avoidance |
| Available frequencies | 2200–2500 MHz or 4400–4940 MHz |
| Datalink range | 20 km |
| Encryption | AES256 |
ORIGIN Ground Control
Origin Ground Control software is open source architecture based with custom-designed functionality to allow for multi-mission use in all types of tactical environments.
Advanced targeting functionality allows for precision payload delivery from operational altitudes.
The controller combines joysticks, buttons, and a touchscreen, enabling seamless mission planning and flight operations at the push of a button.
Flight Performance
| Specification | Value |
|---|---|
| Take-off weight | 7.2 kg (ISR configuration), 11.2 kg (with max munition payload) |
| Endurance | 60 min (ISR configuration) |
| Flight speed | 25 m/s (max speed), 15 m/s (cruise speed) |
| Wind resistance | Gusts of wind up to 20 m/s |
| Operational temperature | -30°C to +50°C |
| All-weather capability | Withstands heavy rain and snow |
| Range with munition | >12 km with 4 kg of munition payload |
