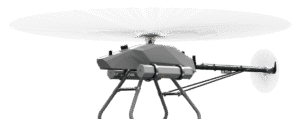

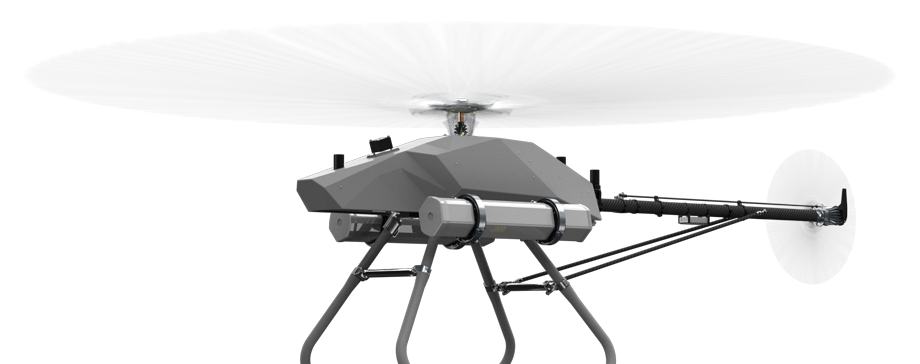

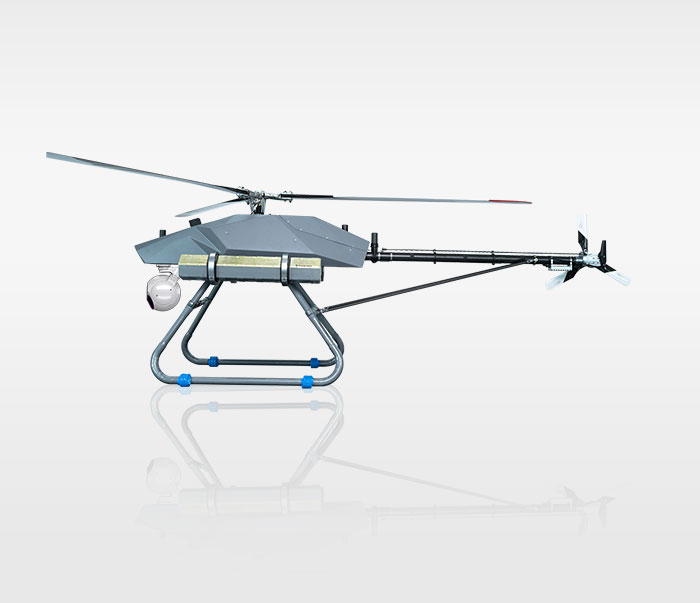

Blowfish A2G UAV

Versatile Large-Payload UAV for High-Altitude Operations

Product descripton: Blowfish A2G UAV by Ziyan UAS

Versatile and Large Payload

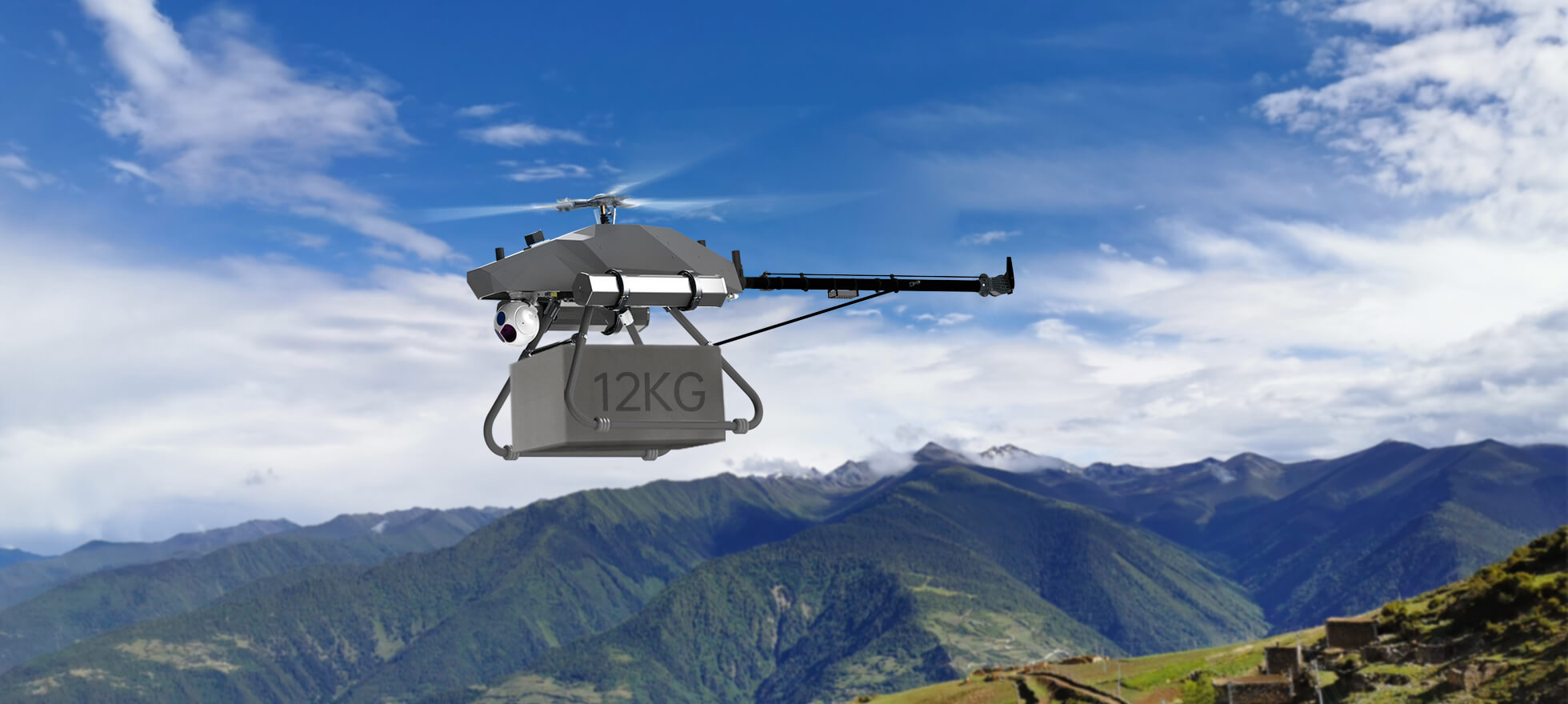

Maximum Payload 12kg
The Blowfish A2G’s 12 kg capacity overcomes ground transport limitations, effectively addressing material transport challenges in high-altitude and mountainous areas.

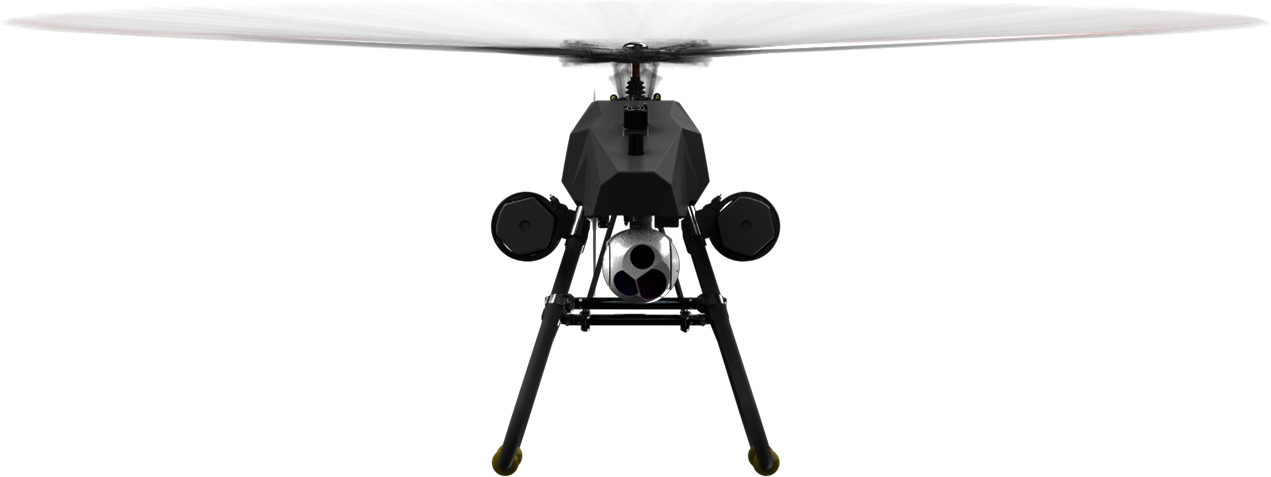

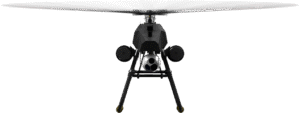

Tri-Sensor POD
Integrated with high-resolution 30× optical zoom sensors, infrared sensors, and high-precision rangefinder sensors, making inspection tasks in the area clear and presented in high detail.

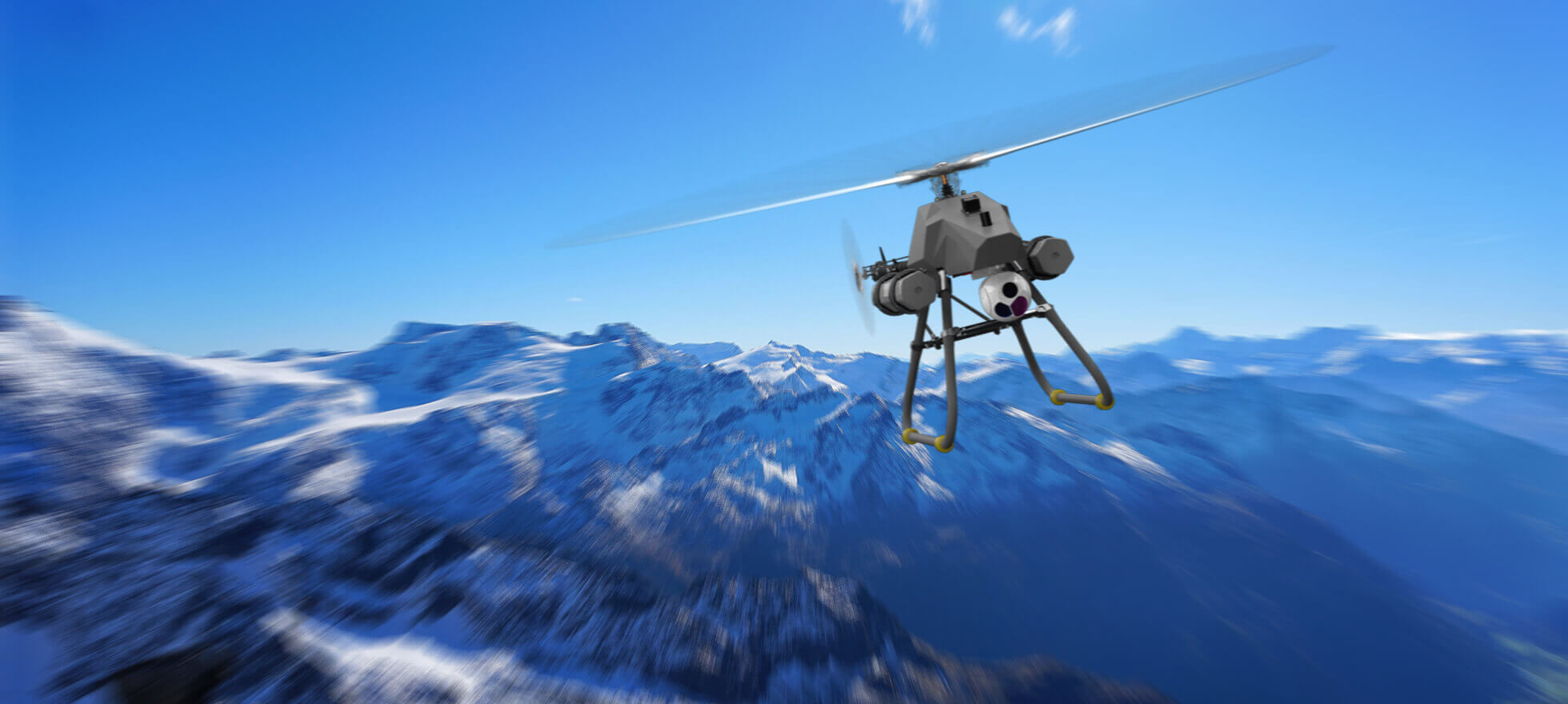

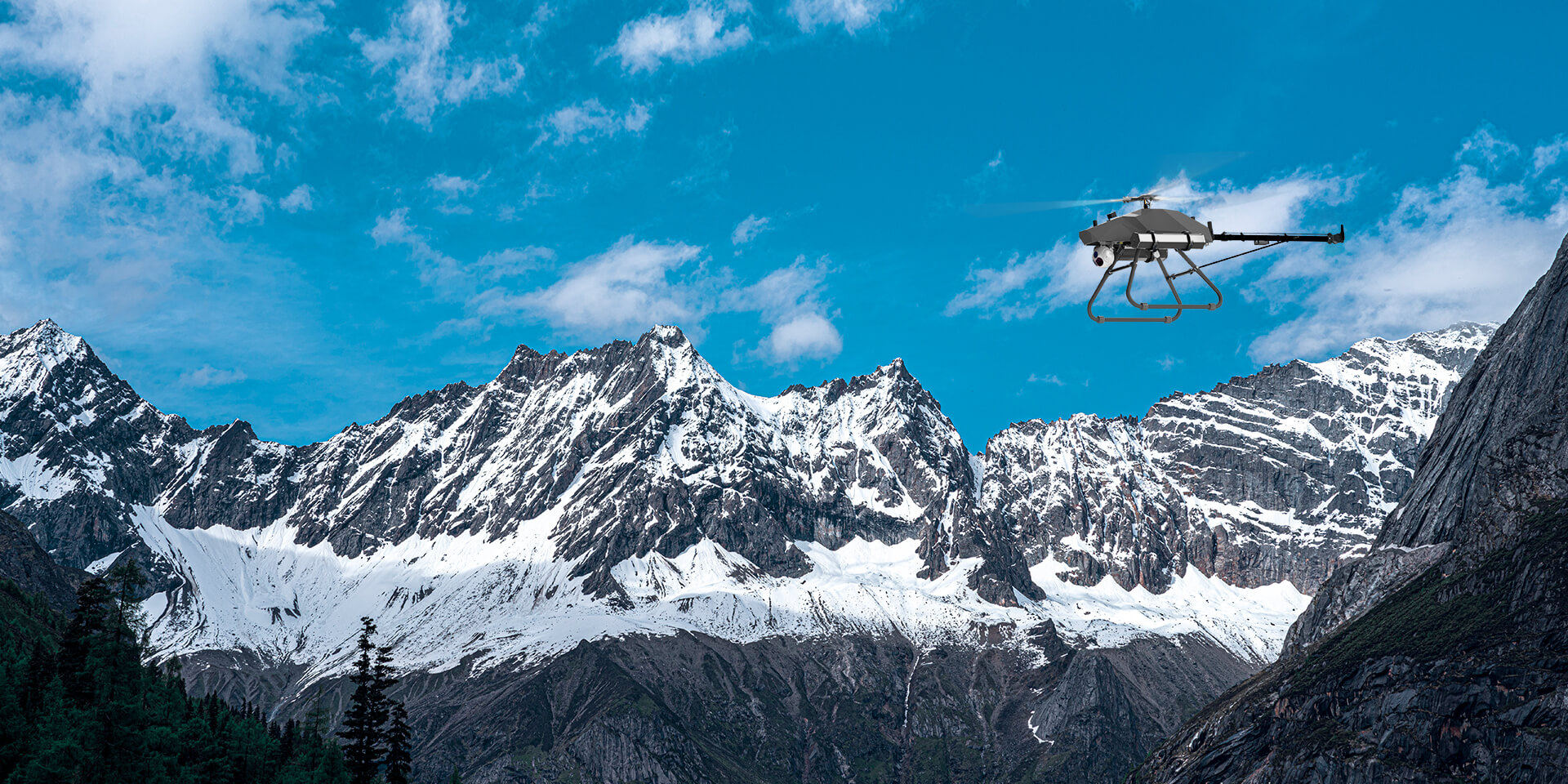

Worry-Free High-Altitude Flight
Supporting inspections and operations at altitudes up to 5500 meters, with high-energy variable-pitch rotor blade mechanism for stronger and more stable flight performance. Capable of handling wind speeds up to level 7.

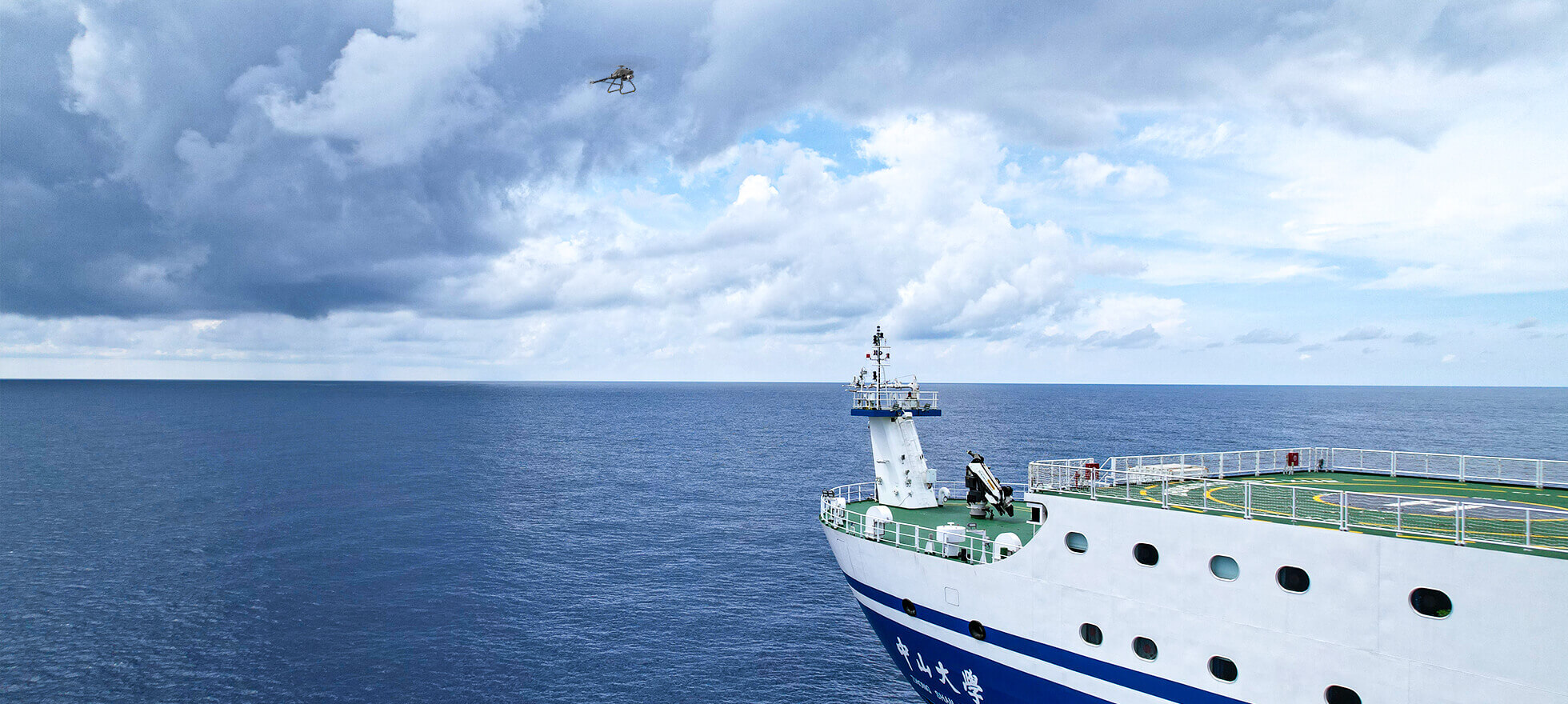

Mobile Autonomous Take-off, Follow, and Land
Extra-small space of only 4 m² is required for take-off and landing. Unmanned aircrafts from Ziyan can take-off, follow, and land on high-speed moving vehicles and vessels alike, meeting the needs of air-ground and air-sea operations.

Diverse Payloads
Large-capacity open fuselage cabin, equipped with quick-release universal mounts, creates solutions for multiple industries.

  • Megaphone

  • Police Light

  • Three-Stage Air Drop Releaser

  • Floodlight

Ground System
One device, many tasks.

  • IoT SA: Transmission of real-time video feed and position to enhance real-time team dynamics and informed decision-making.

Technical specifications

Parameter Specification
Dimensions (L × W × H) 1870 × 490 × 715 mm
Maximum Payload 12 kg
Maximum Endurance 65 min
Maximum Flight Distance 60 km
Real-Time HD Transmission 30 km
Wind Resistance Level 7
Service Ceiling 5500 m
Operating Temperature –10°C to +55°C
Take-Off & Landing Mobile base supported
Payload Options Tri-Sensor POD, Megaphone, Police Light, Air Drop Releaser, Floodlight
