BOYGA-B

Ammunition Drop UAV
Company profile

Product descripton: BOYGA-B by STM (Savunma Teknolojileri Mühendislik)

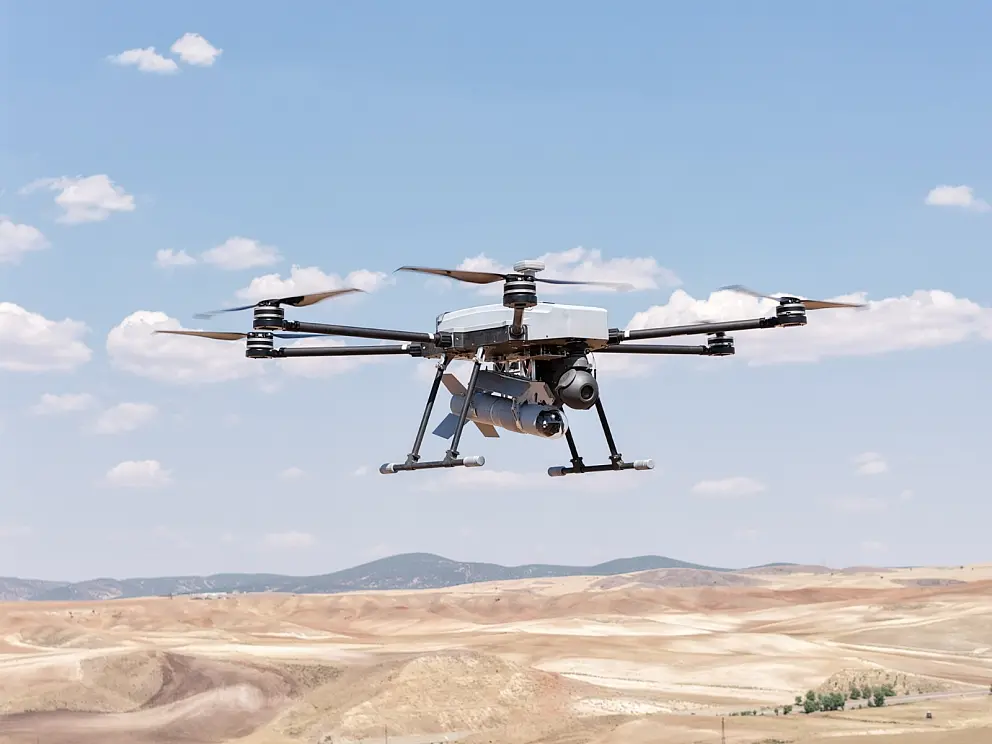

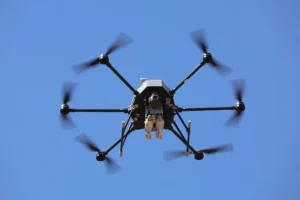

Boyga-B is a high-precision and modular rotary-wing carrier platform developed by STM. It is capable of carrying the TUNGA Smart Munition and multiple 81 mm UAV ammunition. Designed to successfully perform missions such as reconnaissance-surveillance, target engagement, and the deployment of munitions and FPV systems on the tactical battlefield, it features CRPA and Kerkes integration, allowing it to operate in GNSS-denied or GNSS-jammed environments. With autonomous, semi-autonomous, and manual flight modes, it provides operational flexibility for the user. Its integrated release mechanism and smart release board allow for the easy integration of various types of munitions.

Capabilities

  • Capable of operating day/night missions

  • Target detection and tracking with high-resolution onboard imaging system

  • Real-time EO/IR image transmission to Ground Control Station

  • Autonomous munition release and mission cancellation capability

  • Emergency mode management

  • High-performance navigation and flight control system

  • Operable by a single soldier

  • Mission planning and autonomous mission execution

  • Payloads selected for mission-specific needs can be easily replaced by a single operator in the field

  • Optional CRPA and Kerkes integration

Technical specifications

Parameter Specification
Take-Off Weight ≤ 28 kg
Payload Capacity ≤ 8 kg
Dimensions (arms extended, excluding propellers) 1860 × 1540 × 660 mm (L × W × H)
Dimensions (folded, including propellers) 770 × 655 × 660 mm (L × W × H)
Diagonal Axle Distance 1860 mm
Geometric Configuration Hexacopter (6 motors)
Maximum Cruise Speed 15 m/s
Flight Time ≤ 35 minutes
Range 10 km
Mission Flight Altitude (AGL / MSL) 800 m / 3000 m
Operating Temperature -20°C to +50°C
Wind Resistance 10 m/s

Imaging System

  • Optical Zoom: 40×

  • Optical Camera Resolution: 1920 × 1080

  • Thermal Camera Digital Zoom: 8×

  • Thermal Camera Resolution: 640 × 512

Munition – MOD-132 (81 mm UAV Ammunition)

  • Fuze Type: Precision Super Quick Impact Fuze

  • Weight: 2 kg

  • Warhead: 1300 fragments, 5 mm each

  • Effective Radius: 15 m

Payload Options

  • 1× TUNGA Smart Munition

  • 2× MOD-132 Munitions

  • 1× KarguFPV Carry-and-Release
