BULUT
Product descripton: BULUT by Havelsan

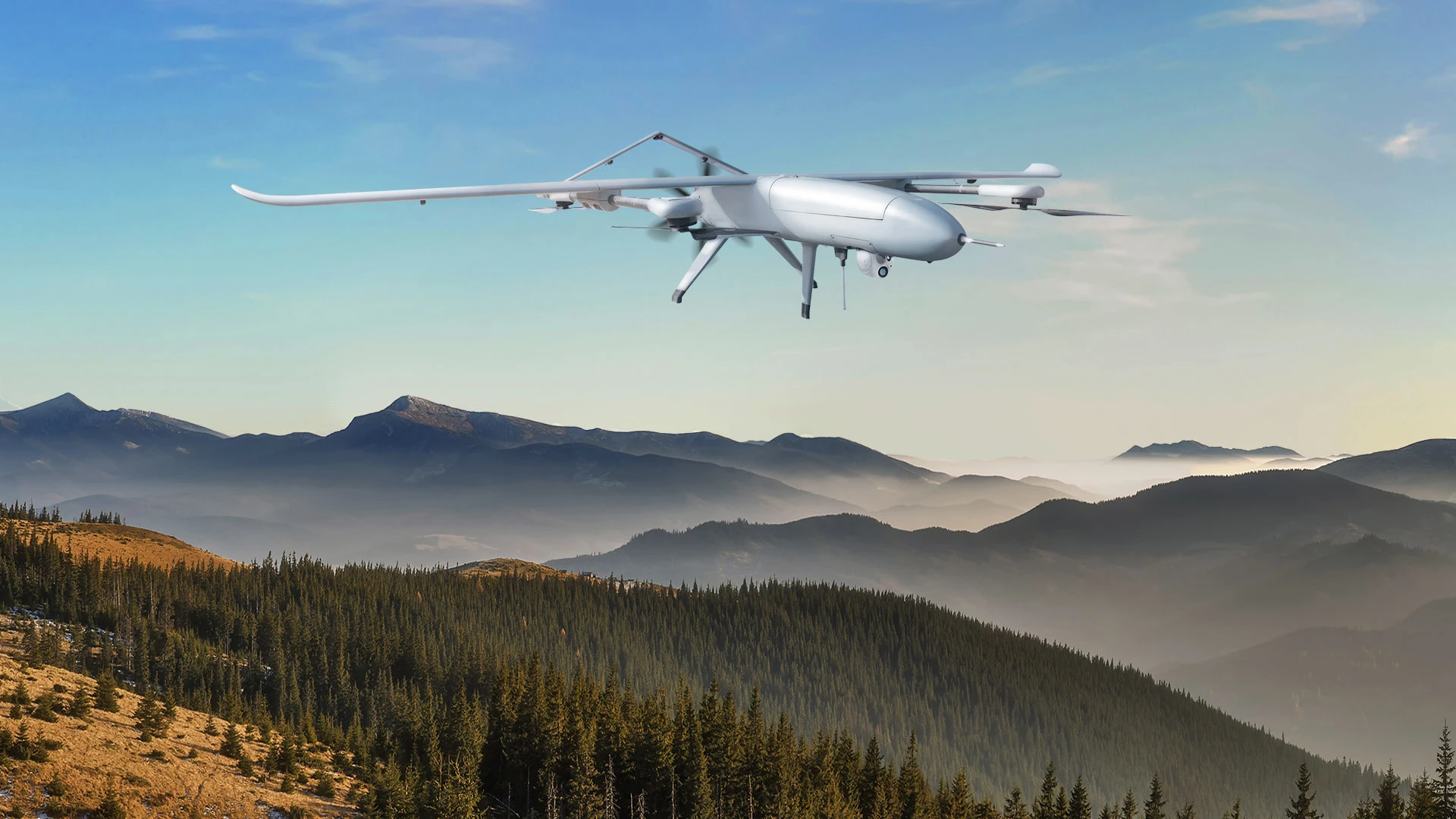

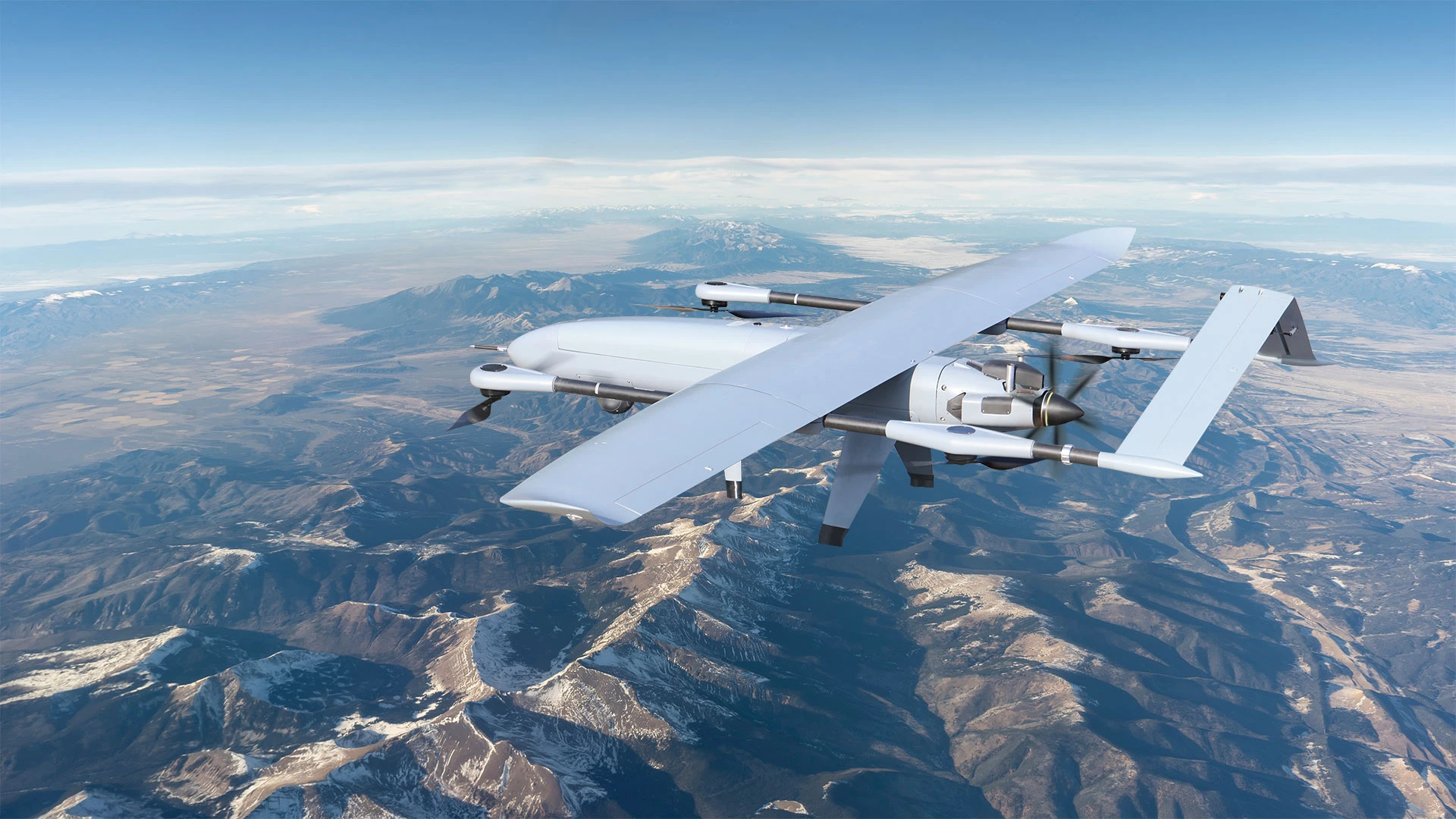

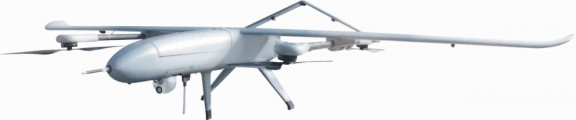

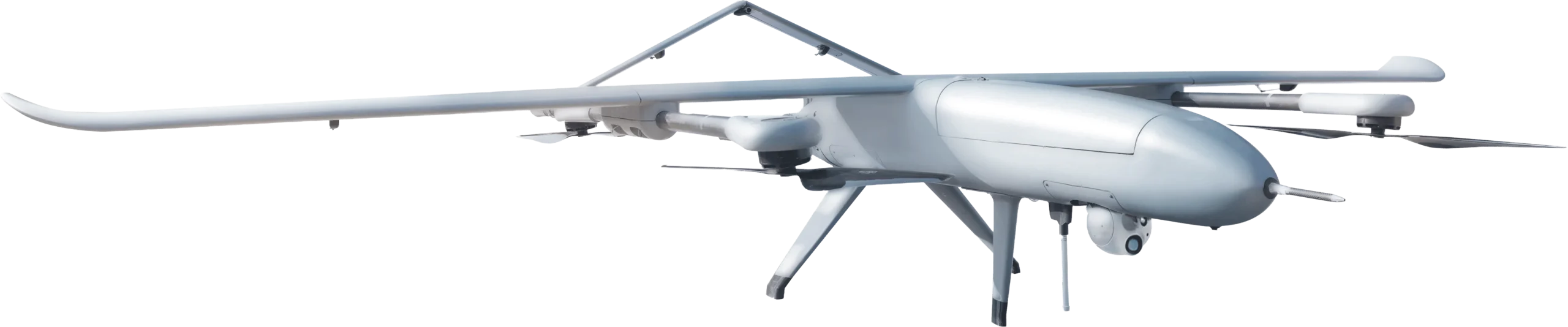

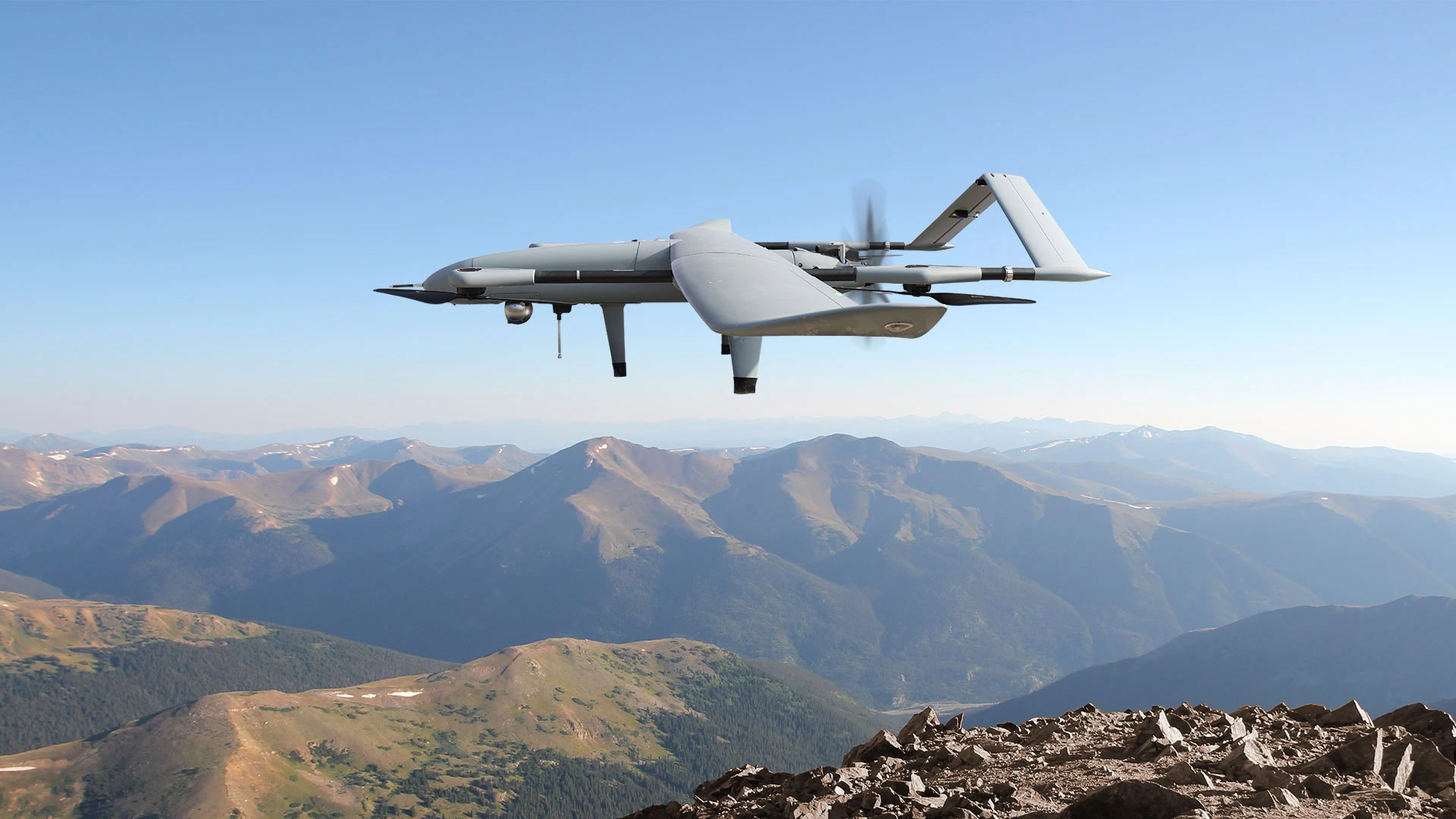

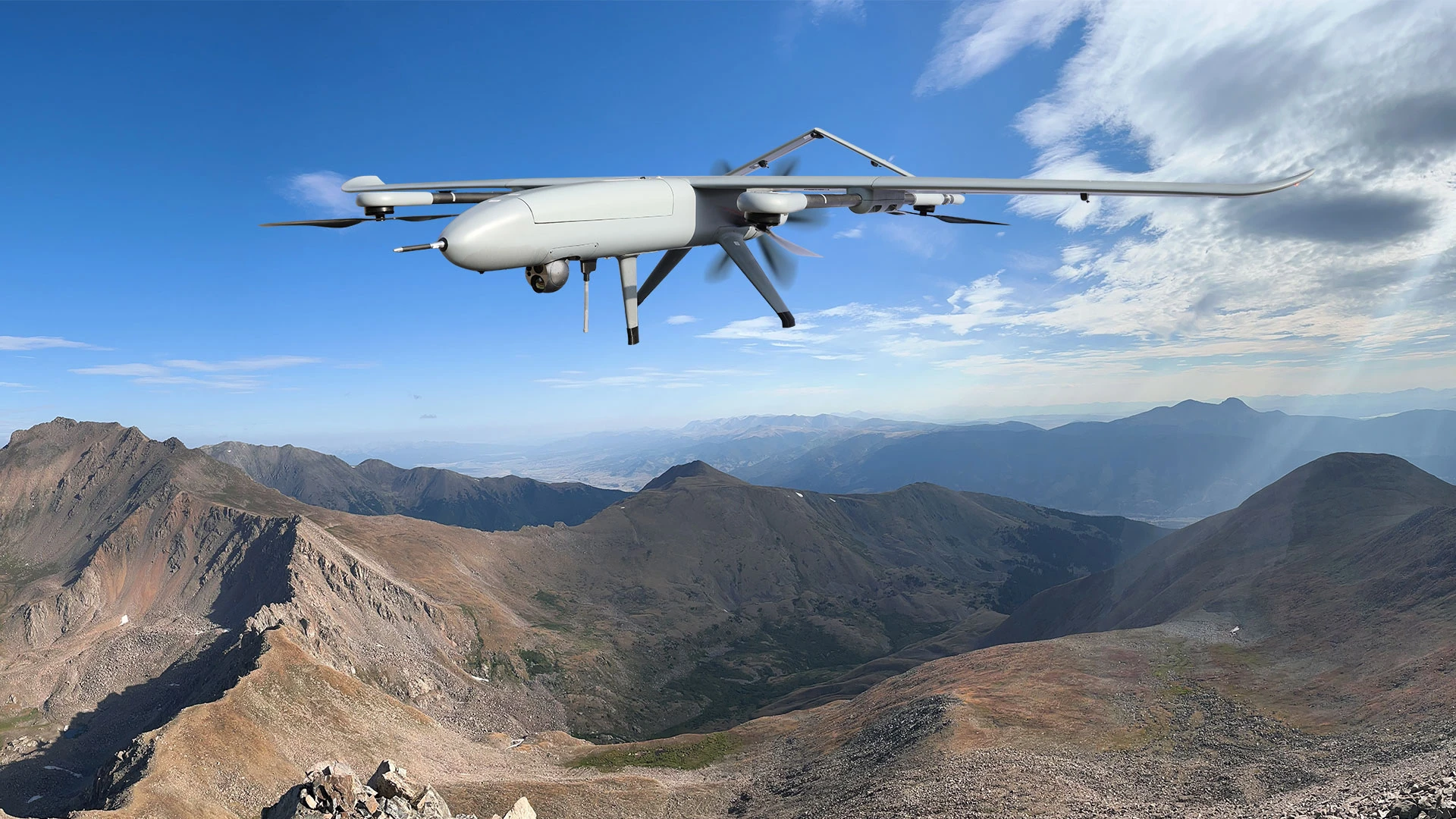

BULUT is a fixed-wing Autonomous Unmanned Aerial Vehicle designed to meet modern military units’ needs. It can do vertical landing, take-off, and fully autonomous missions without a runway. BULUT offers significant strategic advantages with several sensors and technology with gasoline thrust engine.
It is an autonomous UAV that can perform joint operations with all unmanned systems. With features tailored to the requirements of contemporary armed forces BULUT UAV enhances mission flexibility and operational performance. Its modular architecture allows for the integration of different payloads. Since it can operate under the clouds, it can perform marking, detection missions day and night, even in cloudy weather conditions and transfer intelligence information to the multi terminals at the same time. It is possible to do handover among Ground Control Stations in case of operation requirement. BULUT can be equipped with several sensors to avoid collision.
Technical specifications
General Features
- MTOW: 58 kg (including payload)
- Wingspan: 4.5 m
- Payload Capacity: 5 kg
- Data Link Range: Up to 80 km
- Cruise Speed: 49-51 knots / 90-95 km/h
- Propulsion System: Gasoline Engine
- Endurance: Up to 6 hours
- Ceiling Altitude: 15.000 ft
- Operating Altitude: 8.000 ft
- Wind Limit: 20 knots (Take-off/Landing) / 25 knots (Cruising)
- Operating Temparature: -10/+55 °C
Key Features
- Fully Autonomous Flight System
- Runway Independent VTOL Mission Capability
- Sub-Cloud Mission Capability
- Transportation, Operation and Maintenance with Three Technicians
- Intelligence, Surveillance and Reconnaissance with EO/IR/LRF Payload
- 8 Antennas CRPA GNSS Anti-Jamming Capability
- Target Coordinate Estimation
- Telemetry Link Redundancy
- Return Home, Autonomous Landing in Case of Link Loss
- Performing Mission in the Light Rain
Applications
- Border and Coastal Patrol
- Anti-Smuggling and Anti-Terrorism
- Public Security
- Narcotic Plant Detection
- Settlement Thermal Measurement
- Forest Fire Prevention
- Post-Disaster Assessment
- Environmental Pollution Detection
- Agricultural Applications
- Oil-Gas Pipelines Observation
- Power Lines Inspection
- Search and Rescue Operations
- Artillery Target Acquisition
- Cartography
