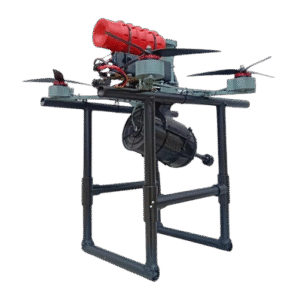

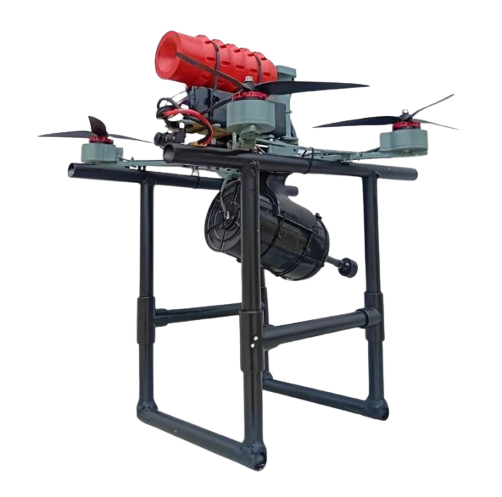

Buster M-FB10
Product descripton: Buster M-FB10 by Woot Tech Aerospace
Buster M‑FB10 is a fiber‑optic armed drone built for missions where conventional RF links and GPS cannot be relied upon. Designed for unjammable, non‑LOS operations, it remains fully connected and controllable even in highly contested electromagnetic environments.
Operational Use
-
Behind‑the‑wall demolitions
-
Kamikaze and precision strike missions
-
Border security and surveillance
-
Emergency response and infrastructure monitoring
Sensing & Awareness
-
Integrated EO/IR camera enables day and night operations
-
Provides real‑time visual feedback in environments with limited visibility
Communication & Resilience
-
Fiber‑optic communication link ensures:
-
Zero‑latency command and video
-
Immunity to jamming and interception
-
-
Operational range:
-
Up to 5 km (return link)
-
Up to 10 km (one‑way)
-
Payload & Mission Flexibility
-
Supports a variety of munition payloads
-
Modular payload architecture allows adaptation to mission needs
-
Optional AI‑based tracking, targeting, and swarming capabilities
Airframe & Propulsion
-
Lightweight yet robust frame balances agility and stability
-
Quad‑motor BLDC propulsion ensures high speed and responsive maneuvering
Technical specifications
| Parameter | Value |
|---|---|
| UAV Type | Fiber‑optic armed drone |
| Maximum Take‑off Weight (MTOW) | 5 kg |
| Maximum Payload | 1 kg |
| Maximum Service Ceiling | 3000 m (AMSL) |
| Cruise Speed | Up to 175 km/h |
| Propulsion | 4 × BLDC motors |
| Camera | EO/IR camera (day/night operations) |
| Communication | Fiber‑optic link (jamming‑proof, non‑LOS) |
| Communication Range | Up to 10 km |
| Fiber‑Optic Range | Up to 5 km (return) / 10 km (one‑way) |
| Flight Endurance (no payload + RF link) | Up to 50 min |
| Flight Endurance (1 kg payload + fiber link) | Up to 20 min |
| Payload Options | Anti‑radiationAnti‑bunkerPre‑fragmentationHEFA explosives |
| Optional Features | AI‑based tracking, targeting, swarming |
