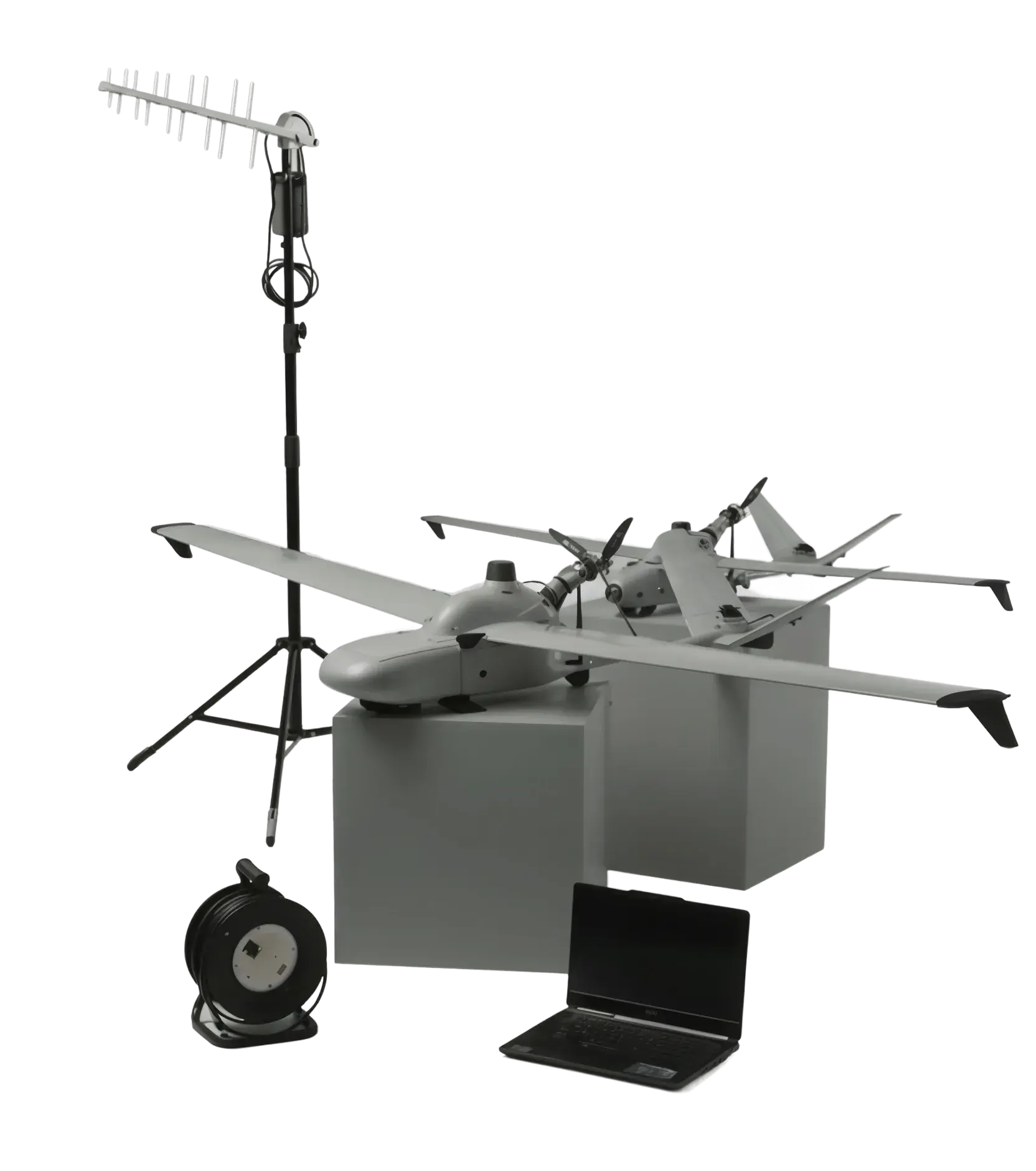

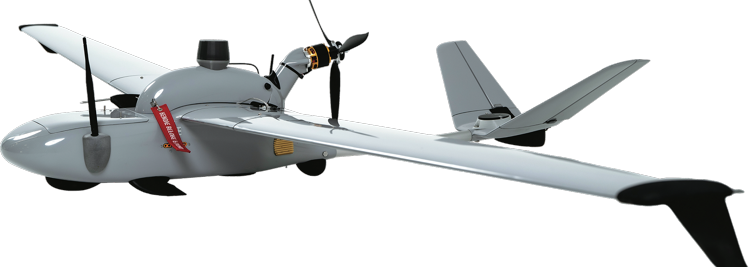

Cetus Photo UAV
Product descripton: Cetus Photo UAV by ABRIS DG
Cetus Photo is a tactical ISTAR (Intelligence, Surveillance, Target Acquisition, and Reconnaissance) unmanned aerial platform designed for multi-domain operational intelligence gathering. It is optimized for photo reconnaissance missions, providing high-resolution imagery and extended operational endurance with minimal crew requirements.
The UAV is built for resilient performance in electronically contested environments, including GNSS-denied and jamming-heavy conditions. It integrates secure communication systems and AI-powered analysis tools to support real-time decision-making and object detection through the IRIZI Mission Management System.
Designed for rapid deployment and operational flexibility, Cetus Photo is transportable and operated by a crew of two, enabling efficient mission execution across extended operational areas.
Technical specifications
Key Features
- NATO Class I(b) Mini UAV ISTAR platform
- Extended photo reconnaissance capability
- Operational radius up to 40 km
- Endurance up to 3 hours
- Maximum mission range up to 200 km
- Crew requirement: 2 operators
- Secure anti-jamming GNSS and telemetry systems
- AI-powered aerial intelligence processing (IRIZI system)
- Designed for GNSS-denied and EW-contested environments
- Portable and rapidly deployable system
Operational Capabilities
Intelligence, Surveillance & Reconnaissance (ISR)
Cetus Photo delivers high-quality aerial imagery for detection, recognition, and identification of objects of interest across wide operational areas.
Secure & Resilient Communications
The platform is equipped with anti-jamming GNSS and resilient telemetry systems to ensure continuous data transmission even under electronic warfare conditions.
AI-Driven Mission Analysis
Integrated with the IRIZI Mission Management System, the UAV enables automated analysis of aerial imagery for faster and more accurate intelligence generation.
Extended Mission Performance
The system is designed for long-duration missions with minimal operator intervention, supporting sustained surveillance and reconnaissance tasks.
Payload & Sensor Suite
- FUJIFILM GFX100RF high-resolution EO camera
- Optical zoom: 1x (2.8x digital crop)
- Resolution: 11648 × 8736 px
- Focal length equivalent: 35 mm
- Ground sampling distance (GSD): 1–10 cm
- Gimbal-stabilized imaging system
Technical Specifications
| Parameter | Cetus Photo |
|---|---|
| Platform Type | NATO Class I(b) Mini ISTAR UAV |
| Mission Type | Aerial Reconnaissance / ISR |
| Operational Radius | Up to 40 km |
| Maximum Flight Distance | Up to 200 km |
| Endurance | Up to 3 hours |
| Maximum Takeoff Weight | 10 kg |
| Crew | 2 operators |
| Payload | FUJIFILM GFX100RF EO camera system |
| Imaging Resolution | 11648 × 8736 px |
| Optical Zoom | 1x optical, 2.8x digital crop |
| Focal Length Equivalent | 35 mm |
| GSD | 1–10 cm |
| Navigation | GNSS + anti-jamming system |
| Communications | Secure telemetry with anti-jamming protection |
| Operating Environment | GNSS-denied and EW-contested environments capable |
| Deployment | Catapult launch system |
| Ground Control | Dedicated workstation with IRIZI software suite |
