Chaklun-B

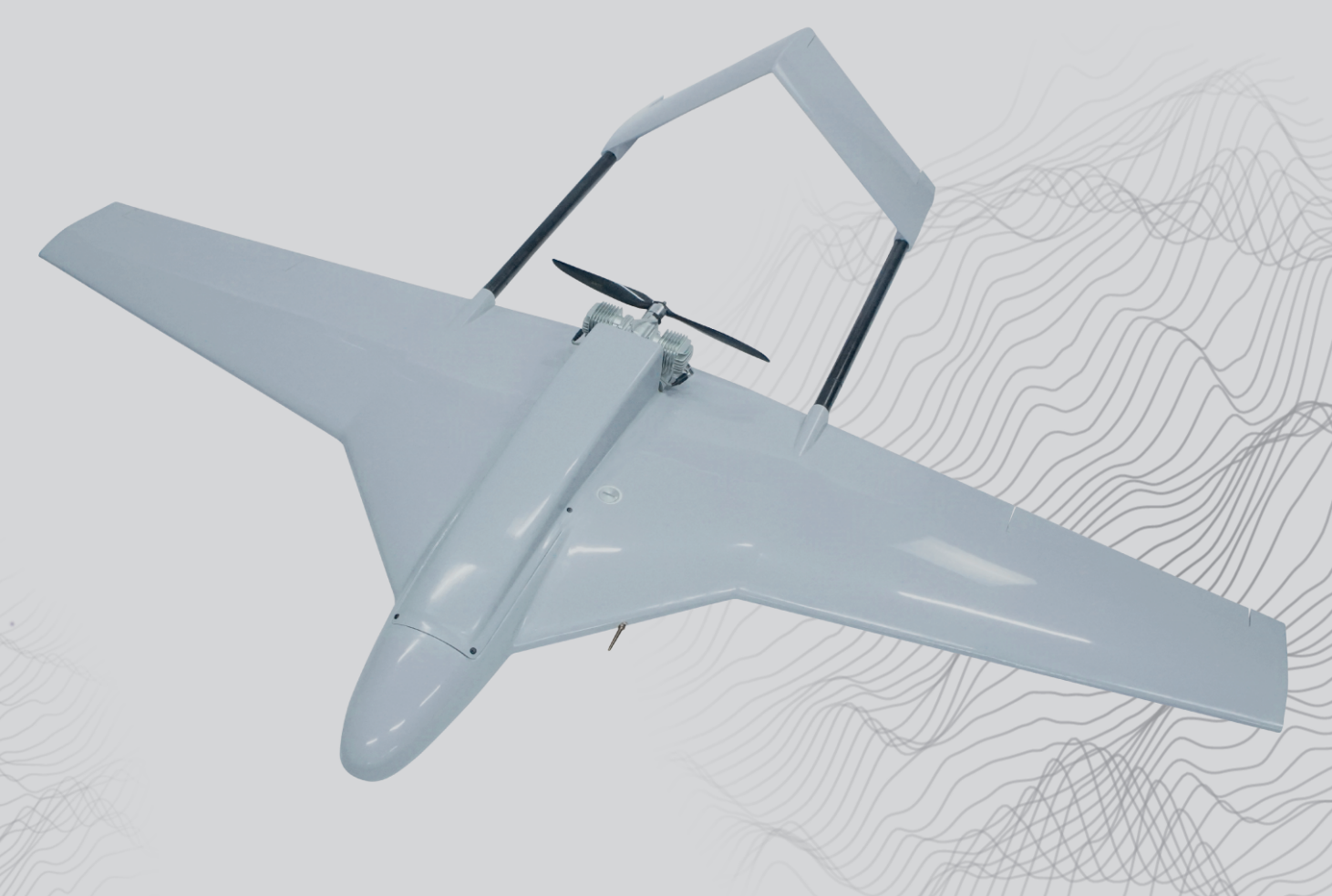

The "Chaklun-B" UAV is an aircraft designed for carrying payloads.
Product descripton: Chaklun-B by RC Direction
Built using a conventional aircraft design, it can remain airborne for approximately 6 hours while caring a payload up to 15 kg.
An integrated internal system, along with the software developed specifically for this UAV, ensures stable flight in automatic mode based on predetermined coordinated.
UAV composition
- Unmanned aerial vehicle – 1 unit
- Ground station – 1 unit

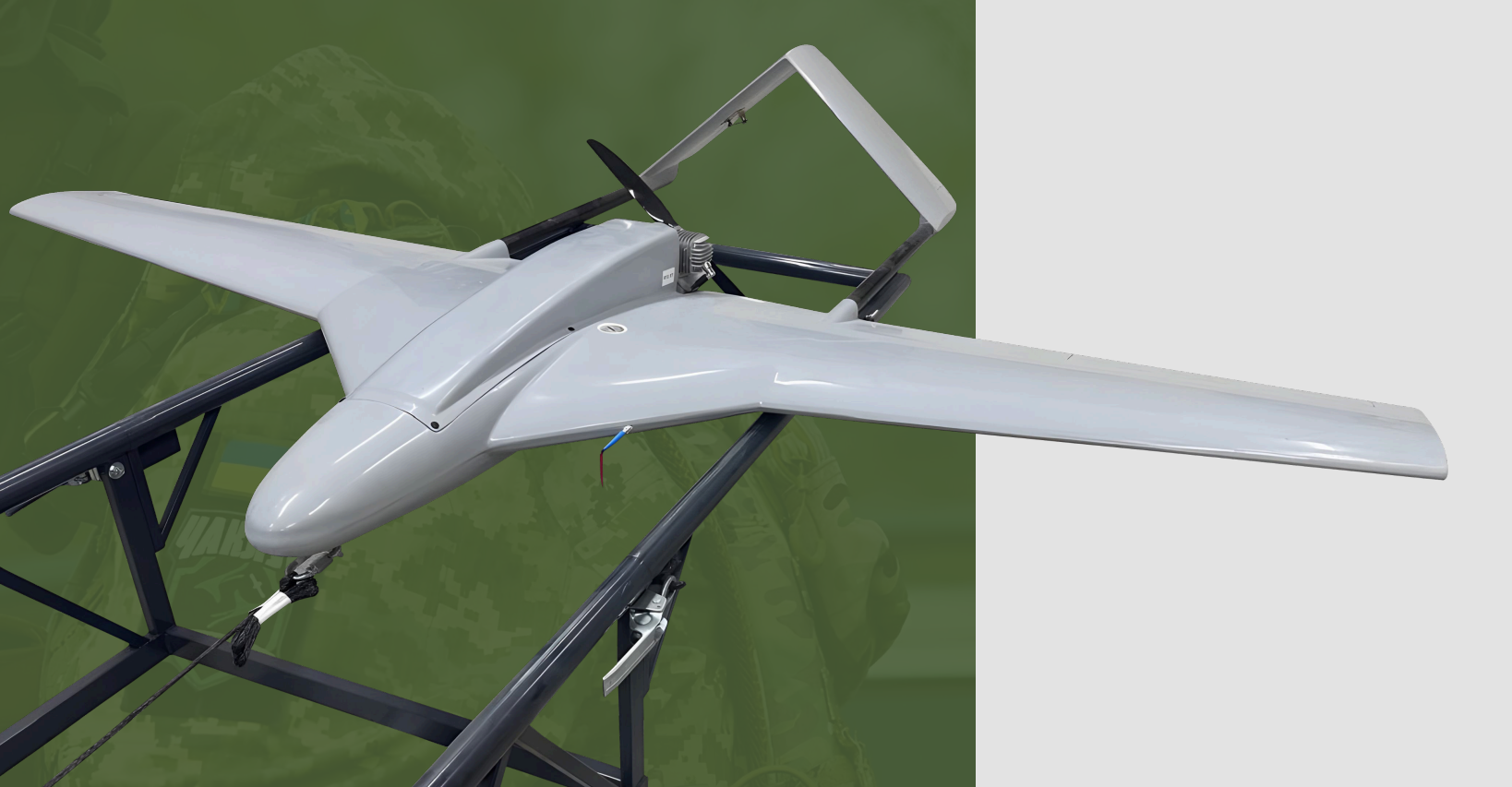

- Launching device
Technical specifications
| Parameter | Value |
|---|---|
| Length of the Airframe | 2200 mm |
| Flight Duration | Up to 6 hours |
| Wingspan | 3100 mm |
| Takeoff Weight | Up to 45 kg |
| Maximum Wind Speed | Up to 12 m/s |
| Maximum Flight Speed | 155 km/h |
| Cruise Speed | 130 km/h |
| Maximum Range | 600 km |
| Maximum Flight Altitude | Up to 3000 m |
| Engine Type | Internal combustion engine |
| Payload | 10–15 kg |
| Operating Temperature | -10…+30 °C |
