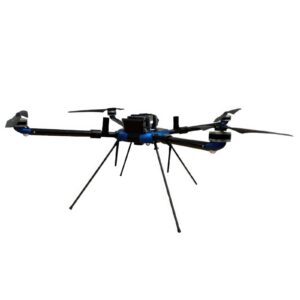

The CK9 is a versatile drone with long endurance and high payload capacity in its category.
C5 C6 class certified upon configuration.
Main specifications Anodised aluminium chassis IP55 Dimensions: Folded: 130 × 355 × 355 mm Unfolded: 390 × 740 × 740 mm Engine centre distance: 1000 mm Maximum take-off weight: 9 kg Empty weight : 4.9 kg with battery (7S 16 Ah Li-Ion Solid State) Maximum payload : 4 kg Maximum speed : 23 m/s Maximum altitude : 3500 m (up to 5000 m with adapted propeller) Endurance : 60 minutes unloaded Telemetry and video frequency : 5,8 GHz (other options available) Emergency telemetry + circuit-breaker frequency : 868 MHz (options available) Max data link distance : 3 to 5 km (standard), up to 30 km optional
| Domain | professional |
| Applications | aerial photography, surveillance, agricultural, transport, civil defense, security, for training |
| Type | quadcopter |
| Engine type | electric motor |
| Maximum load |
4 kg |
| Autonomy |
60 min |
| Maximum altitude |
Max.: 5,000 m Min.: 3,500 m |
