D-21-12R
Reconnaissance and Strike Ground Robotic Complex
Product descripton: D-21-12R by FRDM Group
The reconnaissance and strike ground robotic complex is designed to observe, detect and engage ground targets: manpower, lightly armored vehicles, patrol, conduct assault and defensive operations.

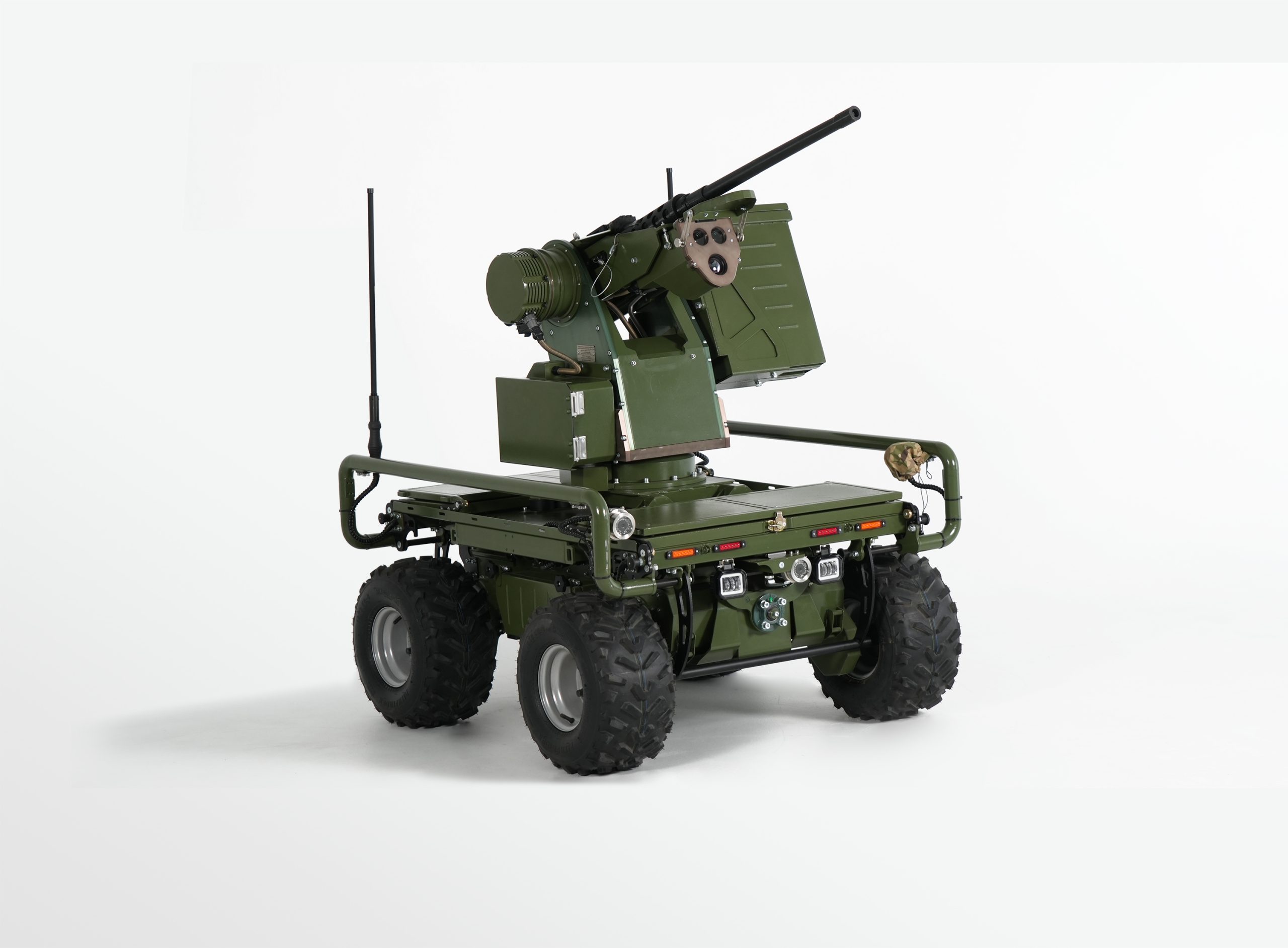

The D-21-12-R RNRC is a mobile, remotely controlled robot and is designed for surveillance, detection and engagement of ground targets (manpower, lightly armored vehicles), patrolling, and conducting assault and defensive operations.
Our Advantages
- High shooting accuracy
- Wide range of targeting angles
- 4 km control radius
- Informative control panel
- Removable battery
- Rapid deployment
- Individual training
- 24/7 technical support
Technical specifications

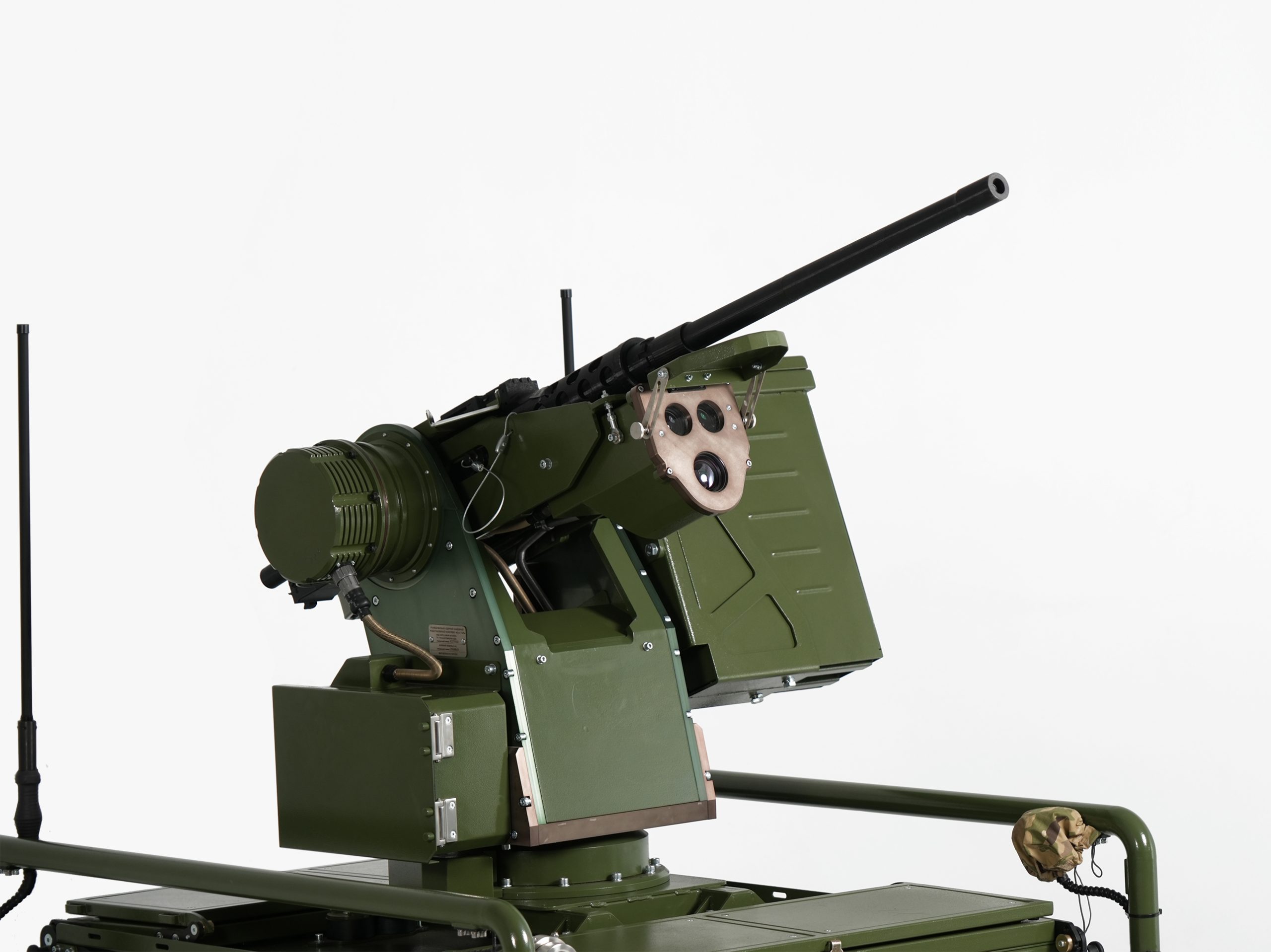

Combat Module
| Parameter | Indicator |
|---|---|
| Suitable Weapon | Browning M2 |
| Ammunition | 300 rounds (.50 BMG, NATO standard) |
| Elevation Angle | -20° / +60° |
| Azimuth | 360° continuous rotation |
| Effective Range | up to 1500 m |
| Turning Speed | 30°/s |
| Aiming System | Day — TV / Night — thermal imaging |
| Aiming Accuracy | 0.1 milliradian |
| Firing Modes | Regulated |
| Power Source | 24 V lithium-ion battery |
| Operating Time | up to 48 hours |
Platform
| Parameter | Indicator |
|---|---|
| Range on Single Charge | 18 km (roads), 14 km (off-road) |
| Maximum Speed | 10 km/h (roads), 5 km/h (off-road) |
| Autonomous Operation (stationary) | up to 96 hours |
| Noise Level | up to 85 dB |
| Deployment / Collapse Time | 10 minutes |
| Operating Temperature | -10 to +50 °C |
| Environmental Resistance | Rain, snow, dust; wind up to 15 m/s |
| Crew Requirement | 2 persons |
| Ground Clearance | 240 mm |
| Terrain Capability | Slopes up to 20°, trenches up to 0.2 m, vertical obstacles up to 120 mm, fords up to 0.3 m |
| Surveillance System | 4 daytime cameras with IR illumination (55° horizontal / 30° vertical FOV) |
| Control Mode | Remote manual |
| Control Panel Data | Status, signal, coordinates, battery, map, distance, satellites |
| Communication Range | up to 5 km (open terrain), 1 km (complex terrain) |
| Communication Frequencies | 634–674 / 400–450 MHz |
| Encryption | SNOW3G / AES128 / ZUC |
| Frequency Hopping | Leapfrog |
| Navigation System | GPS |
| Dimensions | 1390 × 1245 × 1363 mm |
| Platform Weight | 380 kg |
| Drive Type | Electric |
| Winch | Yes |
