D21 UGV
Product descripton: D21 UGV by FRDM Group
D21 is an autonomous ground combat platform built for mobile engagement, armed reconnaissance, and persistent area security across offensive and defensive operations. Designed for contested frontline environments, D21 delivers mobile fire support, combat reconnaissance, and route security — operating independently or integrated into manned-unmanned teams.

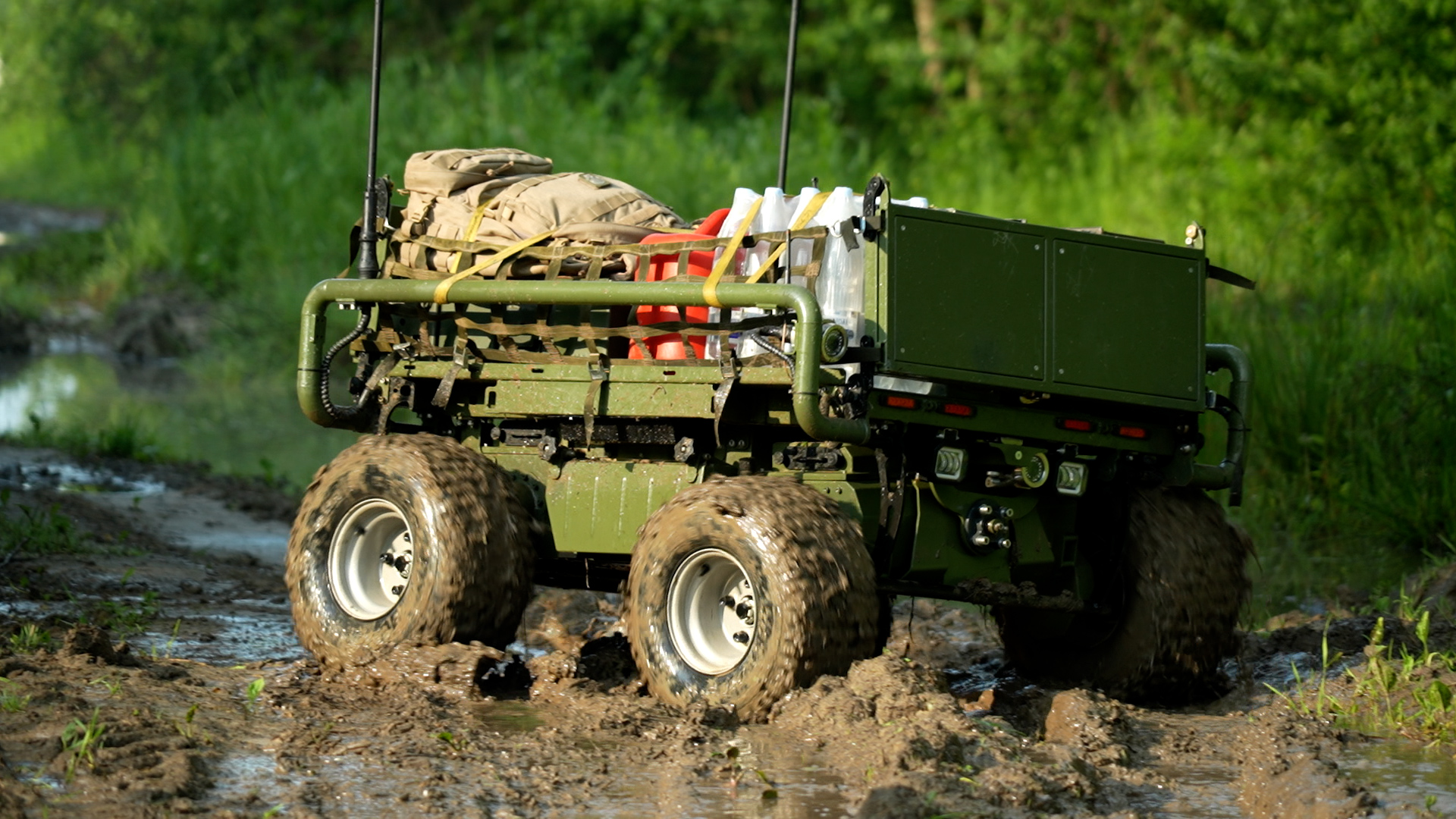

The D-21 LNRC is equipped with a logistics platform designed to perform auxiliary tasks of a carrier and courier, like a robot assistant. It can transport cargo (provisions, BC, medicines, etc.) to hard-to-reach places due to constant shelling and when accompanying a unit on a mission.
Technical specifications
Platform Type
Uncrewed Ground Vehicle (UGV)
Core Roles
Mobile Fire Support
Combat Reconnaissance
Area Security / Route Protection
Manned-Unmanned Team Integration
Operational Capabilities
Independent autonomous operations or coordinated deployment within mixed manned-unmanned units
Designed for contested frontline environments
Supports multiple remote-controlled weapon modules
Electric all-wheel drive for low acoustic and thermal signature
Key Features
Modular combat payload integration (D-12, D-14, D-18 weapon stations)
All-terrain mobility with high ground clearance
EW-resilient remote control operations
Designed for persistent forward deployment
Remote Controlled Battle Modules

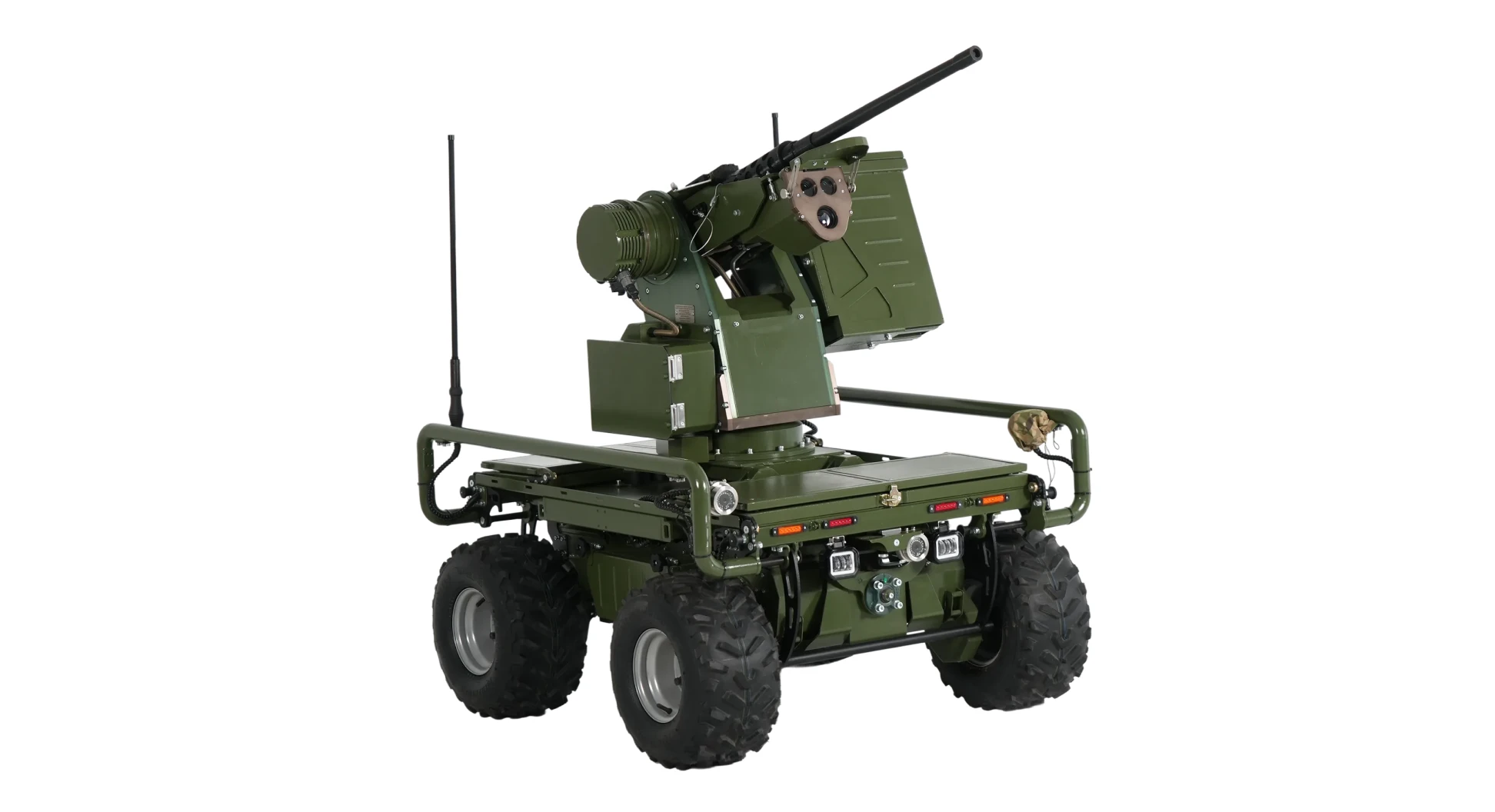

D-12 — M2 machine gun module
D-14 — MK-19 grenade launcher module
D-18 — 70mm rocket launcher module
| Parameter | Indicator |
|---|---|
| Range on a single battery charge | 18 km (roads), 14 km (off-road) |
| Maximum Speed | 10 km/h (roads), 5 km/h (rough terrain) |
| Autonomous Operation (stationary) | up to 96 hours |
| Noise Level | up to 85 dB |
| Deployment / Collapse Time | 10 minutes |
| Operating Temperature Range | −10 to +50 °C |
| Environmental Protection | Rain, snow, dust; wind up to 15 m/s |
| Crew Requirement | 2 persons |
| Ground Clearance | 240 mm |
| Terrain Capability | Slopes up to 20°, trenches up to 0.2 m, vertical obstacles up to 120 mm, fords up to 0.3 m |
| Surveillance System | 4 daytime cameras with IR illumination, 55° horizontal / 30° vertical FOV |
| Control Mode | Remote manual |
| Control Interface Data | Status, signal levels, coordinates, battery, map, distance, satellites |
| Communication Range | up to 5 km (open terrain), 1 km (complex terrain) |
| Communication Frequencies | 634–674 MHz / 400–450 MHz |
| Encryption | SNOW3G / AES128 / ZUC |
| Frequency Hopping | Leapfrog |
| Navigation System | GPS |
| Load Capacity | 200 kg |
| Dimensions | 1390 × 1245 × 1363 mm |
| Platform Weight | 380 kg |
| Winch | Yes |
| Additional Features | Support for combat module installation |
