Dagger 2.7 UAV
Product descripton: Dagger 2.7 UAV by Cannon Dynamics
The DAGGER 27 is a versatile Fixed Wing with Canard UAV with long endurance and flight times.
DAGGER 27 shares many of the great features of its smaller sibling but boasts a greater wingspan and payload capacity.
Modern high-tech aerodynamics is complimented by the advanced concept of modular design and construction.
The DAGGER system offers optional size wings, alternative canards and fuselage extending modules. This system enables extreme versatility, for best fit to mission requirements.
Equipment and payload configuration is simplified by these features and performance is not compromised.

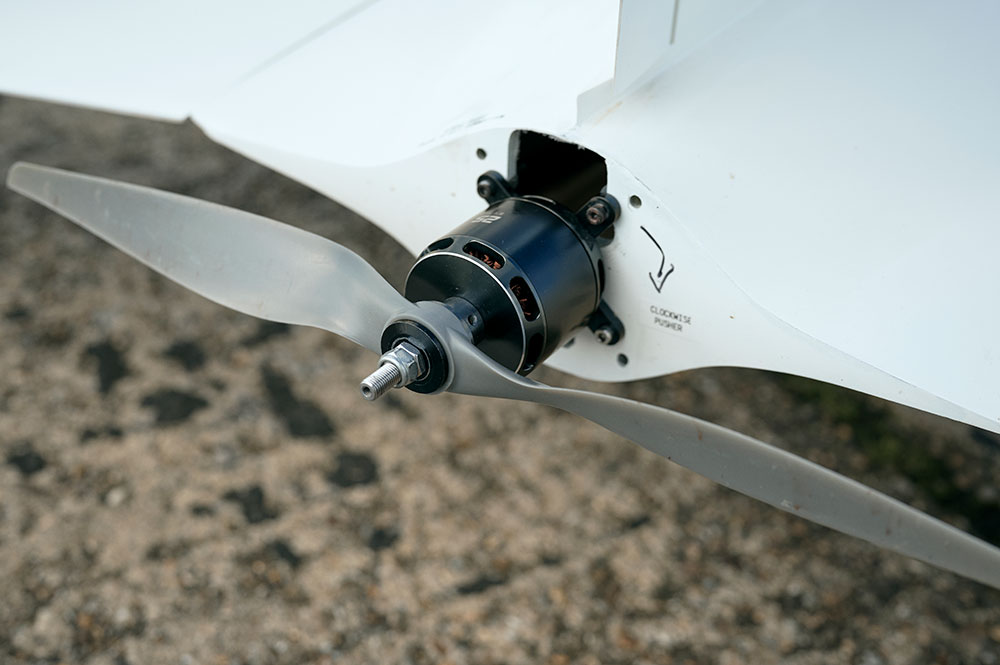

Flight Modes and Propulsion
Engines include carburettor or Electronic Fuel Injection (EFI) versions, of frugal fuel consumption characteristics or high-power versions enabling higher flight speeds.
VTOL
Mission Packages
Radio / Communications
High-quality radio communications ensure responsive and stable flight performance.
Cameras and Optics
DAGGER supports a wide range of Cannon SmartEye cameras with single, dual, or triple sensors, including low-light, IR, and thermal imaging. All cameras are gimbal-mounted, with payloads ranging from under 200 g to approximately 2 kg.
- Optical zoom: 10x to 80x
- Digital zoom: up to 32x
- AI object tracking and other advanced features
Autopilot
Systems are tailored to the selected avionics suite, offering options from full “remote pilot in control” to fully autonomous flight. Various autopilots and flight controllers are available, from cost-effective commercial solutions to full military-spec GNSS systems capable of operating in denied environments.
Ground Control Stations
The Cannon Dynamics Command, Control, and Communication (C3) systems provide a scalable autonomous GCS solution, ranging from a simple laptop or Android handset to a full container-based mobile command, control, and communications center.
Technical specifications
| Specification | DGR-27 |
|---|---|
| Model | DGR-27 |
| Frame Length | 2000 mm |
| Wingspan | 2700 mm |
| Frame Weight | 6 kg |
| Take-off Weight | 16+ kg |
| Frame Material | GRP |
| Propulsion | Electric / Twin Electric (VTOL Option) |
| Internal Combustion Engine (4-stroke EFI) | |
| Flight Time | 4 hr (Electric) / 10 hr (ICE) |
| Payload Capacity | 7+ kg |
| Max Flying Speed | — |
