Easy Site Inspection
Product descripton: Easy Site Inspection by Easy Aerial
Free Flight System:

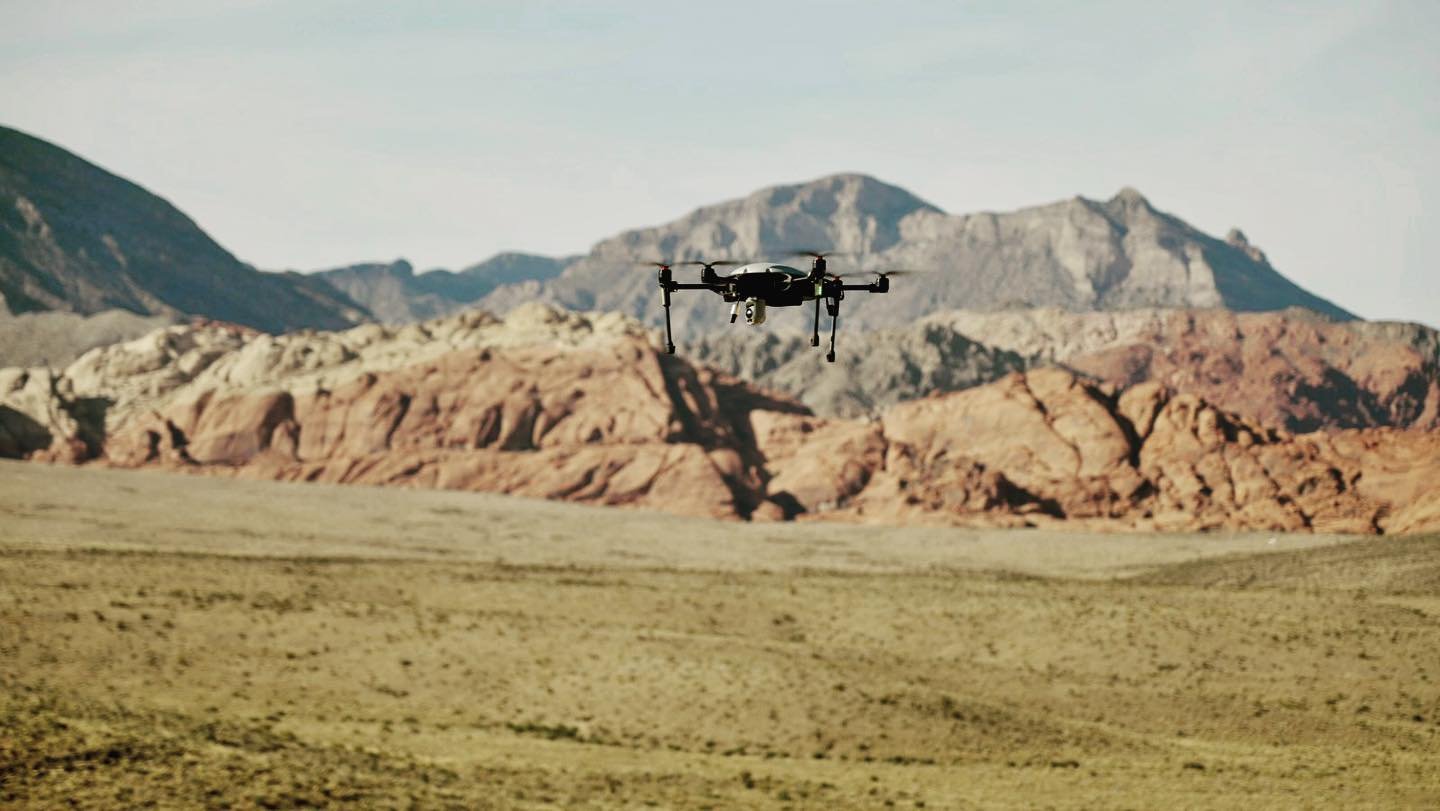

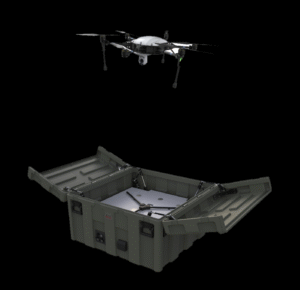

Advanced, affordable, and portable, our autonomous free-flight aerial monitoring system can be configured to meet a multitude of operational requirements. Not only can the drone automatically deploy from a ground station upon a security trigger such as a vibration sensor, fire alarm, or distress call, but it also can self-deploy and recharge for each scheduled mission. With an Easy Site free flight system, each drone can take off from and land in a different ground station, allowing for long-range inspections and monitoring missions while recharging at multiple locations.
Tethered System:

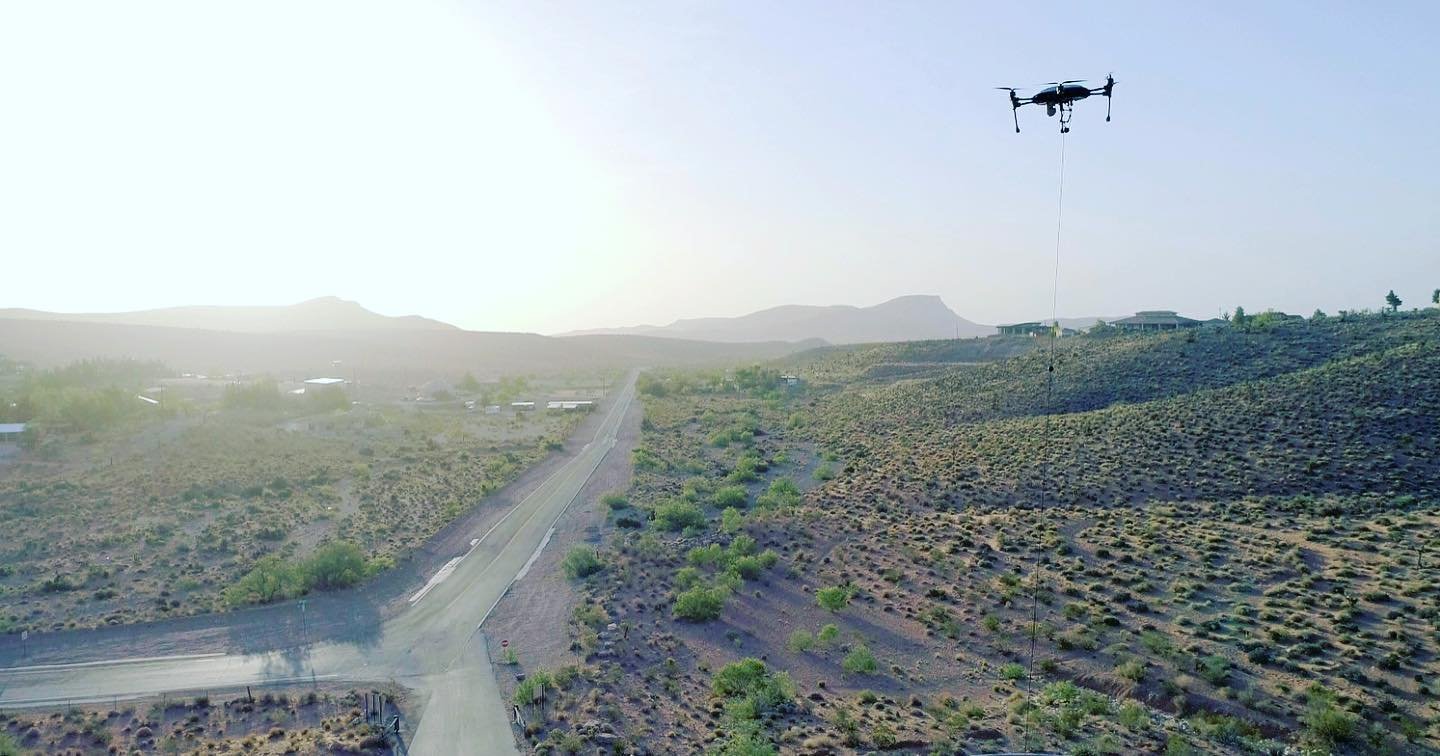

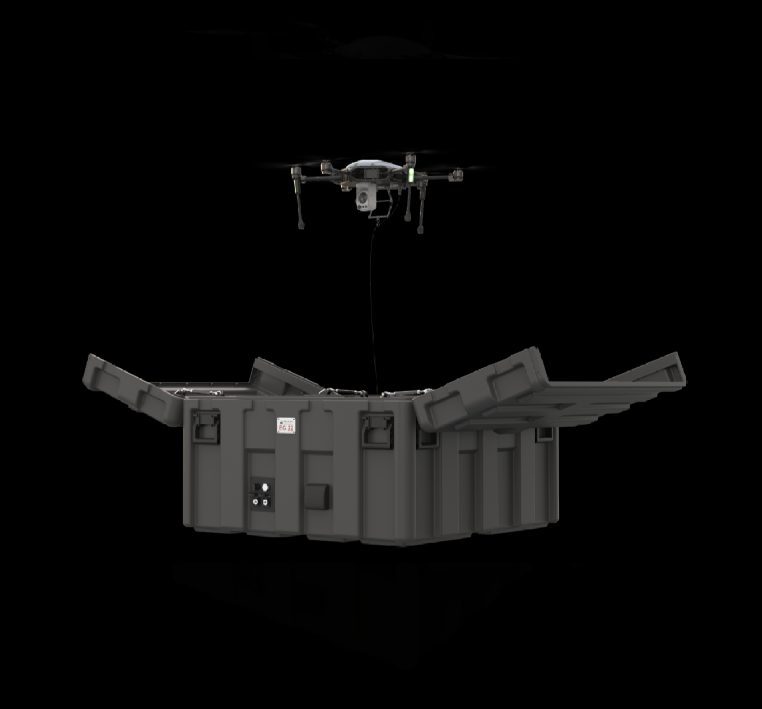

The tethered version of the Easy Site system features unlimited flight time and unparalleled data security. The entire operation, from takeoff to landing, is completely autonomous and can be performed remotely without the need for on-site intervention. The system features a 60m (200 ft) or a 100m (330 ft) data-over-power (DOP) enhanced tether for resilient, and secure data security. This persistent solution can support continuous flight even in extreme weather conditions, and it offers precise hovering over the ground station, including vehicle-follow functionality, even in GPS-denied environments.
Technical specifications
| Feature | Specification |
|---|---|
| System Dimensions | 46″ × 46″ × 28″ |
| System Weight | 233.2 lbs (without payload) |
| Computing Power | Intel i7 |
| Internal Web Server | Yes |
| Flight Endurance | 45 min (empty payload), 30 min (max payload 5 lbs) or Persistent Tethered Flight |
| Power | 100–240 V AC / 2000 W DC |
| Wind Gust Limit | Up to 25 knots |
| Payload Capacity | 6.6 lbs (tethered) |
| Maximum Height (Tether) | 200 ft (standard) / 330 ft (extended) |
| Environment | All-weather |
| Wind Tolerance | 25 mph |
