EC11
Product descripton: EC11 by T-DRONES
The EC11 is a versatile, multi-mount UAV platform designed for high-performance aerial operations with long flight endurance, modular payload compatibility, and enhanced safety features. Built with lightweight carbon fiber using an integrated molding process, the EC11 ensures durability while maintaining portability. Its advanced propulsion and electrical systems, along with a folding arm design, allow for efficient deployment, stable flight, and low-noise operation suitable for urban, nighttime, and wildlife-sensitive missions.
Equipped with a smart battery with CAN communication, dual-redundant power supply, and real-time monitoring, the EC11 combines safety, convenience, and high efficiency to meet diverse industrial, commercial, and surveillance requirements. Its modular design and quick-release connectors make it compatible with a wide range of payloads, supporting tasks from inspection to cargo transport.
Technical specifications
Key Features
-
Long Flight Time:
-
120 min with 2 kg payload
-
77 min with 3 kg payload
-
66 min with 4 kg payload
-
60 min with 5 kg payload
-
-
High Durability: Withstands up to 5,000 sorties and supports high-frequency operations and mobile deployment.
-
Low Noise: ~50 dB at 5 m for quiet operations in urban areas and wildlife reserves.
-
Carbon Fiber Material: Integrated molding for lightweight (1 kg shell) and high strength.
-
Smart Battery – T-DRONES 12S 36,000 mAh:
-
Intelligent monitoring for safety
-
Quick status display with battery screen
-
Integrated design for easy use
-
-

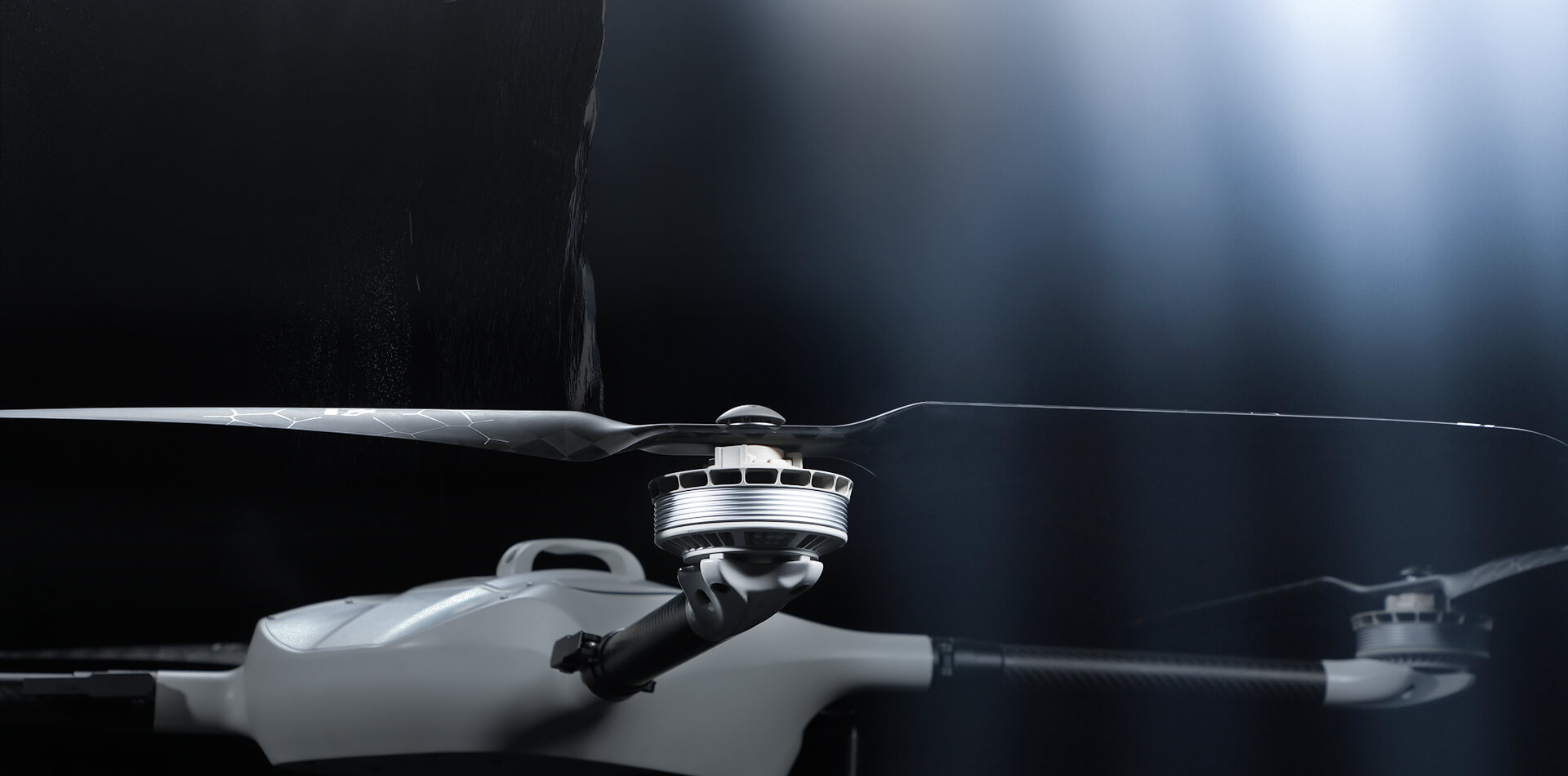

Powerful Propulsion System: IPET I7 integrated system with high efficiency, reliability, and low noise, featuring real-time health monitoring.
-
Safe Electrical System: Dual-redundant power supply and multi-channel power module for stable, reliable flight.
-

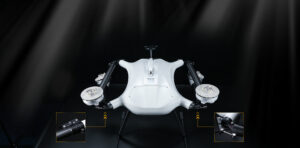

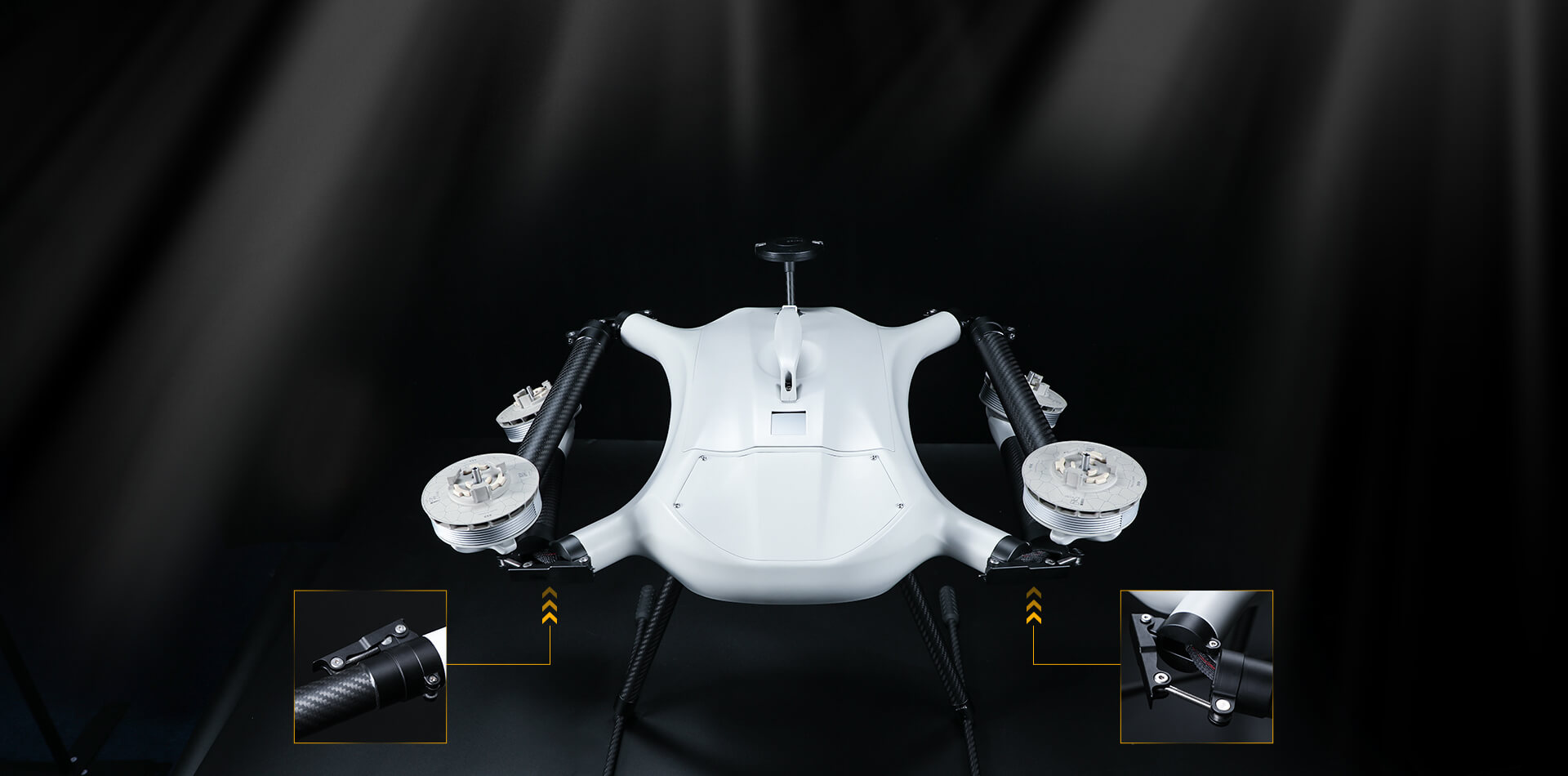

Folding Arm Design: Optimized for quick deployment and enhanced reliability.
-

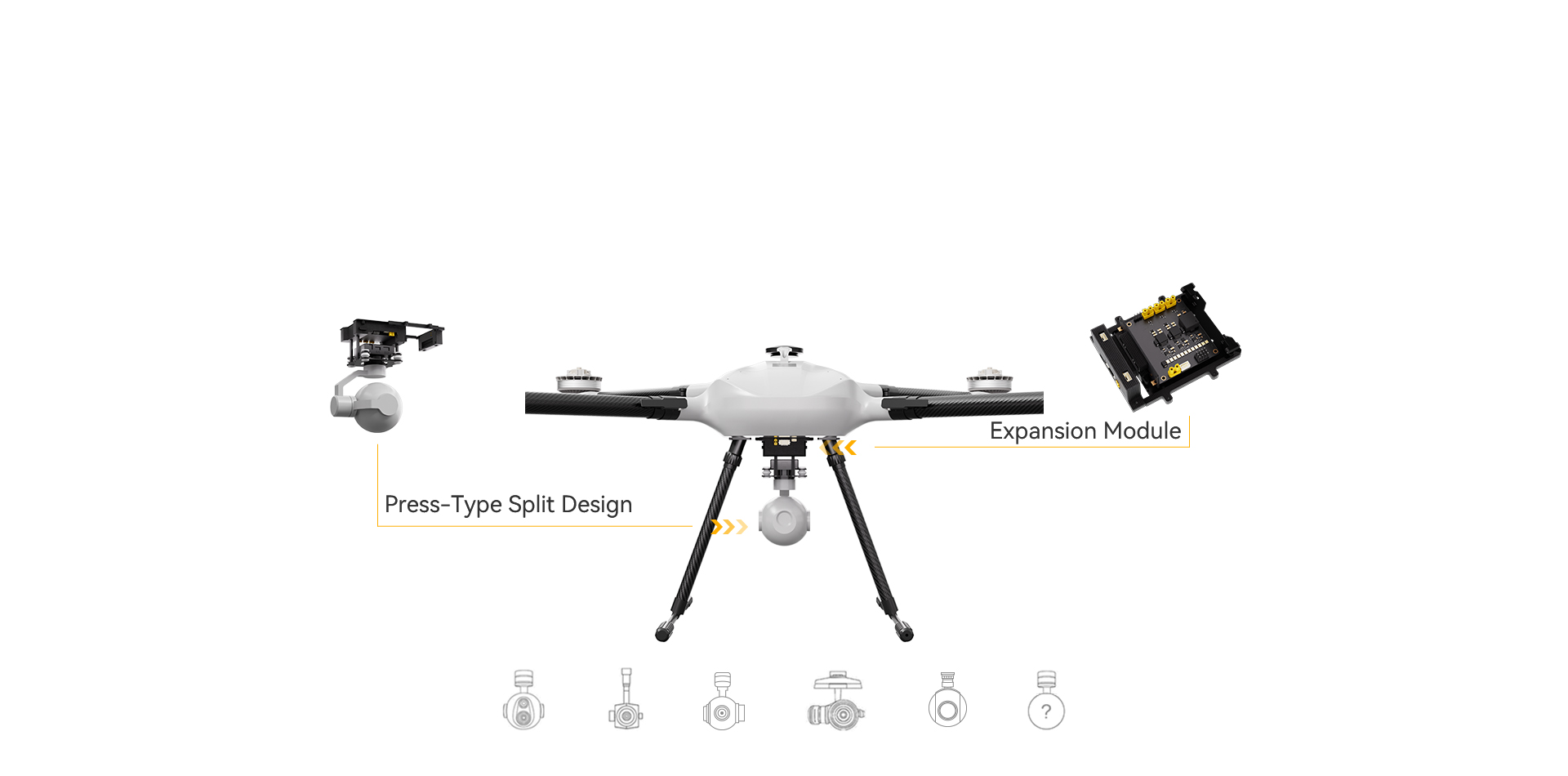

Multi-Mount Compatibility: Split-type quick-release connectors compatible with most payload devices and internal expansion for customized demands.
| Model | EC11 |
| Wheelbase | 1130mm |
| Drone Of Weight | 10.5kg (Including 2kg Load And Battery) |
| Payload | 0.5-5kg |
| Endurance | 1kg≤133min; 2kg≥120min; 5kg≥60min |
| Flight Altitude | 100~1000m (Typical); 4,500m Above Sea Level (Max.) |
| Maximum Horizontal Flight Speed | 20m/s |
| Maximum Ascending Speed | 5m/s |
| Maximum Descent Speed | 3m/s |
| Maximum Service Speed | 16m/s 115km |
| Economic speed/range/duration | 10m/s /85km/120min |
| Wind Resistance | Level 5 |
| Battery | 12S 36000mah |
| Limiting Cut-Off Voltage | 32V |
| Safe Cut-Off Voltage | 36V |
| Compatible Flight Control | DJI A3 / PIX/Micropilot |
| Unfolded Size | 894*882*356mm |
| Folding Size | 547*410*325mm |
