Electric stretcher
Product descripton: Electric stretcher by Ratel Robotics

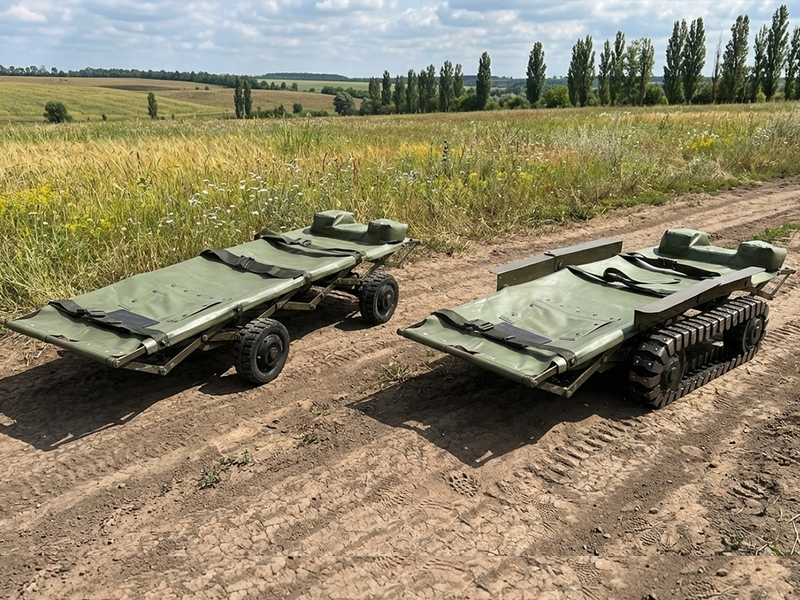

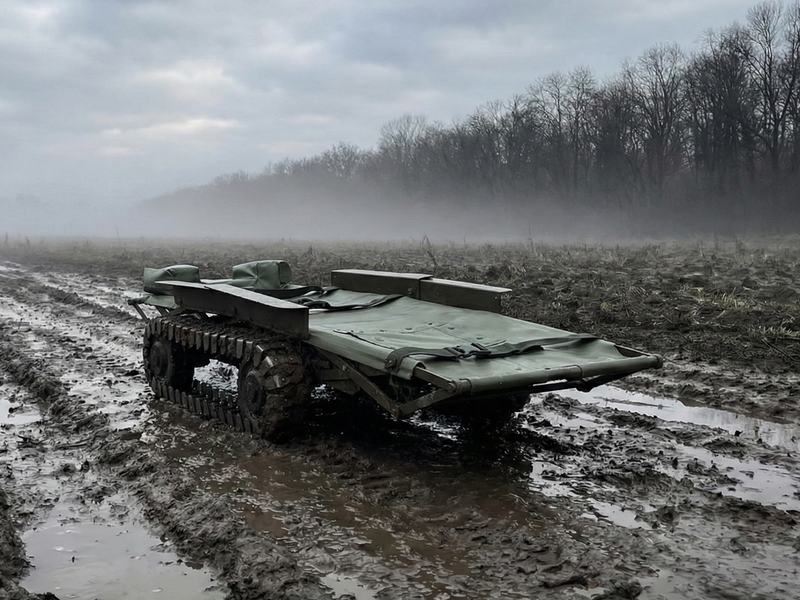

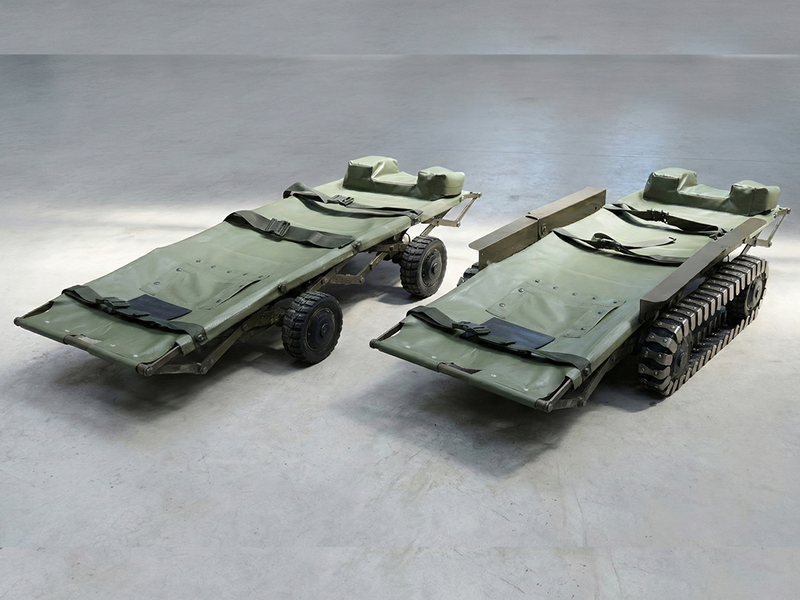

The Ratel Electric Stretcher is a ground robotic evacuation system designed to transport injured personnel with a payload capacity of up to 150 kg. It is intended for evacuation tasks directly from the contact line in operational environments.
The system enables remote casualty transport, reducing exposure of personnel during evacuation operations in high-risk zones.
Operational Role
The platform is designed specifically for:
- Medical evacuation from the contact line
- Transport of injured personnel
- Field casualty recovery operations
System Characteristics
The electric stretcher operates as a compact robotic evacuation platform with replaceable battery modules. It is designed for short-to-medium range evacuation missions across structured and off-road terrain.
The system supports stable movement under load and is optimized for controlled evacuation speed and safety.
Equipment Set
- Ground robotic electric stretcher platform
- 3 × replaceable batteries
- Integrated control system
- Operational documentation
Technical specifications
| Category | Specification |
|---|---|
| Platform Type | Ground robotic electric stretcher (UGV) |
| Mission Role | Medical evacuation / casualty transport |
| Payload Capacity | ≥ 150 kg |
| Total Weight | 70 kg |
| Weight with Payload | 220 kg |
| Speed | up to 7 km/h |
| Operational Radius | 100 m |
| Travel Range (loaded, hard surface) | ≥ 8,000 m |
| Travel Range (loaded, off-road) | ≥ 4,000 m |
| Dimensions | 2200 × 700 × 400 mm |
| Power System | Electric |
| Batteries | 3 × replaceable batteries |
| System Type | Remote-controlled evacuation platform |
