Envoy AUV
Product descripton: Envoy AUV by Cellula Robotics

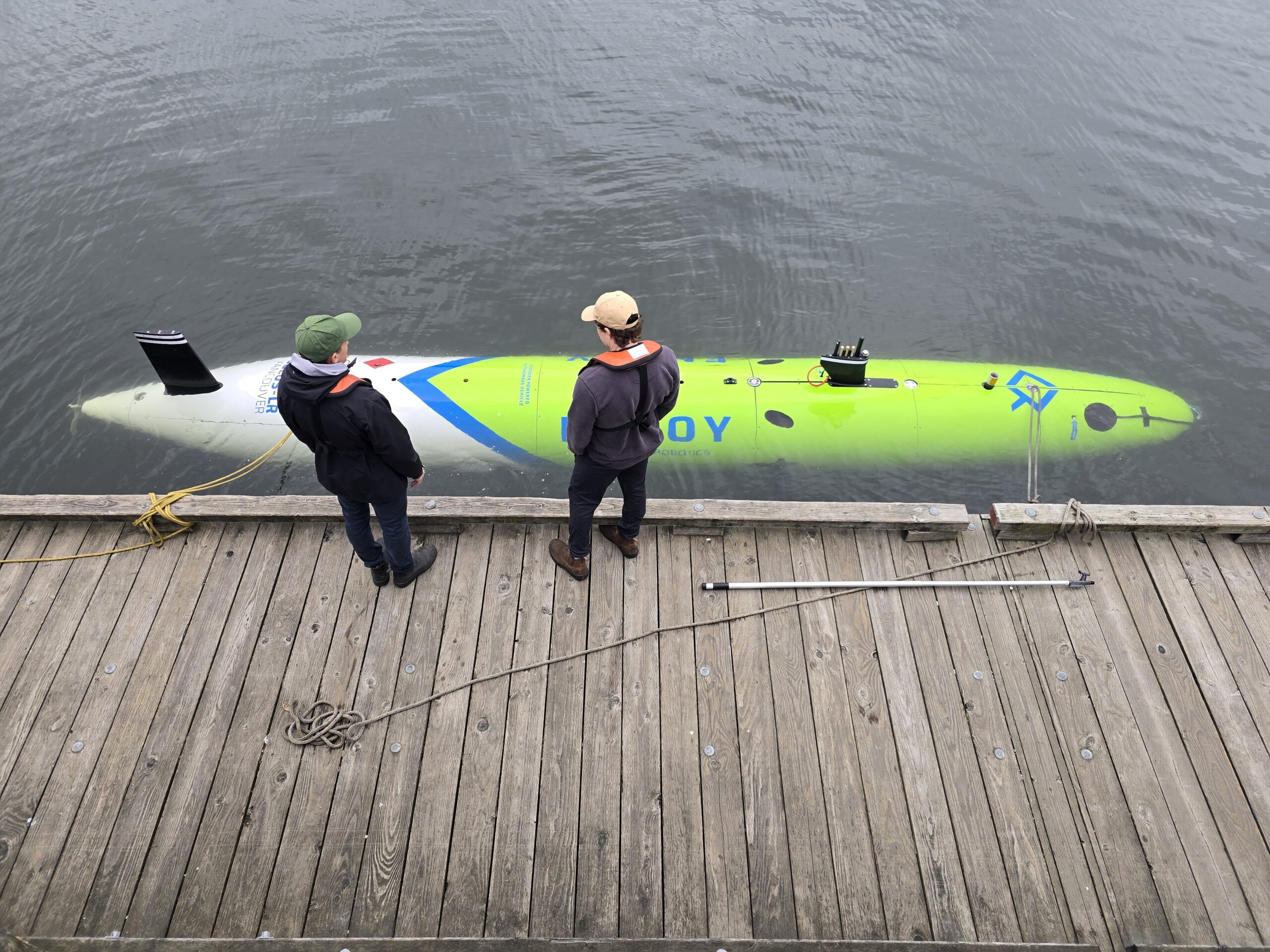

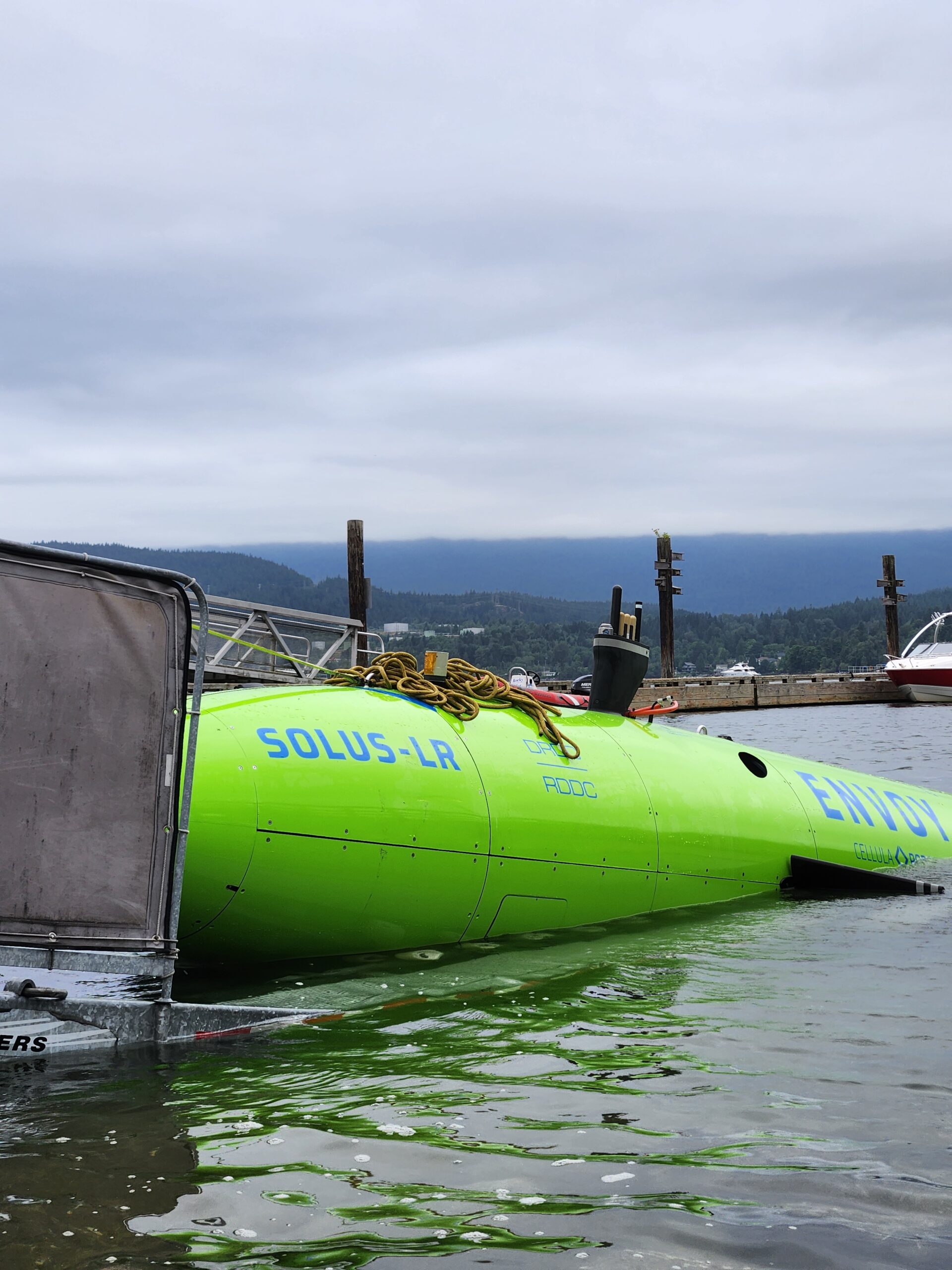

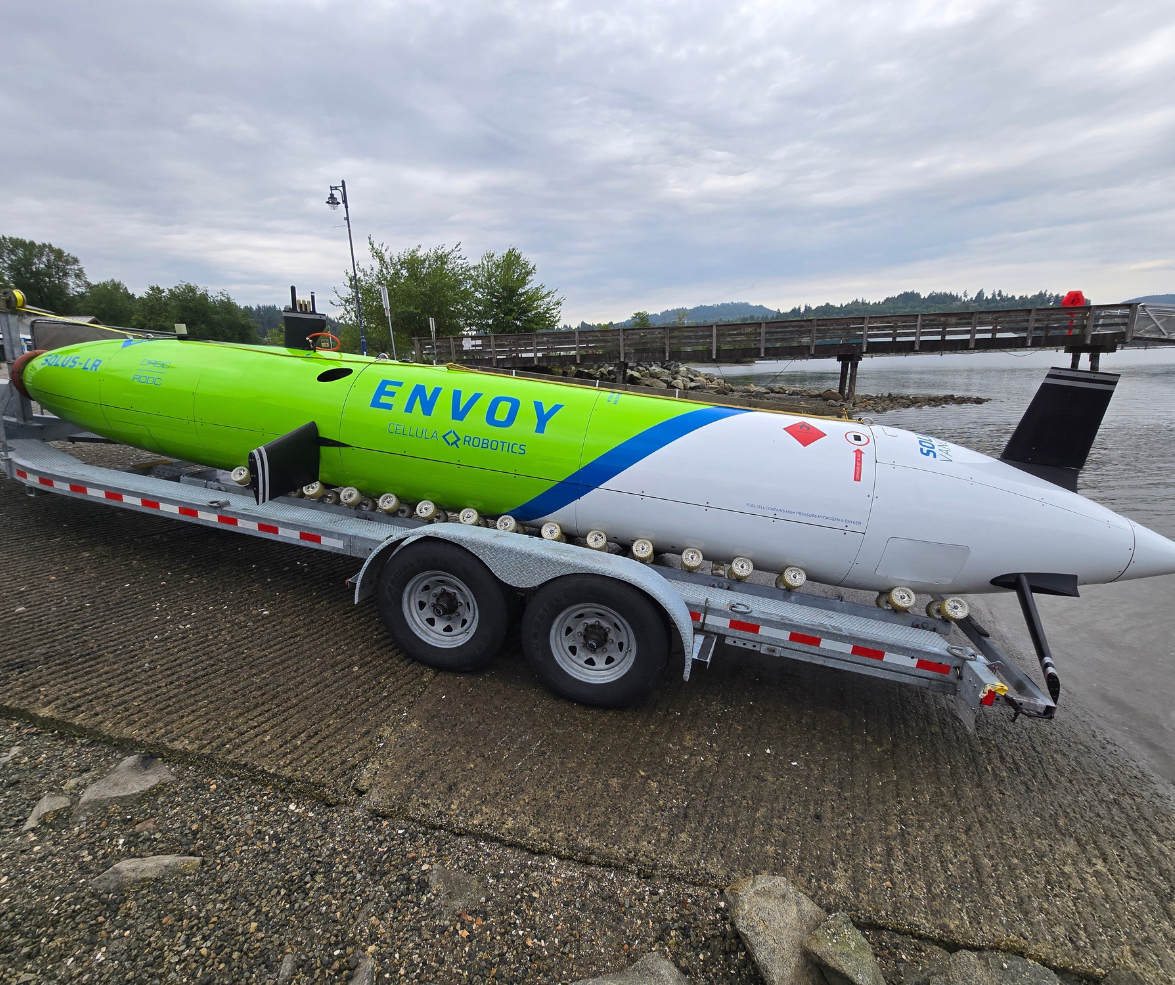

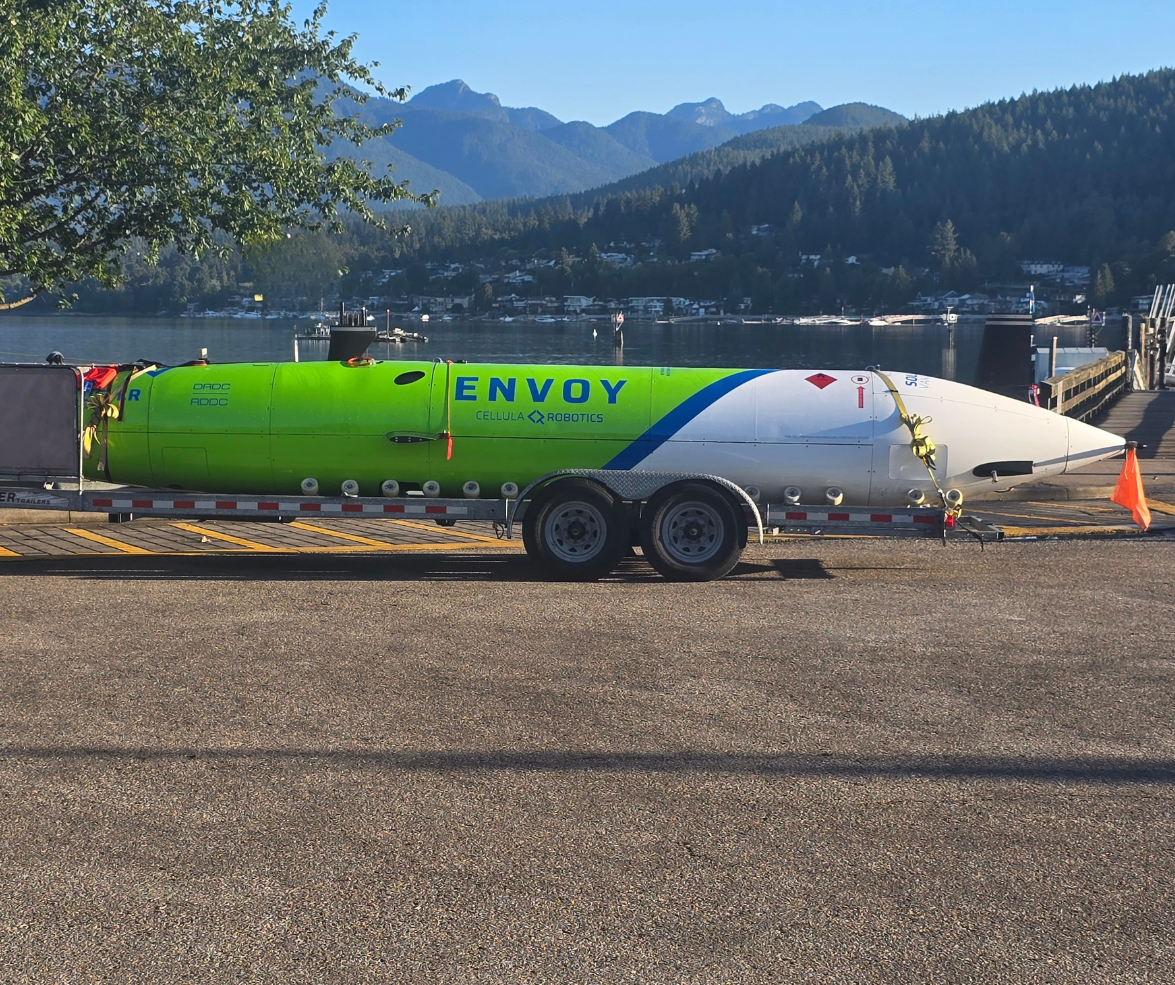

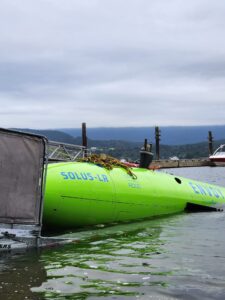

The Envoy AUV, previously known as the Solus-LR, is a long-endurance underwater vehicle powered by a fuel cell. It can remain submerged for months, traveling thousands of kilometers. Using a suction anchor, it secures itself to the seabed for covert, long-duration missions in challenging underwater environments. This enables persistent surveillance and data collection, making the Envoy AUV valuable for a wide range of underwater applications, from scientific research to national security.
Technical specifications
Key Features
Size & Weight
Envoy is a compact and lightweight vehicle, measuring 8.5 meters in length and 1 meter in diameter, with a displacement of 3,700 kg. Smaller configurations are available to suit specific mission requirements, making it adaptable to various operational scenarios.
Power & Endurance
Envoy offers extended endurance and range, powered by a 1,200 W hydrogen fuel cell. This configuration enables a 2,000 km submerged range and a 15-day endurance. Battery-powered configurations are also available. Additionally, the endurance can be extended through the use of a suction anchor.
Payload & Depth
Envoy’s 500-liter flooded payload bay provides ample space for various sensors and instruments. With a 2,000-meter operating depth, Envoy can explore and survey a wide range of underwater environments, including deep-sea trenches and hydrothermal vents.
Performance Highlights
- Powered by either rechargeable batteries or a hydrogen fuel cell.
- Covers up to 2,000 line kilometers of survey.
- Extended operational range and endurance for various missions.
Payload Options
Envoy includes geophysical sensors such as synthetic aperture sonar, multibeam echosounder, sub-bottom profiler, camera, laser, magnetometer, and environmental sensors.
Easy to Mobilize
The topside support equipment, including containers, LARS, and communications systems, uses industry-standard interfaces for easy mobilization and deployment.
Applications
Commercial Survey
The system is capable of geophysical and hydrographic commercial surveys, magnetometry, site and hazard characterization, and marine archaeological investigations.
Integrity Management
The system is capable of comprehensive pipeline and cable survey and inspection, including route surveys, integrity assessments, and anomaly detection.
Payload Deployment
The payload system can deploy drop nodes, LBL beacons, smaller AUVs, and other specialized equipment to enhance data collection and mission capabilities.
Defence Applications
The system supports various applications, including seabed warfare, MCM, REA, IPoE, persistent surveillance/ISR, and CUI inspection, enhancing maritime security.
Optional: Available to naval customers only, subject to export restrictions.
Technical Specifications
| Specification | Envoy AUV – Battery | Envoy AUV – Fuel Cell |
|---|---|---|
| Dimensions | Length: 5.6–10 m Diameter: 1 m |
Length: 8.5 m Diameter: 1 m |
| Weight | 1,400–5,500 kg | 2,700 kg |
| Depth Rating | 1,000 m / 3,000 m / 6,000 m | 1,000 m / 3,000 m / 6,000 m |
| Energy Source | Lithium-ion rechargeable batteries | Hydrogen fuel cell |
| Endurance | Up to 168 hours | 370 hours (15.4 days) |
| Maximum Range | 930 km | 2,000 km |
| Topside Equipment | LARS & containers with standard interfaces | LARS & containers with standard interfaces |
| Autonomy Options | Pipe/cable tracking, terrain/feature-based navigation, performance-based management | Pipe/cable tracking, terrain/feature-based navigation, performance-based management |
