Selected by Bavovna, for integration

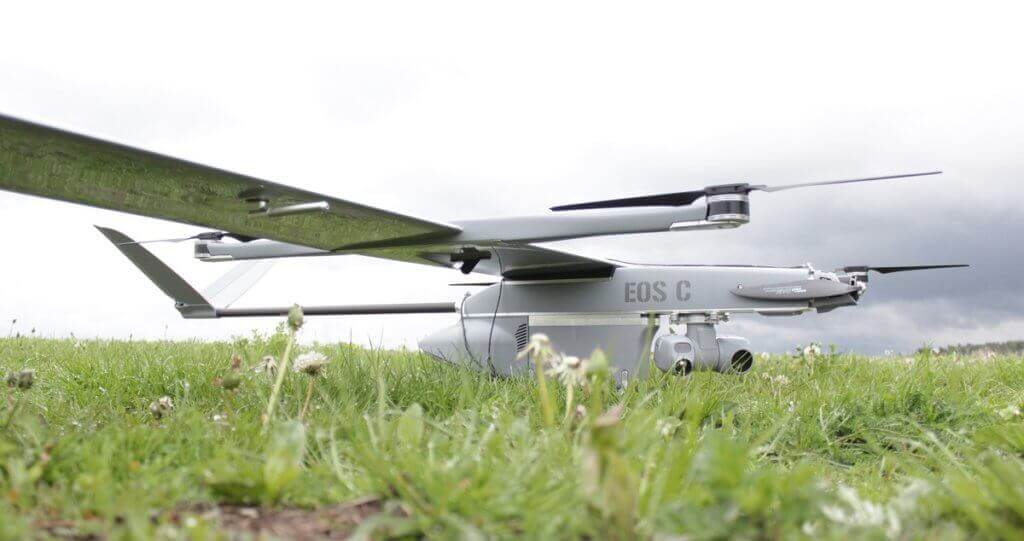

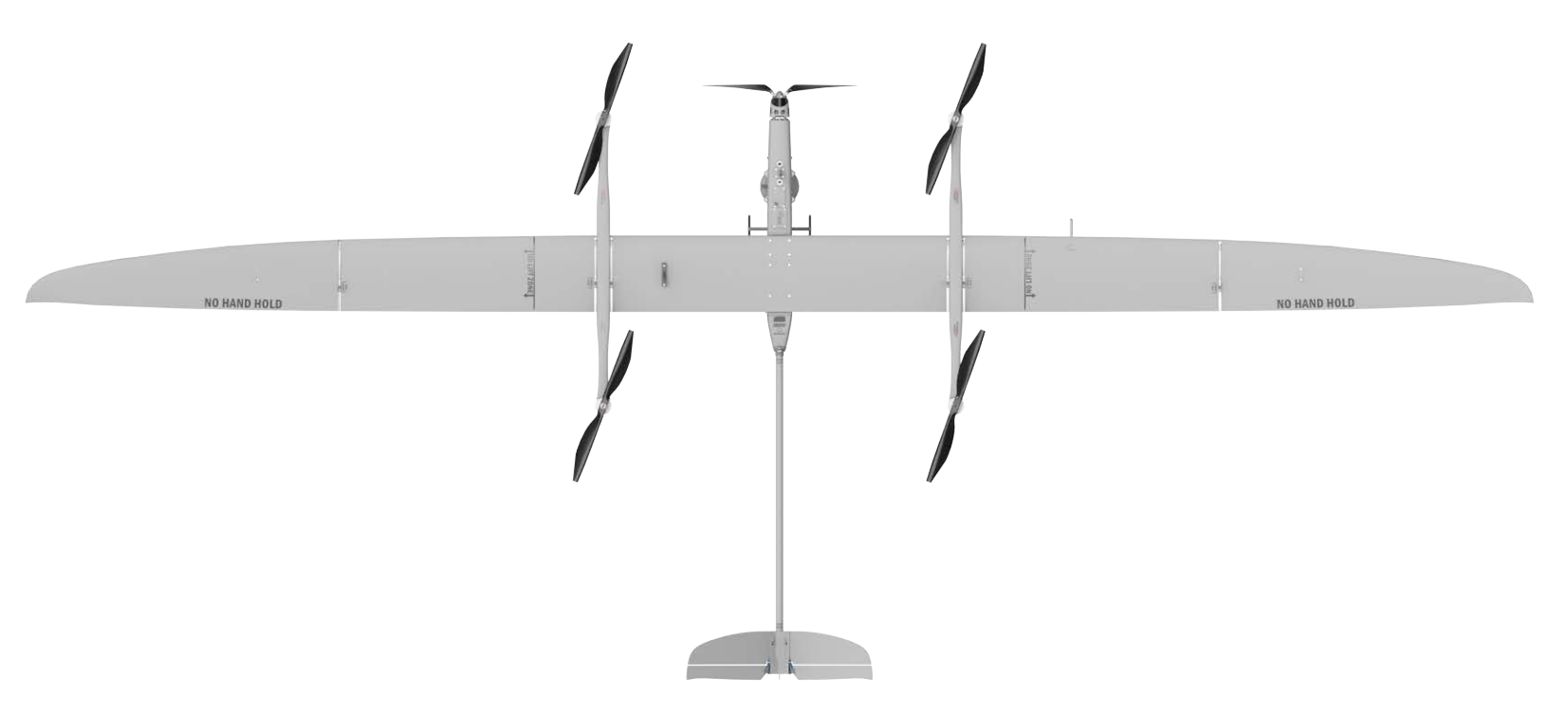

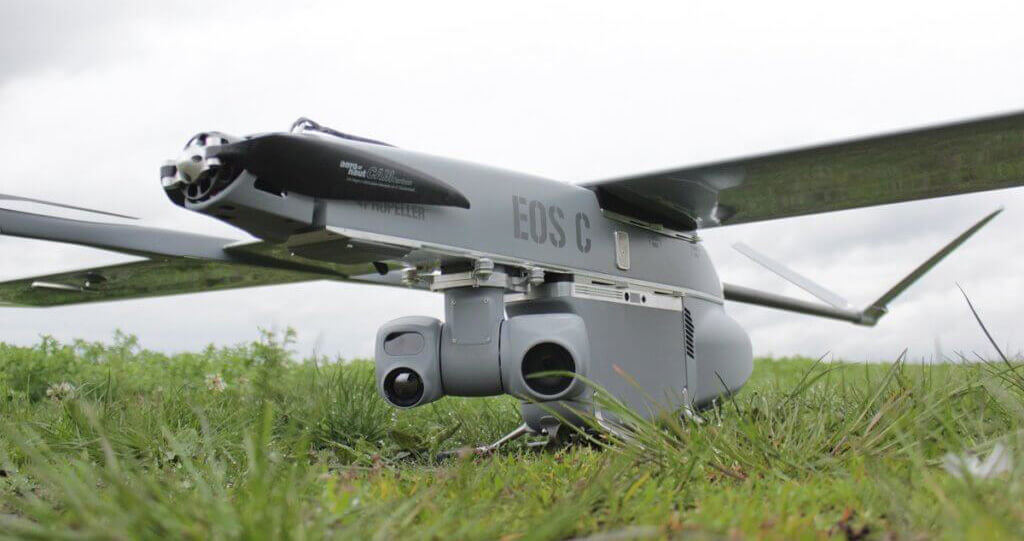

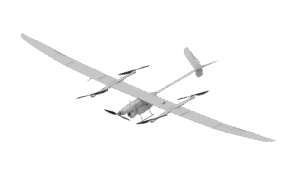

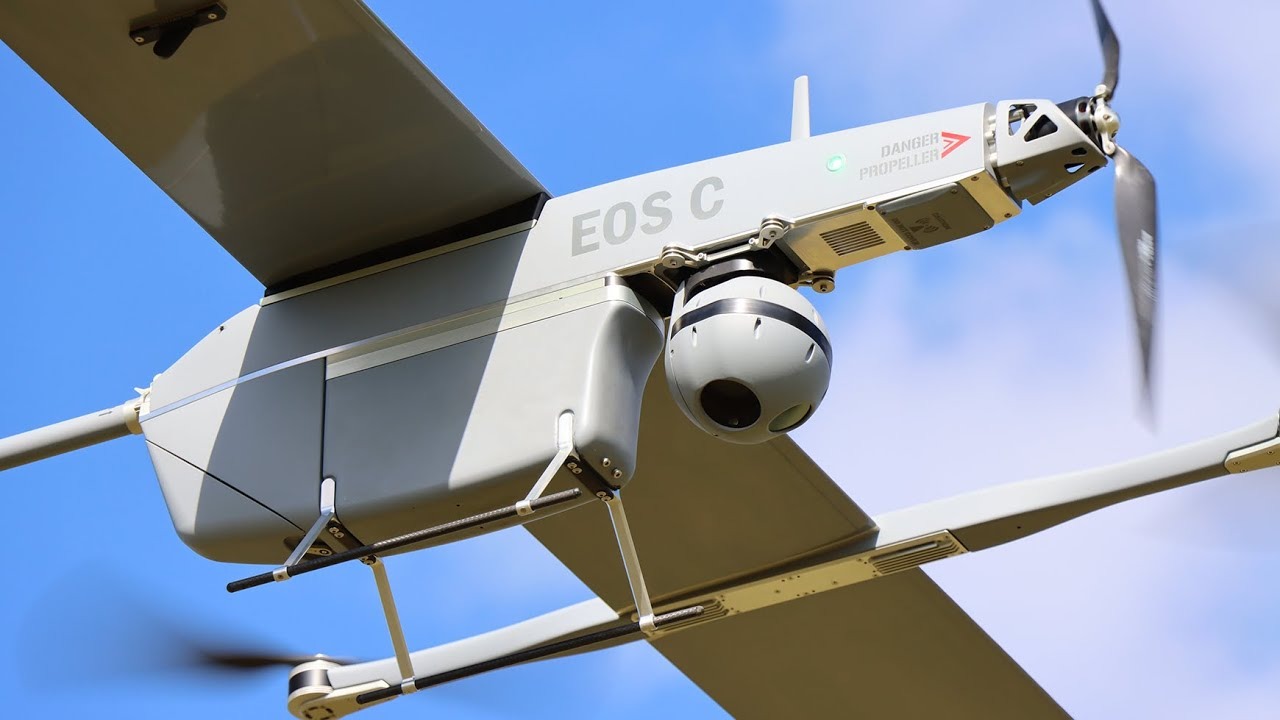

EOS C VTOL

Product descripton: EOS C VTOL by Threod Systems

EOS C is a highly capable electric VTOL mini-UAV with best in class flight performance and many unique features.

– High aspect ratio wings for maximum efficiency
– Provides exceptional image quality from high altitudes
– Efficient, reliable and safe VTOL take-off and landing transitions
– High wind penetrarion capability
– Extremely quiet operation (inaudible even at low altitudes)
– Excellent zoom capability down to 0.7° FOV
– MESH network radio with full Interoperability
– Large variety of ground equipment available for UAS solution

EOS C VTOL is a complex, yet simple to use system with capability usually found on bigger platforms. Using multiple sub-components and subsystems that are individually configurable enables Threod the unique ability to customise the system composition, ground control station types and packaging as per customer requirements.

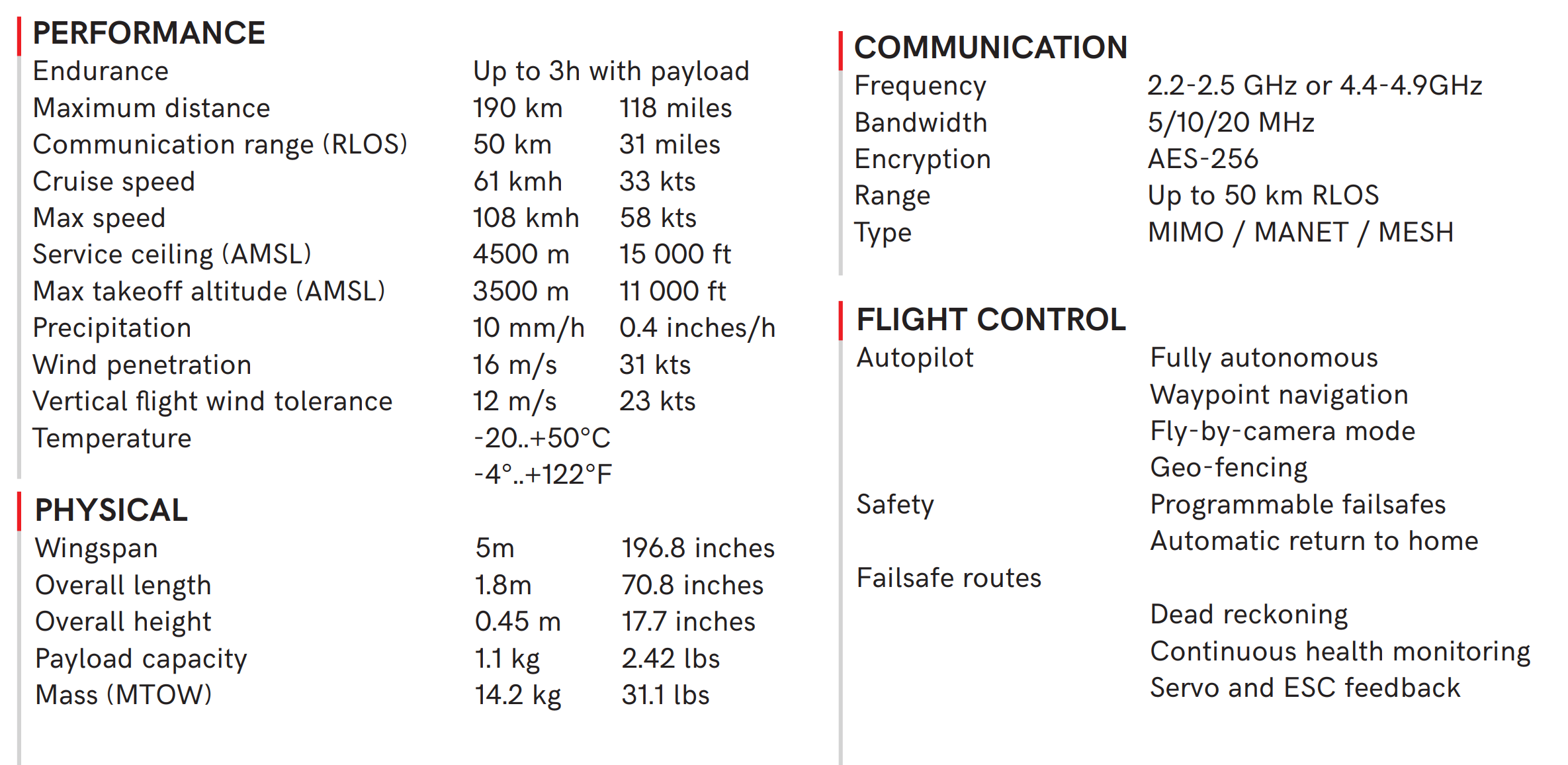

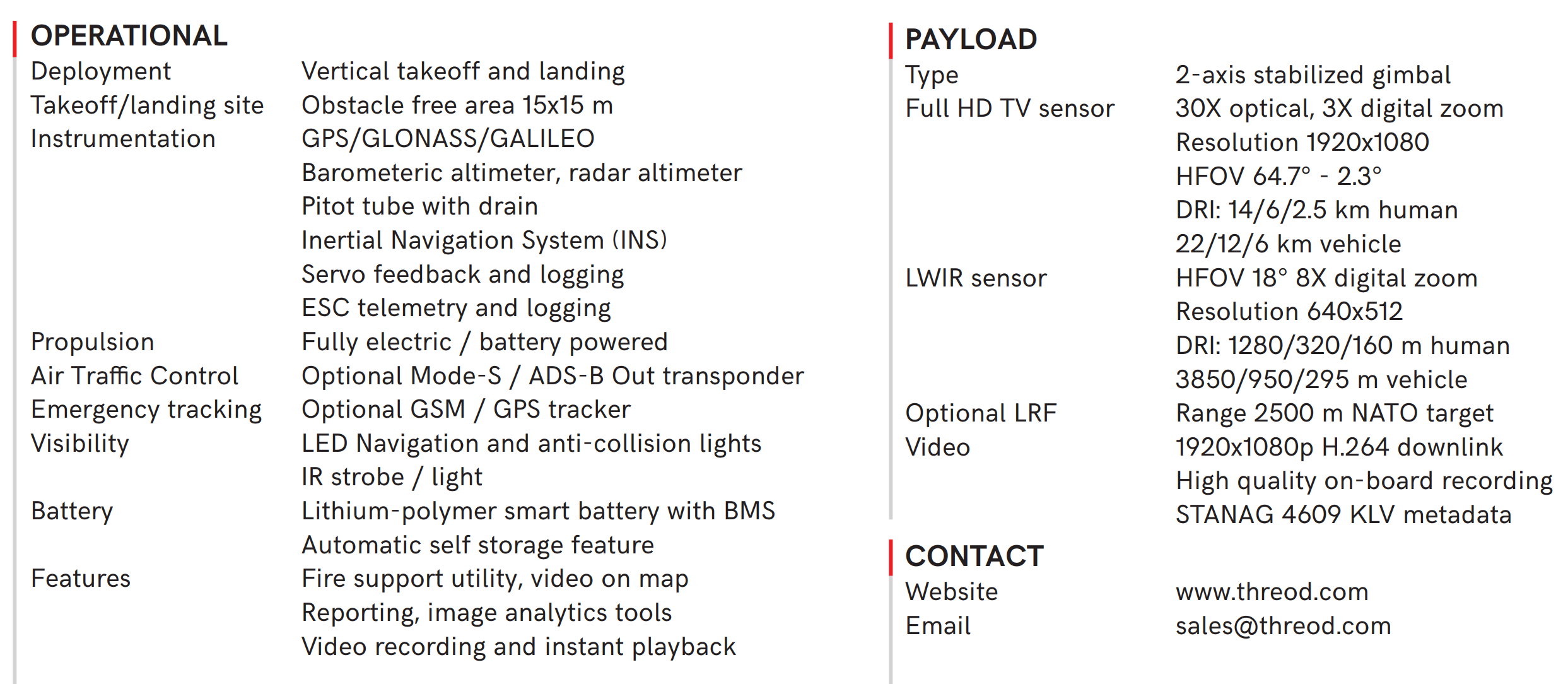

Technical specifications

PERFORMANCE

Up to 3 hours endurance
Cruise speed 61 kmh | 33 kts
Max speed 108 kmh | 58 kts
Ceiling 4500m AMSL | 15 000 FT AMSL
Takeoff 3500m AMSL | 11 000 FT AMSL

ADVANTAGES

Vertical take-off and landing
Compact and transportable
Excellent ISR performance
Virtually silent operation
5 minutes from transport to flight
Non-ITAR

ISR PAYLOAD

Dual EO/IR sensors
Full HD 30X optical zoom
Georeferenced imagery
STANAG 4609 KLV / H264
Video lock and tracking
Geo pointing

COMMUNICATION

RLOS 50km range
AES-256 encryption
Advanced anti-jamming
MESH/MANET network
Communication relay mode
Moode-S ADS-B transponder

ENVIRONMENTAL

Temperature -20° to +50°C | -4° to +122°F
Precipitation 10 mm/h | 0.4 inches/h
Wind penetration 16 m/s | 31 kts



Datasheet: https://threod.com/wp-content/uploads/2023/02/Eos-C-VTOL-2023-homepage.pdf
