Evo Enterprise
Product descripton: Evo Enterprise by DeltaQuad
Key Performance
-
4+ hours maximum flight time
-
272 km maximum flight range
-
3 kg payload
Vertical Takeoff and Landing
Evo Enterprise takes off and lands vertically in confined spaces. Automatic landing gear automatically retracts, providing 360° free field of view throughout mission execution.

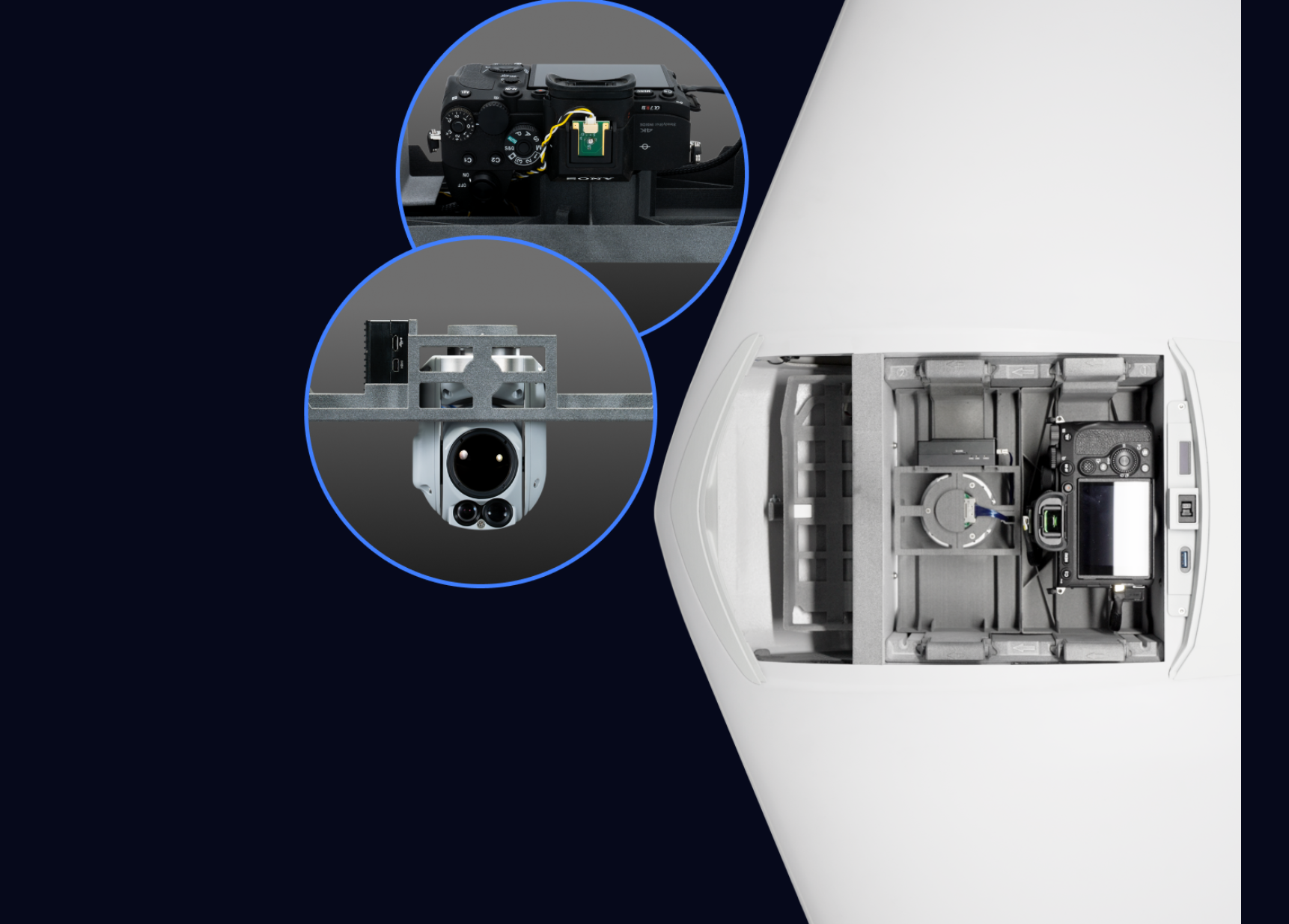

Dual Swappable Payloads
Operate two sensors simultaneously or extend flight time with an auxiliary battery. Modular payload system enables maximum insight and rapid field adaptation for a vast range of sensors, automation, or customization options.
Extreme Efficiency
Patented wing design and aerodynamic performance deliver over twice the range and endurance of comparable commercial drone systems, dramatically extending operational capabilities.
User-Serviceable Design
Evo Enterprise’s modular architecture enables rapid field maintenance and capability upgrades, maximizing operational readiness without factory servicing.
Elevated Insight and Safety
One commercial drone for all your mapping, monitoring, and inspecting needs
Cloud-Enabled
Optimize operational efficiency through centralized control. Manage fleet, flights, and connectivity with onboard LTE radio via Auterion Suite environment.
Fully Integrated
All Evo capabilities and payload systems are accessible through a single, integrated interface, reducing training requirements and improving mission execution.
Future-Proof
Modular design and dual swappable payloads enable cost-effective capability expansion to quickly integrate new commercial drone sensors.
Technical specifications
| Parameter | Specification |
|---|---|
| Maximum Flight Time | 272 minutes |
| Maximum Flight Range | 270 km / 168 mi |
| Maximum Radio Range | 30 km |
| Ground Control Station | DeltaQuad Controller |
| Radio Options | DQ 2.4 GHz |
| GNSS System | L1/L2 GPS |
| ATAK Compatibility | No |
| Stealth Switch | No |
| Interference Avoidance | No |
| Inertial Navigation | Automatic return-to-home |
Master Precision Mapping
Integrate RGB, Multispectral, LiDAR, and IR data to generate instant, high-precision geo-referenced maps. Leverage NTRIP RTK corrections for real-time accuracy, with PPK post-processing capabilities.
-
3200+ ha coverage at 3 cm/px
-
61 MP RGB mapping
-
0.6 cm/px maximum resolution
A New Benchmark for Commercial Drones
Evo Enterprise combines high-definition imaging with 30 km range for maximum insight from a single flight. Dual swappable payloads extend flight time or double sensor input.
-
HD recording
-
80× zoom
-
Thermal vision
Visualize Terrain Complexities
Transform raw data into actionable intelligence. Capture detailed LiDAR scans and high-resolution RGB imagery in one flight. Generate colorized 3D point clouds to reveal intricate terrain profiles.
-
1200 ha coverage up to
-
20 MP rolling shutter
-
8 MP global shutter
Total Control at Your Fingertips
Manage missions effectively with your Evo Enterprise Controller, powered by Auterion Mission Control.
-
6 hour battery life
-
10 inch Android touch screen
-
30 km / ∞ radio / LTE range
Evo Enterprise Controller
Extended Battery Life
Ensures extended operational periods, allowing for longer missions without the need for frequent recharges, maximizing efficiency in the field.
IP64 Certified
Built to withstand dust and water splashes, its rugged design ensures reliable performance in harsh environments, maintaining mission-critical functionality.
Command Sharing
Easily share live mission data and control with your team, ensuring real-time collaboration and enhanced decision-making during operations.
30 km / ∞ Range
Equipped with advanced connectivity options, enabling secure communication and video over long distances, whether within 30 km or beyond.
4G SIM Card Slot
Stay connected globally with 4G cellular capabilities, ensuring reliable communication and data transmission even in remote locations.
Enhanced Security
Boost encryption with VPN support over LTE, providing encrypted, reliable connectivity for mission-critical data, no matter where your operations take you.
Customizable at Its Core
Custom single or dual payload flexibility. 3D models and access to onboard computing included along with all the I/O optionality you will need.
-
5V & 16V power
-
MAVLink vehicle control
-
2.5 kg customization payloads
