Evo Stealth
Product descripton: Evo Stealth by DeltaQuad
Camouflage in the Sky
Evo Stealth is a silent drone with a low acoustic signature to stay undetectable and versatile in mission-critical covert operations.
Anti-Jamming GNSS
Stay on target in contested airspaces. Resists up to 7 active GPS jammers, using a CRPA System to provide jam-free GNSS signals.
GNSS-Denied Navigation
Navigate accurately in GPS-denied environments. Uses inertial and vision-based navigation for position awareness, even during takeoff and landing.
Stealth Switch
Pre-programmable to automatically cut all radio emissions at key waypoints to execute fully autonomous stealth drone missions while remaining undetected.
Zero Onboard Data Storage
Critical data is never stored on board. Evo Stealth protects operators by never disclosing sensitive position or mission information, even when seized.
Aerial Intelligence²
Double down on performance with dual payload capacity and extended flight range
Key Performance
-
4+ hours flight time
-
254 km range
-
3 kg payload

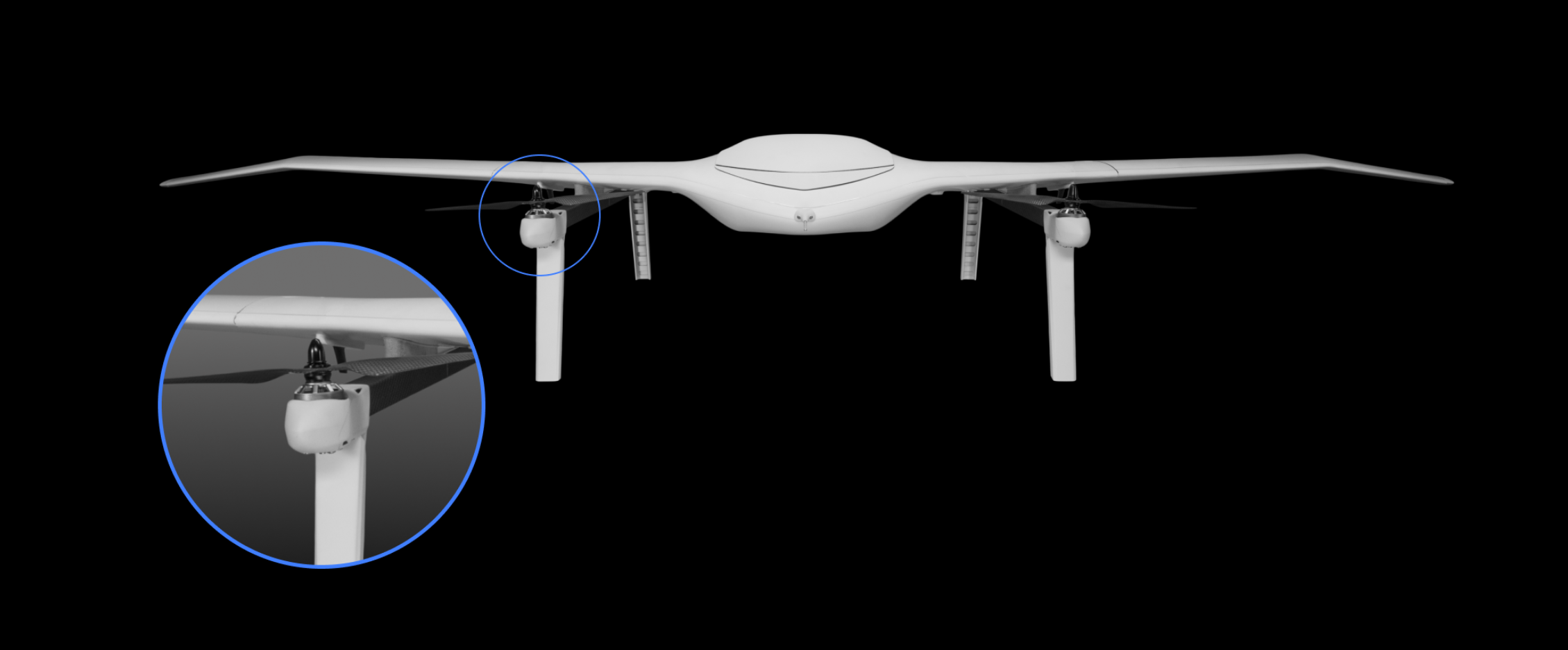

Vertical Takeoff and Landing
Evo takes off and lands vertically in confined spaces. Automatic landing gear provides 360° free field of view throughout mission execution.
Dual Swappable Payloads
Operate two sensors simultaneously or extend flight time with an auxiliary battery. Evo’s modular payload system enables maximum insight and rapid field adaptation for a vast range of sensors, automation, or customization options.
Extreme Efficiency
Patented wing design and aerodynamic performance deliver over twice the range and endurance of comparable stealth drone systems, dramatically extending operational capabilities.
User-Serviceable Design
Evo’s modular architecture enables rapid field maintenance and capability upgrades, maximizing operational readiness without factory servicing.
Deploy and Forget
Evo Stealth is specifically designed for Deploy and Forget operations, using a cost-effective radio link that can be switched off when missions begin.
Autonomous Payload Delivery
As a silent drone with a low acoustic signature, Evo Stealth is perfect for autonomously delivering assets in contested environments.
Technical specifications
| Parameter | Specification |
|---|---|
| Maximum Flight Time | 266 minutes |
| Maximum Flight Range | 266 km / 166 mi |
| Maximum Radio Range | 30 km |
| Ground Control Station | DeltaQuad Controller |
| Radio Options | DQ 2.4 GHz |
| GNSS System | Anti-Jamming L1 GPS |
| ATAK Compatibility | Yes |
| Stealth Switch | Yes |
| Interference Avoidance | N/A |
| Inertial Navigation | Full inertial mission |
Total Control at Your Fingertips
Manage missions effectively with your Evo Stealth controller, powered by Auterion Mission Control.
Controller Highlights
-
6 hour battery life
-
10 inch Android touch screen
-
30 km / ∞ range
Evo Stealth Controller
Extended Battery Life
Ensures extended operational periods, allowing for longer missions without the need for frequent recharges, maximizing efficiency in the field.
IP64 Certified
Built to withstand dust and water splashes, its rugged design ensures reliable performance in harsh environments, maintaining mission-critical functionality.
Command Sharing
Easily share live mission data and control with your team, ensuring real-time collaboration and enhanced decision-making during operations.
30 km / ∞ Range
Equipped with advanced connectivity options, enabling secure control and communication over vast distances, whether within 30 km or beyond.
4G SIM Card Slot
Stay connected globally with 4G cellular capabilities, ensuring reliable communication and data transmission even in remote locations.
Enhanced Security
Boost encryption with VPN support over LTE, providing encrypted, reliable connectivity for mission-critical data, no matter where your operations take you.
Autonomous Aerial Payload Delivery
With four hours of flight time and two payload doors for two separate payload drops, Evo Stealth is the ideal stealth drone for transporting critical goods over long distances.
-
1 m delivery accuracy (hover)
-
8 m delivery accuracy (forward)
-
2.5 kg max payload weight
Master Precision Mapping
Integrate RGB, Multispectral, LiDAR, and IR data to generate instant, high-precision geo-referenced maps. Leverage cutting-edge NTRIP RTK corrections for real-time accuracy, with PPK post-processing capabilities.
-
3200+ ha at 3 cm/px
-
61 MP RGB mapping
-
0.6 cm/px maximum resolution
Visualize Terrain Profiles
Transform raw data into actionable intelligence. Capture detailed LiDAR scans and high-resolution RGB imagery in a single flight. Generate colorized 3D point clouds to reveal intricate terrain profiles.
-
1200 ha coverage up to
-
20 MP rolling shutter
-
8 MP global shutter
Customizable at Its Core
Custom single or dual payload flexibility. 3D models and access to onboard computing included along with all the I/O optionality you will need in a stealth drone.
-
5V & 16V power
-
MAVLink vehicle control
-
2.5 kg customization payloads
