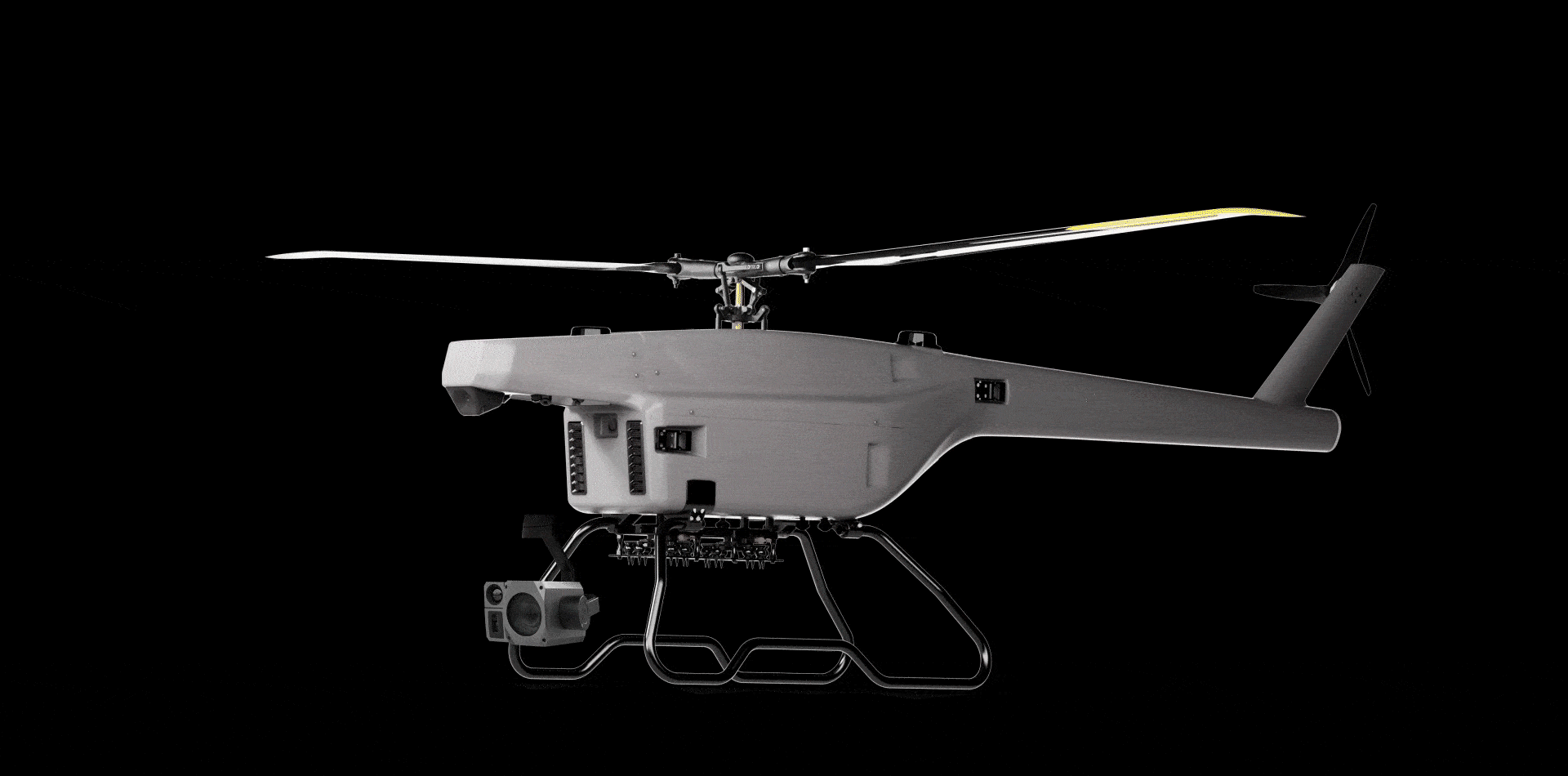

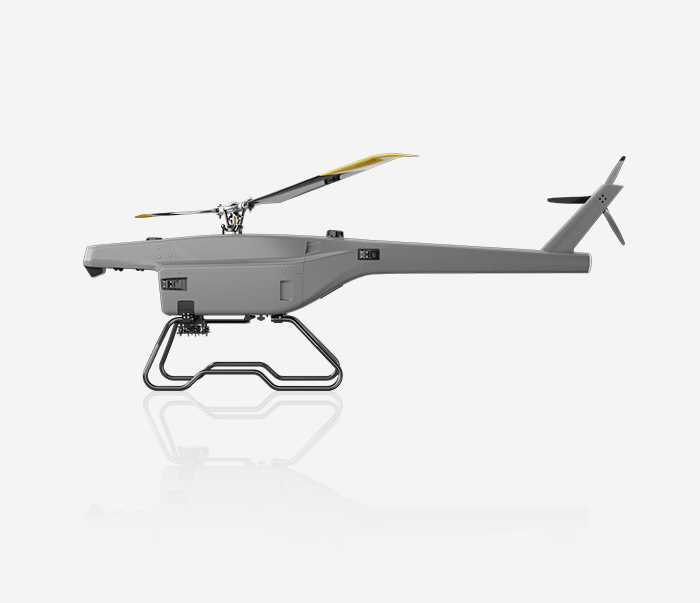

F15 UAV
Product descripton: F15 UAV by Ziyan UAS
KEY FEATURES

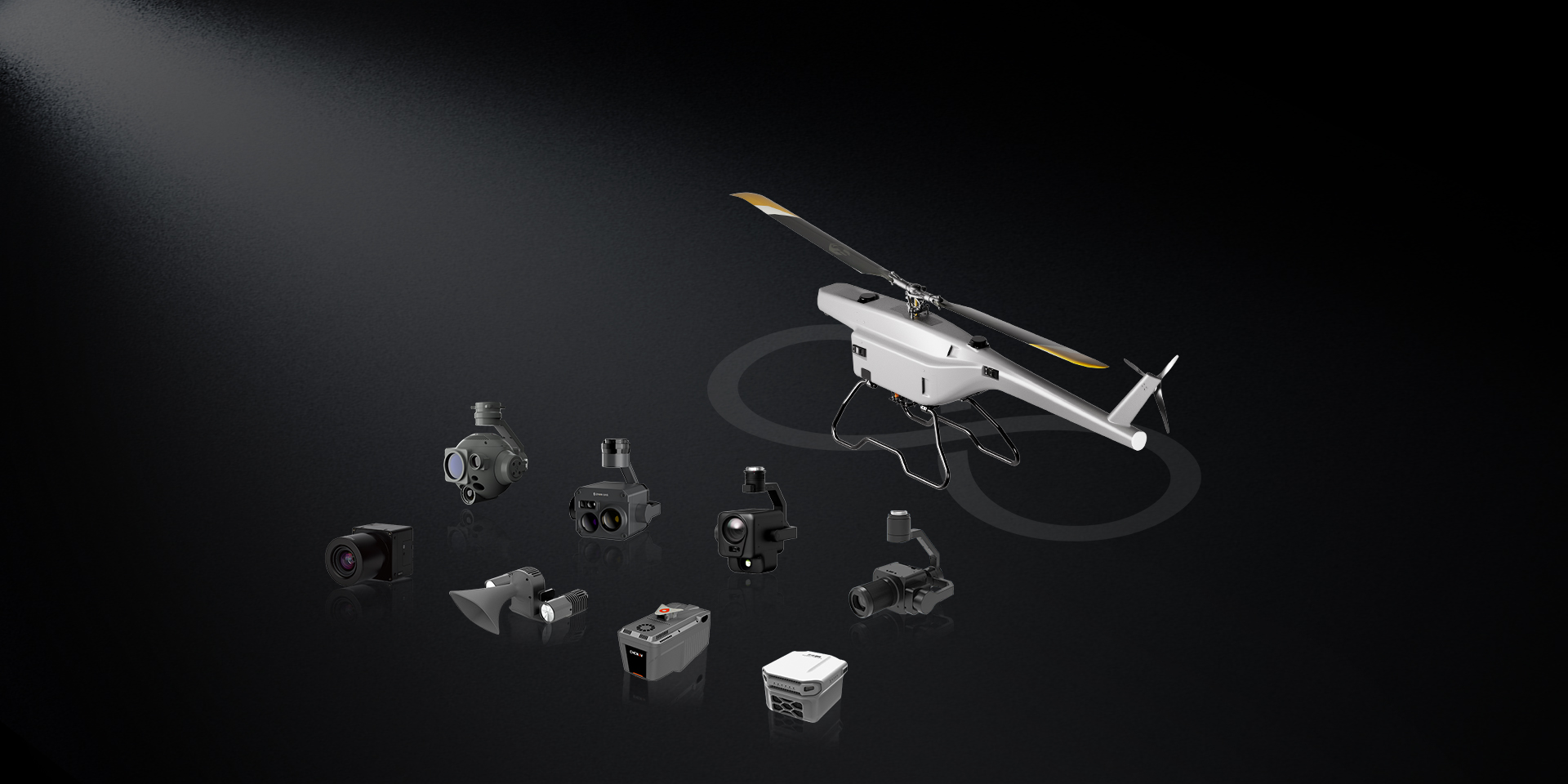

5kg Payload + 3 Payload Positions
The F15 supports mounting 3 payloads simultaneously, such as a gimbal camera, LiDAR, and gas detector, offering maximum mission flexibility.
Quick Deployment in 2 Minutes
The aircraft can be disassembled and assembled without tools, enabling rapid deployment in the field.
High Performance & Long Endurance
Equipped with a high-capacity smart battery, the F15 delivers up to 100 minutes of flight time with smooth control and stability in harsh conditions.

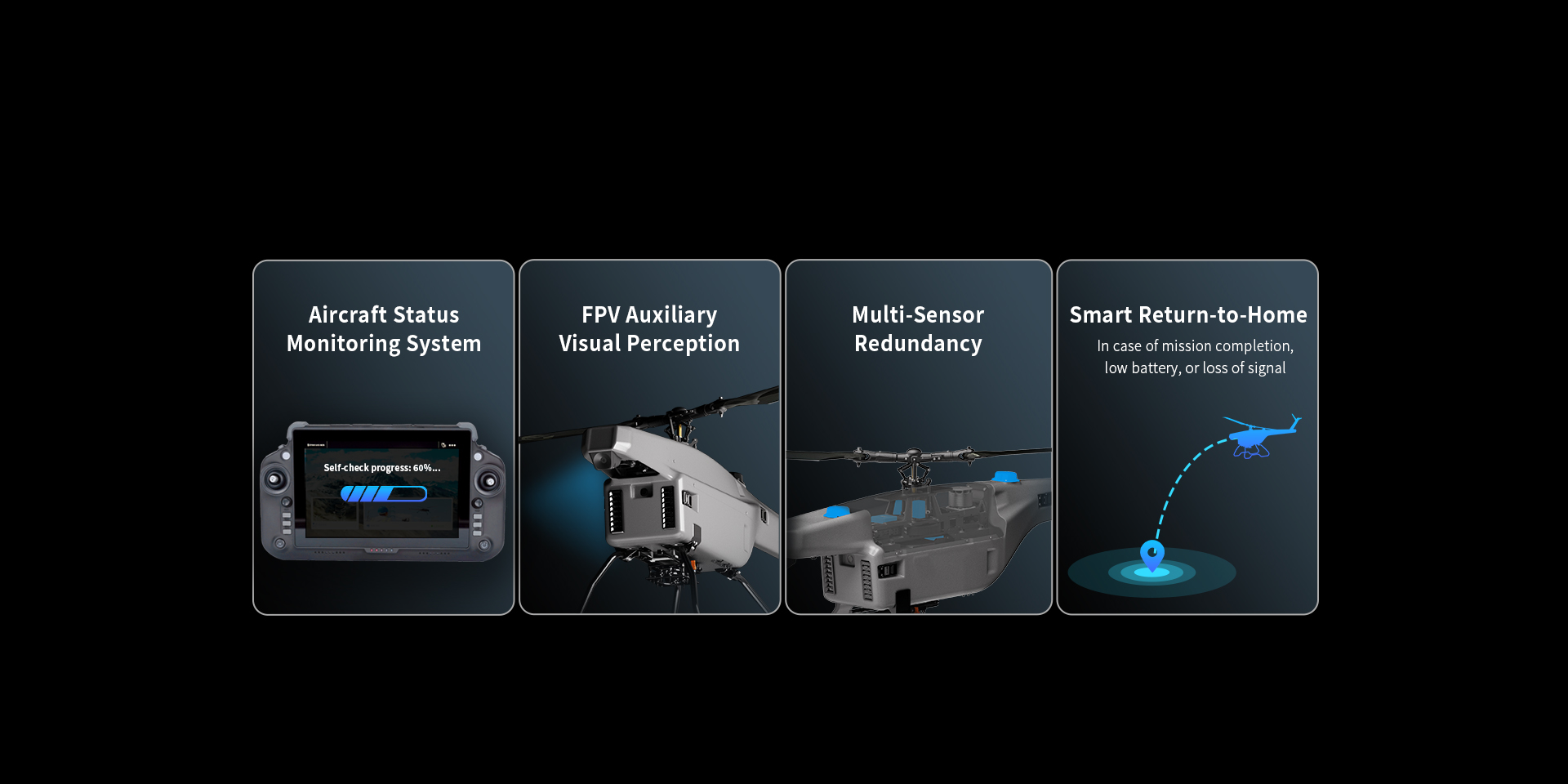

Advanced Control & Open Ecosystem
Compatible with industrial-grade remote control featuring joysticks and customizable buttons. Supports PSDK, MSDK, and Cloud API for third-party development.
Real-Time Video Transmission
Capable of 48 km HD video transmission, ensuring reliable situational awareness for complex missions.
ODM & Custom Branding Support
Supports custom livery and brand name for specialized applications.
Technical specifications
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 1827 × 412 × 653 mm |
| Maximum Payload | 5 kg |
| Payload Positions | 3 flexible mounts |
| Maximum Endurance | 100 min |
| Maximum Speed | 100 km/h |
| Wind Resistance | Level 8 |
| Service Ceiling | 7000 m |
| HD Video Transmission Distance | 48 km |
| Deployment | Tool-free assembly in 2 min |
| Ecosystem | PSDK, MSDK, Cloud API |
| ODM Support | Custom livery and brand name |
