Falcon 10 Unmanned Helicopter
Falcon 10 Unmanned Helicopter

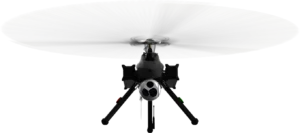

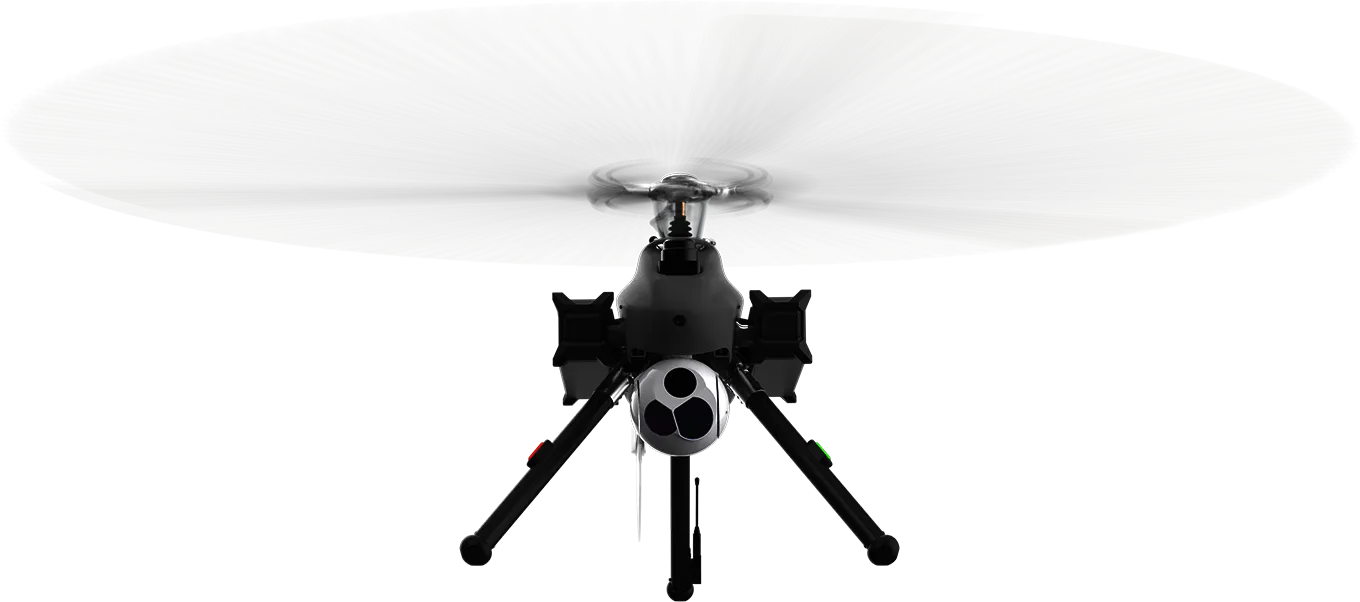

The Falcon 10 is a small electric unmanned helicopter with a unique folding design that reduces the volume of the platform by 80%, making it highly convenient for transportation and storage. The aircraft can be assembled in less than 5 minutes and operated by a single user.
The helicopter UAV features a datalink that provides real-time HD image transmission at distances of up to 15 km, and incorporates frequency hopping for robust anti-jamming as well as AES-256 encryption. The Falcon 10 can be equipped with a wide range of payloads, including EO/IR gimbals, multispectral and hyperspectral cameras, searchlights, lifebuoys, and megaphones. It can also be integrated with custom third-party equipment for unique mission requirements.

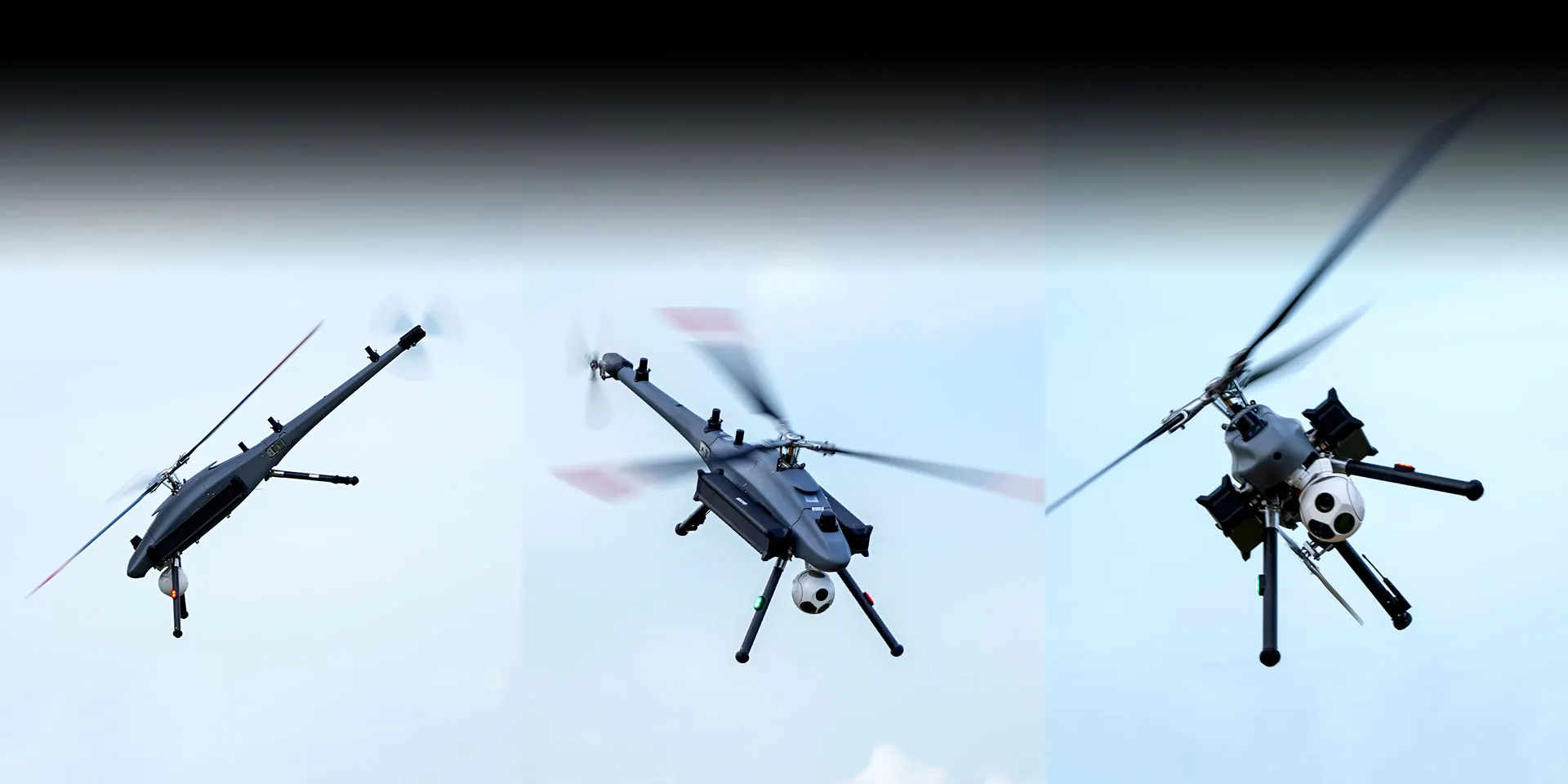

With level 7 wind resistance and a maximum altitude of 5100m, the Falcon 10 is ideal for complex and challenging environments such as forests, mountains and rivers.
| Dimensions | Without rotor blades: 1655*565*580mm |
| Max Take-off Weight | 25kg |
| UAV Weight | 10.6kg |
| Max Payload | 7kg |
| Cruising Speed | 60-90km/h (max 130km/h) |
| Wind Resistance | Level 7 (wind speed 17m/s) |
| Endurance | 50 min (without payload) |
| Max Operating ASL Altitude | 5100m |
| Operating Temperature | -10°C ~ +55°C |
