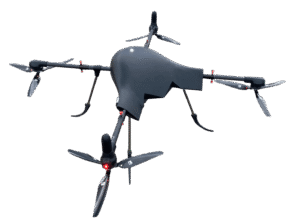

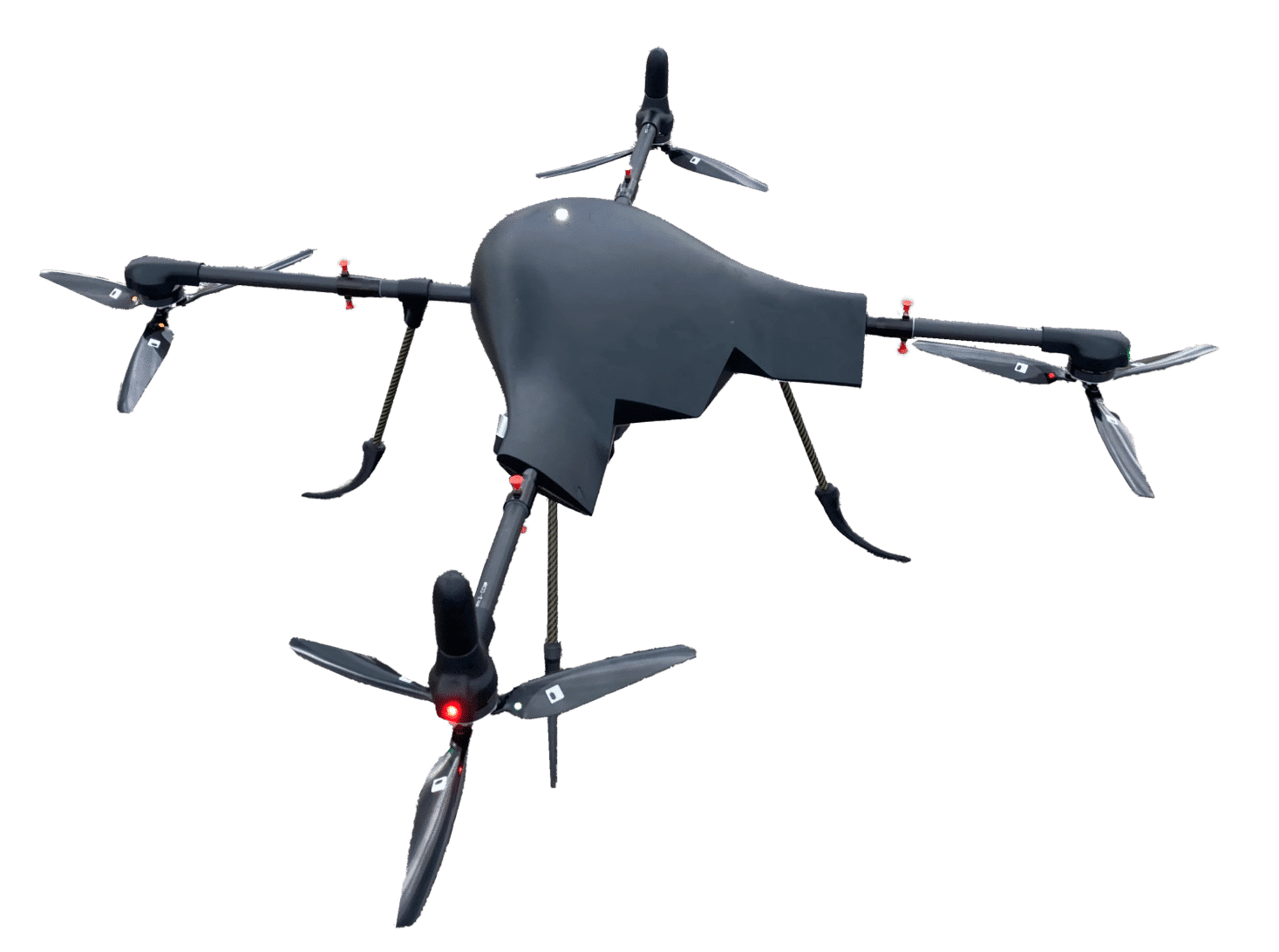

FALCON II LE (LAW ENFORCEMENT)
Product descripton: FALCON II LE (LAW ENFORCEMENT) by WaveAerospace
The Falcon II LE is purpose-built for Emergency Management and Law Enforcement, delivering unmatched performance in conditions that ground other Part-107 UAS. Rain, snow, or winds up to 60 knots will not slow this versatile, high-wind, all-weather multi-copter.
Mission-ready and easy to operate, the Falcon II LE is equipped with military-grade EO/IR stabilized camera payloads and delivers over 60 minutes of flight time on a single battery, making it capable of high-speed pursuits, detailed reconnaissance, and license plate identification in real time.
FAA-approved night lighting and optional police strobes ensure safe, authorized operations day or night. With WaveAerospace’s unmatched U.S. support and maintenance, the aircraft is always ready, reliable, and airworthy when you need it most.
The Falcon II LE is the ultimate tool for agencies that cannot let weather dictate their mission, offering exceptional endurance, speed, and stability in even the harshest operational environments.
Technical specifications
MISSION PROFILES
-
Marine operations
-
Embedded, all-weather reconnaissance
-
Search and rescue
-
BVLOS operations (where allowed)
-
Long-duration camera platform
KEY FEATURES
-
True all-weather, high-wind VTOL
-
Low-level terrain tracking
-
Weatherproof – water and high-wind resistance
-
Set up and operational in less than 5 minutes
-
FAA-approved lighting for nighttime flight
-
Optional red/blue police strobe lights with on/off control
-
Autonomous takeoff and landing
SPECIFICATIONS
| Specification | Value |
|---|---|
| Endurance | 60+ minutes |
| All-Weather Rating | IP66 |
| Wind Resistance | 60 knots (69 mph, 31 m/s) |
| Maximum Payload Capacity | 9 kg (20 lbs) |
| Maximum Airspeed | 70 knots (82 mph, 35.7 m/s) |
| Link Range | 20+ km (12.5 miles) |
| Dimensions (Span, Diagonal Engine-to-Engine) | 1,270 mm (50 in) |
| Maximum Recommended Takeoff Weight (MTOW) | 20 kg (44 lbs) |
| Aircraft Weight (with 1x 1443 Wh battery) | 10.4 kg (22.9 lbs) |
| Payload Capacity (with 1x 1443 Wh battery) | 9 kg (20 lbs) |
| Maximum Angular Velocity | Tilt: 300°/s, Yaw: 200°/s |
| Continuous Wind Resistance | 30.8 m/s (60 knots) |
| Maximum Speed | 35.7 m/s (80 mph) |
| Operating Temperature Range | -17°C to 50°C (0°F ~ 122°F) |
| Maximum Flight Time | 60+ minutes with camera payload |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Power Supply | 30,000 mAh, 1443 Wh, 48 V, Solid-State Lithium Polymer 13S1P |
| Propellers | 3-blade, 470 mm (18.5 in), prebalanced carbon fiber |
OPTICAL & IR SPECIFICATIONS
Optical:
-
Zoom: x20 + x2 digital (total x40)
Thermal:
-
Resolution: 640 x 480
Field of Regard:
-
Pitch: -90° to +135°
-
Yaw: -165° to +165°
-
Roll: -45° to +45°
Features:
-
Electronic stabilization
-
EO/IR object tracking
-
Geolocation
-
Video compression
-
License plate recognition capabilities
