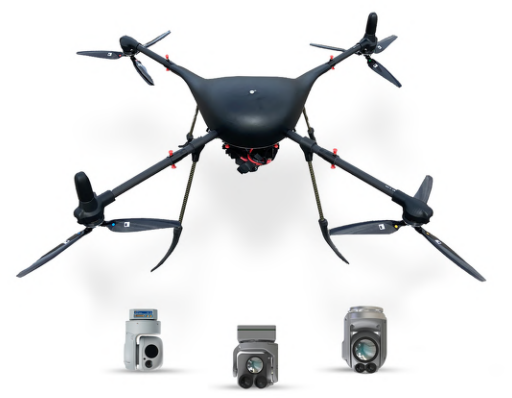

Falcon II Quadcopter
Product descripton: Falcon II Quadcopter by WaveAerospace
The Falcon II UAS is a highly capable, all-weather multicopter engineered to deliver exceptional performance in high-wind and adverse environmental conditions. Designed for safe and reliable operation in rain, storms, and sustained winds of up to 60 knots, it sets a new standard for resilience within its operational class. Unlike other Part 107–compliant UAS platforms, the Falcon II is purpose-built to maintain mission effectiveness in environments where conventional systems are grounded, including strong winds, heavy precipitation, and snow.
Beyond environmental durability, the Falcon II offers outstanding flight performance. It achieves endurance exceeding 60 minutes with a camera payload, reaches top speeds of up to 80 mph, and sustains stable flight while carrying a 20 lb payload for up to 20 minutes. With a line-of-sight operational range exceeding 20 km, the platform combines reach, endurance, and payload capability to support demanding mission profiles.
Engineered for immediate deployment and operational readiness, the Falcon II delivers dependable performance when conditions are at their most challenging and reliability is mission-critical.
Technical specifications
MISSION PROFILES
-
Marine operations
-
Embedded, all-weather reconnaissance
-
Search and rescue
-
BVLOS operations (where allowed)
-
Long-duration camera platform
-
Port operations, observation, and surveillance
-
Command, control, and communication support
KEY FEATURES
-
Set up and operational in less than 5 minutes
-
Autonomous takeoff and landing
-
Low-level terrain tracking for smooth landing in all conditions
-
Weatherproof — water and high-wind resistant
-
FAA-approved lighting for night operation
-
Space-efficient carrying case size
FALCON II PAYLOAD VERSATILITY
-
All Falcon II LE models may be outfitted with an EO/IR payload
-
Additional camera/payload options available at customer request
| Specification | Value |
|---|---|
| Dimensions (Unfolded) | 1,770 × 1,770 × 415 mm (69.5 × 69.5 × 16.5 in) |
| Dimensions (Folded / Storage) | 620 × 620 × 415 mm (24.5 × 24.5 × 16.5 in) |
| Maximum Recommended Takeoff Weight (MTOW) | 20 kg (44 lbs) |
| Aircraft Weight | 10.4 kg (22.9 lbs) with 1× 1,443 Wh battery |
| Payload Capacity | 9 kg (20 lbs) with 1× 1,443 Wh battery |
| Maximum Angular Velocity | Tilt: 300°/s · Yaw: 200°/s |
| Operating Temperature Range | –17°C to +50°C (0°F to 122°F) |
| Maximum Altitude | 5,000 m (16,400 ft) |
| Power Supply | 30,000 mAh · 1,443 Wh · 48 V · Solid-state Li-Po (13S1P) |
| Propellers | 3-blade, 470 mm (18.5 in), pre-balanced carbon fiber |
| Encryption | AES-256 hardware-accelerated |
| GPS / GNSS | Versatile receiver with 1.5 m horizontal accuracy |
