Selected by Bavovna, for integration

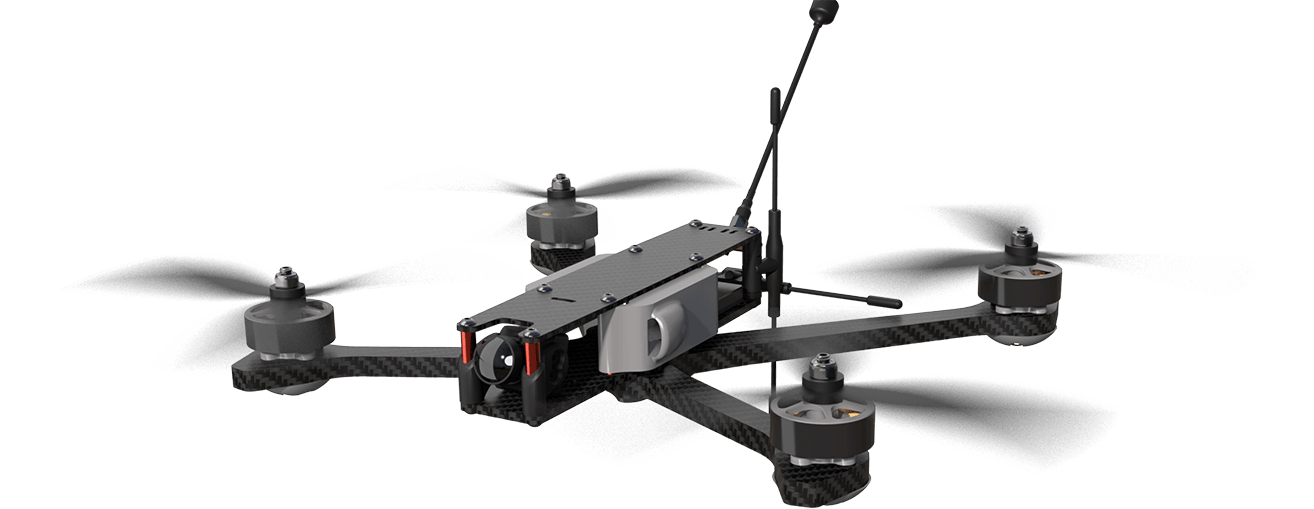

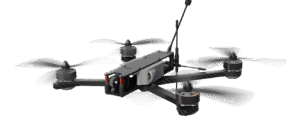

FANG F7

The NDAA-Compliant 7" FPV Training & Tactical UAS

Product descripton: FANG F7 by Red Cat Holdings

FANG™ F7 is a 7ʺ First Person View (FPV) small UAS designed to put operators directly “in the cockpit” with full manual control. Built as a versatile, lower-cost flying camera system, it enables repetitive training and immersive flight experiences without the expense of higher-end platforms.


Overview

Setting a New Standard in FPV Operations
The First NDAA-Compliant FPV Drone for Training and Tactical Operations

FANG™ F7 represents a major leap in accessible, secure FPV technology. Built to meet federal procurement and NDAA compliance standards, it combines a rugged 7-inch carbon fiber frame with a retrievable design, giving operators the ability to train, refine, and execute missions repeatedly without the cost of one-time-use systems.

Key Advantages

  • Low-Cost, Reusable, Retrievable, Made in the USA

  • Built for Performance. Designed for Access.

Capabilities

  • Unmatched Affordability: The lowest-cost family of NDAA-compliant FPV drones on the market.

  • Retrievable & Reusable: Recoverable after missions or training, minimizing total cost of ownership.

  • Hands-On Control: Non-autonomous flight keeps pilots fully engaged: “Hands at 10-2.”

  • Training Advantage: Enables cost-efficient repetition and operator proficiency.

  • Multi-Mission: Supports ISR and multi payload options.

  • American-Made & Secure: Incorporates U.S.-sourced, NDAA-compliant components.

FANG™ F7 Controller

The FANG™ F7 controller provides precise, manual dual-stick operation designed for “hands at 10-2” engagement. Built for secure, low-latency communication, it gives pilots direct, tactile control over every maneuver. Its rugged, ergonomic design supports extended training sessions and real-world tactical use.

Technical specifications

Category Specification
AIRCRAFT
Endurance (Time) Level / Stable Flight of +12 Minutes – ISR w/3500mAH 6S1P and Additional 658g for User Added Payload
Frame 7-inch CL2 3K Carbon Fiber, 8mm Arm Thickness, 19mm Motor Mount
ESC Rotor Riot Brave F7 55A, 4-in-1, 55A Continuous, 75A Burst, 3-8S Input
Motors UMAC 2807, 2807 Stator Size, N552SH Magnets, 12mm Bearings
Radio Receiver ModalA1915 ELRS, 915 MHz Frequency, ELRS Protocol
Flight Mode Acro, Horizon, Angle
Power System 6S Li-ion battery Compatible
Retrievability Fully Recoverable Design
Frame Material Carbon Fiber Composite
Video System Aura Analog VTX, Up to 1W (1000mW) Output, 5.8 GHz
Camera FatShark Aura Analog, 1200 TVL, SONY 1/3″ CMOS Sensor
Compliance NDAA / DIU Blue UAS Framework
Use Cases Training, ISR, & Multi-Mission Operations
CONTROLLER
Type Secure Handheld Manual Controller, Rotor Riot Brave F7, F722 MCU, BMI270 Gyro, BMP390 Barometer
Control Mode Dual-stick Manual (“Hands at 10-2”)
Security NDAA-compliant Link
Ergonomics Designed for Tactile Precision & Situational Awareness
FPV GOGGLES
Latency Ultra-low Latency Digital Feed
Connectivity Secure Wireless Video Link
Comfort Lightweight Fit for Extended Training Sessions
