FOG
Product descripton: FOG by NEWT21
FOG is a compact USV developed for multi-role missions requiring speed, agility, and operational flexibility. Its modular design enables integration of various sensors and payloads, including combat configurations with a warhead.
The platform is intended for both defensive and offensive maritime operations, as well as reconnaissance and patrol missions. It is also capable of supporting search and rescue tasks, expanding its use beyond purely military applications.

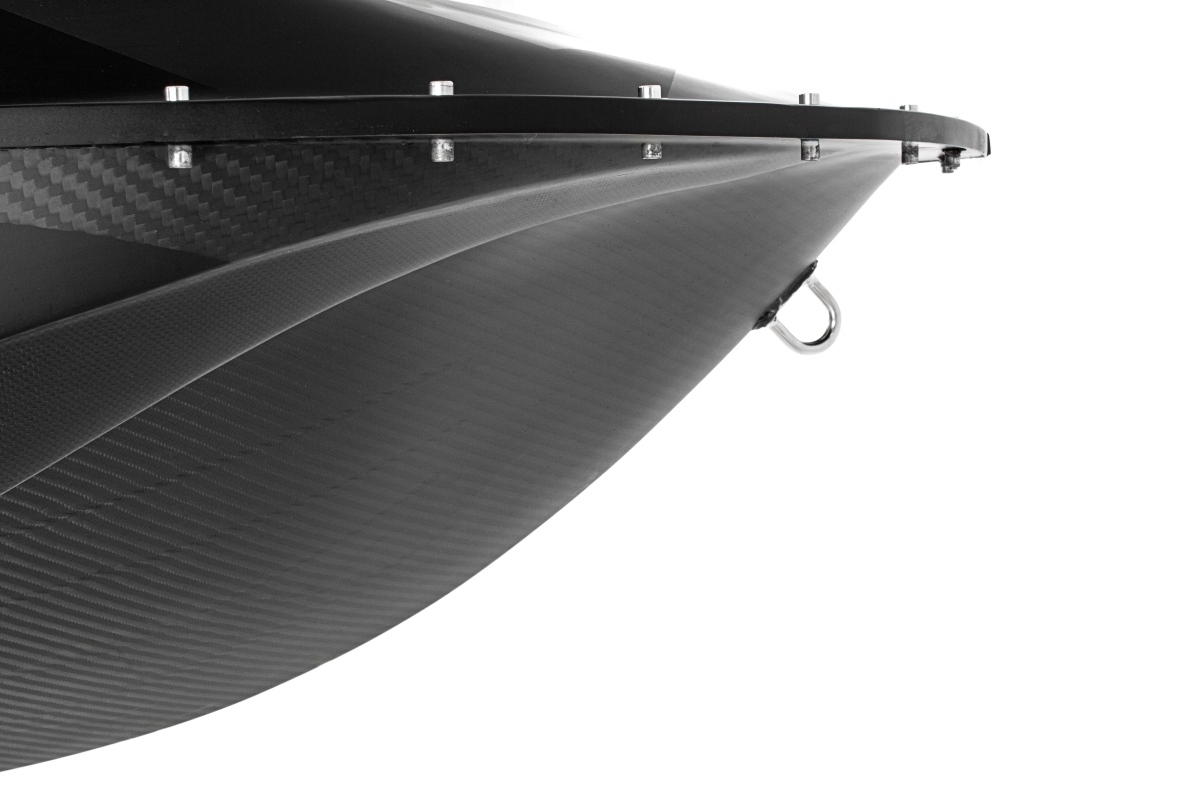

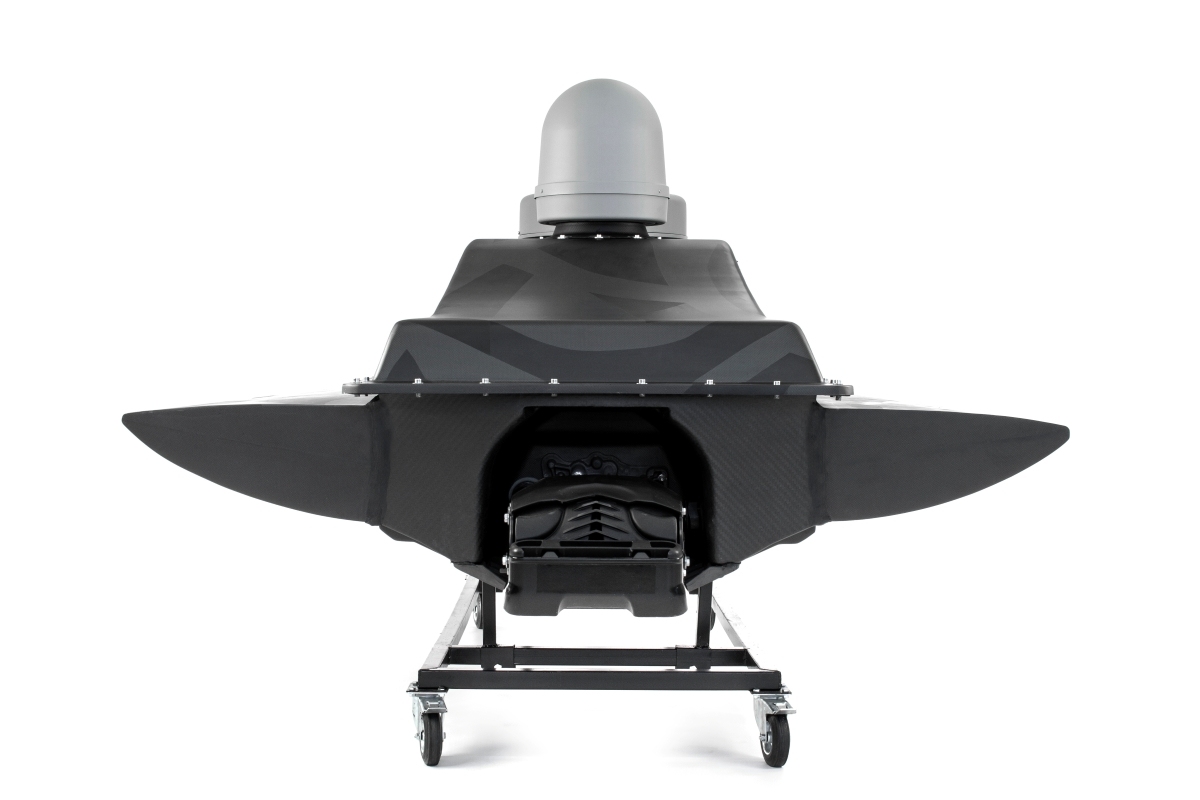

Constructed with a lightweight composite hull using carbon and aramid fibers, FOG combines durability with high-speed performance. Its waterjet propulsion system allows rapid maneuvering and efficient operation across different water conditions.
Key capabilities
- Maritime and inland water patrolling and surveillance
- Offensive and defensive combat operations
- Reconnaissance missions
- Search and rescue support
- Modular payload and sensor integration
Technical specifications
| Parameter | Value |
|---|---|
| Platform type | Unmanned surface vehicle (USV) |
| Length | 4.5 m |
| Width | 1.5 m |
| Gross weight | < 200 kg |
| Payload capacity | Up to 200 kg |
| Propulsion | Waterjet engine, 90 hp |
| Cruising speed | 50 km/h |
| Maximum speed | 78 km/h |
| Fuel tank capacity | 30–200 L |
| Fuel consumption | 11 L/hour |
| Range (cruise) | Up to 900 km |
| Structure | Carbon fiber and aramid fiber composite |
