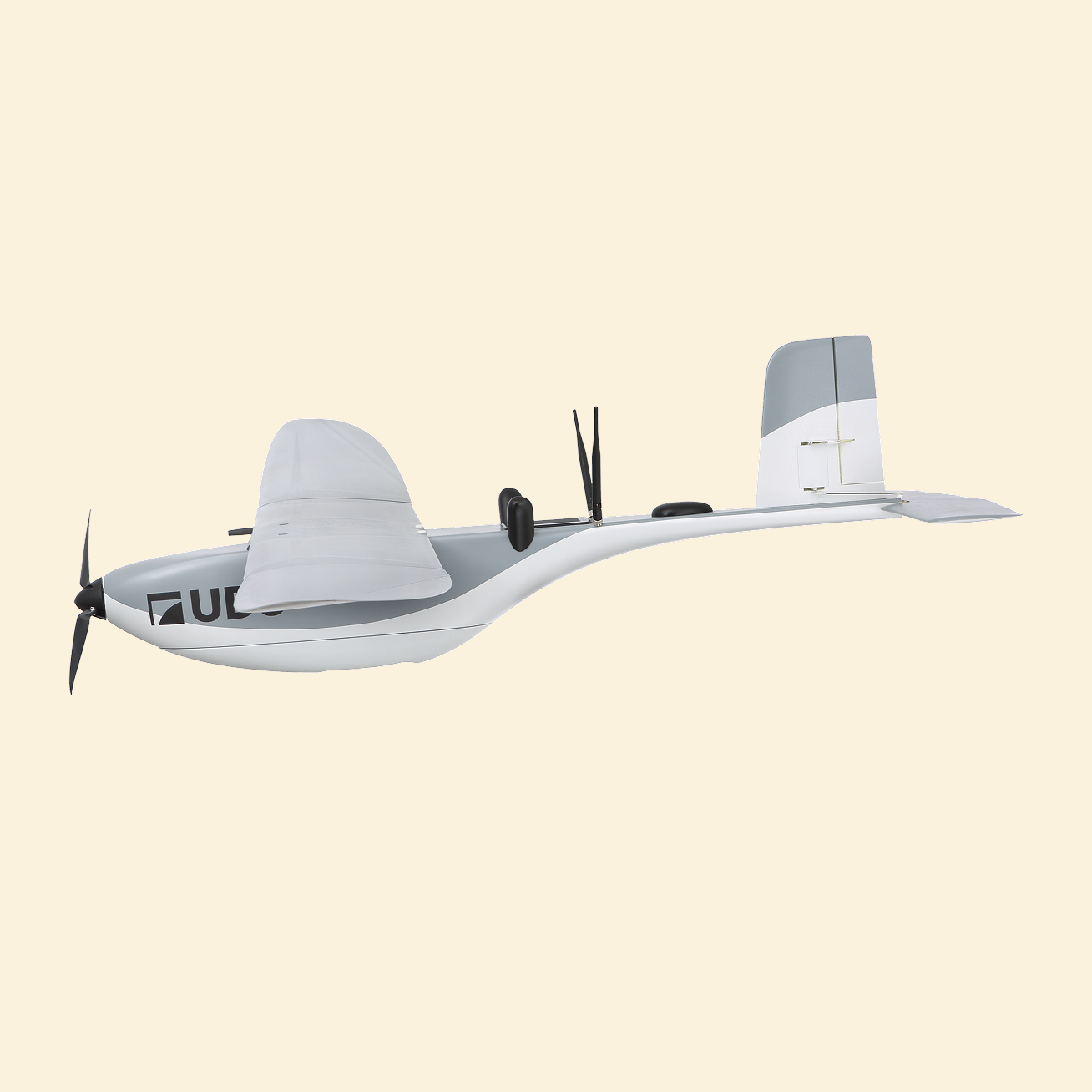

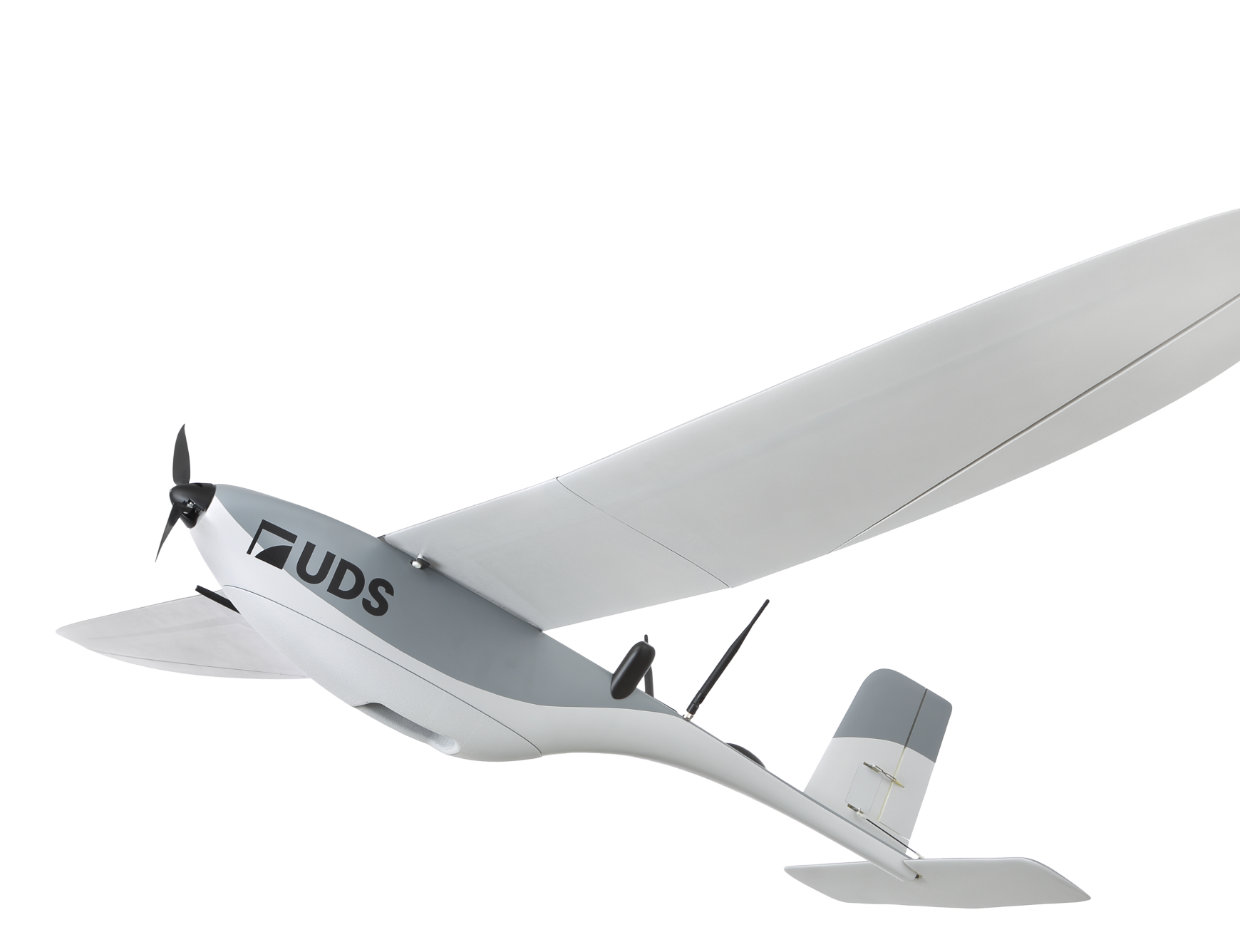

FORECASTER

High-performance ISTAR UAV platform.

Product descripton: FORECASTER by Unmanned Defense Systems (UDS)

The leading endurance ISTAR platform, capable of executing missions typically reserved for larger UAVs despite its mini-segment size.

Featuring auto frequency selection for electronic warfare resilience, the FORECASTER ensures mission reliability in contested environments. Seamlessly integrated with SitaWare HQ and ATAK, this UAV provides exceptional situational awareness and operational efficiency. With robust capabilities, the FORECASTER is optimized for ISTAR missions deep within enemy territory, gathering critical information and real-time support for fire units while maintaining a stealthy presence.

Modular technology

Possibility of integrating different warheads to meet specific mission needs.

EW Resilience and Connectivity

High-power dual-band radio with auto frequency selection, dead reckoning in denied environments, as well as a backup redundant radio to ensure system robustness, is available as an option.

Ground Station System

Proprietary modular control system.

Main Applications

Area scanning to detect foreign objects and their geo-location, monitor environmental changes, provide mapping, real-time surveillance, and correction for fire units.

Technical specifications

Endurance 240 min
Max Speed 22 m/s
Radio Line of Sight 60 km
Wind Resistance 14 m/s
Max Weight 5.3 kg (depending on battery config)
Operation
Stealthy low-altitude flight, with automatic (including object tracking) or manual control.
Payloads Selectable-modular EO, IR retractable gimbals.
Cruise Speed, Max Endurance 13 m/s
Cruise Speed, Max Range 15 m/s

Role in the system

Capable of eliminating heavy and high-mass targets at mid to long distances from the launch site.

Detect

Stealthy deep-penetration operations for real-time intelligence, fire support, and target acquisition.

Engage

Execute precise strikes and prepare to re-engage effectively at long range.

Command

UAV swarming for reconnaissance and strikes, featuring analysis capabilities, self-healing networks, GNSS-denied navigation, and real-time retasking.



Baseline product configuration

Military-Grade Rugged Tablet

A robust, field-ready interface designed for operators in challenging environments, ensuring reliable communication and control during mission-critical operations.

Modular Ground Station Kit

A highly adaptable and configurable ground station solution, designed to support a wide range of UAV operations with seamless integration and enhanced operational control.

Edge Computing Module – sMatrix

The onboard edge computing module, sMatrix, enables precise coordination for autonomous swarming operations, high-probability object recognition, and many other Al pilot-enhanced functions.



Integration with SwarmC2 System

Autonomous Swarm Control System

The system enables UAV swarms to operate autonomously and efficiently, with built-in collision avoidance and self-adjusting capabilities. The vehicles can independently modify their altitude, flight path, and formation without human intervention, allowing for seamless operation and reduced operator workload.

Automated Mission Continuity System

The system enables automatic mission takeover, where a new UAV seamlessly replaces one that is running low on power or encountering issues, ensuring continuous mission execution without interruption.

NATO Standard Synchronization Matrix

The NATO Standard Synchronization Matrix ensures that UAVs operate within specified timeframes and designated areas, with real-time information provided by the operator’s Battle Management System (BMS). This gives command centers full awareness of vehicle locations and flight schedules, ensuring coordinated and compliant operations.
