Gedz 8
Product descripton: Gedz 8 by Gedz Tech

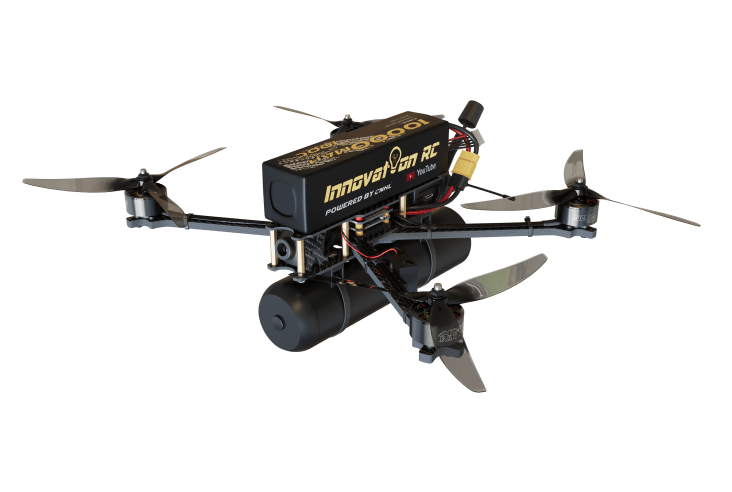

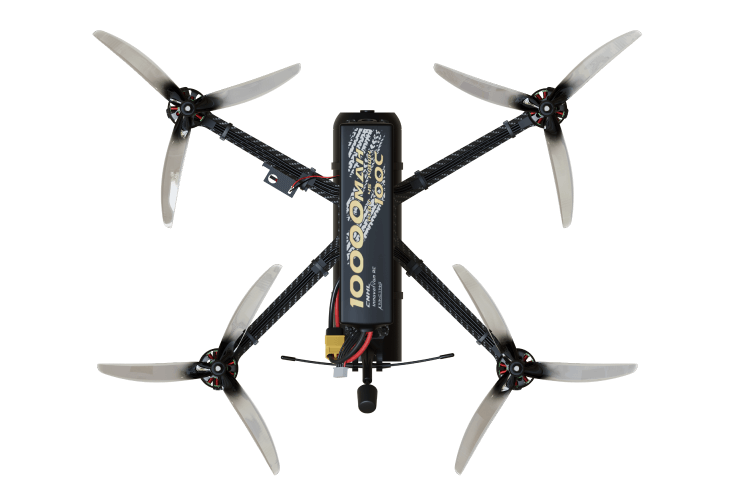

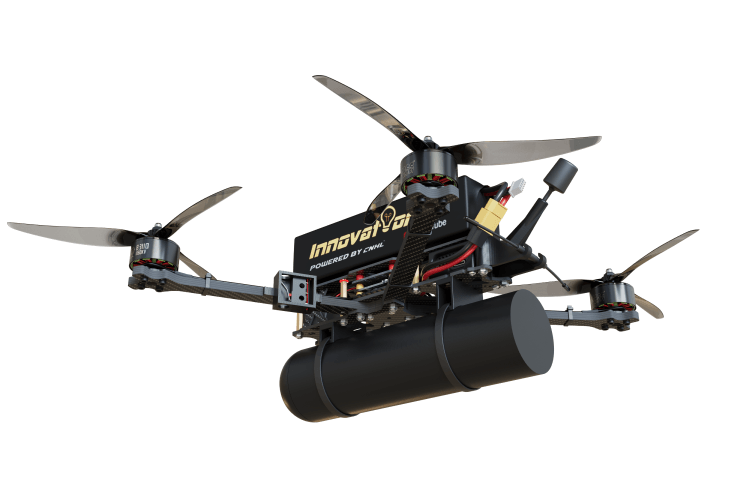

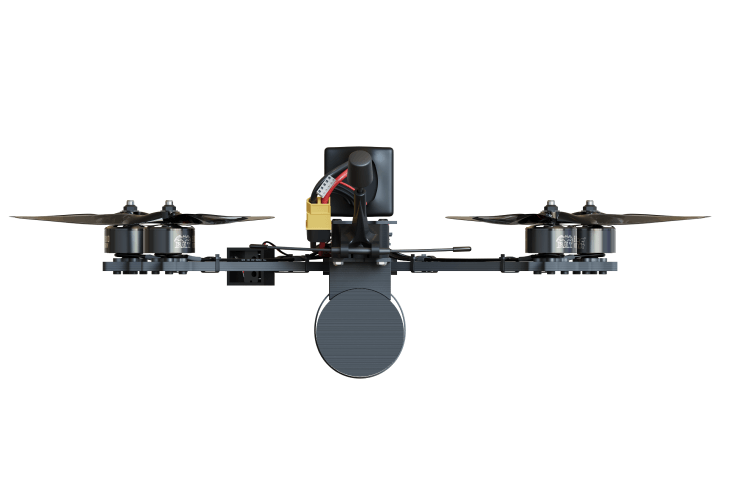

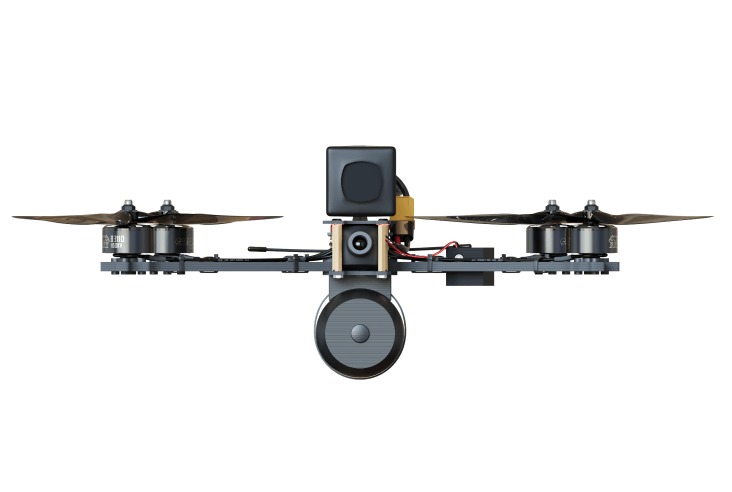

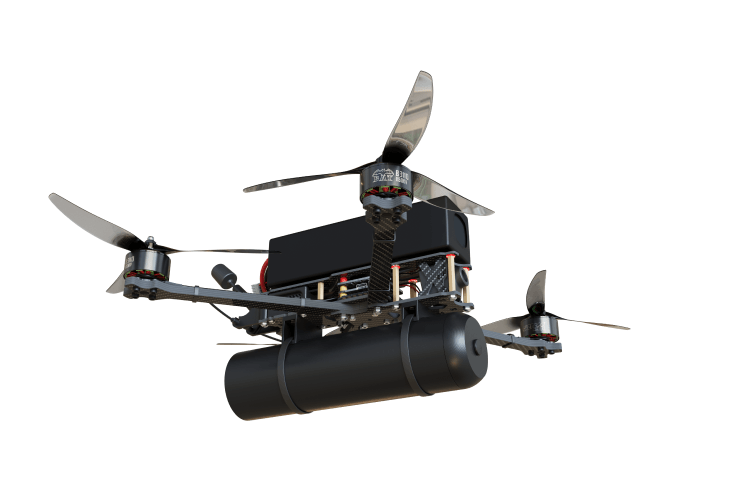

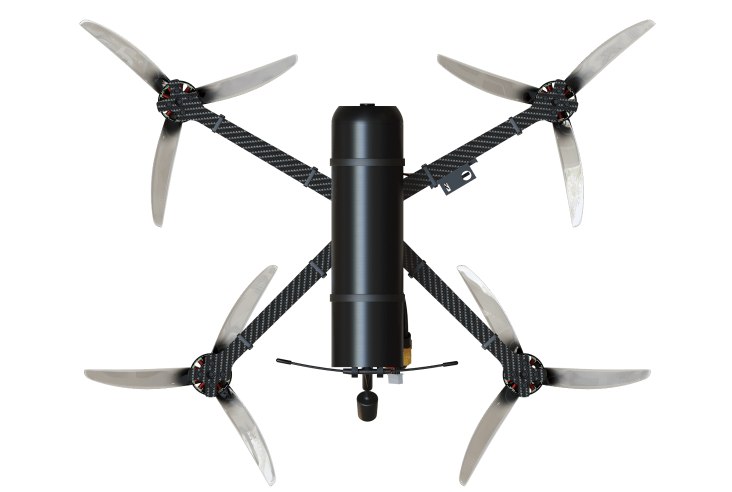

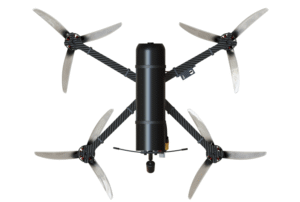

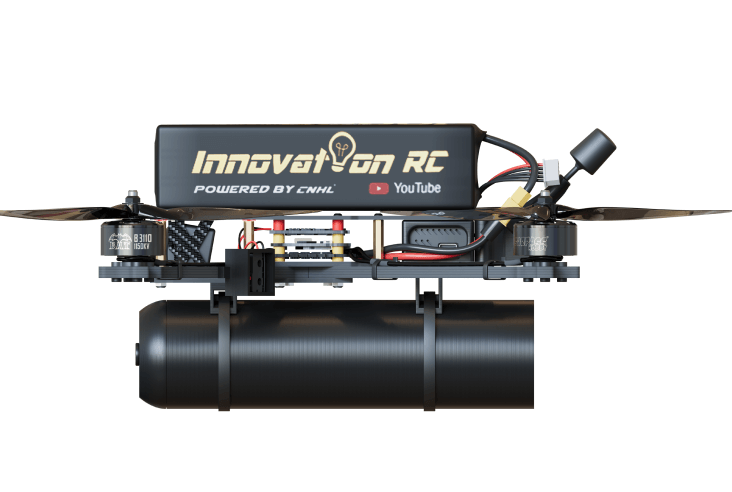

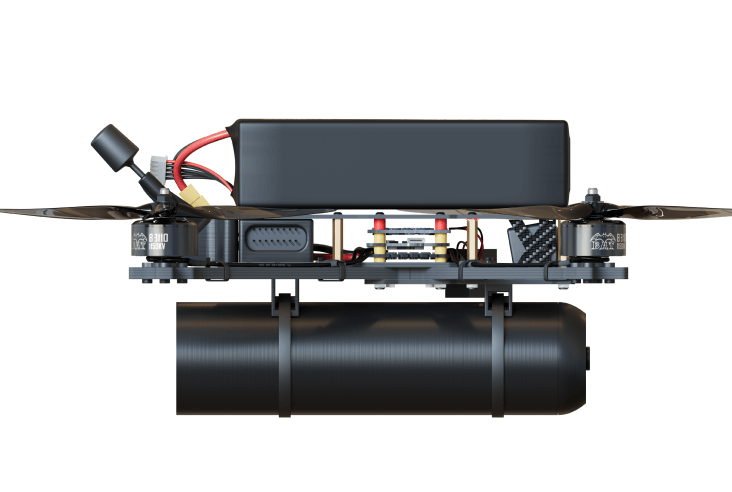

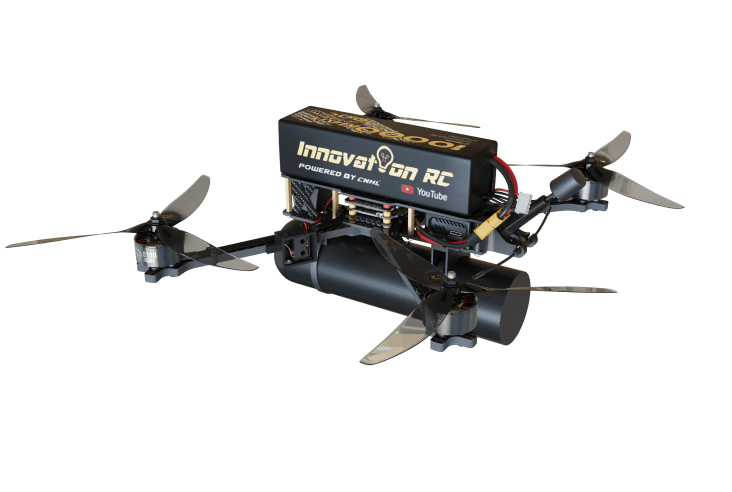

The Gedz 8 is a lightweight, combat-ready 8-inch quadcopter UAV designed for tactical strike missions in challenging environments. Engineered with a focus on safety, balance, and operational flexibility, the Gedz 8 provides front-line operators with a reliable and efficient solution for delivering explosive payloads over long distances.
Its dual safety system — including both a mechanical arming pin and specialized software safeguards — protects the operator from accidental detonation.
The drone is designed to withstand heavy-duty flight conditions, including acrobatic maneuvers. With additional motor parameter tuning, it is optimized for long-distance flights with a payload.
The built-in initiation system offers three activation modes: operator command, impact detection, and timed detonation. These features are software-integrated, eliminating the need for complex hardware modifications. On-screen display (OSD) notifications assist the pilot with safety prompts and mission status updates in real time.
Compact, configurable, and ready for field use, the Gedz 8 is an agile asset in Ukraine’s modern battlefield toolkit.
Technical specifications
| Component | Specification |
|---|---|
| Frame Size | 8″ |
| Frame Type | Custom-designed carbon fiber frame |
| Propellers | 8″, 8×4.5×3 CW/CCW |
| Motors | 3110 / 1280KV |
| Flight Controller | Speedybee F405V3 Stack, 60A ESC |
| Video Transmission | 1.2GHz 1000mW or 5.8GHz >2500mW |
| Control System | ELRS 300–1000MHz or TBS Crossfire |
| Camera | Runcam 1200TVL (daylight) |
| Firmware | Modified Betaflight 4.5.1 |
| Dry Weight | 0.7 kg |
| Maximum Takeoff Weight | 2.6 kg |
| Maximum Speed | 136 km/h |
| Cruising Speed | 60 km/h |
| Effective Range | >8 km |
| Flight Time | >19 minutes (with 1.32 kg payload, 4S1P 6Ah) |
| Dimensions (without props) | 335 × 251 × 60 mm |
| Dimensions (with props) | 500 × 419 × 60 mm |
| Battery Options | LiPo 4S1P 6000mAh or Li-ion 12600mAh |
Package Contents
● GEDZ ∞ quadcopter
● CW/CCW propellers
● Battery
● Video transmission antenna
● Mechanical safety pin
● Detonator connector
● 1.3 kg payload dummy (optional)
● Battery mounting strap
● Nylon zip ties
