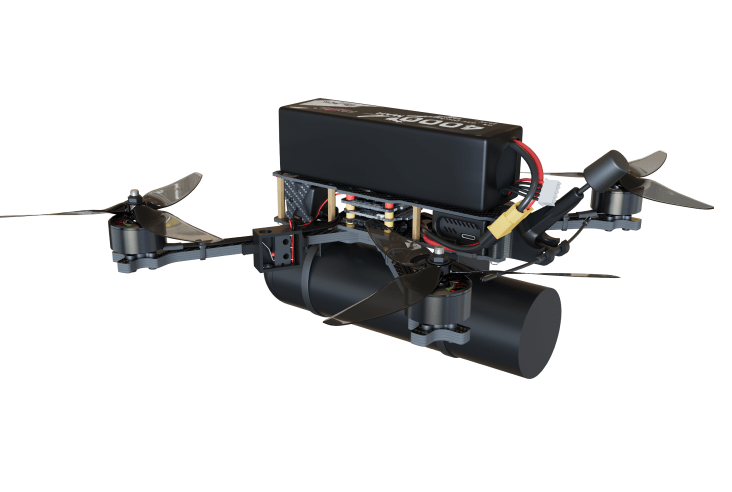

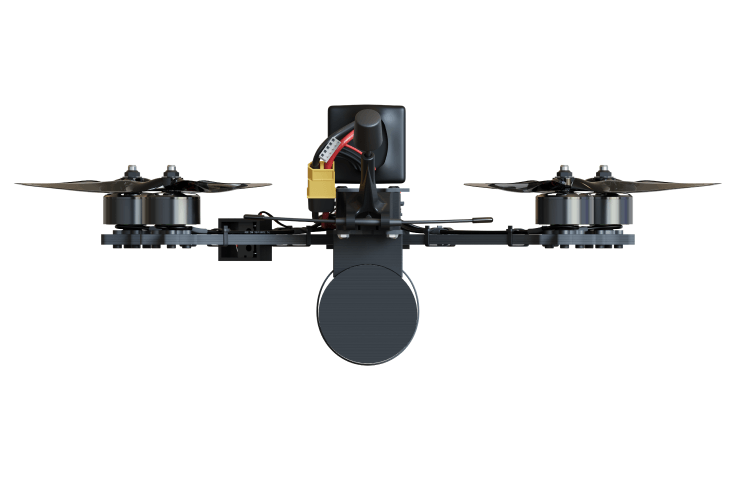

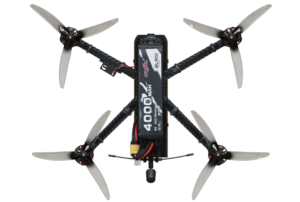

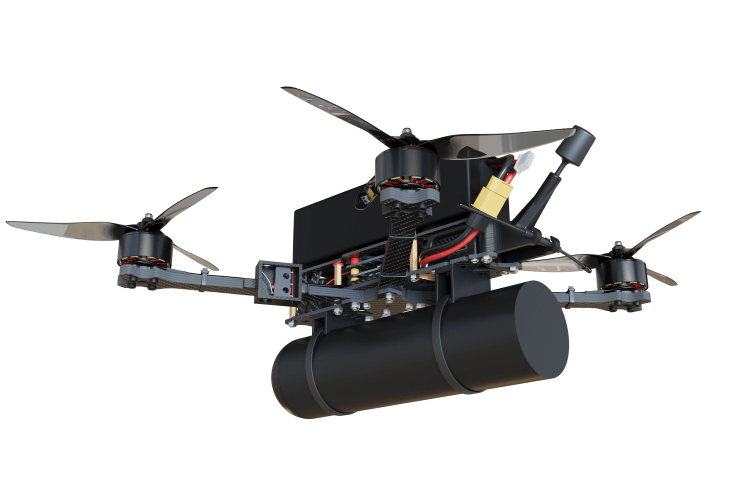

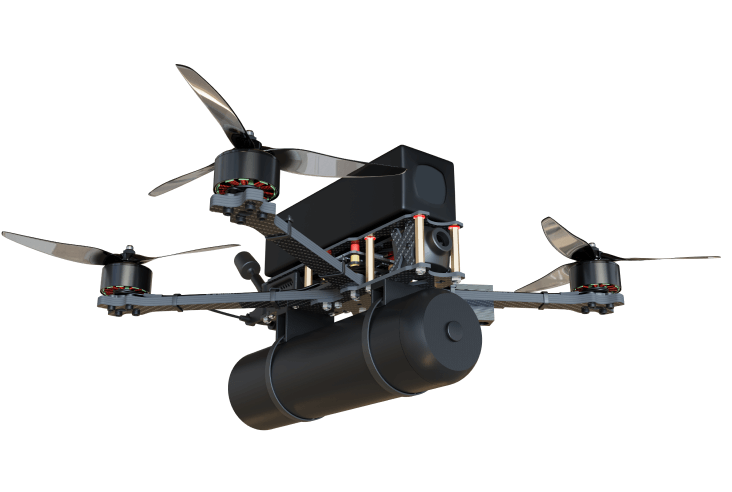

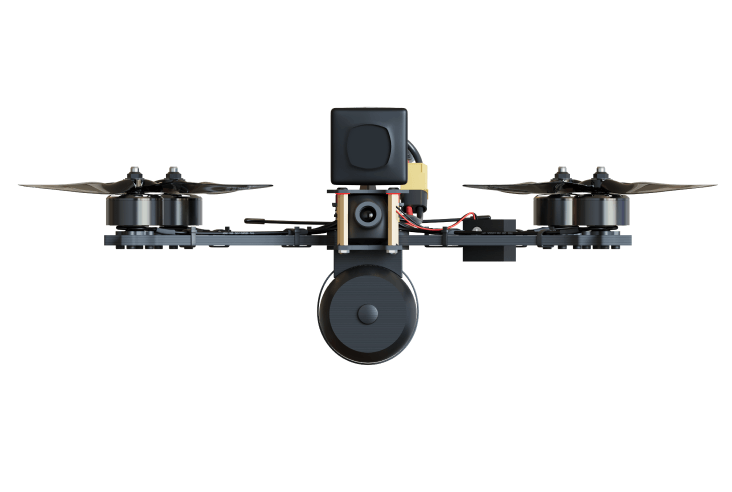

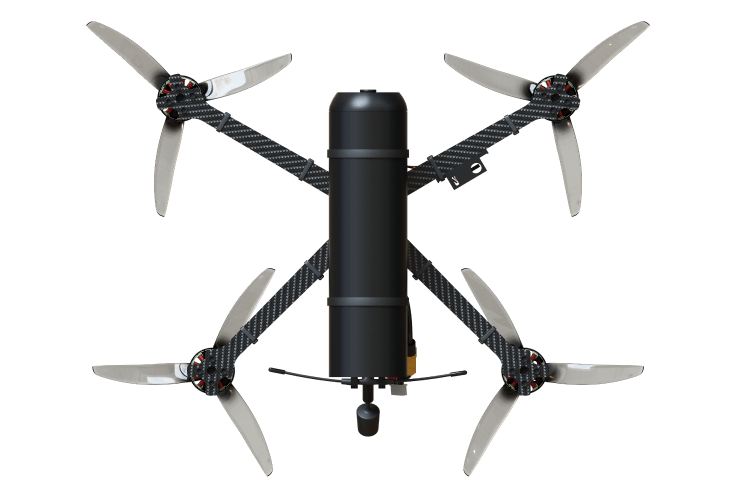

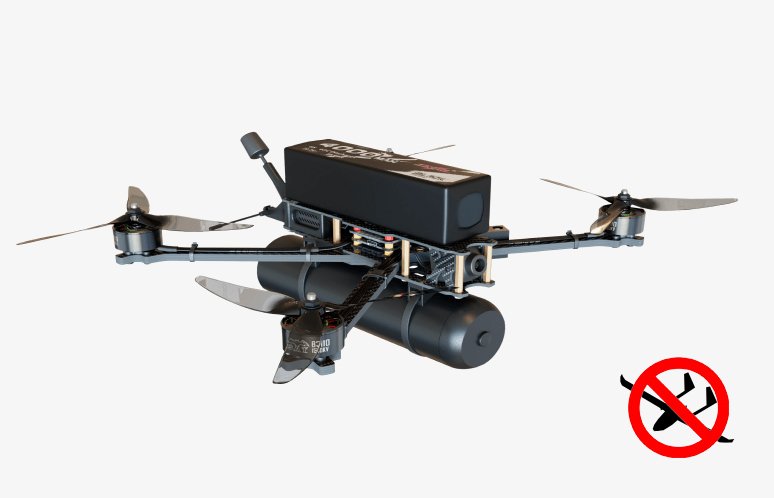

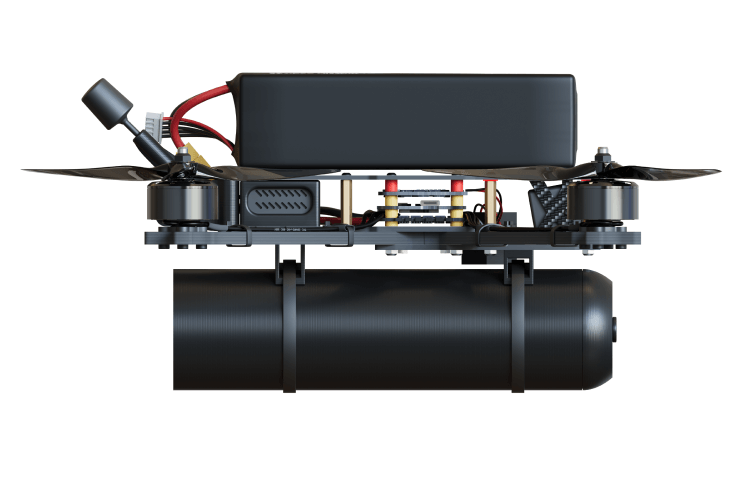

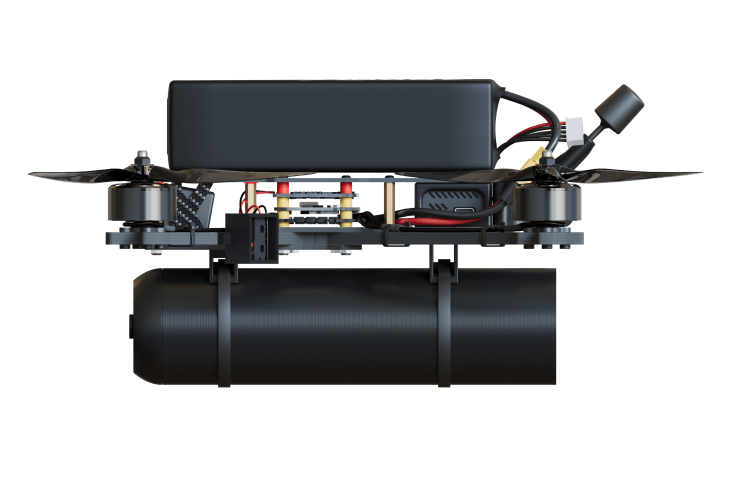

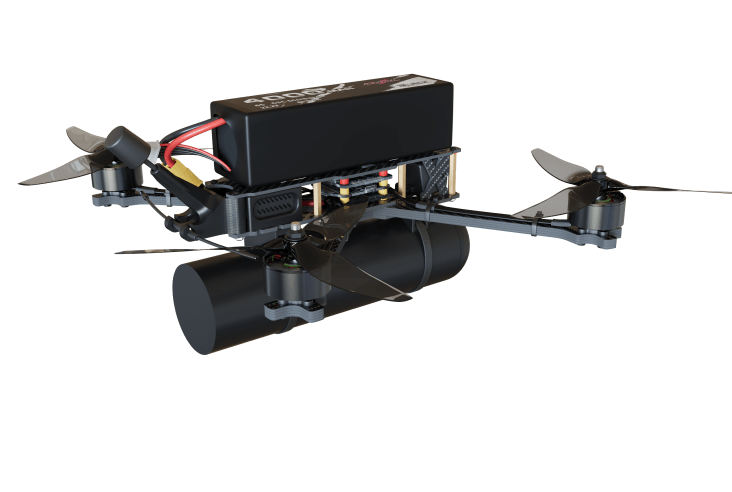

Gedz 8 DJI O4 / Walksnail
Product descripton: Gedz 8 DJI O4 / Walksnail by Gedz Tech
Safety
The drone is equipped with both passive (mechanical safety pin) and active (firmware-based) protection systems to prevent accidental or unintended detonation, ensuring operational safety for the pilot and crew.
Flight Stability
Engineered for high-stress conditions and aggressive acrobatic maneuvers, the frame is finely tuned with optimized motor parameters. This makes the Gedz 8 ideal for extended-range missions with payloads onboard.
Integrated Arming & Detonation Logic
A modified software system provides three combat deployment modes:
• Manual trigger from the operator’s remote
• Impact detection-based initiation
• Time-delayed activation
All logic is embedded in the firmware — no additional modules or field modifications are required. The drone supports the pilot with OSD (on-screen display) safety prompts and real-time status messages.
Technical specifications
| Specification | Value |
|---|---|
| Frame Size | 8″ |
| Frame Type | Custom carbon fiber frame |
| Propellers | 8″, 8×4.5×3 CW/CCW |
| Motors | 3110 / 1280KV |
| Flight Controller | SpeedyBee F405 V4 60A |
| Video System | DJI O4 with dual long Lumenier-type antennas or Walksnail Avatar HD |
| Control Link | ELRS 300–1000 MHz or TBS Crossfire |
| Camera | DJI O3 |
| Firmware | Modified Betaflight 4.5.1 |
| Empty Weight | 0.7 kg |
| Maximum Takeoff Weight | 2.6 kg |
| Maximum Speed | 171 km/h |
| Operational Range | >8 km |
| Cruising Speed | 70 km/h |
| Flight Time | Up to 25 min (with 0.3 kg payload, LiPo 6S 6Ah 90/120C) |
| Dimensions (L×W×H) | 375 × 385 × 60 mm |
| Battery Options | LiPo 6S 6Ah 90/120C or Li-ion 12600mAh |
Standard Kit Includes:
● GEDZ quadcopter
● CW/CCW propellers
● Battery
● Video transmission antenna
● Mechanical safety pin
● Detonator connector
● 1.3 kg dummy payload (optional)
● Battery strap
● Nylon zip ties
