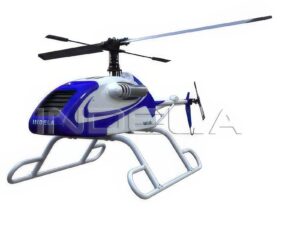

«INDELA SKY LAB» flying laboratory makes it possible to carry out flight tests of all types of aircraft nods and blocks in the following directions: – flight tests to evaluate aerodynamic, strength, vibroacoustic and operation characteristics at all flight stages, including critical modes; – flight tests with regard to development of algorithms of software and equipment of on-board control complexes; – flight tests of systems on prevention of critical flight modes; Such unique flight characteristics of «INDELA SKY LAB» unmanned helicopter as: possibility to hover, perform vertical takeoff and landing and to perform mechanical translations in any direction have from the very beginning resulted in the idea of utilizing the helicopter as an aircraft test bed.
«INDELA SKY LAB» refers to the class of light helicopters, which can be used for: • examination of dynamics of gyroscopic stabilization system; • processing of information in navigation systems; • study of sensitivity of elements of navigation control systems; • study of the theory and system of control of autonomous robots; • tests of electronic and electric and mechanical devices of navigation and control systems; • tests and study of hardware and software of on-board systems; • tests and study of integrated navigation and orientation systems; • tests and study of optoelectronic systems; • tests and study of air samples intake above ecologically unfavorable objects and territories.
Engine – – four-cycle, two-cylinder, water-cooled Takeoff power – kW – 20.2 Fuel consumption – l/h – 6 Key geometric characteristics Length with main rotor – mm – 3754 Length Nose to Tail – mm – 3052 Main rotor diameter – mm – 3168
| Domain | professional |
| Applications | aerial photography |
| Type | helicopter |
| Engine type | piston engine |
| Autonomy |
5 h |
| Maximum altitude |
1,000 m |
