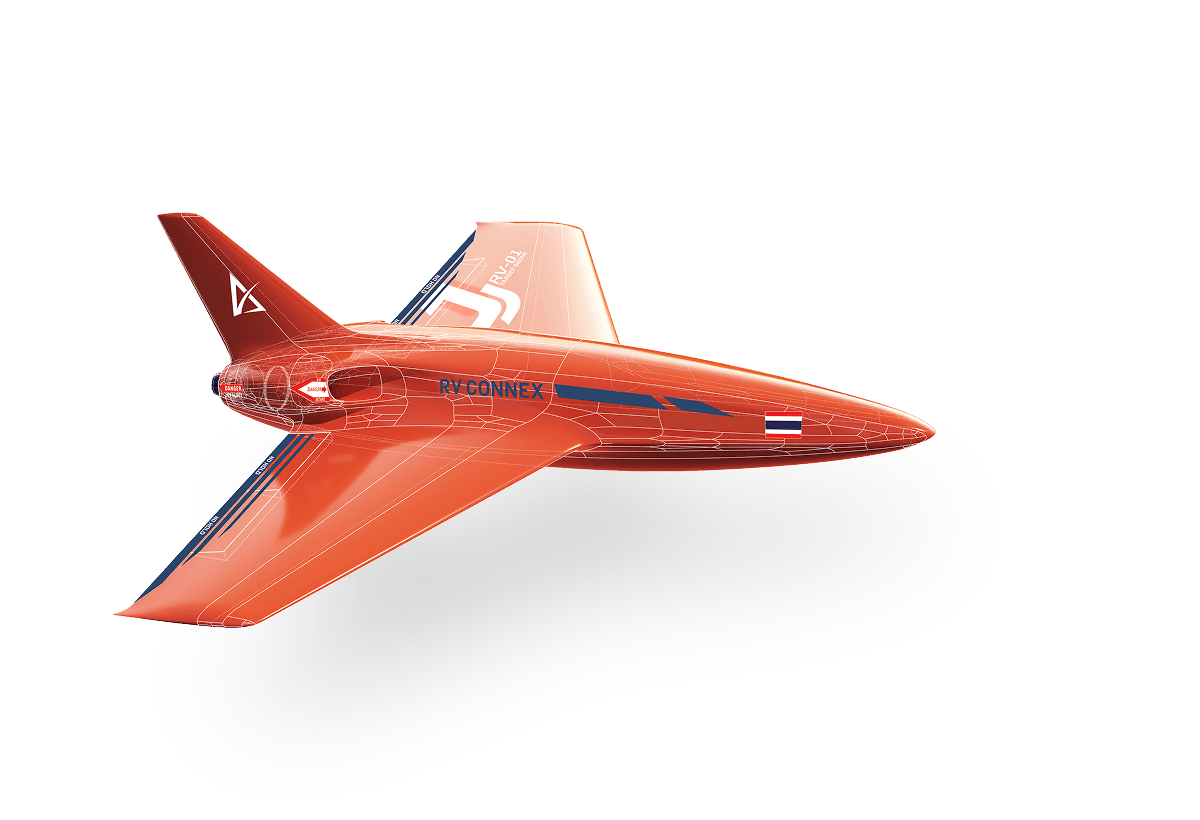

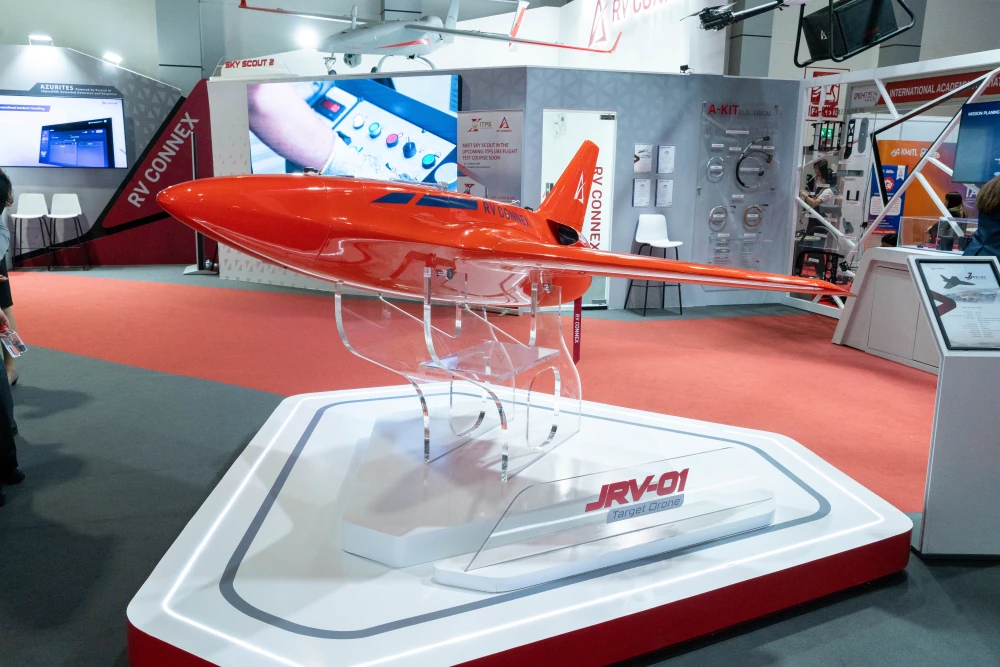

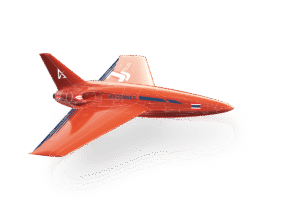

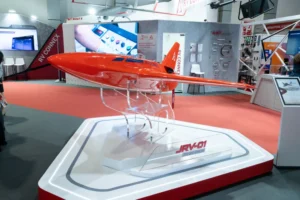

JRV-01
Product descripton: JRV-01 by RV Connex
JRV-01 is designed to set new benchmarks in simulating real aerial threats for live-fire exercises, training, and weapon test evaluations.
The system includes:
-
Ground Control Station (GCS)
-

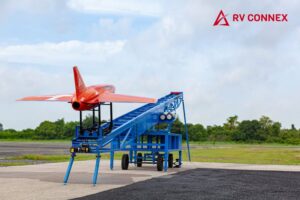

Pneumatic Launcher
-
Ground Support Equipment
Cost-Efficiency
-
Outstanding and cost-efficient aerial target platform.
-
Capable of executing diverse threat scenarios and missions.
-
Supports extensive range of payload options.
-
Valuable for defense and military operations to ensure readiness and operational proficiency.
Offerings
-
Drone-as-a-Service (Contract Target Services) – Specialized aerial target operations for specific missions.
-
Training & Full Operational Support – Comprehensive programs and ongoing assistance.
-
Complete Delivery of Target Systems – From design and manufacturing to deployment.
Key Features
-
Catapult Launch
-
Mobile & Compact GCS for easy deployment
-
Parachute Recovery
-
User-Friendly Mission Planning
-
Return Home Function for recovery
-
Recover and Reuse capability
-
Fully Autonomous Operation
-
Easy to Use and Maintain
Technical specifications
| Parameter | Value |
|---|---|
| Wingspan | 2.44 m |
| Length | 2.6 m |
| Maximum Take-off Weight | 70 kg |
| Payloads | MDI, Passive Radar Augmentation, Tracking Flare, Smoke |
| Endurance | Up to 1 hr |
| Maximum Speed | 262 kts |
| Service Ceiling | 15,000 ft |
| Datalink | Up to 70 km (Line of sight) |
| Propulsion | Jet Engine |
| Take-off | Catapult |
| Recovery | Parachute |
Standard Payloads
-
Miss Distance Indicator (MDI)
-
Passive Radar Augmentation (Luneburg)
-
Tracking Flares
-
Smoke
-
Other options available upon request
