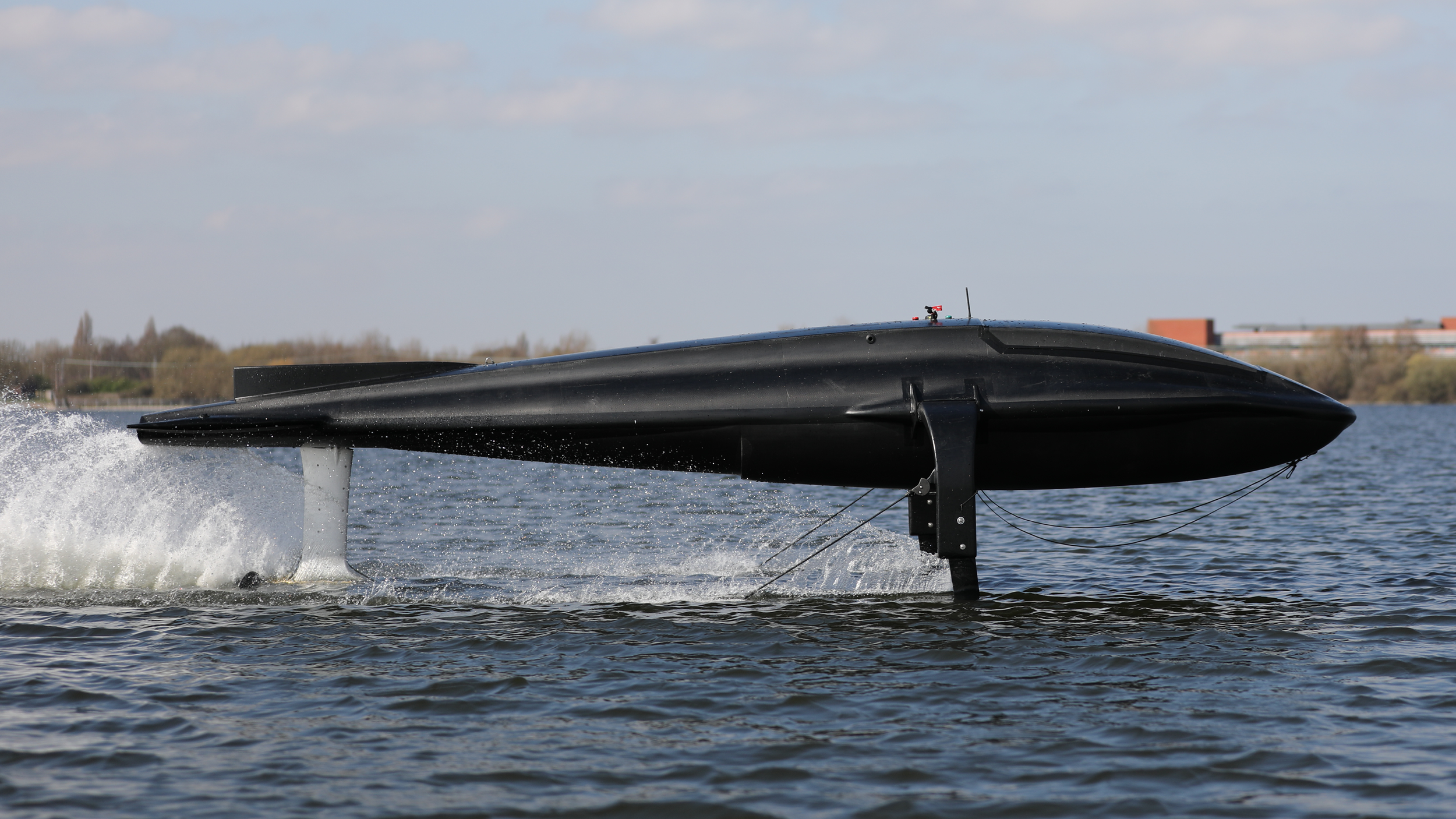

K4 MANTA 54
Product descripton: K4 MANTA 54 by Kraken Technology Group
Kraken’s pioneering low-cost, low-signature, all-electric, foiling Uncrewed Surface Subsurface Vessel (USSV) platform designed for a wide range of applications, including Defence, Security and Commercial.
The K4 MANTA is capable of rapid uncrewed surface transit of sensor or effect payloads, before submerging for covert infiltration, persistent recce or loitering roles.
Three variants, from the lowest-signature 18ft to the highly versatile 36ft and 54ft multi-purpose versions capable of substantial modular payload carriage.
K4 MANTA 54
At 16.5m with a 5,000kg payload, this diesel electric USSV hits 60 knots, ranges 1,000NM, and runs up to 30 days.
Autonomous, C5ISR-ready, with low-signature design, biomimicry, and shock-stable modularity baked in
Technical specifications
PLATFORM
Length Overall: 16.5m
Beam Overall: 5m
Draft Overall: 1.5m
Max Displacement: 10,000kg
Powertrain: Diesel Electric
Max Speed: 60kt
Range: 1,000NM at 25kts
Endurance: 30 days – mission dependent
Crew: Autonomous
Structure: Composite
Payload: 5,000kg
Operating Depth: 10m (30m target)
FEATURES
• Reduced signature design
• End-user configurable modular payload
• Autonomous and advanced remote operation
• Auterion operating system
• Open interfaces to autonomy
• Sensors – EO / Radar / Sonar
• User defined C5ISR fit (optional)
• Stable platform reducing shock and vibration
• Organic form factor for biomimicry
CAPABILITIES
• ASuW – Maritime Strike
• ASuW – Maritime forward screening
• ASW – Deploy and support cordon/barrier ops
• Littoral – Forward force Support and Resupply
• Littoral – Theatre entry reconnaissance
• Littoral – Conduct Littoral Access Point Recce
• Littoral – Forward operating base for UXV
• Littoral – Strike
• C4ISR – Conduct Littoral C4ISR
• Effects – CEMA – EW Offensive and Defensive
• Effects – Off board Kinetic – Non-Kinetic
• Teamed multi-axis attack
