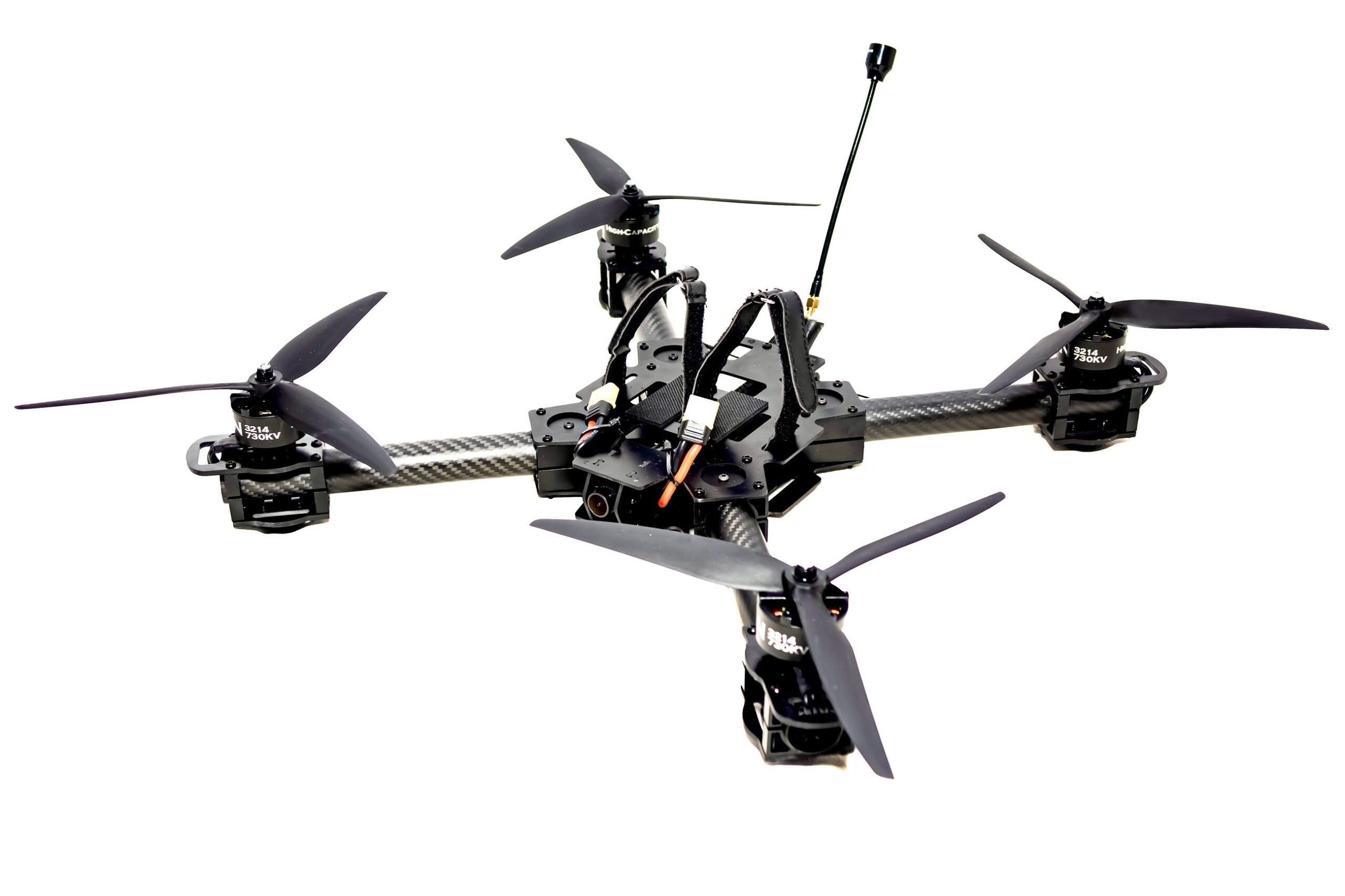

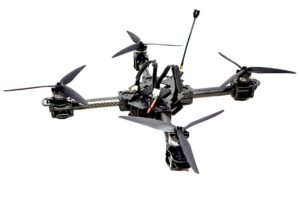

KN-104 10-Inch FPV Strike Drone
Product descripton: KN-104 10-Inch FPV Strike Drone by General Cherry
The KN-104 is a high-performance 10-inch FPV kamikaze drone developed for frontline tactical operations. Designed for precision strikes and equipped with interchangeable payload modules — including daylight, twilight, and thermal infrared cameras — the KN-104 offers operators enhanced situational awareness and target visibility across various conditions. Built on the robust Diatone 104 frame and driven by powerful 730KV motors, this drone balances speed, endurance, and accuracy.
With a maximum flight time of up to 27 minutes, a tactical range of 22 km, and a top speed of 140 km/h, the KN-104 is ideal for high-risk, high-impact missions. Thanks to its compact construction and quick setup time of 5 minutes, it’s highly adaptable to dynamic combat environments.
Technical specifications
| Parameter | Value |
|---|---|
| Frame | Diatone 104 |
| Motors | KN 3214, 730KV |
| Propellers | 10.5x4x3 |
| Flight Controller | F405 MK2 V2 |
| Control Protocol | ExpressLRS (433 MHz / 915 MHz adjustable) |
| Video Transmission Frequency | 5.6–5.9 GHz / 5.8–4.9 GHz (2.5W) |
| Telemetry Frequency | 735–790 MHz / 868–915 MHz |
| Video Antenna | 1 x RHCP, 150 mm |
| Max Takeoff Weight | 3 kg |
| Payload Capacity | 1.8 kg |
| Battery Options | 6s2p (8400 mAh) / 6s3p (12000 mAh) / No battery |
| Flight Time | Up to 27 minutes |
| Cruising Speed | ~20 km/h |
| Max Speed | 140 km/h |
| Operational Altitude | Up to 1000 m |
| Tactical Range | Up to 22 km |
| Target Visibility Range | 650–725 m (depending on camera module) |
| Deployment Time | ~5 minutes |
| Camera Options | Daylight / Twilight / Thermal Infrared |
