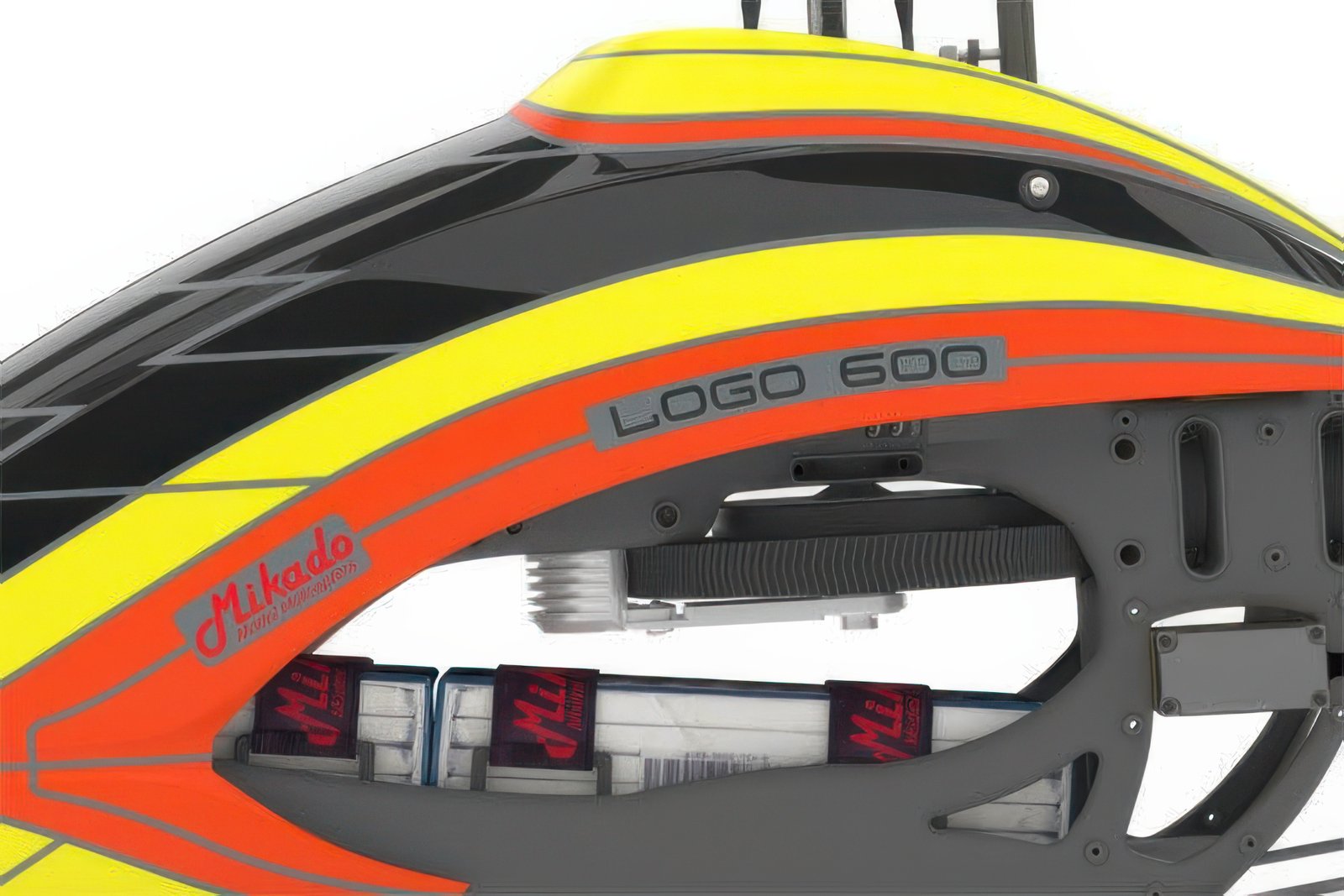

The LOGO 600 combines the proven concept of the LOGO 600 SX with new components and our new signature canopy design: 600-620 mm main blades for 10S Lipo 5,000 mAh or 12S LiPo up to 3.500 mAh light und durable chassis fiberglass reinforced frame with battery quick release system direct servo link to the swashplate hollow main shaft with 10 mm diameter herringbone main gear with 106 teeth (module 1) motor counterbearing with additional main shaft support xtra-strong 25 mm diameter tail boom Now with aluminum rotor head with 8 mm spindle shaft and extra-large thrust bearings (ø 16 mm) larger swash plate aluminum pulley in the chassis stronger one-way bearing fin set with colored accents in neon red newly designed signature airbrush canopy Specifications Helicopter Rotor diameter – 1,350 mm-1,450 mm Rotor blades – 600/620 mm RTF weight – from ca.
3.4 kg recommended batterie – 10S-12S LiPo Main gear ratio – 7.1-10.6 Main Gear size – 106 teeth module 1 batterie slot – 62 x 54 x 300 mm (HxWxL) Length – 1,250 mm Hight – 360 mm Width – 210 mm Content Kit – Kit with aluminum rotor head Accessories – Anti Static Kit, Motor counterbearing with mainshaft support Manual – Detailed printed manual Blades – Carbon main rotor blades Tail Blades – Carbon tail rotor blades Canopy – Airbrushed Canopy
| Other characteristics | electric motor, kit |
