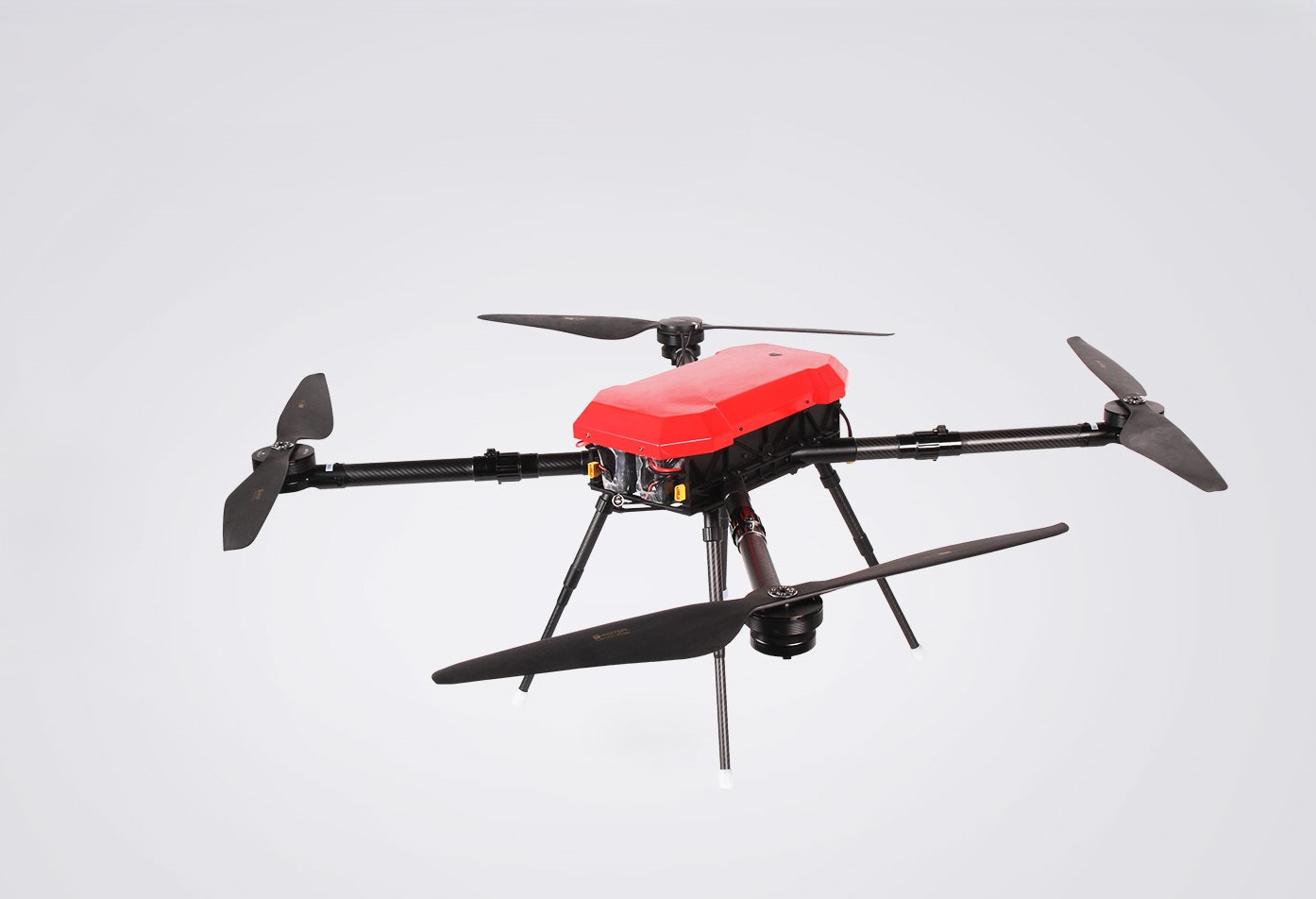

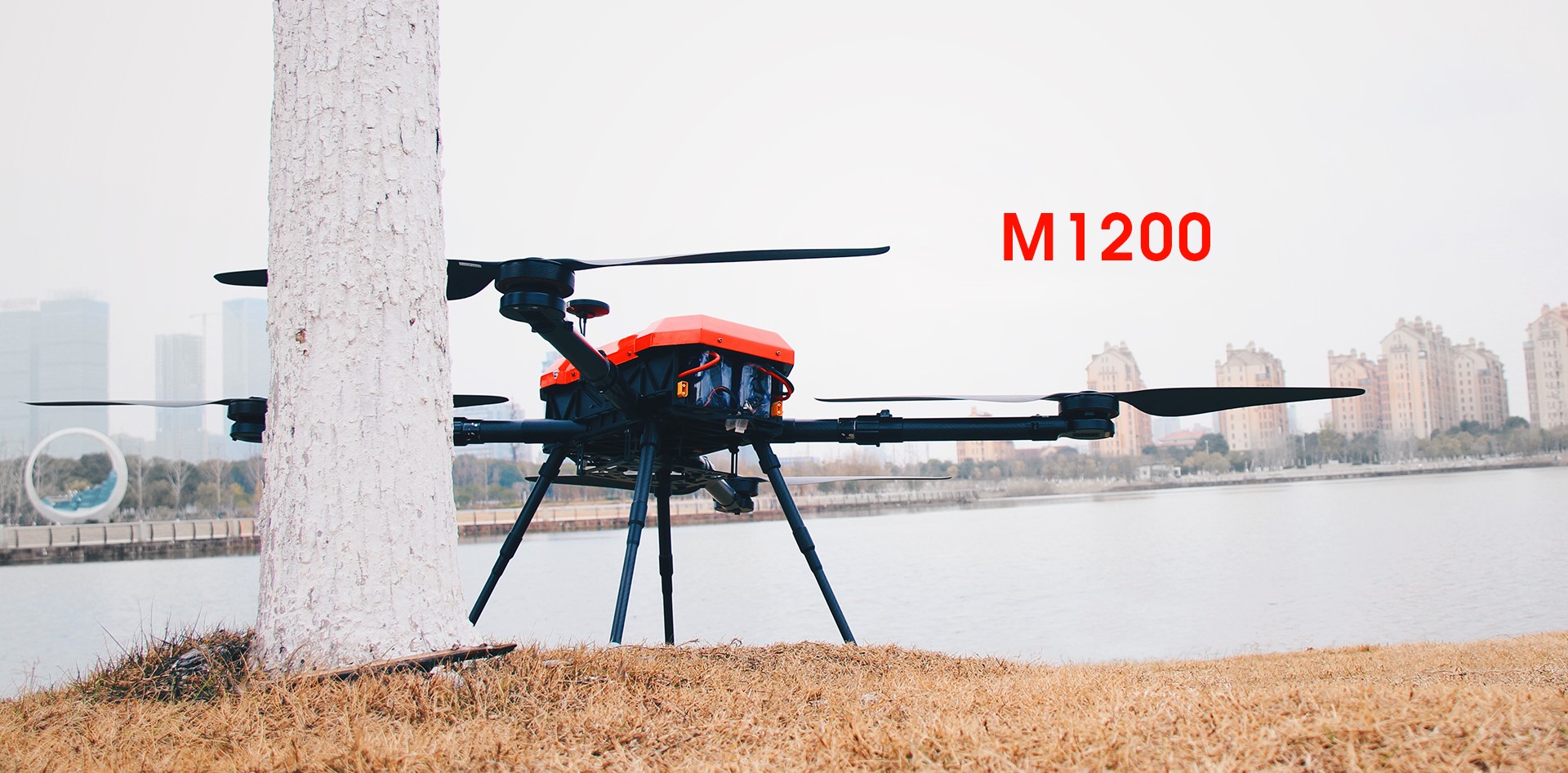

M1200 Multirotor Drone
Product descripton: M1200 Multirotor Drone by T-DRONES
The M1200 is the preferred platform for 2–5 kg payloads, designed for users who require larger payload capacity combined with extended flight endurance.
With over 1 hour of flight time, the M1200 significantly improves operational efficiency and overall user experience.
Benefits & Features
1. Lightweight Design
-
Hollow structural design
-
Extrusion-formed integrated airframe
-
High-strength aviation aluminum construction
-
Higher structural strength, lighter weight, and reduced overall volume
2. Long Endurance
-
Over 1 hour flight time with a 5 kg payload
-
30 km data transmission system, overcoming distance limitations
3. Customized T-MOTOR Propulsion System
-
Industry-leading reliability and safety
-
Optimized for long endurance missions
-
Focused improvements in efficiency, reliability, and weight
-
Enhanced flight stability and operational safety
Technical specifications
Optional Payloads
The M1200 features a flexible connector gimbal sharing device and multiple power supply interfaces, enabling multi-purpose operation.
Available payload options include:
-
Thermal camera
-
Laser night vision
-
Searchlight
-
Winch system
-
Cargo box
Secondary Development
To meet diverse customer requirements, the M1200 supports strong secondary development capabilities.
1. Enhanced Protection
-
Key areas are enclosed to improve protection
-
Adaptable to different environmental conditions
2. Multiple Landing Gear Options
-
Fulcrum point landing gear
-
Folding landing gear
-
T-type landing gear
3. Propeller Options
-
Folding propellers
-
Quick-detachable propellers for faster operation
4. Enhanced Signal Capability
-
Support for multiple GPS modules
-
Improved anti-interference performance
| Model | M1200 |
| Wheelbase | 1230mm |
| Weight of Drone (Without Battery) | 5.14kg |
| Weight of Drone (With Battery) | 13.5kg |
| Weight of Battery | 8.36kg(ARES 6S 22AH Battery or ARES 6S 27AH Battery* 4PCS) |
| Max Take-off Weight | 18.5kg |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | 15m/s |
| GPS Hover Accuracy | Vertical: ±0.5m; Horizontal: ±2.5m |
| Hover Time | 2kg≥70mins; 5kg≥65mins (6S 27ah batteries) |
| Maximum Tolerable Wind Speed | 13m/s |
| Working Temperature | -15℃~50℃ |
| Propulsion System | T-MOTOR |
| Recommended Control System | PIXHAWK |
| Dimensions Folded | 585mm*585mm*570mm |
| Dimensions (Unfolded) | 990mm*1005mm*570mm |
| Packing Size | 700mm*700mm*370mm |
| Shipping Weight | 11.6kg |
