M75

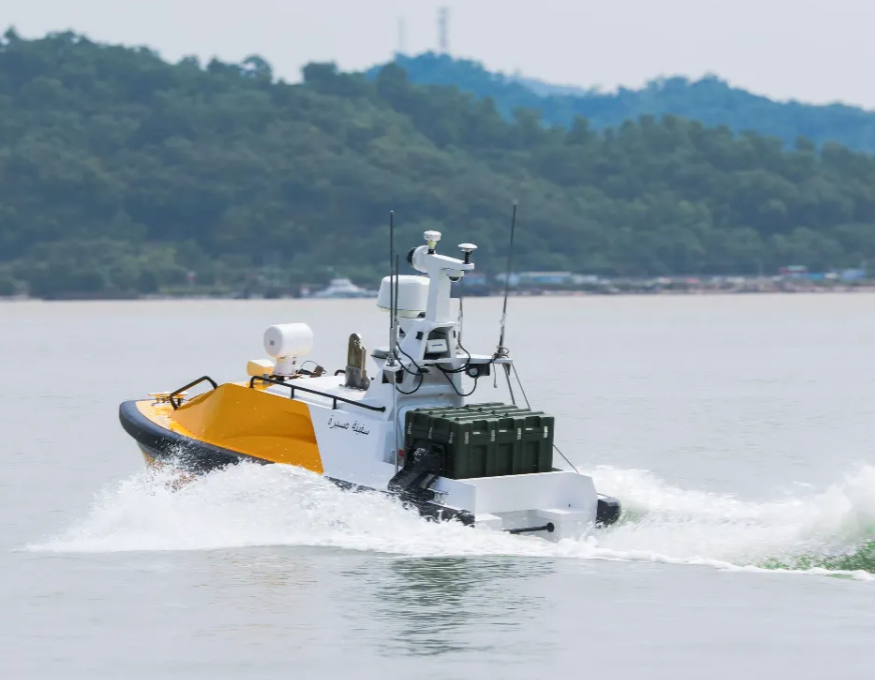

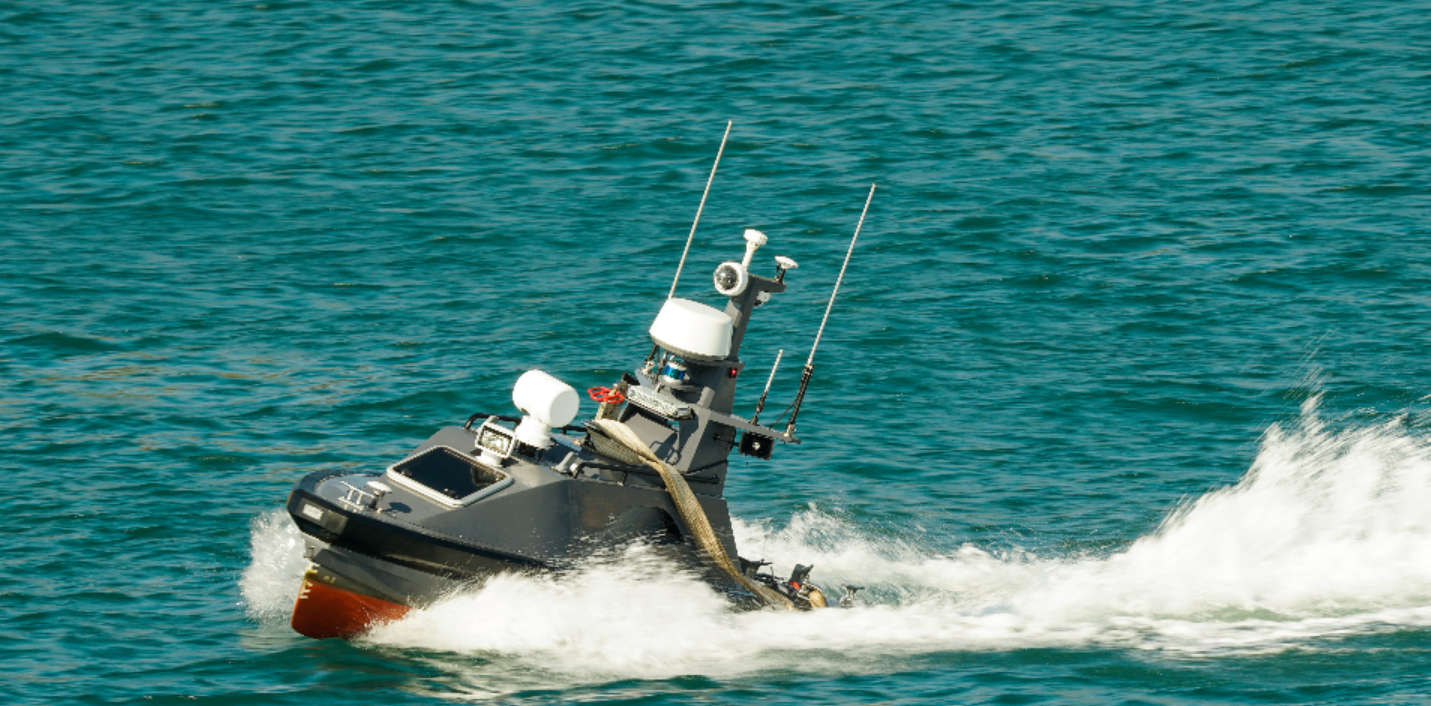

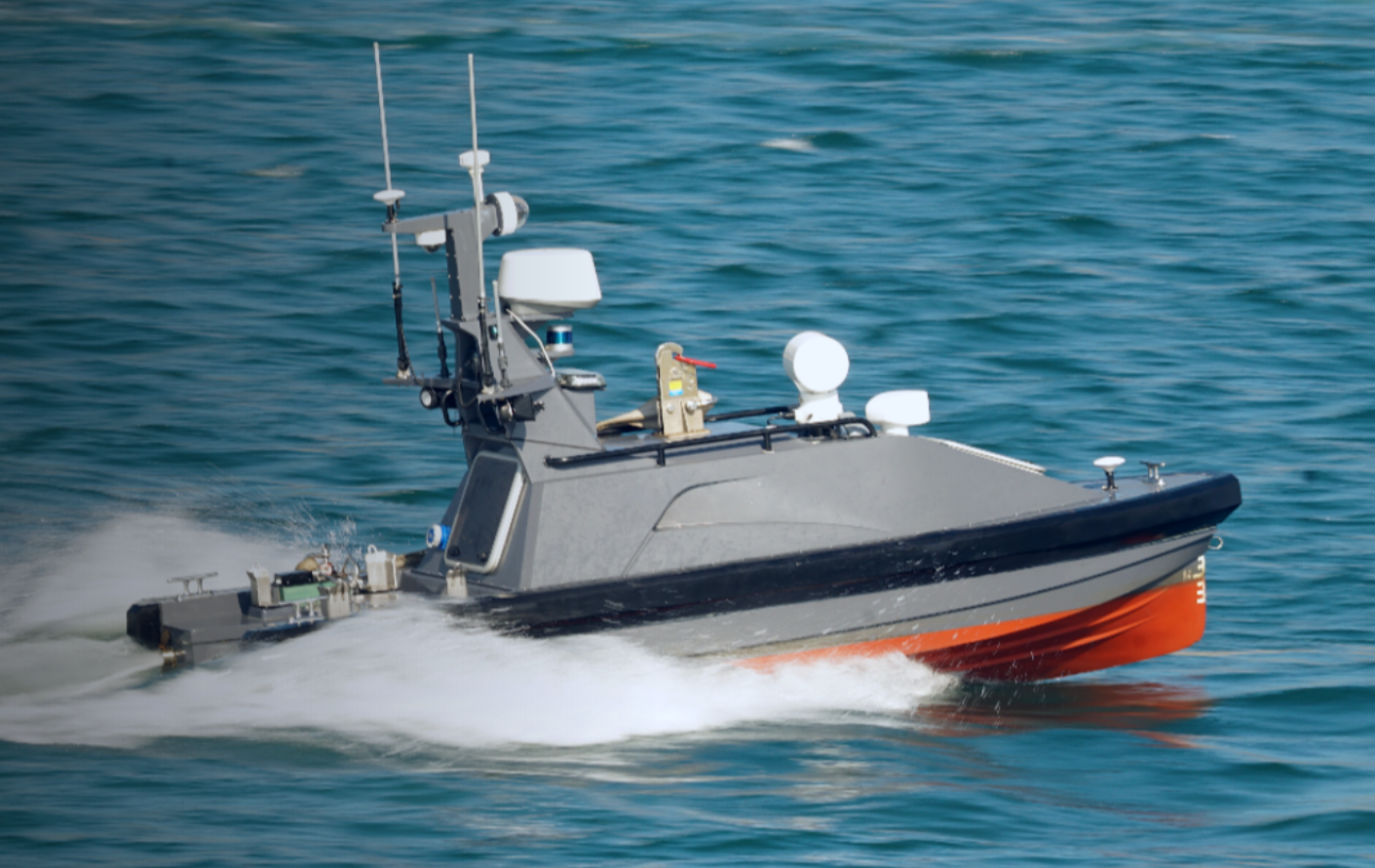

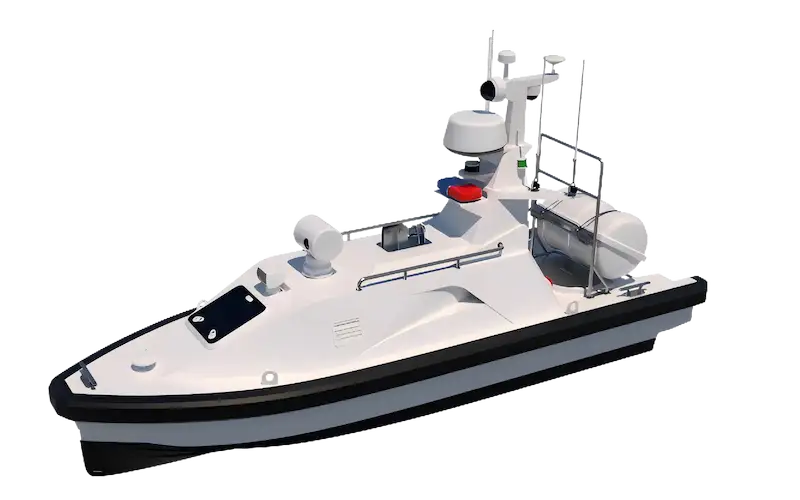

Product descripton: M75 by OceanAlpha
M75 Security Patrol USV is designed to handle various critical missions such as round-the-clock patrol, search and rescue, logistics and oil spill detection.
The M75 can significantly enhance the operation and maintenance of offshore oil and gas industries, while it is also an ideal solution for maritime and water police departments.
Technical specifications
Key Features
High-Speed Performance
Powered by a diesel engine and waterjet propulsion system, the M75 USV achieves 26 knots with a 120-nautical-mile operational range, ensuring rapid response and long-endurance missions.
It maintains stability in waves up to 1.25 meters and can endure harsh conditions up to 2.5 meters, making it ideal for demanding offshore environments.
Flexible Operation
Choose between:
- Fully autonomous navigation for programmed missions
- Manual remote control when real-time operator input is needed
This adaptability makes the M75 suitable for various applications, from routine patrols to emergency response situations.
24/7 Monitoring Capability
The integrated surveillance suite includes:
- Electro-optical pod
- 360° HD camera system
- Searchlight
These systems enable continuous surveillance operations.
This makes the M75 particularly effective for:
- Monitoring critical infrastructure
- Conducting regular security sweeps
- Maintaining vigilance in sensitive maritime zones
Offshore Logistics Support
Engineered to support offshore operations, the M75 can efficiently transport:
- Equipment
- Spare parts
- Essential supplies
between oil platforms, wind farms, or other marine installations, reducing the need for manned vessel deployments.
Specifications
| Category | Specification | Value |
|---|---|---|
| Physical | Dimensions | 5.5 m (L) × 1.75 m (W) |
| Weight | 1.2 t | |
| Draught | 0.42 m | |
| Hull Material | Carbon Fiber Composite | |
| Performance | Maximum Speed | 25 kn |
| Endurance | 120 nm @ 20 kn | |
| Operational Sea State | Sea State III | |
| Power & Propulsion | Propulsion | Yanmar Diesel Engine 110 HP + Alamarin Water-jet 260 HP |
| Power for Electronics | Battery Pack + Diesel Generator | |
| Fuel Capacity | Diesel 120 L | |
| Navigation Aids & Safety | Situation Awareness | Navigation Radar, LiDAR, AIS, Camera |
| Collision Avoidance | Dynamic / Static Collision Avoidance | |
| Control & Communication | Control Mode | Remote Control / Autonomous |
| Communication | Private Network 10–20 km; Remote Controller 1 km; Public Network | |
| Software | OceanAlpha USV Navigation & Mission Software |
