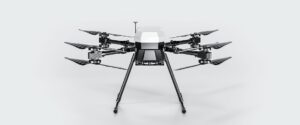

MX860 Coaxial Multirotor Drone
Product descripton: MX860 Coaxial Multirotor Drone by T-DRONES
The MX860 is a compact coaxial multi-rotor UAV designed to deliver enhanced safety, impressive payload capacity, and extended flight time in a small, cost-effective platform. Despite its minimal footprint, the MX860 can carry payloads of up to 9 kg, making it a powerful solution that accurately meets a wide range of customer needs.
Its compact yet powerful design maximizes payload capability while keeping overall size to a minimum. The lightweight integrated airframe, manufactured using extrusion-formed high-strength aviation aluminum, provides superior structural strength while reducing overall weight.
The MX860 features a convenient, foldable, and easy-to-disassemble design, allowing for effortless transport and rapid deployment. With a professionally customized propulsion system, the UAV offers abundant power redundancy, high efficiency, and an increased safety margin.

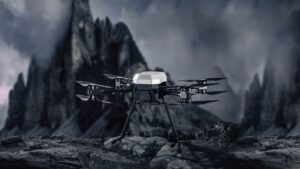

Designed for reliable operation in challenging environments, the MX860 includes multi-directional waterproof protection, ensuring stable performance in adverse weather conditions and protecting critical components from external debris.
Under normal operating conditions with a 5 kg payload, the MX860 achieves up to 40 minutes of flight time. Its versatility makes it suitable for a wide range of applications, positioning the MX860 as a highly adaptable and efficient aerial platform.
Benefits and Features
1. Small yet Powerful

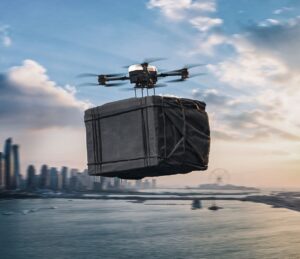

Compact design to minimize the size while the maximum payload could reach up to 9 kg.
2. Convenient Design
Easy to disassemble, fold, and carry, Transportation is no longer a hassle.
3. Lightweight Design
Extrusion forming of the integrated body with high-strength aviation
aluminum for higher strength and lighter weight.
4. Long Flight Time
Up to 40mins under normal conditions(5kg payload)
5. Efficiency King
Professionally customized propulsion system.Abundant power redundancy, higher safety factor.

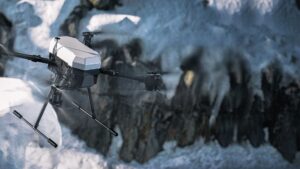

6. Multi-Directional Waterproof Protection
1mm objects are no longer a threat to the motor.Free flight in almost all weather.
Technical specifications
| Model | MX860 |
| Wheelbase | 860mm |
| Weight of Drone(With Battery) | 9.96kg |
| Weight of Battery | 5.2kg(Two Ares 6S 30Ah batteries or ARES 6S 36Ah batteries) |
| Max Take-off Weight | 19.96kg |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | 20m/s |
| GPS Hover Accuracy | Vertical:+0.2m;Horizontal:+0.1m (without RTK) |
| Hover Time | 3kg≥49mins; 5kg≥40mins; 9kg≥24mins |
| Protection | IP52 |
| Maximum Tolerable Wind Speed | 14m/s |
| Working Temperature | -15℃~50℃ |
| Propulsion System | T-MOTOR |
| Dimensions Folded | 433*413.5*250mm(With Landing Gear,Without Props) |
| Packing Size | 520*515*385mm |
| Shipping Weight | 8.5kg(With Packaging) |
