NOKTA
Product descripton: NOKTA by IXIAN
The UAV “NOKTA” is a dual-configuration unmanned aerial system designed for operation in electronic warfare environments. It features robust communication links, a guidance module, and mission flexibility across fixed-wing and quadcopter platforms. The system is optimized for intelligence gathering, target identification, and precision engagement under conditions of active signal interference.
Key operational characteristics include extended range capability, modular payload integration, and stable video transmission via multi-channel anti-interference communication. The platform supports both analog visual systems and optional infrared payloads depending on mission requirements.
Primary mission roles:
- Intelligence and reconnaissance
- Target detection and tracking
- Operation in electronic warfare (EW) environments
- Targeted engagement support
Technical specifications

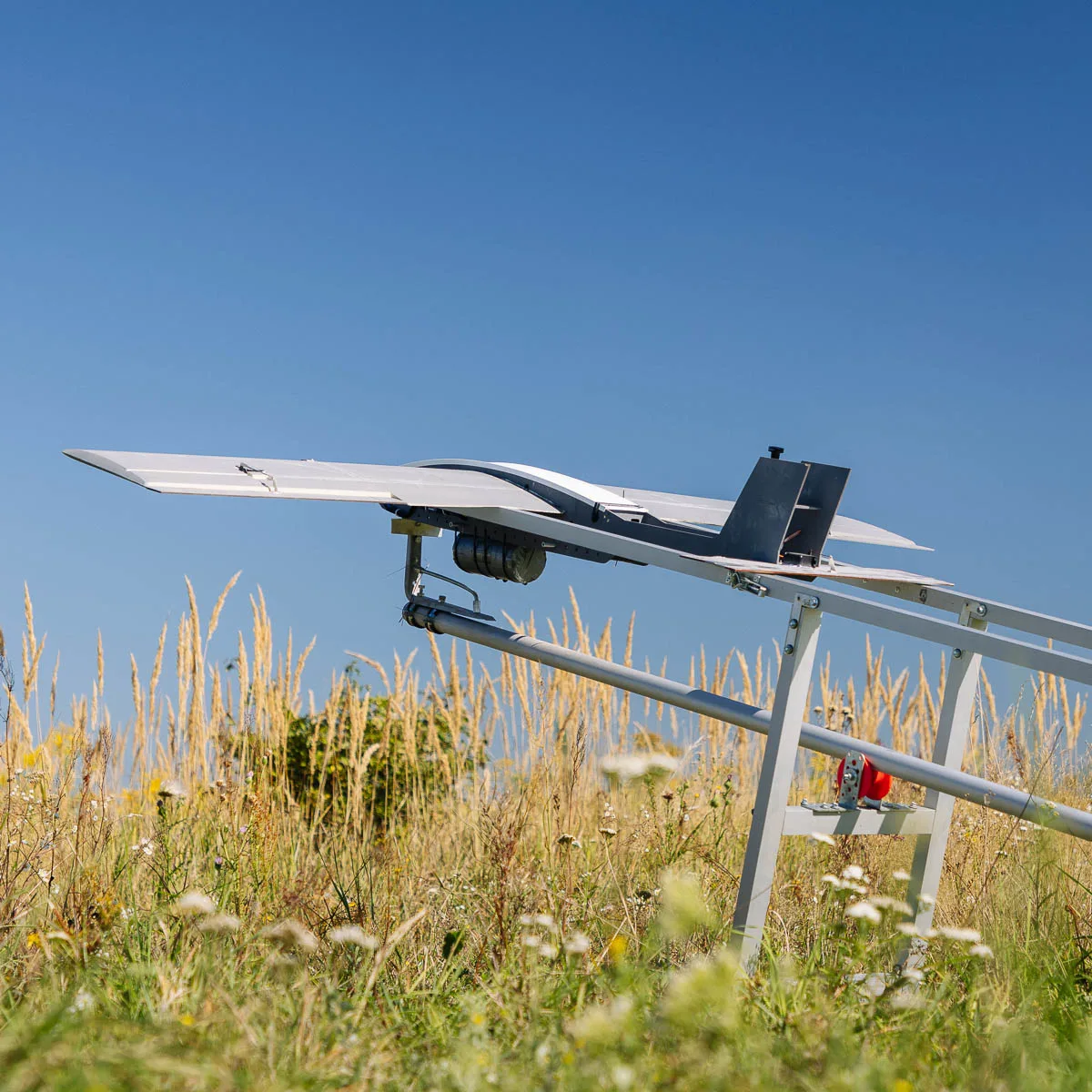

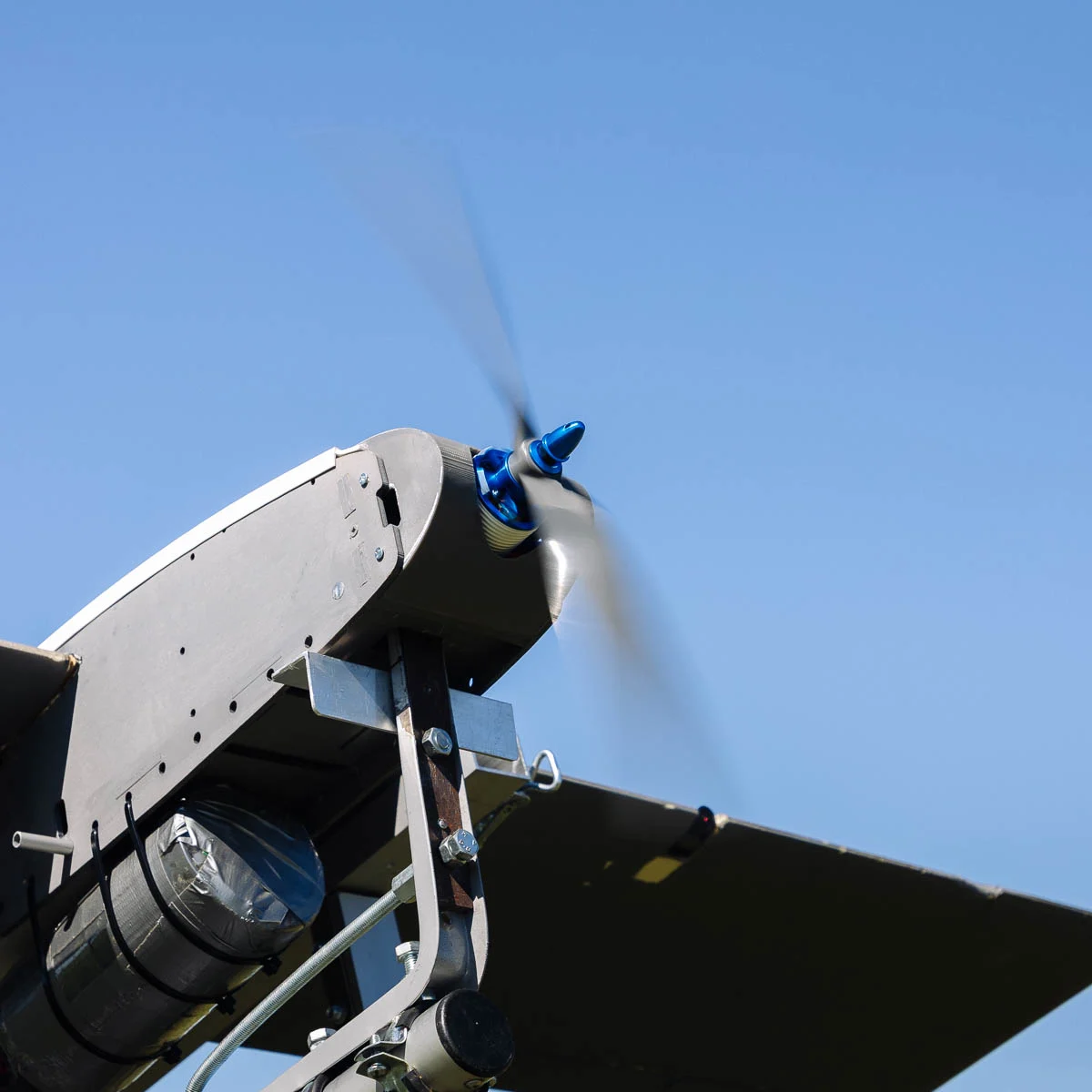

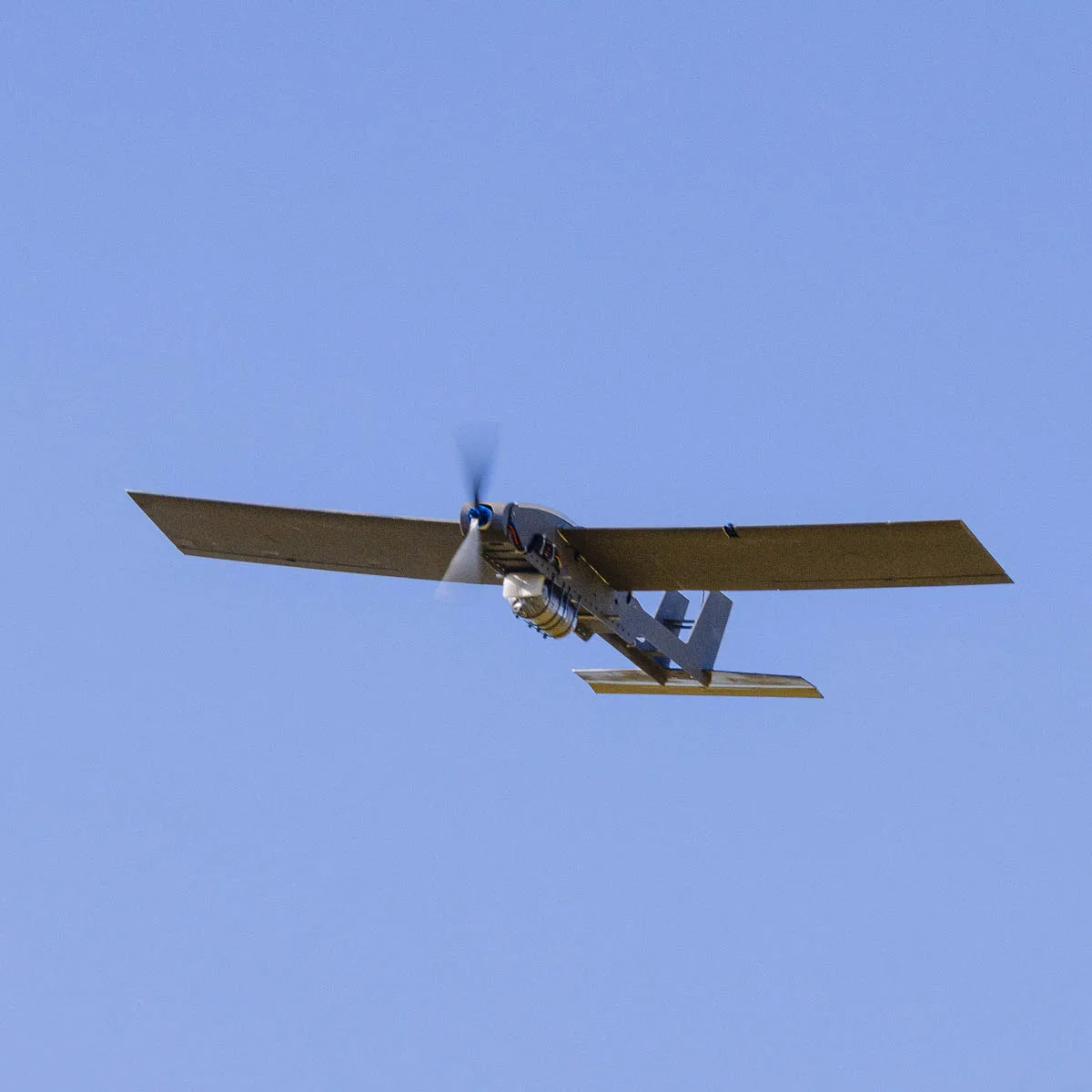

Fixed-Wing UAV
| Parameter | Value |
|---|---|
| Flight range | 50+ km |
| Flight duration | 40–50 min |
| Flight ceiling | 2000 m |
| Working altitude | 500–1000 m |
| Minimum speed | 50 km/h |
| Cruising speed | 60–70 km/h |
| Maximum speed | 160 km/h |
| Video camera | Analog |
| Infrared camera | As needed |
| Detection range | 600–1000 m |
| Payload weight | 3 kg |
| Wingspan | 1.788 m |
| Flight system | INAV |
| Control system | 3-channel control |
| Video link | 48 channels, anti-curtain |
| Deployment time | up to 20 min |
| Weight | 8.5 kg |
Quadcopter
| Parameter | Value |
|---|---|
| Flight range | 30 km |
| Flight duration | 20 min |
| Flight ceiling | 3000 m |
| Working altitude | 100–300 m |
| Cruising speed | 50–80 km/h |
| Maximum speed | 120 km/h |
| Video camera | Analog |
| Infrared camera | As needed |
| Detection range | 600–1000 m |
| Payload weight | 2 kg |
| Dimensions (L/H) | 450 / 250 mm |
| Flight system | Betafly |
| Control system | 3-channel control |
| Video link | 48 channels, anti-curtain |
| Deployment time | up to 20 min |
| Weight | 5 kg |
