Nurse TB
Product descripton: Nurse TB by Ratel Robotics

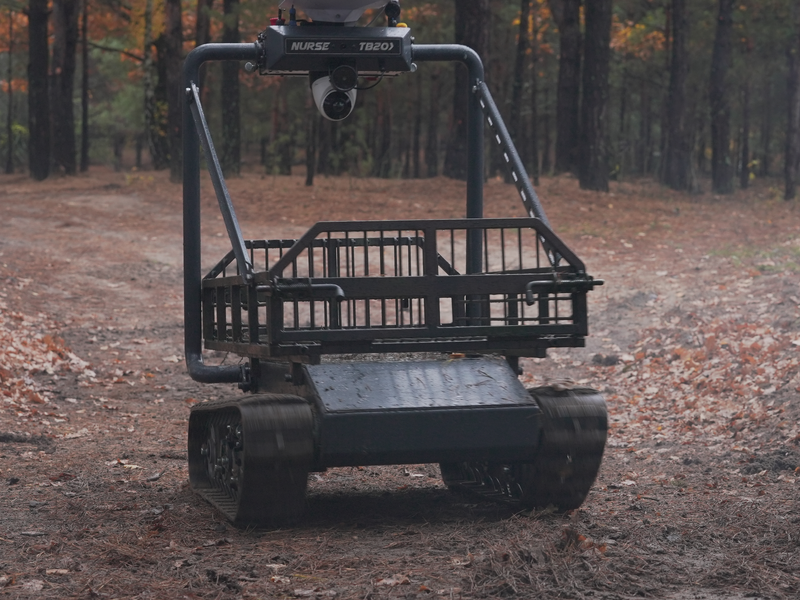

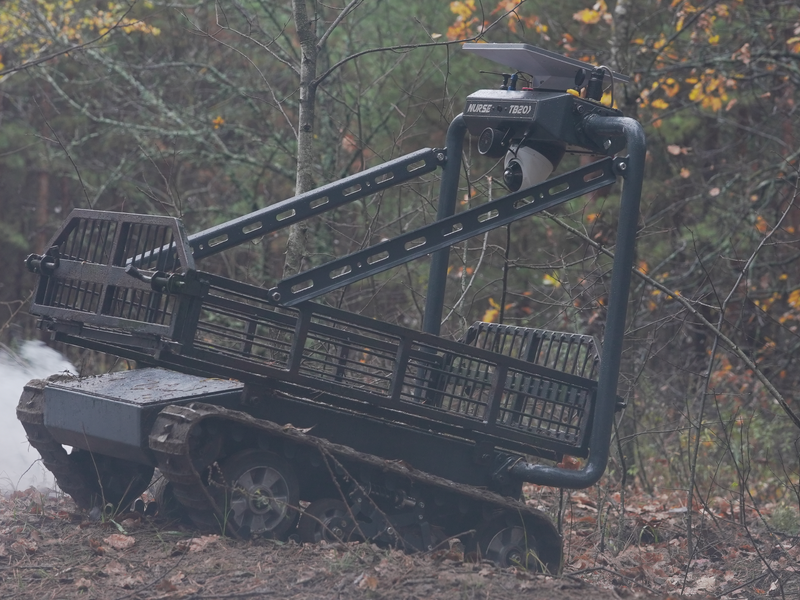

The Nurse TB is a ground robotic logistics complex designed to perform transport and supply missions with a payload capacity of up to 150 kg. It is a multifunctional robotic platform intended for use across various operational domains, including military logistics and specialized field tasks.
The system is designed to deliver cargo, substances, and ammunition to designated locations, improving operational efficiency and reducing risk to personnel.
Operational Purpose
The platform functions as a robotic logistician, supporting:
- Cargo delivery
- Ammunition transport
- Field supply operations
- Special mission logistics
It is designed for use in both structured and off-road environments.
System Characteristics
The Nurse TB is built for reliable field operation with extended control and communication range options, including radio and fiber-optic control. It is supported by a modular system with replaceable batteries and auxiliary components such as a repeater and ground control station.
Technical specifications
| Category | Specification |
|---|---|
| Platform Type | Ground robotic logistics complex (UGV) |
| Payload Capacity | ≥ 150 kg (up to 6 TM-62 units) |
| Total Weight | 120 kg |
| Weight with Payload | 270 kg |
| Speed | up to 10 km/h |
| Travel Range (loaded) | ≥ 8 km |
| Off-road Range (loaded) | ≥ 6 km |
| Control Range (radio, no repeater) | 7,000 m |
| Control Range (with repeater) | 10,000 m |
| Communication Range (radio) | ≥ 8,000 m |
| Communication Range (fiber optic) | ≥ 20,000 m |
| Batteries | 3 × replaceable batteries |
| Dimensions | 1000 × 600 × 1200 mm |
| System Type | Remotely controlled / semi-autonomous logistics platform |
Equipment Set
- Remotely controlled platform “Nurse TB”
- Ground control station
- Repeater for multicopter
- Charging station
- User manual and documentation
- Additional mission components
