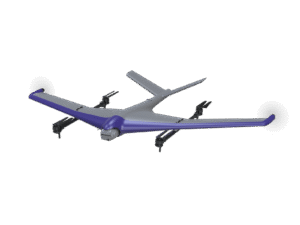

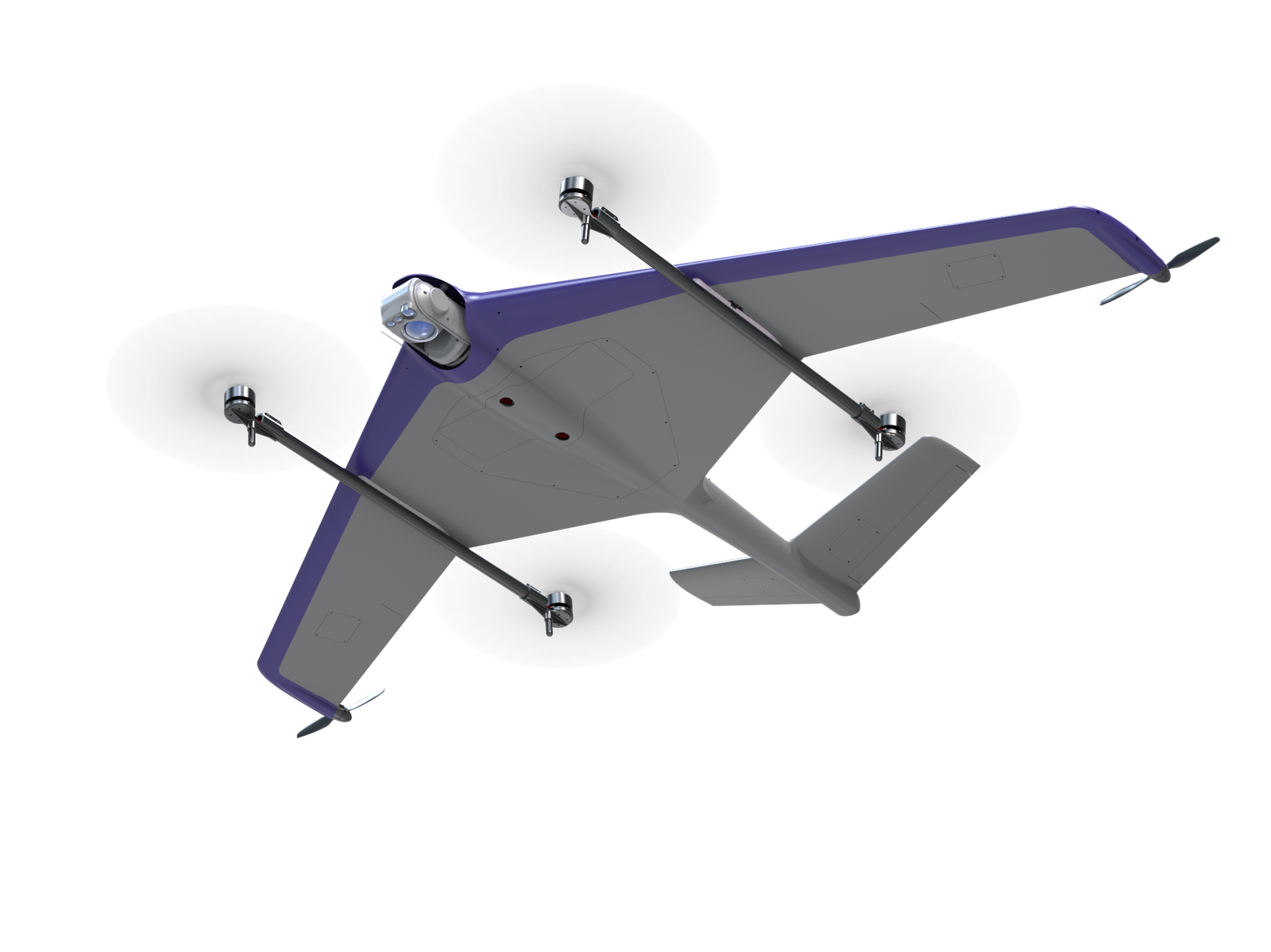

Pathfinder-X
Product descripton: Pathfinder-X by Starling Systems

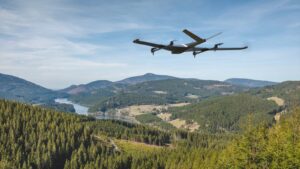

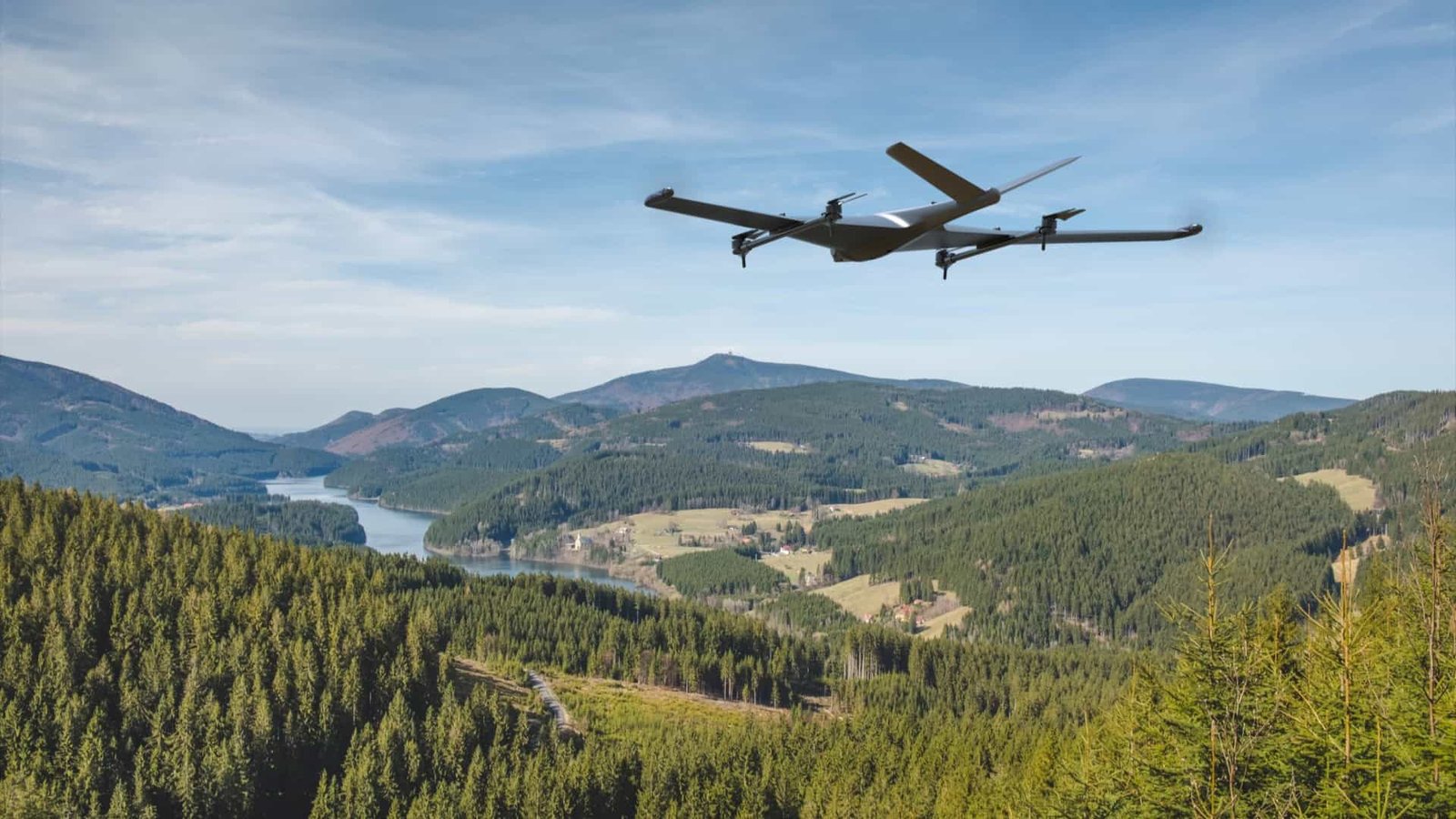

Pathfinder-X looks great at all heights
Meet Pathfinder-X, the drone that redefines the skies with its exceptional aerial capabilities and sleek design. Whether soaring at towering altitudes or maneuvering through intricate landscapes, Pathfinder-X delivers stunning performance and reliability. Engineered for versatility, it captures breathtaking views with precision and ease, making every flight an extraordinary adventure. Experience the thrill of flight like never before with Pathfinder-X, where excellence meets innovation in every ascent.
Overview
Best in class aerodynamic performance and stability.
Mission endurance over 3 hours with payload.

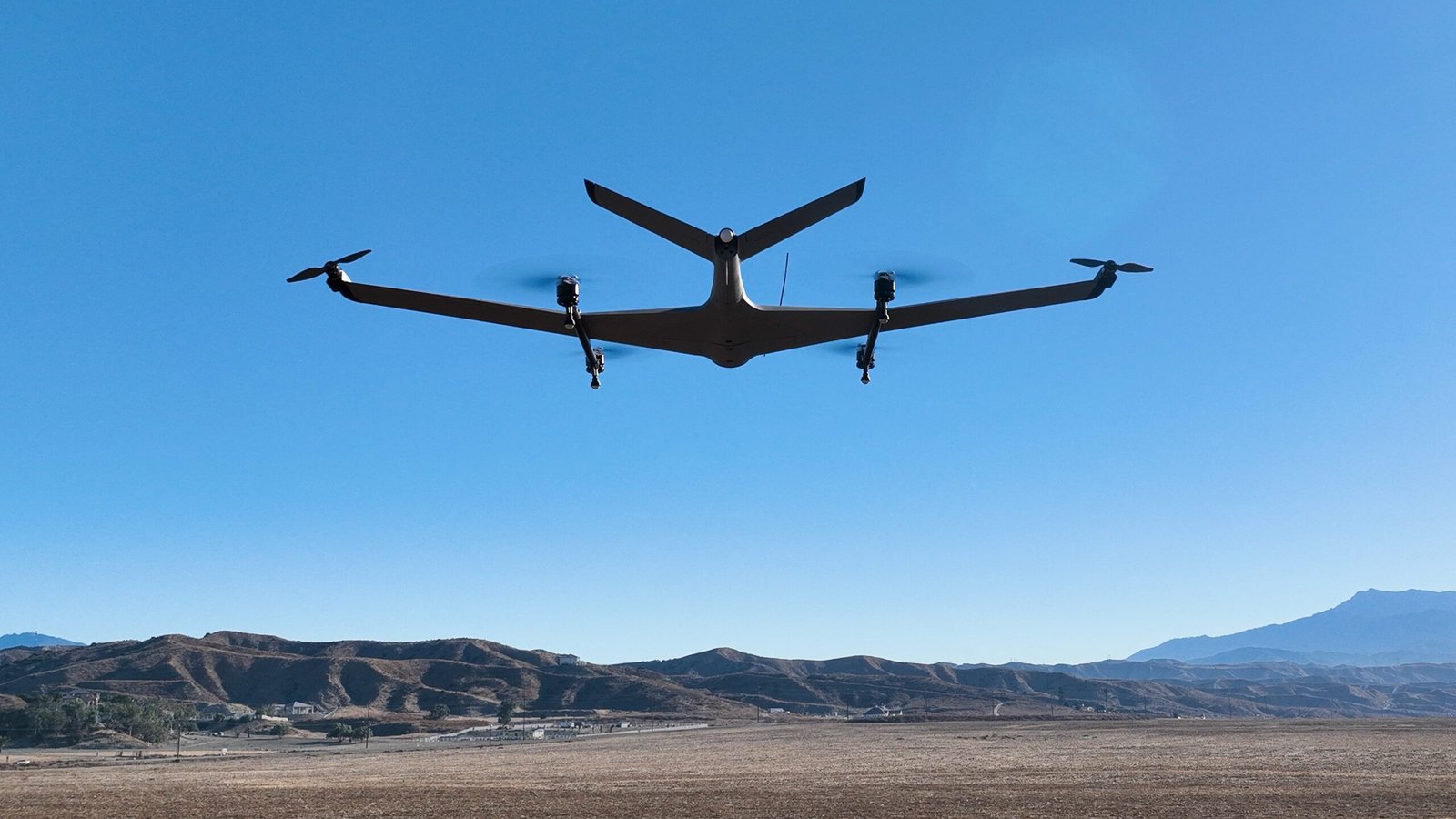

Simple transition between hover and forward flight.
Highest standards in materials and fabrication.
Designed and built in California.
Key Features / Abilities
-

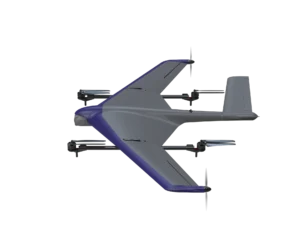

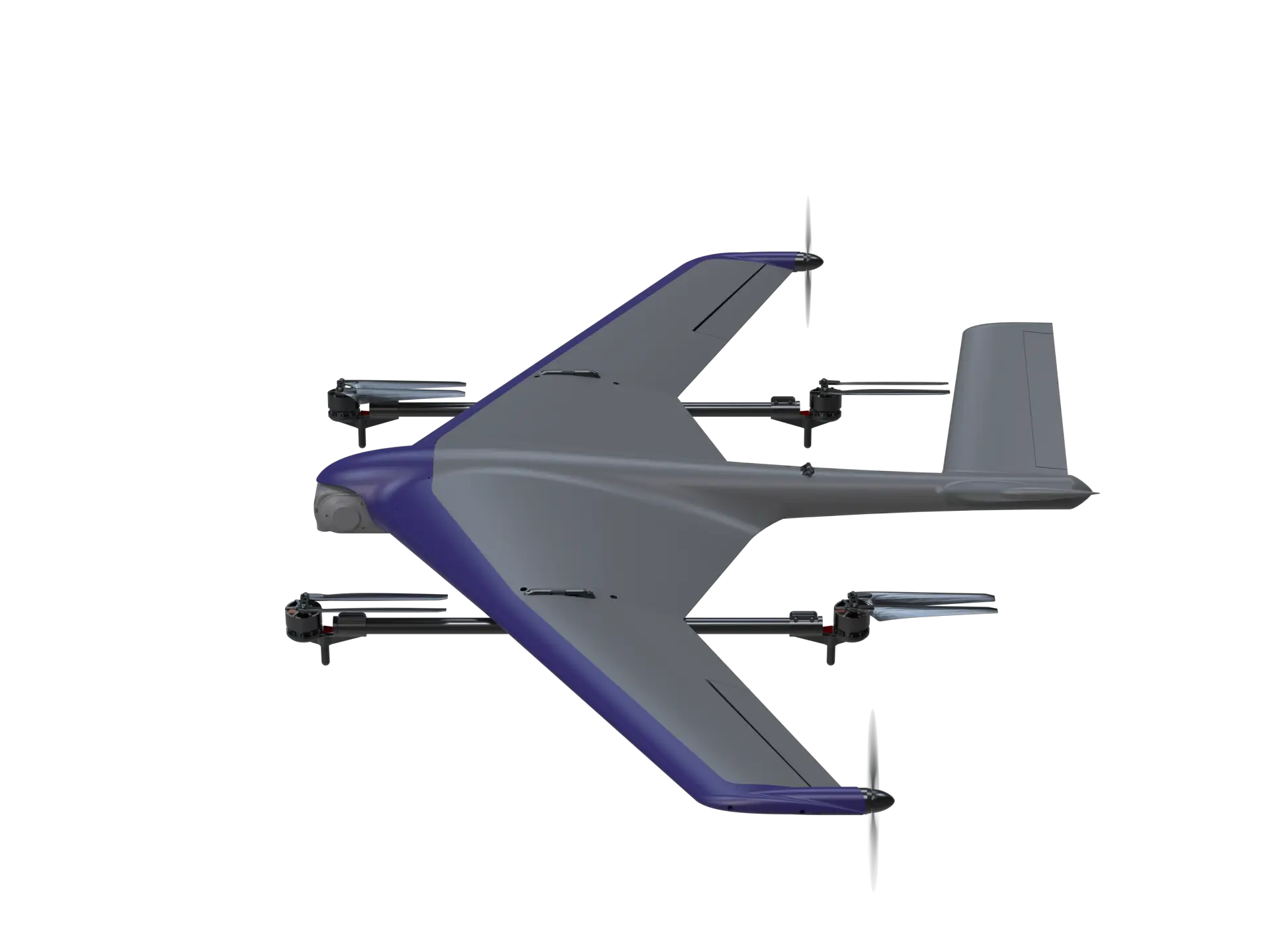

Folding wings
-
Foldable wing and tail enables operational flexibility and easy storage
-
Versatile speed range: 0 (hovering) to 160 km/hr
-
Smart aircraft with Nvidia Orin NX for advanced operations and video analytics
-
Advanced EO/IR camera with onboard AI including day/night identification and tracking
-
Extensive communication suite including 4G, 5G, RF and Satcom
-
Redundant communication suite including LTE/5G/RF and Iridium Satcom
Technical specifications
| Parameter | Specification |
|---|---|
| UAV Type | Group one VTOL fixed-wing |
| Endurance (Forward Flight) | 3+ hours |
| Endurance (Hover Flight) | 35 minutes |
| One-Way Flight Range | 155–160 km (96.3–99.4 miles) |
| Speed Range | 0 to 160 km/hr |
| Weight (with camera) | 6.0 kg |
| Size (Folded) | 705 × 705 × 500 mm |
| Size (Unfolded) | 1100 × 1650 × 220 mm |
| Wings | Foldable wing and tail |
| Processor | Nvidia Orin NX |
| Payload | Advanced EO/IR camera with onboard AI |
| Communications | LTE / 5G / RF / Iridium Satcom |
| Manufacturing | Designed and built in California |
Performance Data Sheet
-
Endurance forward flight: 3+ hours
-
Endurance hover flight: 35 minutes
-
One way flight range: 155 km (96.3 miles) / 160 km (99.4 miles)
Dimensions and Weight
-
Weight with camera: 6.0 kg
-

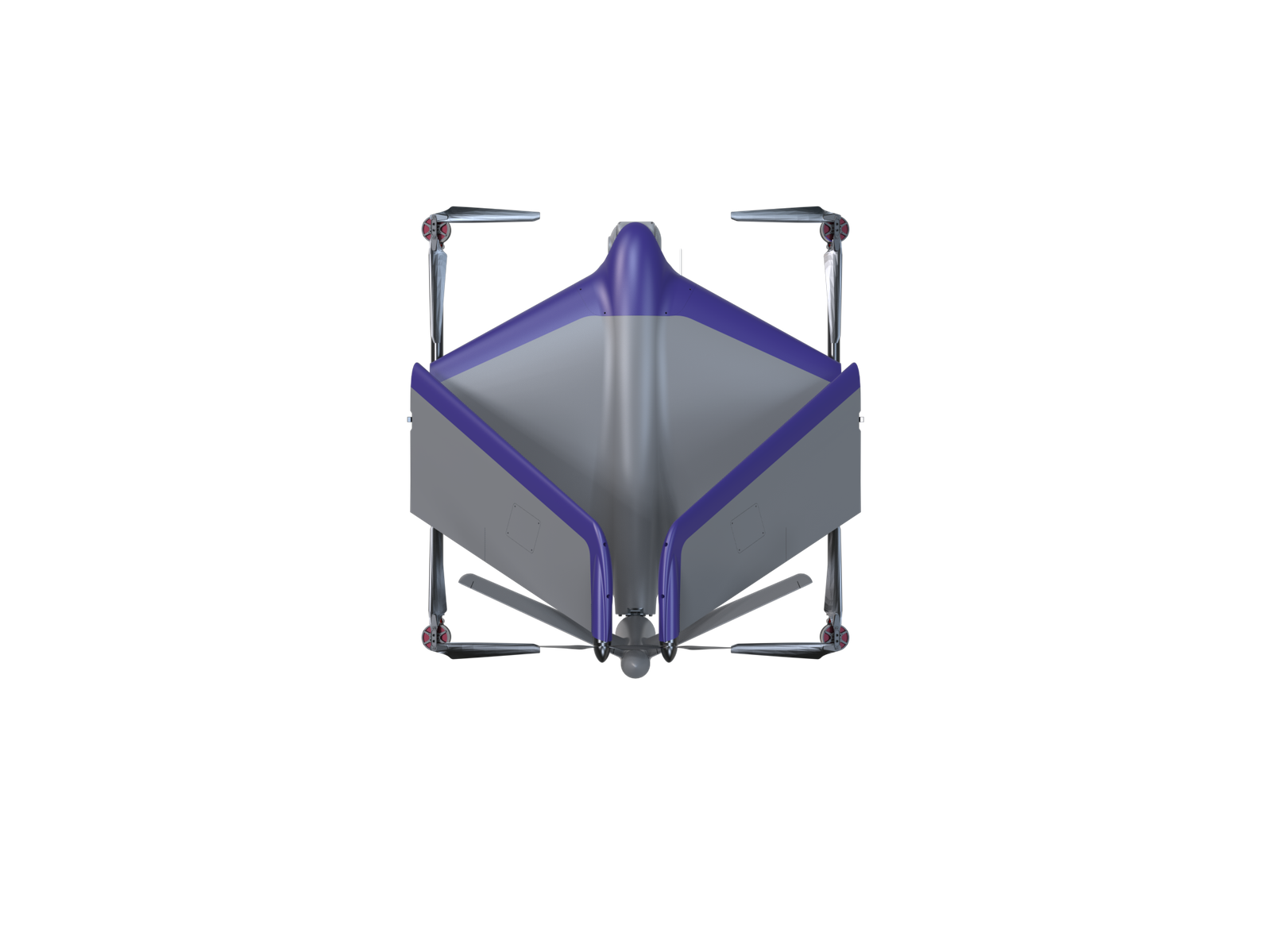

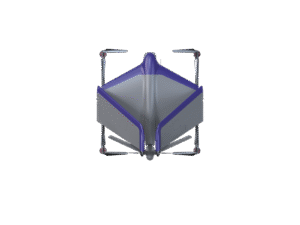

Size folded: 705 × 705 × 500 mm
-
Size unfolded: 1100 × 1650 × 220 mm

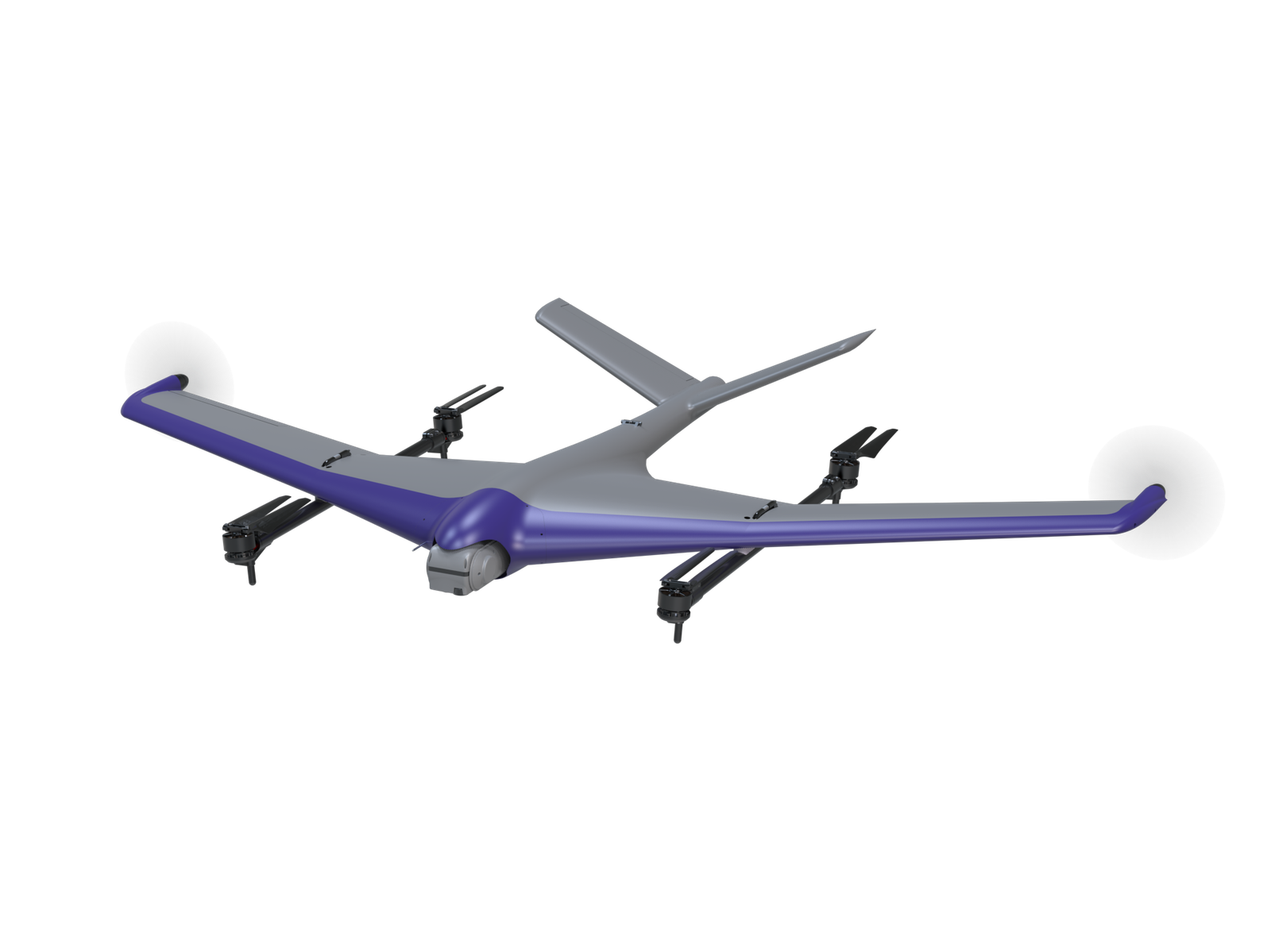

Flexibility
Foldable wing and foldable tail enables operational flexibility and easy storage.
Processor
Smart aircraft with Nvidia Orin NX for advanced operations and video analytics.
EO/IR Camera
Advanced EO/IR camera with onboard AI including day/night identification and tracking.
Communication
Extensive communication suite including 4G, 5G, RF and Satcom
Redundant communication suite including LTE/5G/RF and Iridium Satcom
