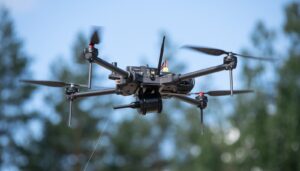

Patria ONE
Tactical Unmanned Aerial System
Product descripton: Patria ONE by Patria Group
Patria ONE is a versatile, Finnish-designed UAV with modular components, high safety standards, and the capability to be mass-produced cost-effectively, making it ideal for various tactical applications.
New tactical multipurpose UAV
- Designed, tested and manufactured in Finland
- Modular; swapable radio, fiber optic control, swapable payloads (including explosives),
swapable motor arms, tether ready. - Operator safety for explosive payloads (3 step safety system)
- Easy transport, can be fitted in tactical backpack
- Manufacturing capability 1000 – 20 000 units per year, inexpensive when produced
in large quantities (ISO 9001)
Technical specifications
| Parameter | Specification |
|---|---|
| Empty weight | 2.0 kg (without payload and battery) |
| Battery weight | 0.8 kg |
| MTOW | 7 kg |
| Max payload weight | 4 kg |
| Dimensions (L × W × H) | 62 × 62 × 31 cm (without propellers) |
| Diameter with propellers | 124.5 cm |
| Operating temperature | −30°C to +40°C |
| Assembly time | 2 min |
| Flight time (MTOW) | Max 14 min |
| Range (MTOW) | Max 7.5 km |
| Range (1.5 kg payload) | 10 km |
| Max wind conditions | 15 m/s |
| Max speed | 24 m/s |
| Radio controller | Patria Drones SkyControl |
| Reusability | Can be reused and bound with multiple OW-systems |
| Radio specifications | Encryption: AES 128/256-bitTransmission power: up to 2000 mWFrequency: multiple optionsMesh option |
| IMU | Redundant |
| GNSS | GPS + GLONASS + GALILEO + BEIDOU |
| Flight modes | Atti, GPS, Mission |
| Propellers | 18” carbon fiber propellers with quick mounts |
| Flight camera | Tilt: yes |
| Flight case / Power pack | External dimensions: 520 × 350 × 210 mmIP65 |
| Explosive payloads | Can be integrated |
| Explosion safety | 3-step safety mechanism |
