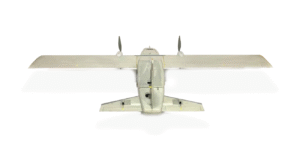

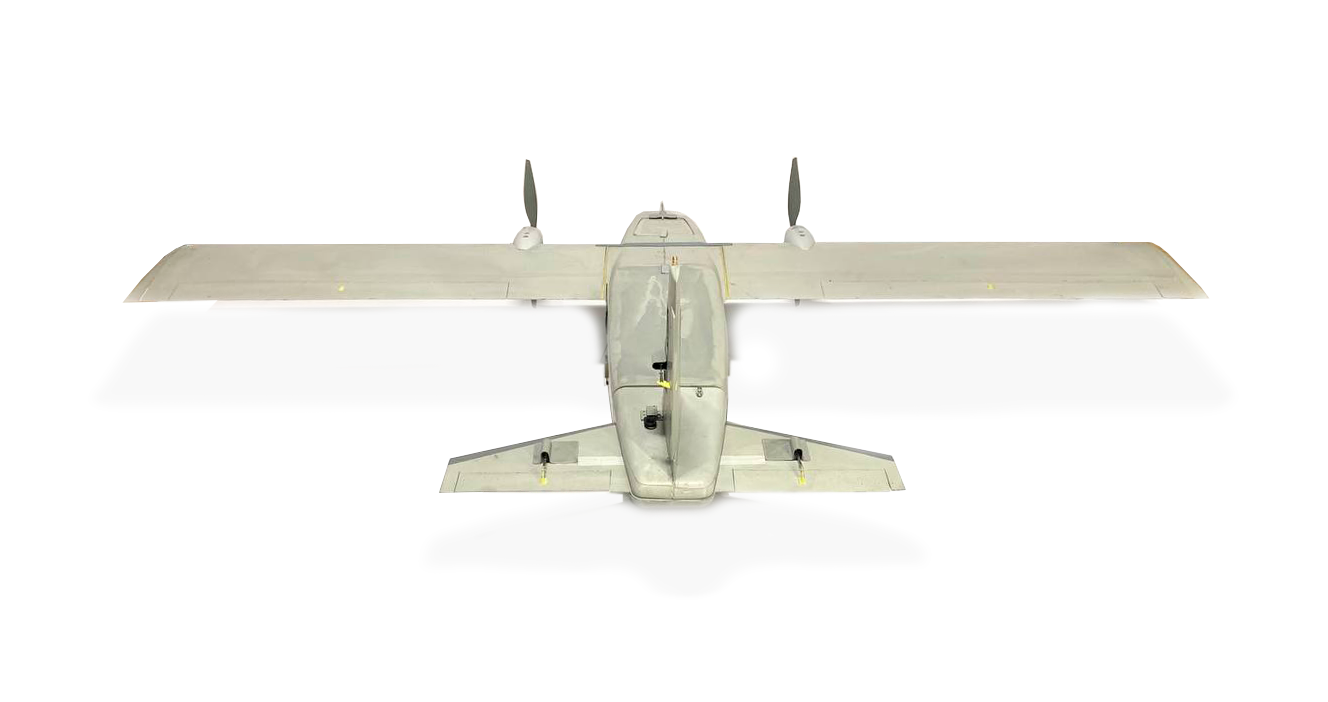

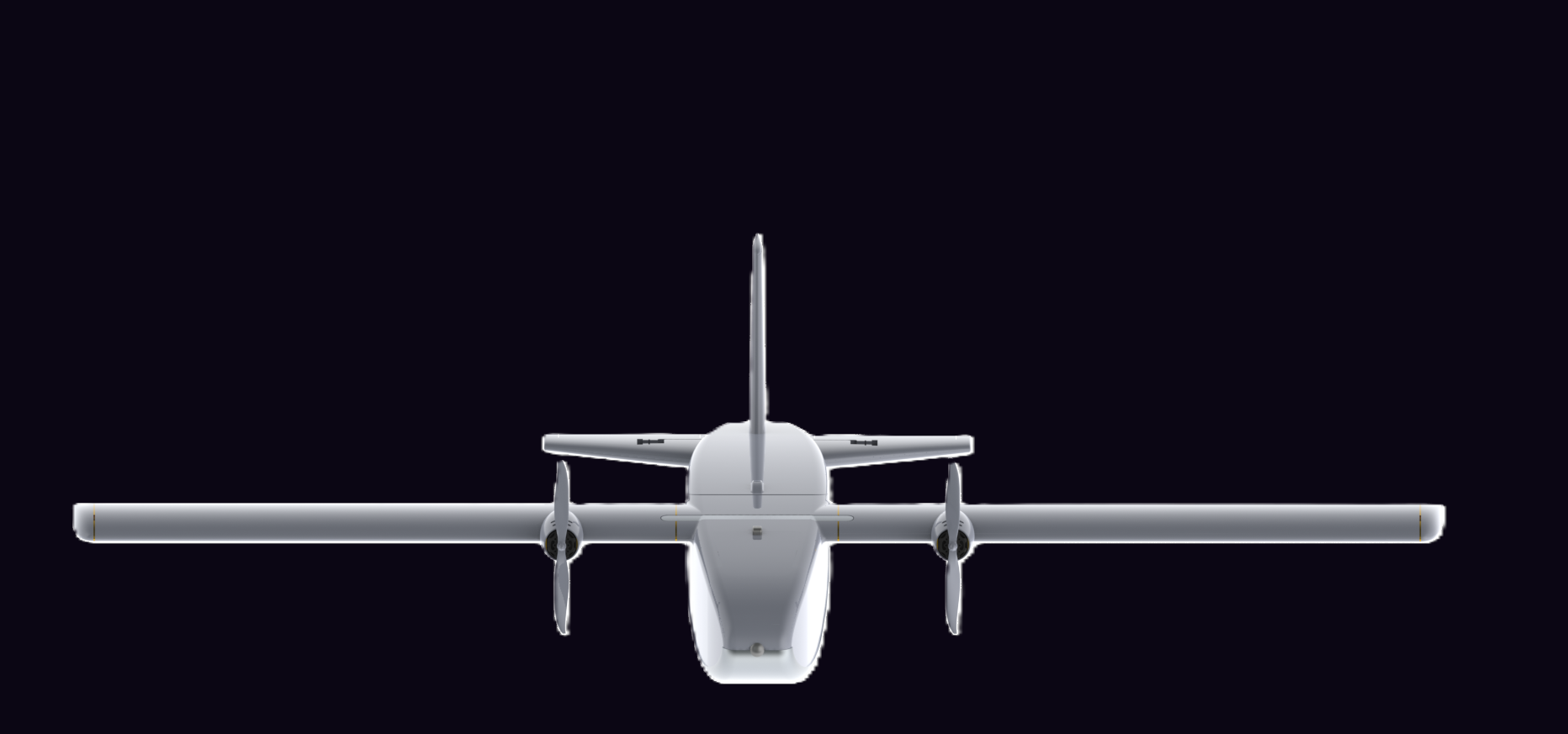

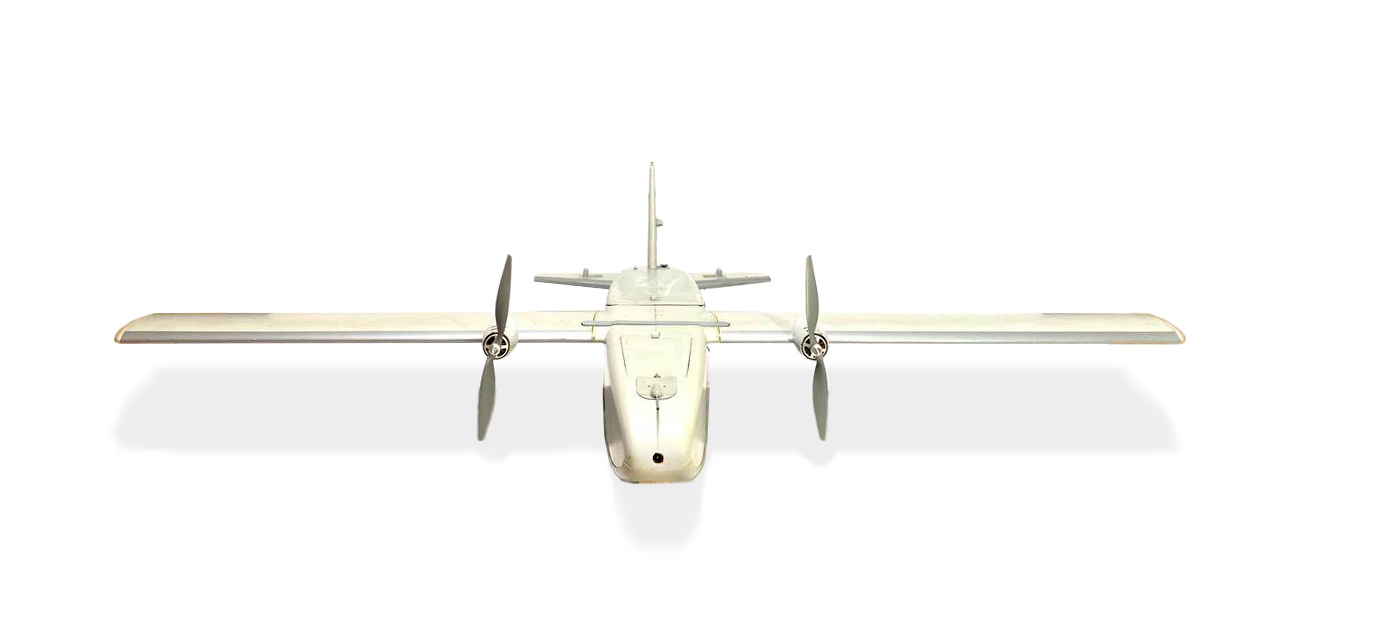

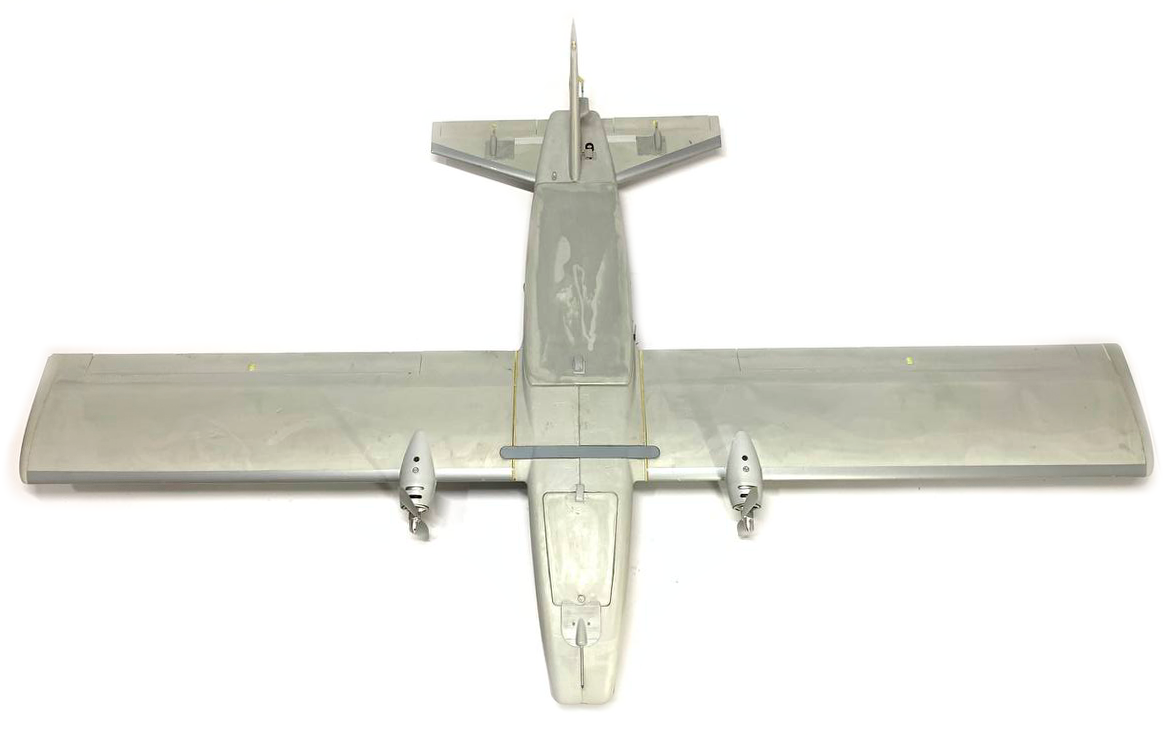

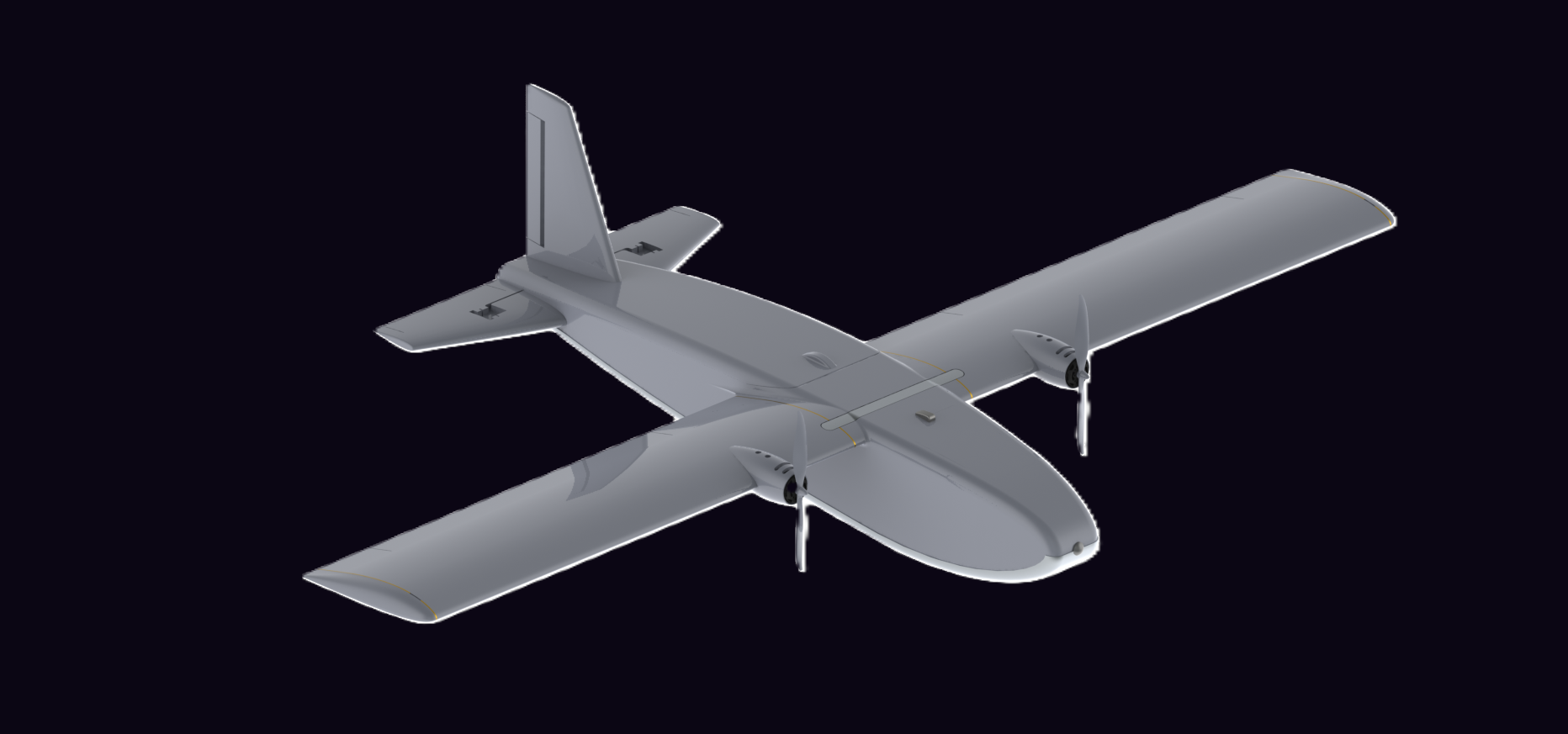

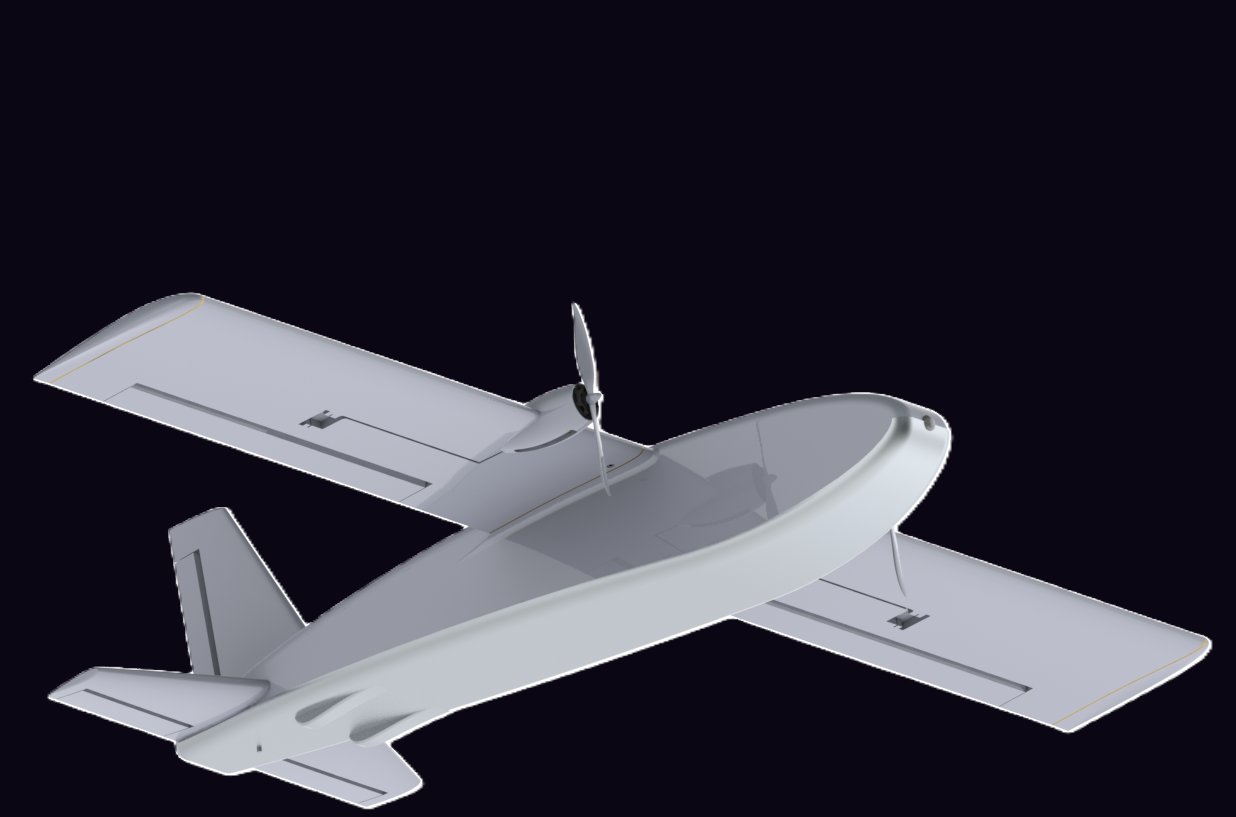

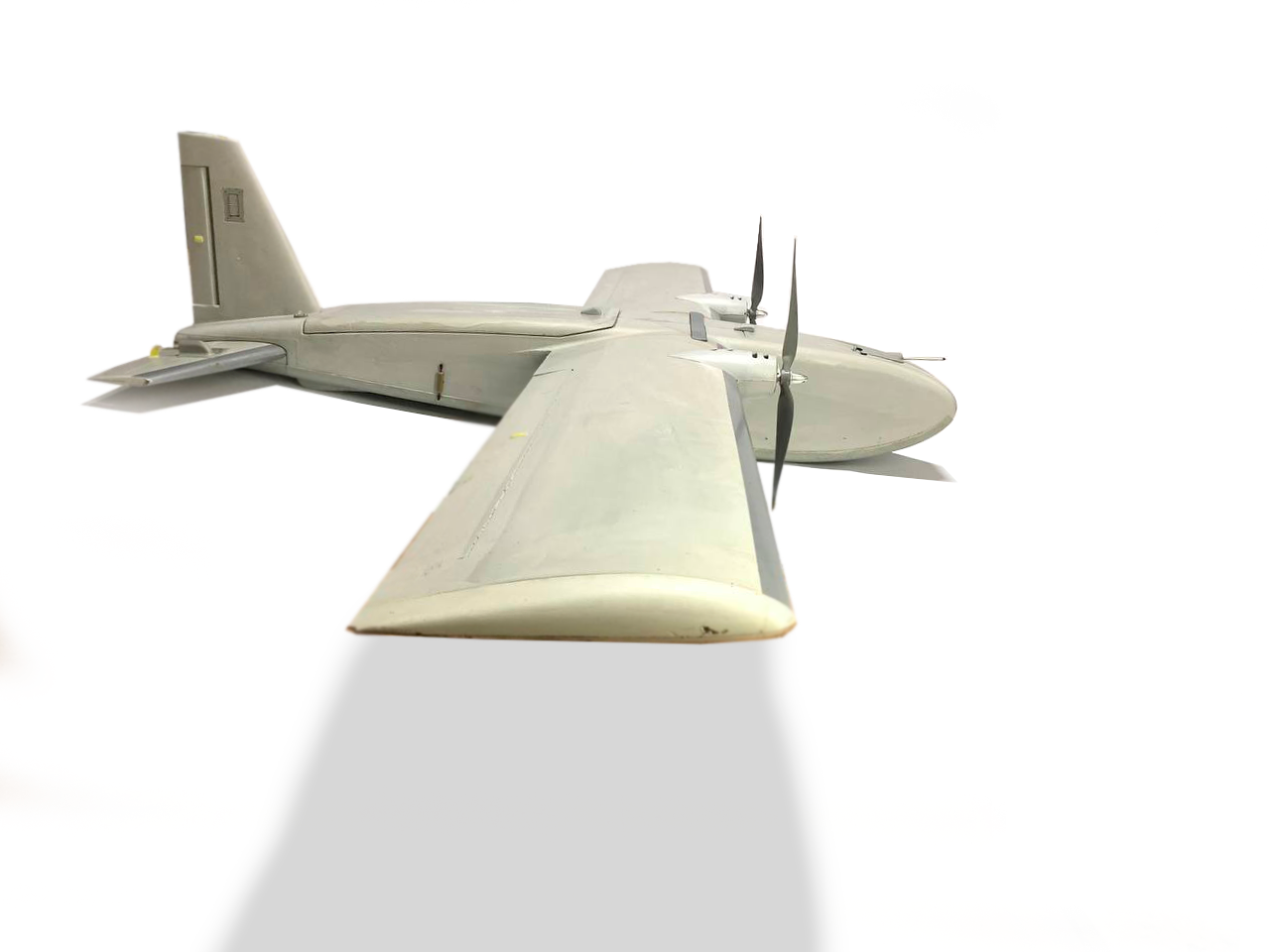

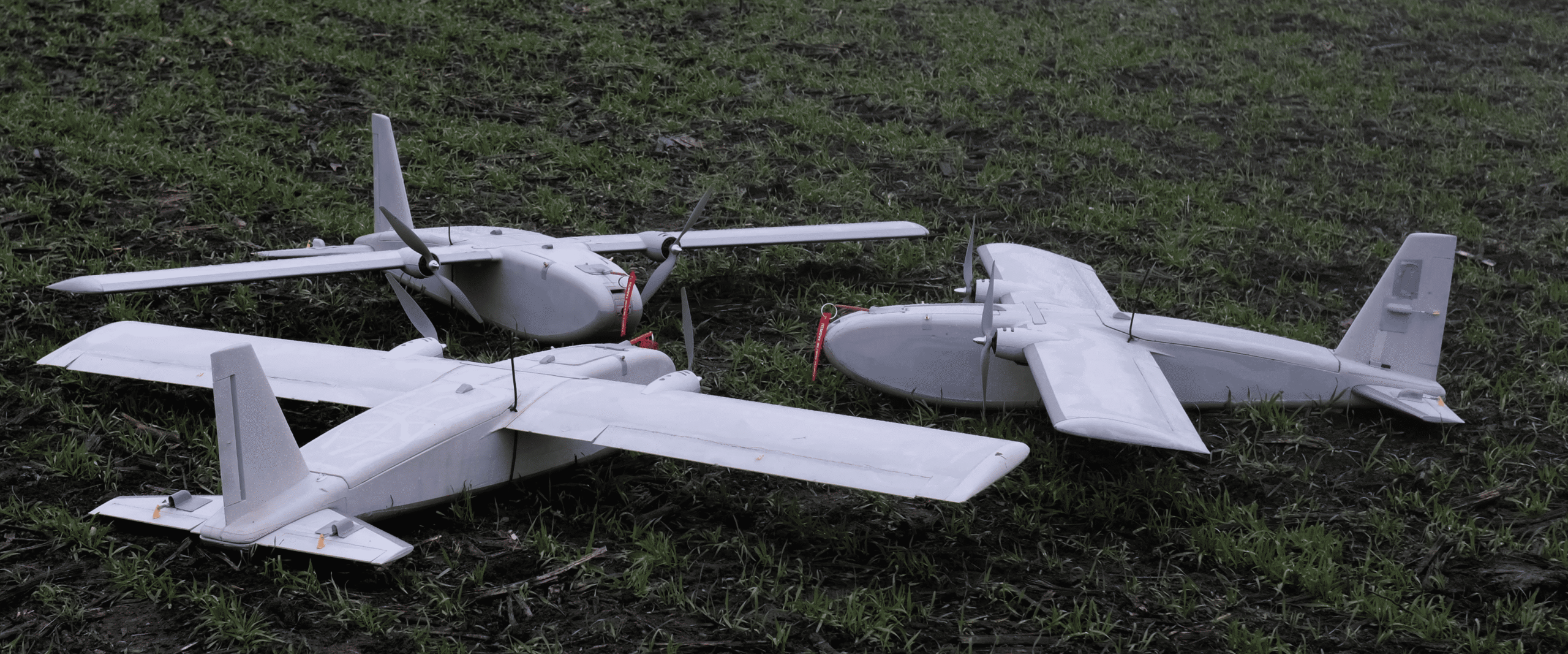

Pazur Strike UAV
Product descripton: Pazur Strike UAV by Pazur
The Pazur Strike unmanned aerial system is designed to carry out combat missions targeting enemy personnel, vehicles, and military equipment behind enemy lines in both simple and challenging weather conditions.
Advantages over other UAVs:
-
High payload capacity: 5 kg
-
Capability for UAV return and safe discharge if the mission cannot be completed
-
6S4P 23000 mAh battery provides 60 minutes of flight time
-
Flight range with 5 kg payload exceeds 80 km
-
Radio control range exceeds 40 km
-
Frequency hopping spread spectrum (FHSS) implemented in radio equipment
-
Automatic remote takeoff from the catapult in TAKEOFF mode without requiring HOME point or GPS
-
Takeoff does not require facing strictly against the wind (up to 10 m/s), allowing launches from sheltered positions, fields, hangars, etc.
-
Automatic landing mode without additional equipment or waiting for GPS signal
-
Twin-motor design improves maneuverability in rolls, pitches, and dives
Technical specifications
| Specification | Details |
|---|---|
| Payload Weight | 5000 g |
| Maximum Speed | 150 km/h |
| Flight Altitude | Up to 1500 m |
| Launch Method | Pneumatic catapult |
| Engine Type | Two pusher electric motors |
| Tactical Range | 40 km |
| Flight Duration | 60 minutes |
| Operating Flight Altitude | 300 m – 1500 m |
| Cruise Speed | 85 km/h |
| Video Channel | Analog (4900-5900 MHz, 1200-1300 MHz, 3300 MHz) |
| Control Frequencies | 300-500 MHz, 720-1020 MHz, 2400 MHz |
| Length | 1150 mm |
| Wingspan | 1960 mm |
| Height | 330 mm |
