Penguin C Mk2.5 VTOL UAS
Product descripton: Penguin C Mk2.5 VTOL UAS by Edge Autonomy
SERVING MULTI-MISSION NEEDS
With the ability to take off and land anywhere, our Penguin C VTOL can rapidly deploy to support critical missions, even when the environment is harsh or contested. Whether your operations include artillery fire control, search and rescue, or infrastructure assessments, the Penguin C VTOL serves as an agile platform for multi-mission needs.
ADVANTAGES & BENEFITS
Our systems are designed to be modular, and the Penguin C VTOL can be adapted to meet a variety of mission needs with a wide range of payload options. Out of the box, this platform can work with standard packages including our line of gimbal ISR solutions. Because our solutions are mission-driven, our engineers work closely with customers to customize and integrate components to meet each unique need.

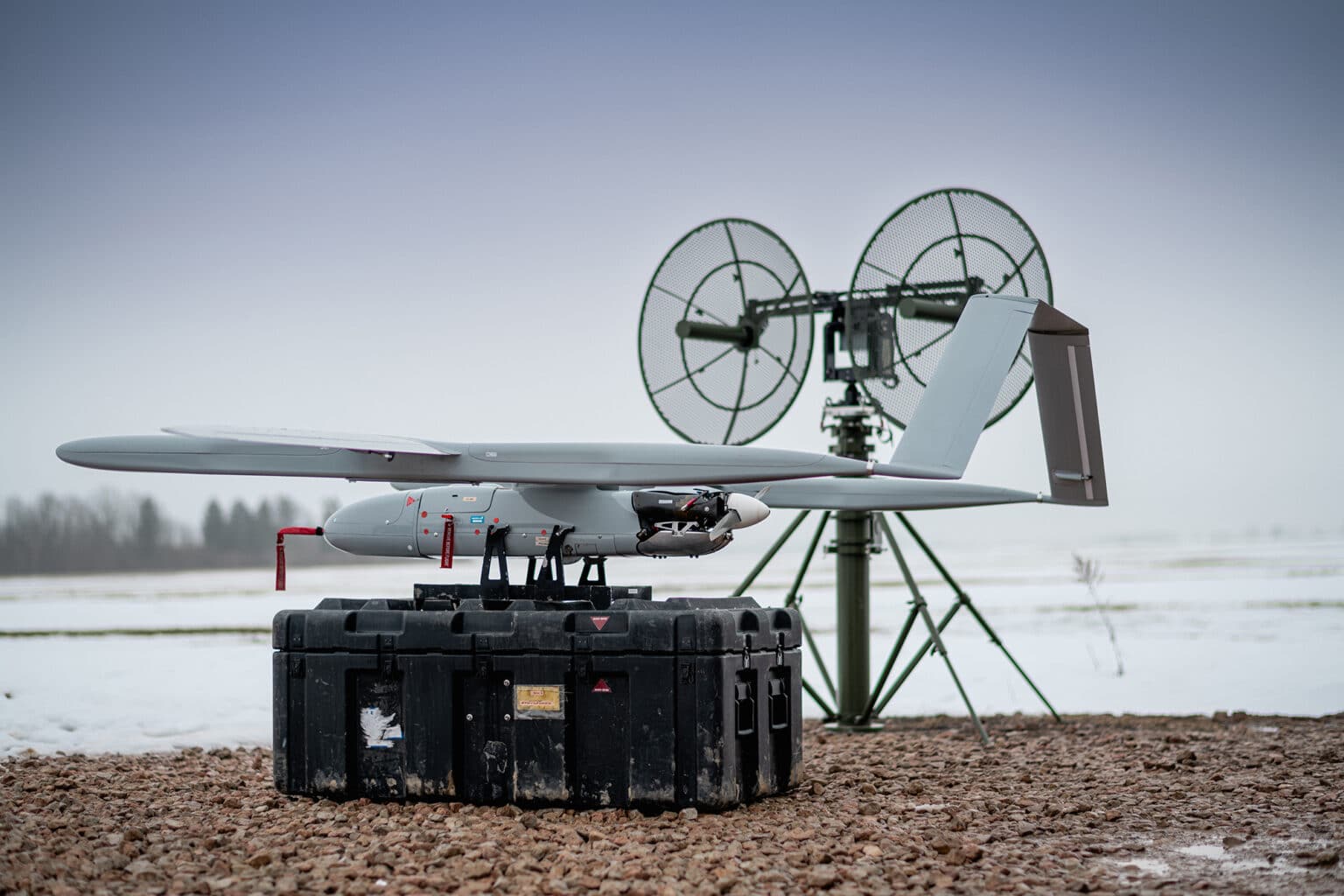

A crew of two can operate the Penguin C VTOL and all the necessary equipment, and the whole system can be packed in several ruggedized containers to be transported in a single minivan, pickup, or helicopter and assembled in under an hour.
When equipped with advanced EO/IR payloads, the Penguin C VTOL is well-equipped to perform observation, inspection, and surveillance tasks such as day and nighttime object tracking and small moving target indication.
Technical specifications
| Specification | Value |
|---|---|
| Wingspan | 4.12 m / 13.5 ft |
| Max Takeoff Weight* | 41 kg / 90 lb |
| Ceiling | 4000 m / 13,000 ft |
| Endurance* | 12+ hrs |
| Communications Range* | Up to 180 km / 112 mi |
| Cruise Speed | 30+ kts |
| Max Speed | 65+ kts |
| Comms Type | Silvus Dual S & C band standard |
| Flight Endurance | 12+ hours |
| Range | Up to 180 km |
| Takeoff/Landing | Fully automated VTOL |
| ITAR Status | Non-ITAR |
| Payload | Secondary payload bay, Field-swappable payload |
| Runway Requirement | Runway independent |
| Emergency System | Parachute system |
| Classification | Group 3 / NATO Class I |
| Video Stream | MISB compliant |
| Architecture | Modular open systems architecture platform |
| Communication Support | Voice and data relay for Silvus tactical radios |
