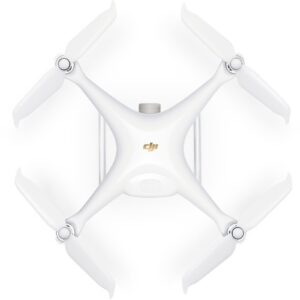

PHANTOM 4ADVANCED

VISIONARY INTELLIGENCE.

ELEVATED IMAGINATION.

Aircraft Weight (Battery & Propellers Included) – 1368 g Diagonal Size (Propellers Excluded) – 350 mm Max Ascent Speed – S-mode: 6 m/s P-mode:5 m/s Max Descent Speed – S-mode:4 m/s P-mode:3 m/s Max Speed – S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) Max Tilt Angle – S-mode:42° A-mode:35° P-mode:25° Max Angular Speed – S-mode: 250°/s A-mode: 150°/s Max Service Ceiling Above Sea Level – 19685 feet (6000 m) Max Wind Speed Resistance – 10 m/s Operating Temperature Range – 32° to 104°F (0° to 40°C) Satellite Positioning Systems – GPS/GLONASS Hover Accuracy Range – Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) Obstacle Sensory Range – 2 – 98 feet (0.7 – 30 m) FOV – Forward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) Measuring Frequency – Forward: 10 Hz Downward: 20 Hz Operating Environment – Surface with clear pattern and adequate lighting (lux>15) Remote Controller Operating Frequency – 2.400 – 2.483 GHz Max Transmission Distance – 2.400 – 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) Operating Temperature Range – 32° to 104°F (0° to 40°C) Battery – 6000 mAh LiPo 2S Transmitter Power (EIRP) – 2.400 – 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm MIC: 17 dBm Operating Current/Voltage – 1.2 A@7.4 V Video Output Port – GL300E: HDMI GL300C: USB Mobile Device Holder – GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300C: Tablets and smart phones
