Porter AUV
Product descripton: Porter AUV by Cellula Robotics
The Porter AUV is equipped with a spacious payload bay, designed to carry various cargo, including equipment for the installation and replenishment of remote subsea power stations. These subsea power stations allow in-field assets and resident vehicles to operate continuously without the need for refueling onshore or resurfacing, thereby enhancing operational uptime and reducing costs by minimizing dependence on resupply vessels.
Technical specifications
Key Features
Endurance & Range
With over 45 days of submerged endurance and a 5,000 km range, powered by a hydrogen fuel cell air-independent propulsion system, the Porter offers unparalleled mission duration and operational flexibility, enabling extended deployments and exploration of vast underwater areas.
Payload & Configuration
Porter’s modular payload bays, each with a 2,500-liter capacity, offer flexible configuration options for various missions. The adaptive mission planning interface enables real-time adjustments, while the retractable communications mast facilitates data transmission and control.
Logistics & Maneuverability

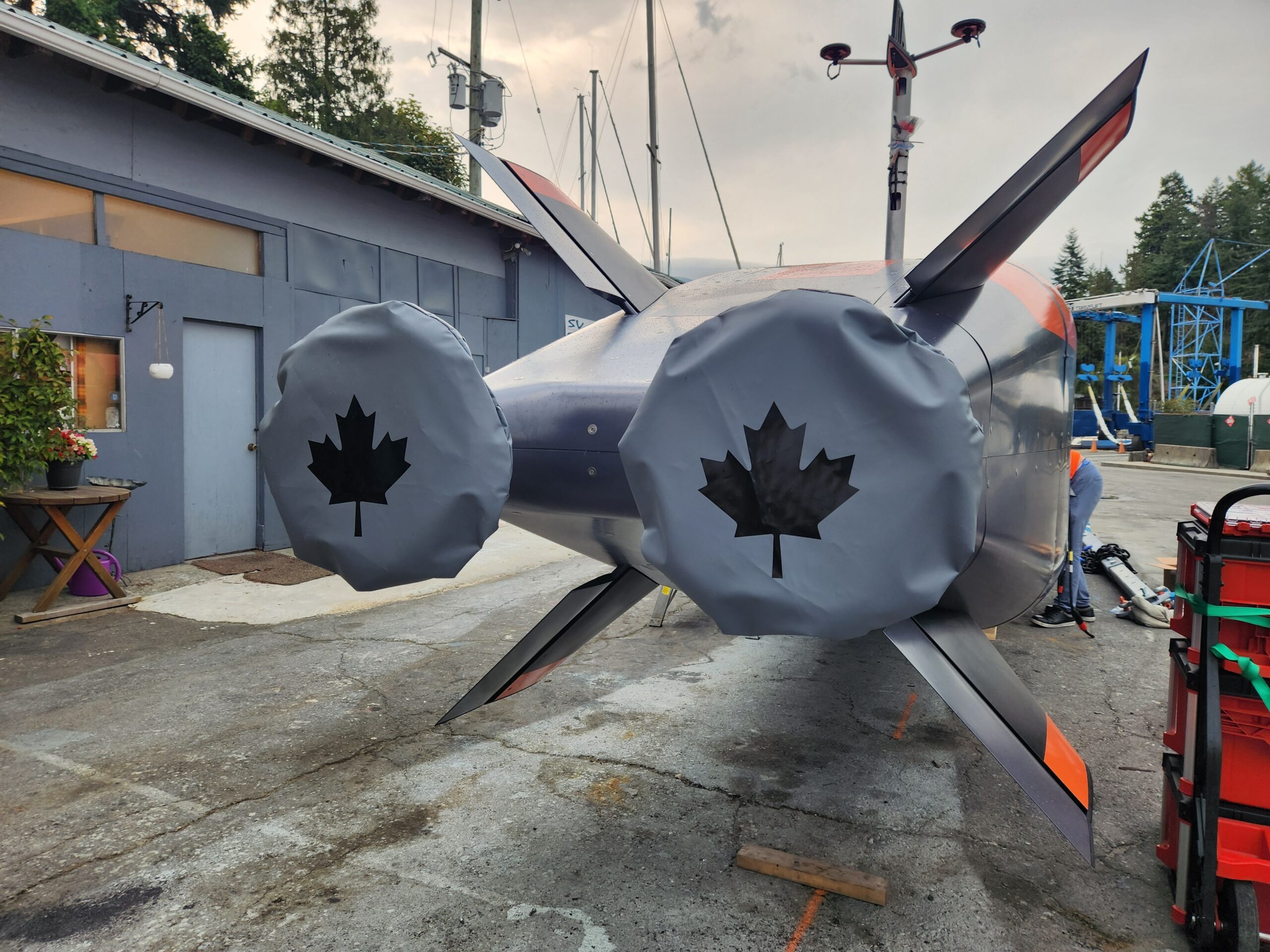

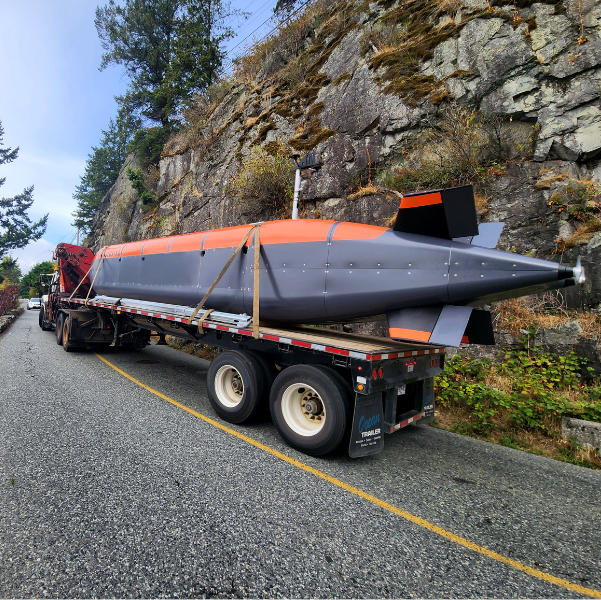

Porter’s design fits in a 40-ft ISO container for easy deployment. Covert launch capabilities from shore or ship enhance operational flexibility. Its 8-knot speed, redundant propellers, and hovering capabilities provide exceptional maneuverability and precise station-keeping.
Performance Highlights
- Capable of swimming from shore.
- Conducts up to 45 days of operations.
- Covers 5,000 line kilometers of survey during a single dive.
- Increases operational efficiency and reduces costs.
Payload Options
Porter has typical geophysical sensors and offers 5,000 liters of payload space. It also accommodates custom skids and deploys off-platform payloads, such as small AUVs, nodes, and an ROV.
Adaptive Autonomy
Porter operates autonomously for 45 days, reducing routine supervision. Using standard interfaces, Porter can be integrated with third-party autonomy packages for mission-specific tasks.
Applications
Long-Range Survey
A configurable survey suite, including SAS/SSS, SBP, magnetometer, and cameras, combined with a mission interface enables autonomous adaptations based on sensor edge processing.
Delivery & Recovery
With 5 cubic meters of dedicated payload space, seafloor surveys for deployment location validation, and hovering capabilities, the system offers flexibility and accuracy in underwater operations.
Integrity Inspection
Autonomous tracking with optical and magnetic sensors safeguards subsea telecommunication and power cables, adapting to environmental changes through onboard processing.
Energy Delivery
The system incorporates a high-capacity hydrogen fuel cell, providing greater than 1 MWh of energy. It enables autonomous docking and wireless power transfer to support subsea assets.
Technical Specifications
| Specification | Porter AUV – Battery | Porter AUV – Fuel Cell |
|---|---|---|
| Dimensions | Length: 11.7 m Width/Height: 1.66 m |
Length: 11.7 m Width/Height: 1.66 m |
| Weight | 7,500–9,000 kg | 8,000 kg |
| Depth Rating | 300 m / 1,000 m / 3,000 m | 300 m / 1,000 m / 3,000 m |
| Energy Source | Lithium-ion rechargeable batteries | Hydrogen fuel cell |
| Endurance | 480 hours (20 days) | 925 hours (38.5 days) |
| Maximum Range | 2,650 km | 5,000 km |
| Payload Bays | Two bays (1.2 × 1.2 × 1.7 m each) or one single bay | Two bays (1.2 × 1.2 × 1.7 m each) or one single bay |
| Persistence | Ability to station-keep or anchor to the seafloor for prolonged periods | Ability to station-keep or anchor to the seafloor for prolonged periods |
| Autonomy Options | Pipe/cable tracking, terrain/feature-based navigation, performance-based management | Pipe/cable tracking, terrain/feature-based navigation, performance-based management |
