R-18 UAV

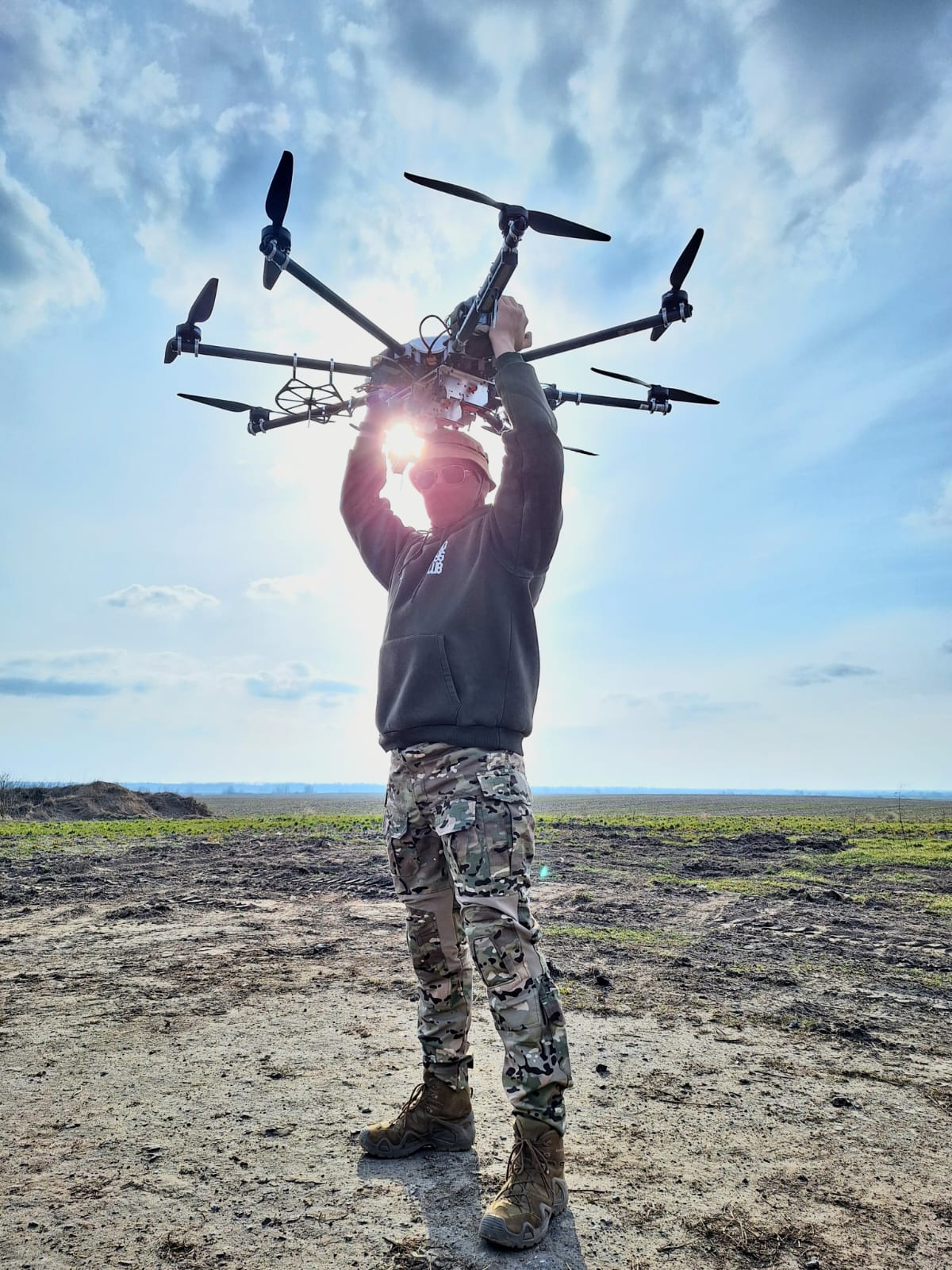

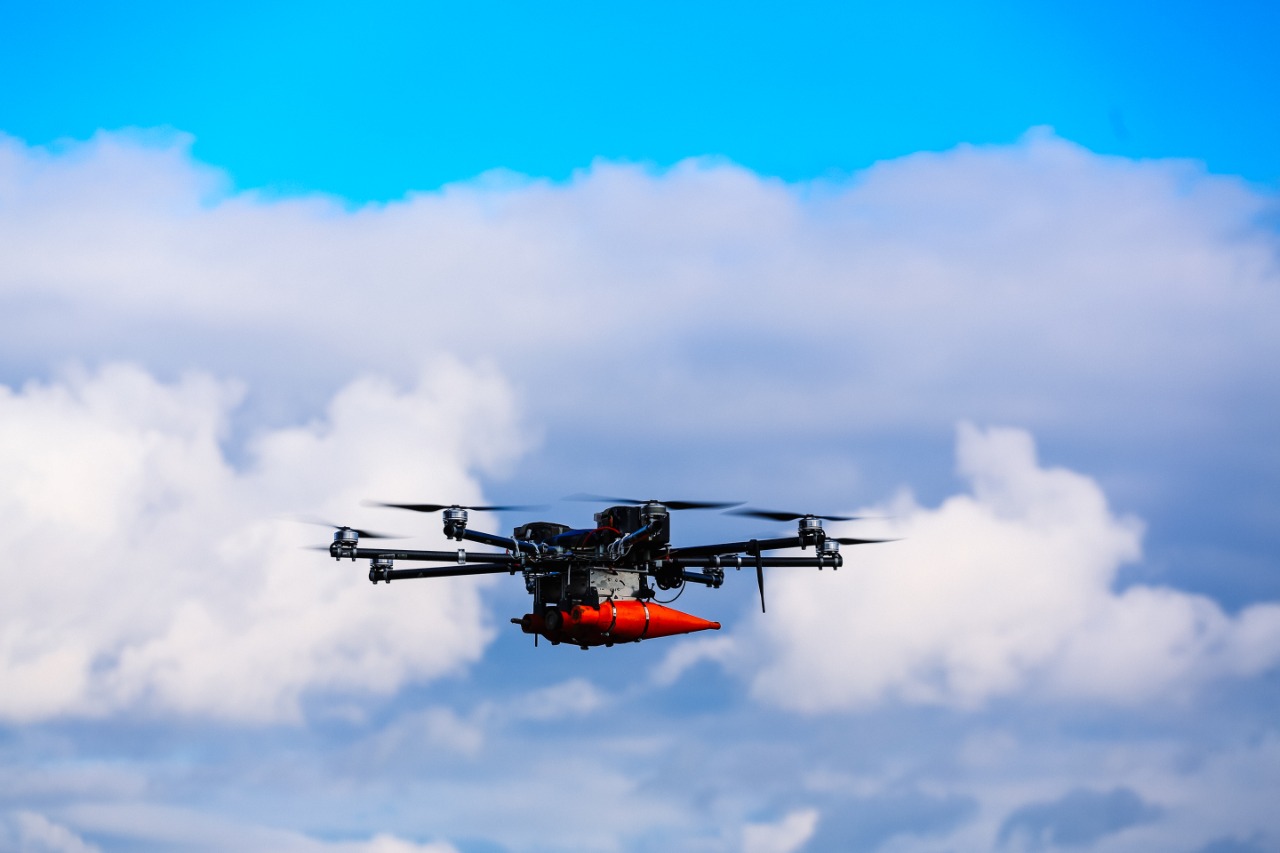

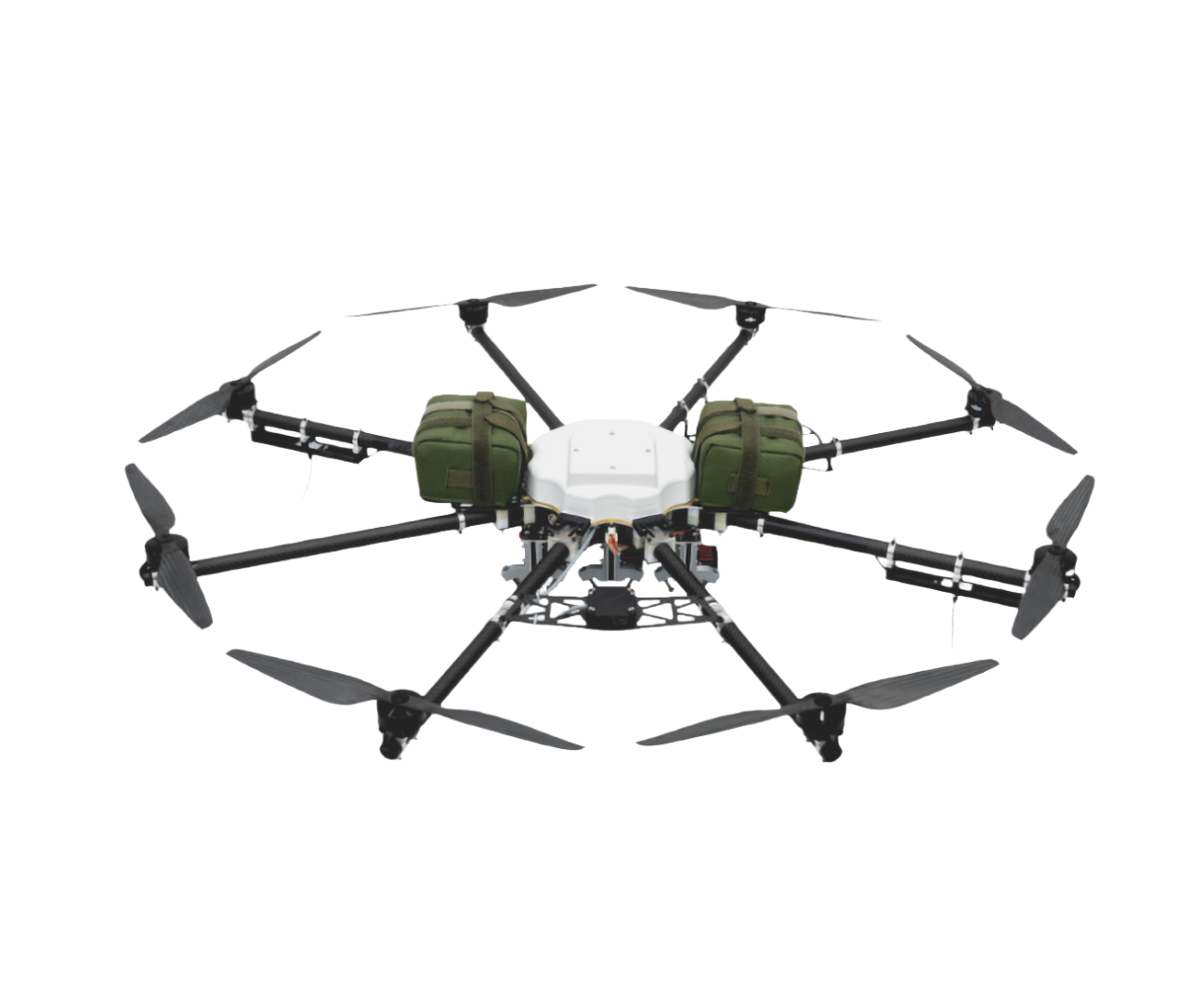

The R18 is a drone designed for both military and civilian use. This octocopter can be employed for surveillance and reconnaissance, cargo delivery, or strike missions.
Product descripton: R-18 UAV by FRDM Group
The R-18 is the first Ukrainian reusable strike multi-rotor drone, designed for high-precision operations in modern warfare. It became one of the first practical solutions that provided the Armed Forces of Ukraine with the ability to precisely strike targets from the air since 2018.
Designed to destroy enemy armored vehicles and manpower, as well as for remote mining in the dark.
Technical specifications
| Parameter | Value |
|---|---|
| Application Level | Tactical |
| Take-off Weight (with payload) | 11.6 kg (14.6 kg) |
| Cruising Speed | 12 m/s |
| Maximum Flight Speed | 20 m/s |
| Cruising / Tactical Altitude | 100 m |
| Maximum Flight Altitude | up to 1000 m |
| Minimum Safe Flight Altitude | 100 m |
| Route Length per Mission | up to 20 km |
| Flight Time | up to 50 min |
| Supply Voltage | 24 V DC |
| Battery Type | Li-Ion |
| Launch Method | Transport and launch container |
| Landing Method | Manual (by hand) |
| Permissible Wind Load (Flight) | up to 10 m/s |
| Maximum Headwind at Start | up to 8 m/s |
| Maximum Vertical Speed | 2.5 m/s |
| Operating Temperature Range | −15 to +40 °C |
| Backup Control Channel | Yes |
| Pre-flight Preparation Time | up to 20 min |
