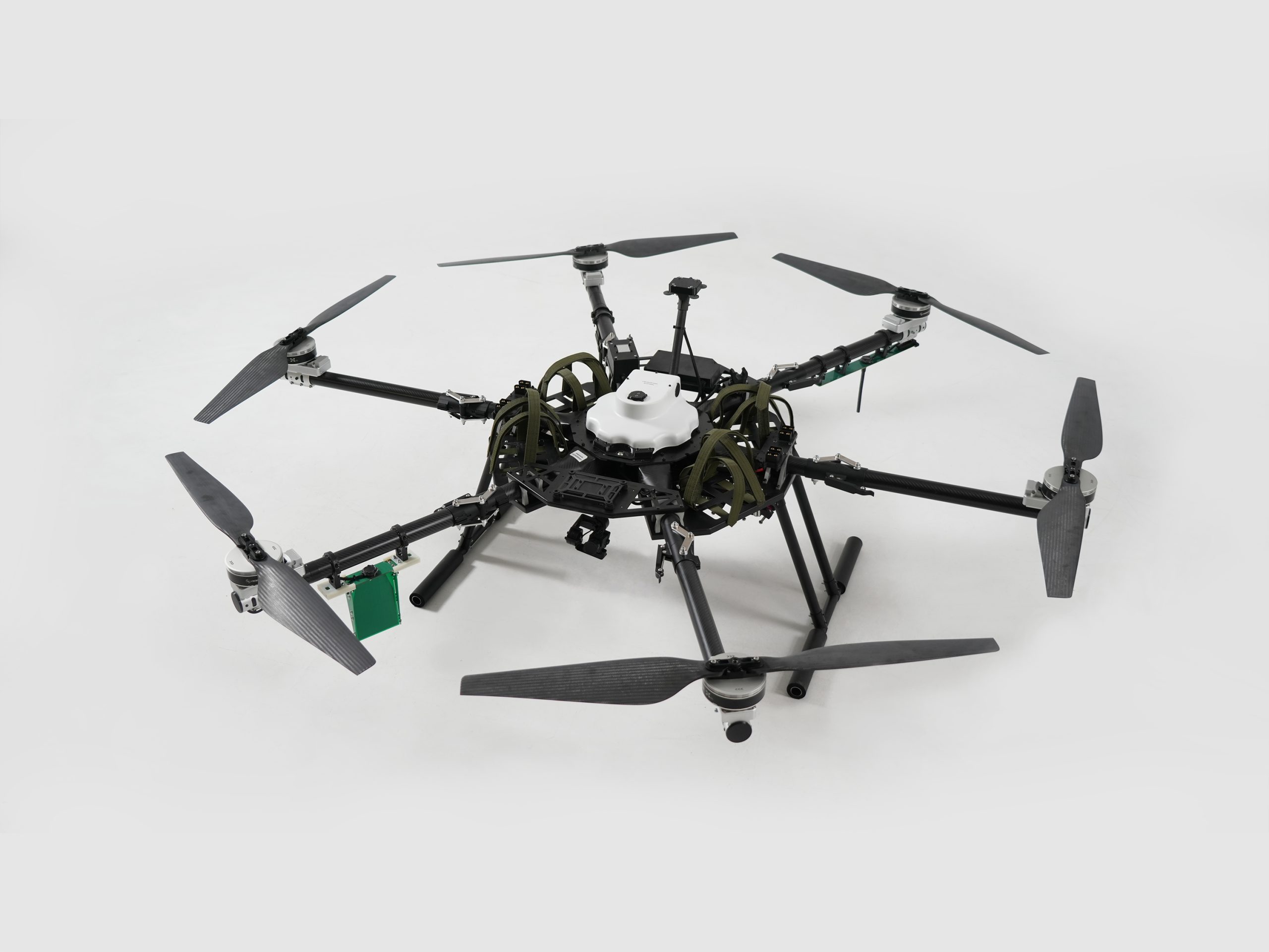

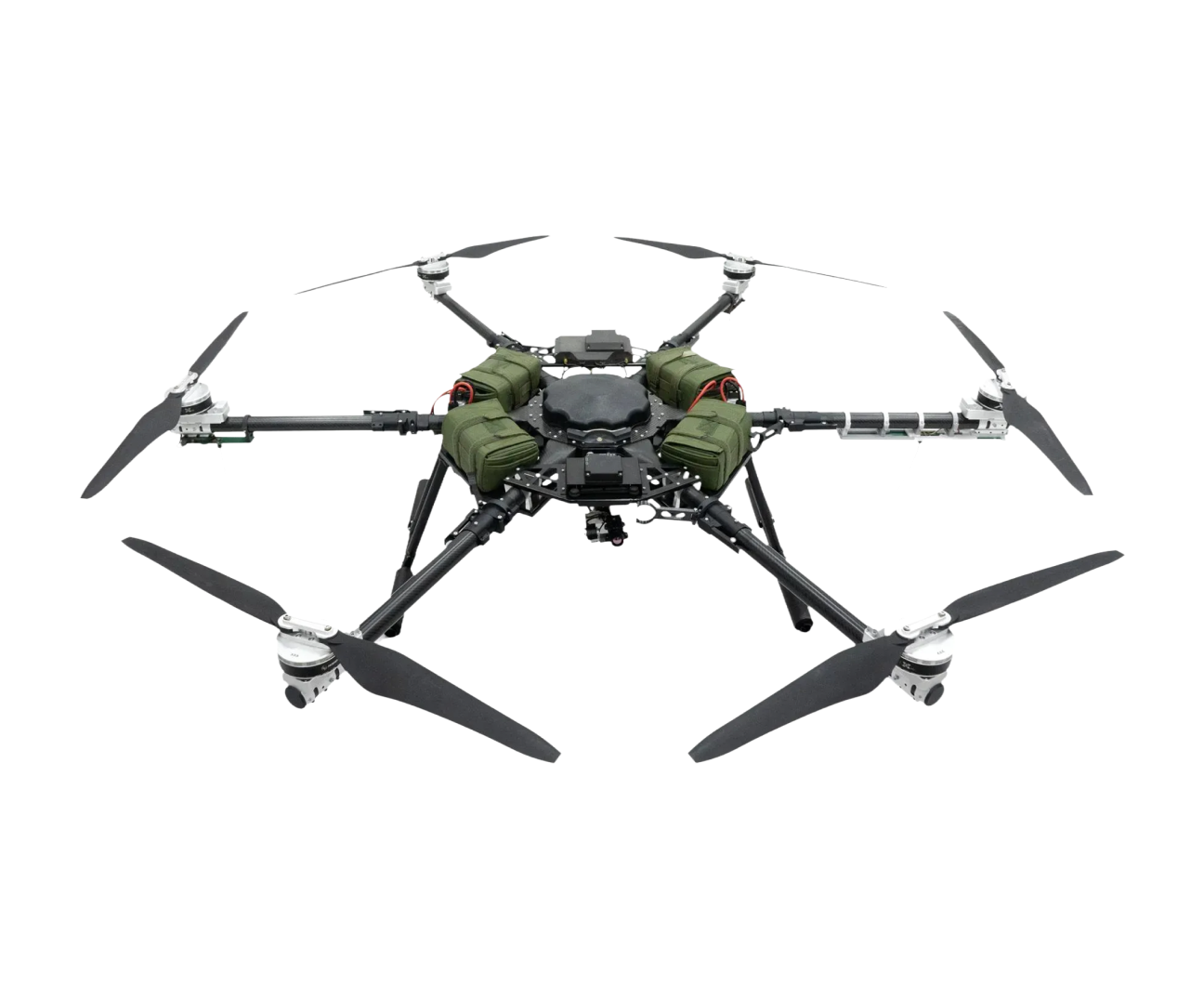

R-34 UAV
The R-34 is a strike UAV designed to destroy armored vehicles and fortified positions, and to conduct remote mining operations in low-visibility conditions. It carries heavier payloads than comparable platforms in its class.
Product descripton: R-34 UAV by FRDM Group
R-34 is a high-quality multi-purpose UAV designed to perform combat missions of varying complexity to temporarily destroy enemy manpower, armored vehicles, mobile and stationary technical equipment in conditions of sustained suppression of communication channels and satellites.
In addition to its primary purpose, the UAV system can be used for remote mine deployment, performing logistical tasks, or serving as a carrier for a relay repeater or other payloads. The system includes all necessary components that allow for immediate mission execution without additional investment, supplementary equipment, or complex configuration.
Our Advantages
- Works out of the box – no field upgrades required
- Rapid deployment
- Universal 6-point release system
- Resistant to electronic warfare, capable of operating without geographical restrictions
- Up to 40 km maximum flight range
- Up to 20 kg maximum payload weight
- Individual training
- 24/7 technical support and fast service
Technical specifications
| Parameter | Value |
|---|---|
| Platform Weight | 43.8 kg |
| Load Capacity | 15 kg |

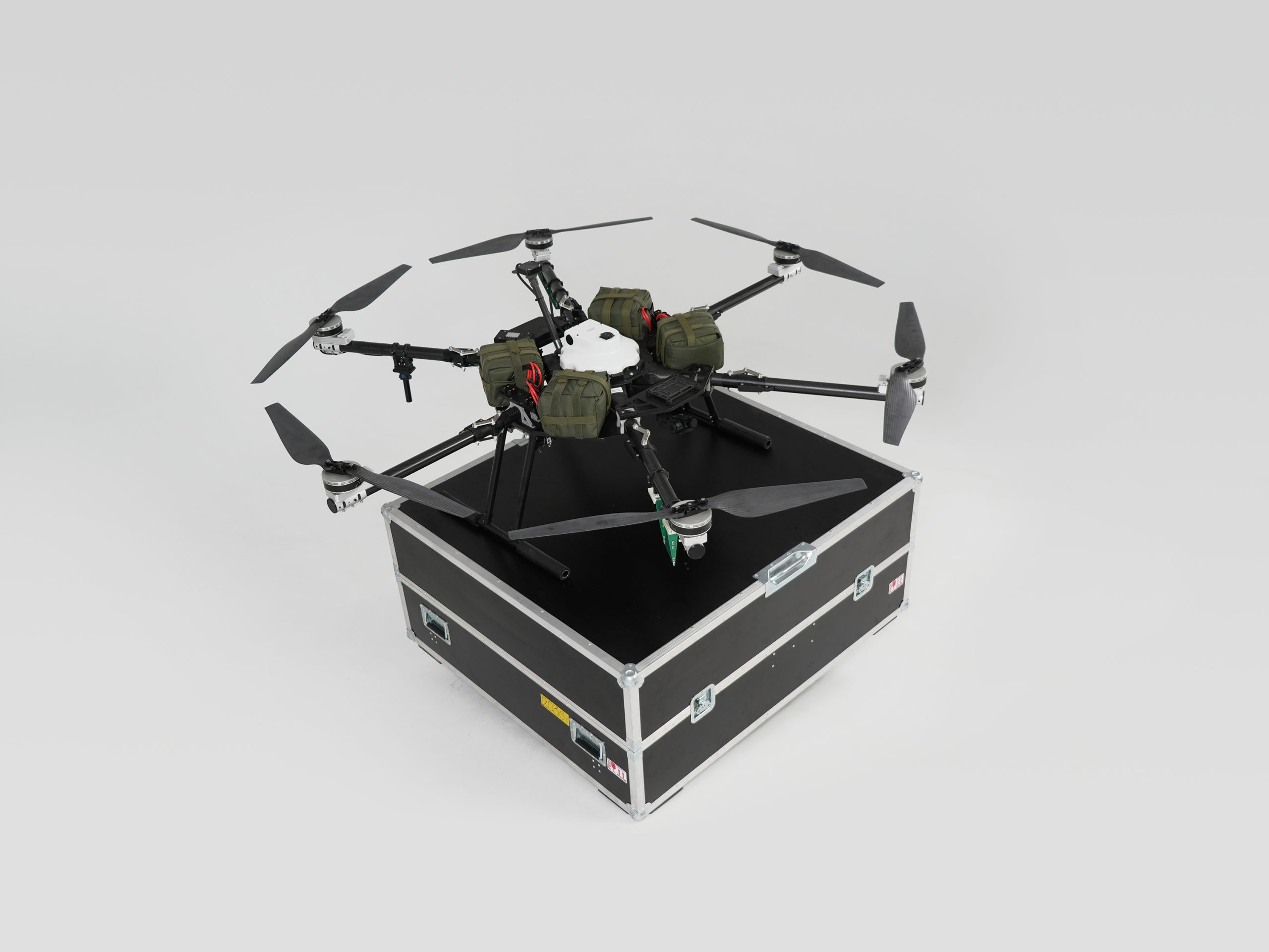

| Transport Dimensions | 1260 × 1320 × 530 mm |
| Recommended Range | 15 km |
| Optimal Speed | 20 m/s |
| Cruising Speed | 15 m/s |
| Maximum Flight Altitude | Up to 1000 m |
| Permissible Wind Load | Up to 10 m/s |
Technical Specifications — R-34 UAV (Mk2)
| Parameter | Value (Technical / Confirmed) |
|---|---|
| Maximum Flight Range (round trip) | 20 km (15 kg payload) / 30 km (9 kg) / 40 km (6 kg) / Confirmed: 25 km round trip with 7 kg payload |
| Flight Time | up to 60 min |
| Maximum Flight Altitude | 1000 m / confirmed: over 3000 m |
| Operating Altitude | 80–150 m / confirmed: 40–300 m |
| Minimum Safe Flight Altitude | 50 m / confirmed: 5 m (clear radio horizon) |
| Cruising Speed | 54 km/h (15 m/s) |
| Maximum Flight Speed | 75 km/h (20.8 m/s) / brief peaks: 25–30 m/s |
| Maximum Vertical Speed | 2.5 m/s / up to 10+ m/s if required |
| Permissible Wind Load | up to 10 m/s |
| Maximum Payload | 15 kg / confirmed: up to 20 kg |
| Weapon Stations | 1–6 |
| Maximum Take-off Weight | 63.6 kg |
| Supply Voltage | 44.4–51.8 V DC |
| Battery Type | 4× Li-Ion (22.2–25.9 V, ≥1.25 kWh) |
| Communication Range | 15 km / confirmed: 40+ km |
| Navigation | Jam-resistant GNSS |
| Launch Method | From chassis |
| Landing Method | On chassis |
| Operating Temperature | −20 to +40 °C |
| Pre-flight Preparation Time | up to 10 min |
| Weapon Integration Time | up to 5 min / confirmed: 1 min |
| Deployment/Collapse Time | up to 10 min / 10 min |
| Warranty | 1 year or 80 cycles |
| Service Life | up to 75 flight hours |
